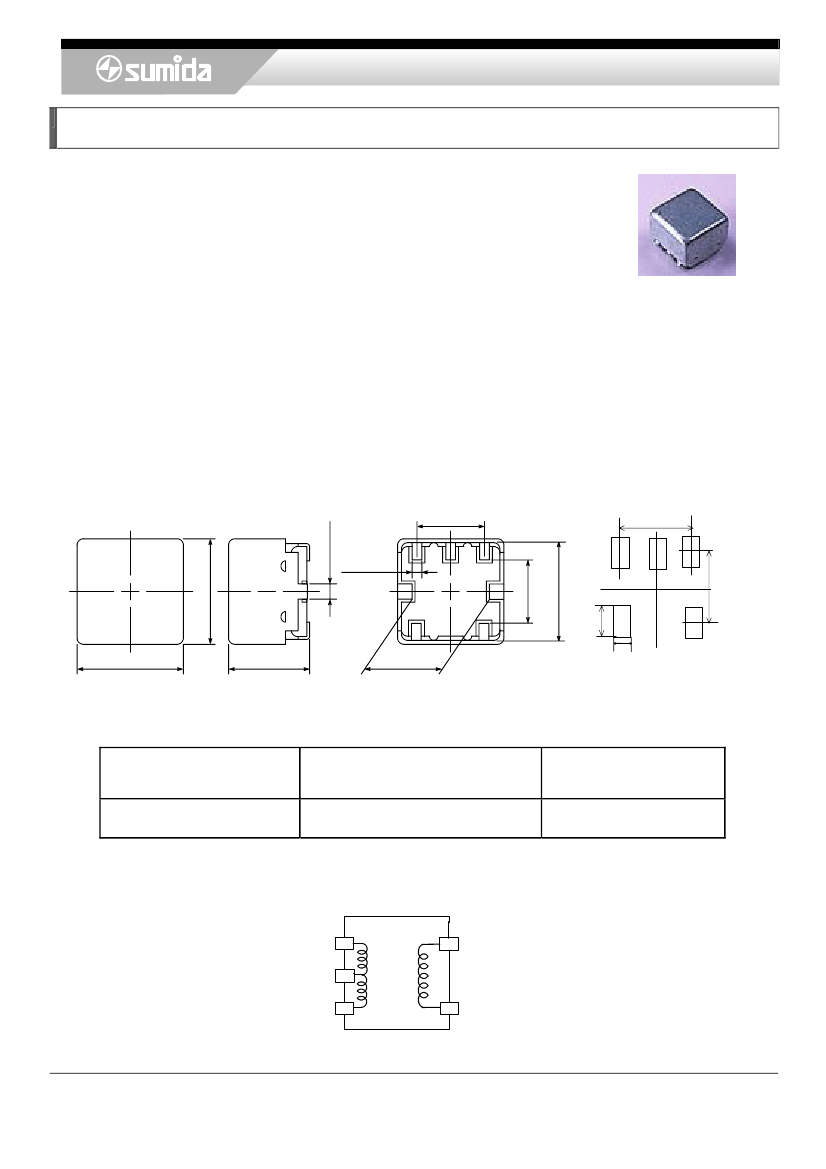

General Power Transformer <SMD Type: CM Series>
Type: CM-5
◆
Product Description
・5.9×5.9mm
Max.(L×W), 5.0mm Max. Height.
・Inductance
range: 10μH∼5.6mH.
・Rated
current range: 21mA∼490mA.
・5
Terminal pins’ type gives a flexible design as inductors or transformers.
・Custom
design is available.
◆
Featurex
・Magnetically
shielded construction.
・Ideally
used in Notebook PC, LCD TV,DVD, Game machine, STB , Projector, Power supply
module etc as DC-DC Converter inductors or transformers.
・RoHS
Compliance.
◆
Dimensions (mm)
0.7±0.15
◆
Land Pattern (mm)
3.5±0.2
3.5
5.6±0.3
3.5±0.5
＋0.5
5.2−0.2
0.5±0.1
4.4
2.0
10
.
5.6±0.3
4.6±0.4
4.0±0.5
◆
Specification (for transformers)
Sample No.
6301-T005
Inductance (6-4)
100KHz/0.1V
100µH
+40％
-20％
Rate Current(6-4)
(mA)※1
135
※
Schematics (Bottom)
“ S” is winding start.
S
S
3
2
1
4
6
S
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
General Power Transformer <SMD Type: CM Series>
Type: CM-5
◆
Specification (for inductors)
Part Name
※
CM5NP-100□
CM5NP-120□
CM5NP-150□
CM5NP-180□
CM5NP-220□
CM5NP-270□
CM5NP-330□
CM5NP-390□
CM5NP-470□
CM5NP-560□
CM5NP-680□
CM5NP-820□
CM5NP-101□
CM5NP-121□
CM5NP-151□
CM5NP-181□
CM5NP-221□
CM5NP-271□
CM5NP-331□
CM5NP-391□
CM5NP-471□
CM5NP-561□
CM5NP-681□
CM5NP-821□
CM5NP-102□
CM5NP-122□
CM5NP-152□
CM5NP-182□
CM5NP-222□
CM5NP-272□
CM5NP-332□
CM5NP-392□
CM5NP-472□
CM5NP-562□
Inductance
(Tolerance +40%,
-20%)[Within½
10μH
12µH
15µH
18µH
22µH
27µH
33µH
39µH
47µH
56µH
68µH
82µH
100µH
120µH
150µH
180µH
220µH
270µH
330µH
390µH
470µH
560µH
680µH
820µH
1.0 mH
1.2 mH
1.5 mH
1.8 mH
2.2 mH
2.7 mH
3.3 mH
3.9 mH
4.7 mH
5.6 mH
D.C.R.(Ω)
[Max.](at 20℃)
0.2
0.25
0.25
0.3
0.3
0.35
0.4
0.45
0.5
0.55
0.6
0.7
0.75
0.95
1.25
1.5
1.7
1.9
2.45
3.15
3.65
4.2
4.5
6.9
10
10.5
13
18
22
24
27.5
31
32
36
Rate Current
(mA)※2
490
460
415
375
305
280
270
245
215
210
190
160
150
140
130
115
105
95
90
80
75
65
60
55
50
45
40
40
35
30
30
25
24
21
S
Measuring
Frequency
2.52 MHz
1 kHz
※
Description of part name
CM5NP-100□
B Box
C Carrier Tape
※
Schematics (Bottom)
3
2
1
6
4
“ S” is winding start.
※1.Rated
current: The D.C. current at which the inductance decreases to 90% of it’s initial value or when
△t=40℃,
whichever is lower(Ta=20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
