51732-028LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51732-028LF

51732-028LF: DescriptionBoard Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size162KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51732-028LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51732-028LF	-	-	View	Buy Now

51732-028LF Overview

Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51732-028LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Other features	TERMINAL PITCH FOR POWER CONTACT: 6.35 MM
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	2.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S20P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51732
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

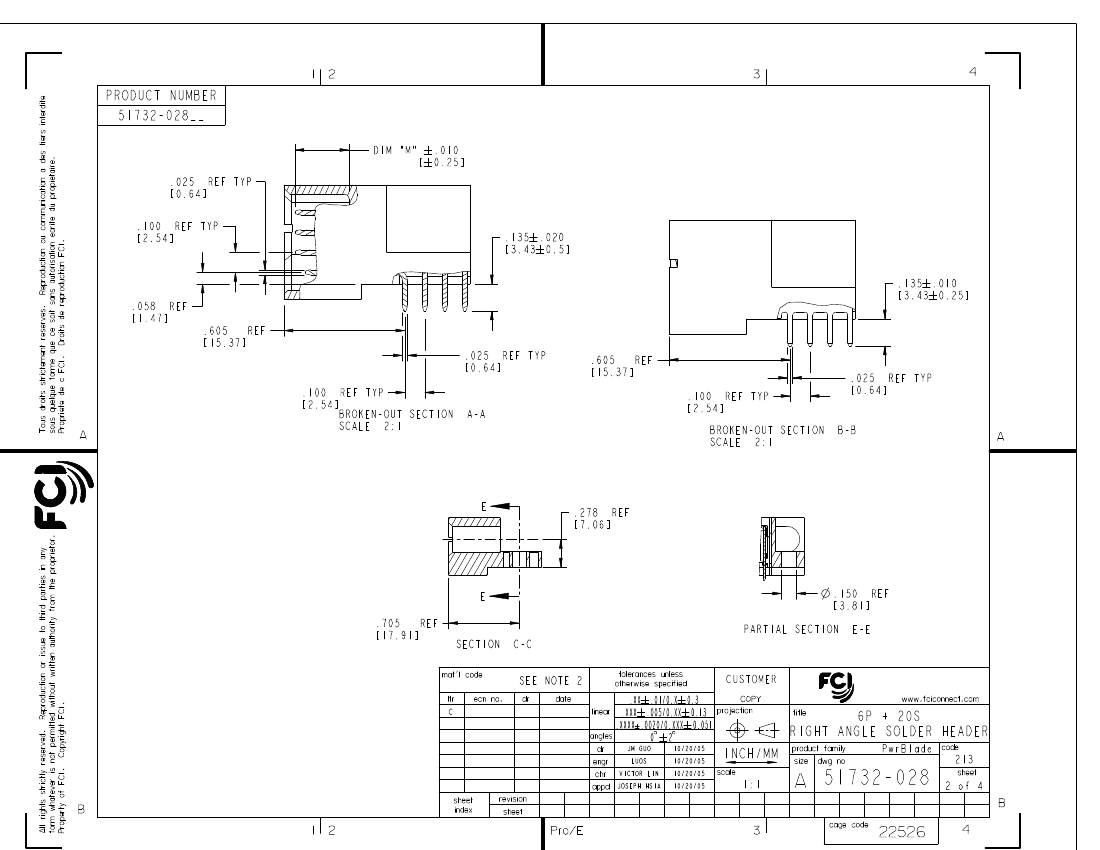

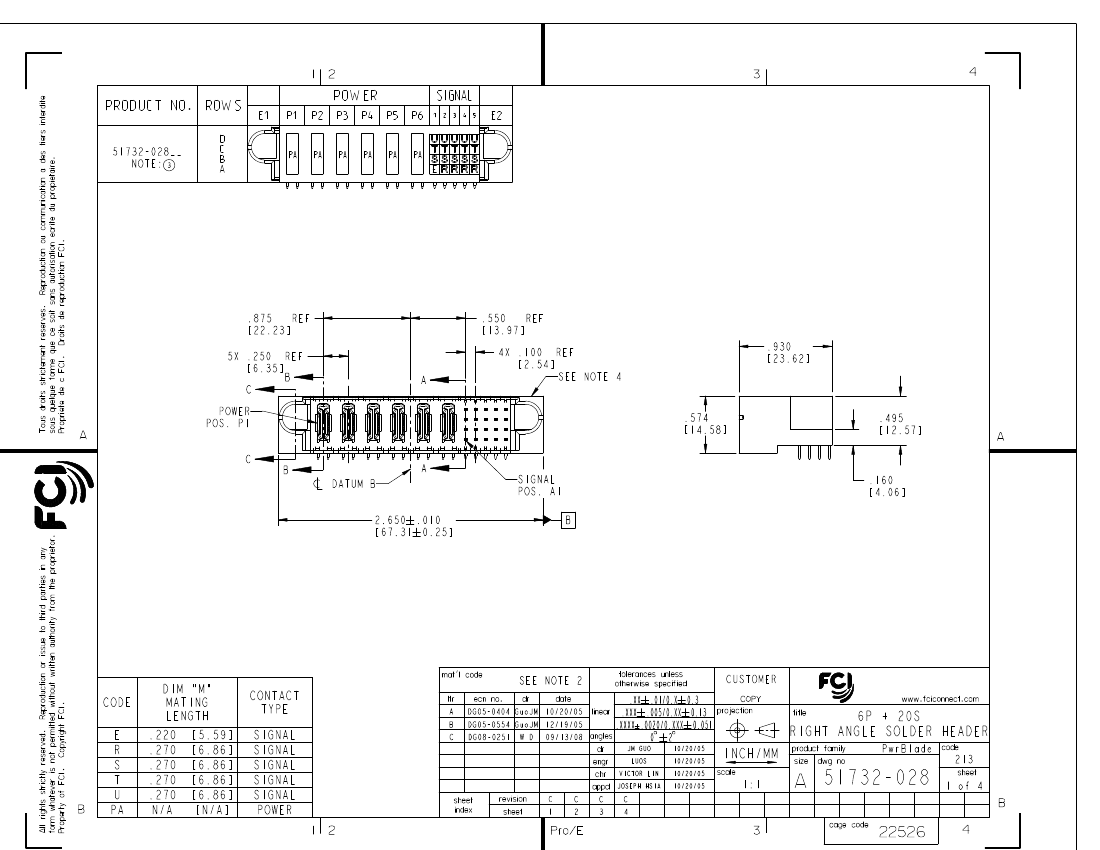

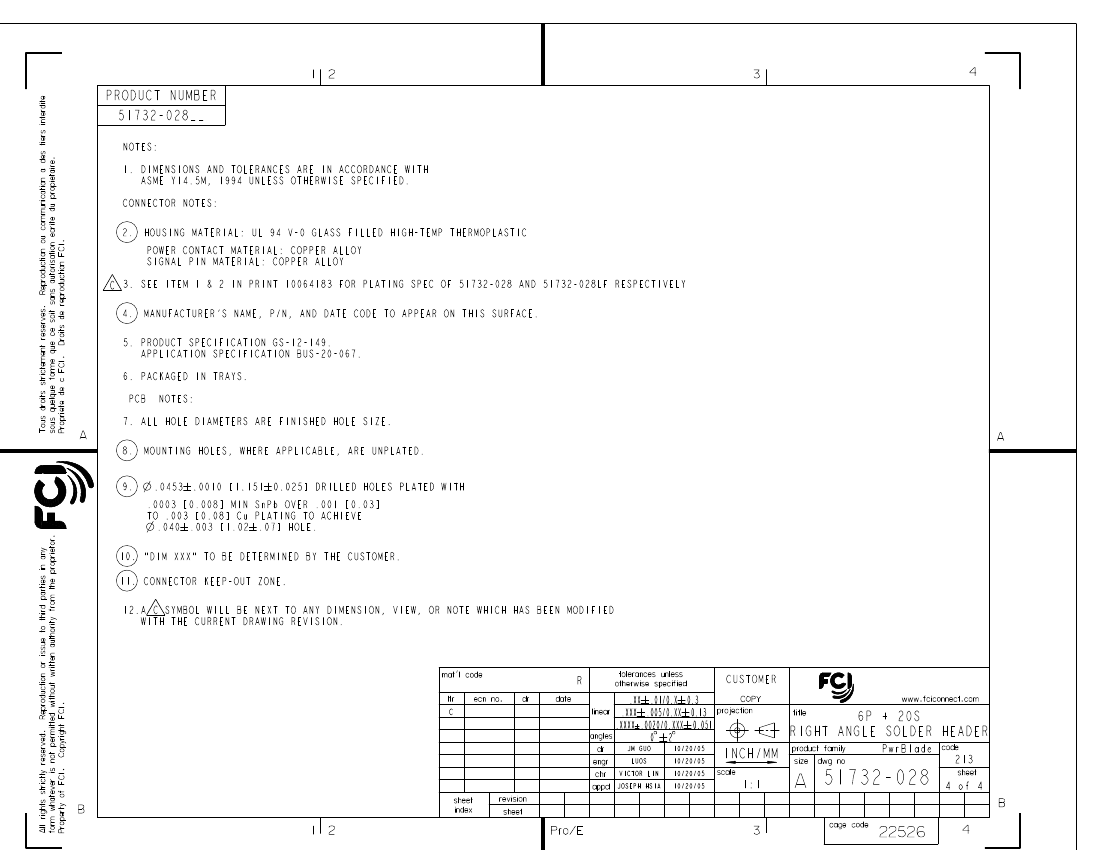

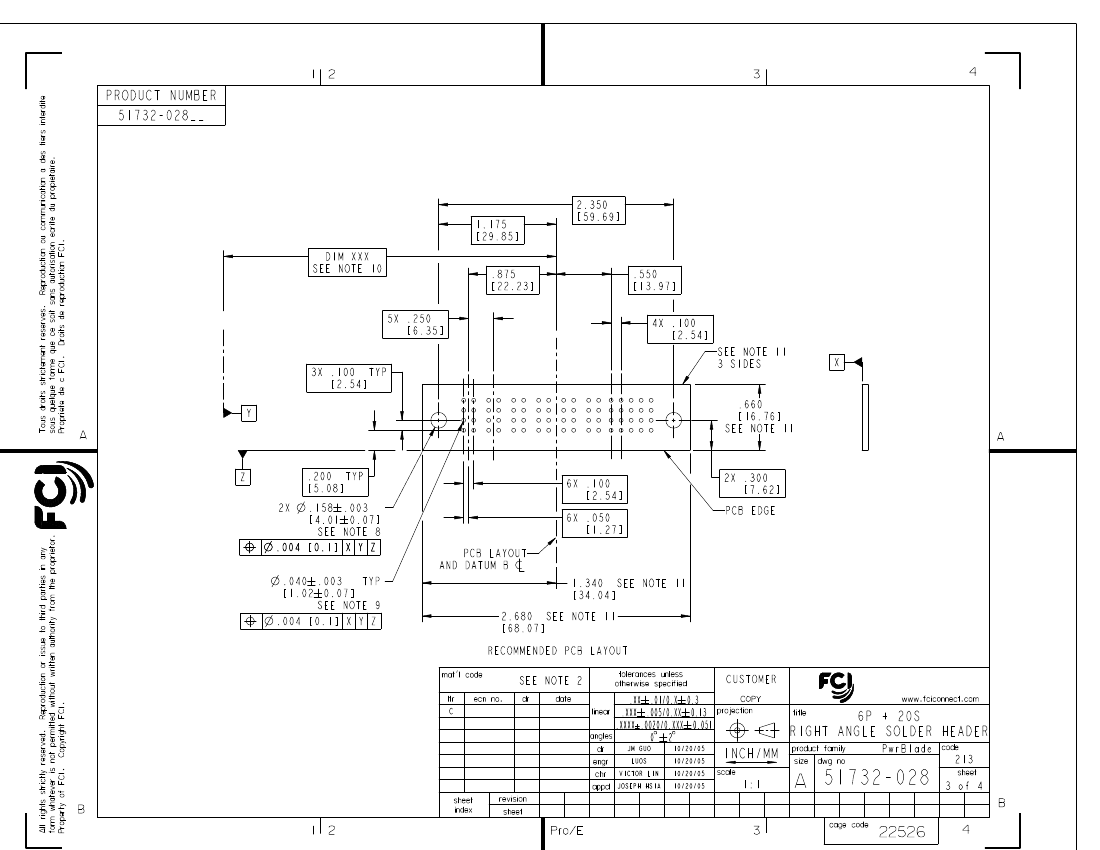

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Dec 20, 2010

51732-028LF Related Products

	51732-028LF	51732-028-LF	51732-028
Description	Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, LEAD FREE	Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACT: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACT: 6.35 MM
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	51732	51732	51732
Mixed contacts	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	26	26	26
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
Is it Rohs certified?	conform to	-	incompatible
package instruction	LEAD FREE	LEAD FREE	-
ECCN code	EAR99	-	EAR99
Board mount options	HOLE .138-.163	-	HOLE .138-.163
body width	0.574 inch	-	0.574 inch
subject depth	0.93 inch	-	0.93 inch
body length	2.65 inch	-	2.65 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
Contact arrangement	S20P6	-	S20P6
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
Contact resistance	20 mΩ	-	20 mΩ
Contact style	HYBRID	-	HYBRID
Dielectric withstand voltage	2500VDC V	-	2500VDC V
Durability	200 Cycles	-	200 Cycles
maximum insertion force	.973 N	-	.973 N
Insulation resistance	500000000 Ω	-	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	-	GLASS FILLED THERMOPLASTIC
Installation option 1	LOCKING	-	LOCKING
Number of connectors	ONE	-	ONE
Maximum operating temperature	105 °C	-	105 °C
Minimum operating temperature	-55 °C	-	-55 °C
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Terminal length	0.135 inch	-	0.135 inch
Evacuation force-minimum value	.1668 N	-	.1668 N
