82S141/BJA datasheet, PDF - EEWORLD Datasheet

82S141/BJA: DescriptionOTP ROM, 512X8, 90ns, TTL, CDIP24,; Categorystorage storage; File Size74KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

82S141/BJA Overview

OTP ROM, 512X8, 90ns, TTL, CDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
Maximum access time	90 ns
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	OTP ROM
memory width	8
Number of terminals	24
word count	512 words
character code	512
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	512X8
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum slew rate	0.165 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

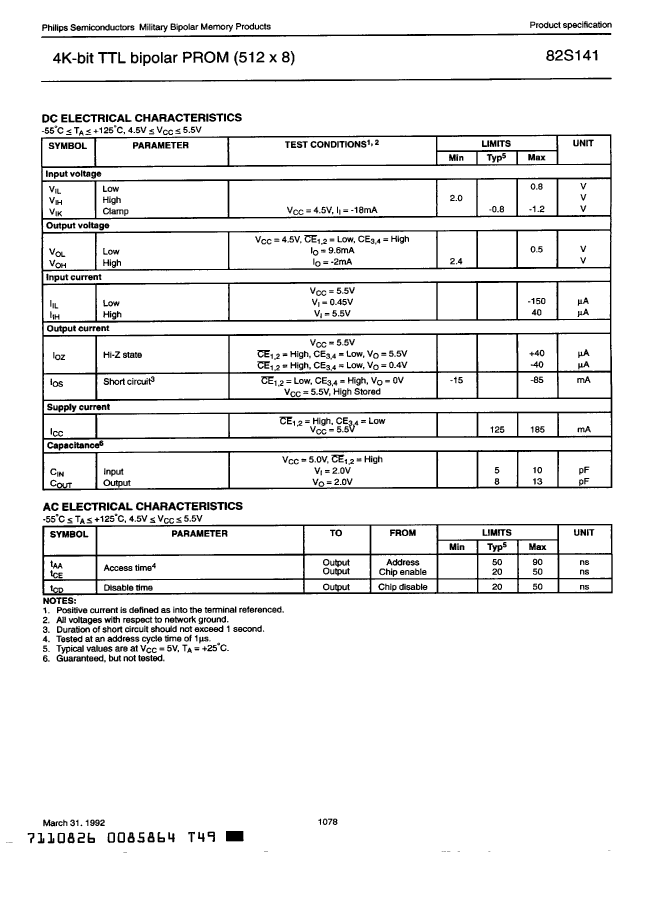

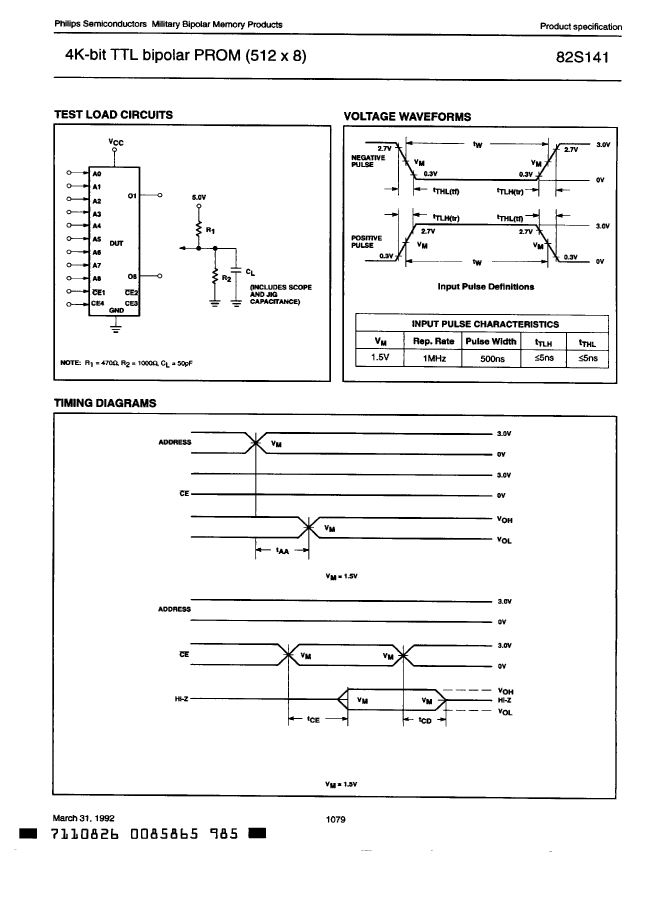

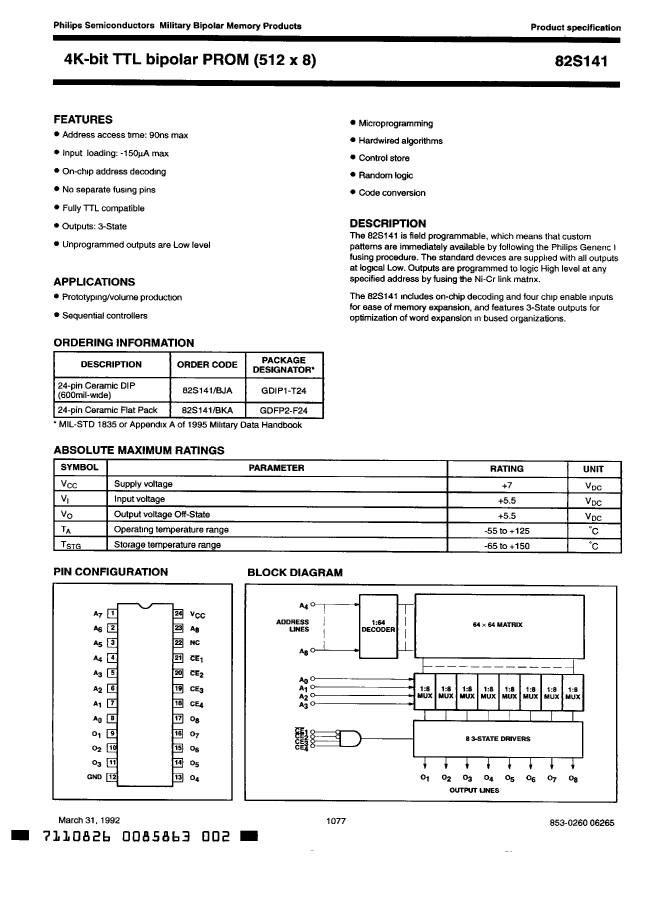

This Material Copyrighted By Its Respective Manufacturer

	82S141/BJA	82S141/BKA
Description	OTP ROM, 512X8, 90ns, TTL, CDIP24,	OTP ROM, 512X8, 90ns, TTL, CDFP24,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP24,.6	DFP, FL24,.4
Reach Compliance Code	unknown	unknown
Maximum access time	90 ns	90 ns
JESD-30 code	R-XDIP-T24	R-XDFP-F24
JESD-609 code	e0	e0
memory density	4096 bit	4096 bit
Memory IC Type	OTP ROM	OTP ROM
memory width	8	8
Number of terminals	24	24
word count	512 words	512 words
character code	512	512
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	512X8	512X8
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP24,.6	FL24,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum slew rate	0.165 mA	0.165 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
