51732-045LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51732-045LF

51732-045LF: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size228KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51732-045LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51732-045LF	-	-	View	Buy Now

51732-045LF Overview

Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51732-045LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35
Board mount options	HOLE .086-.098
body width	0.574 inch
subject depth	0.93 inch
body length	2.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S20P4
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

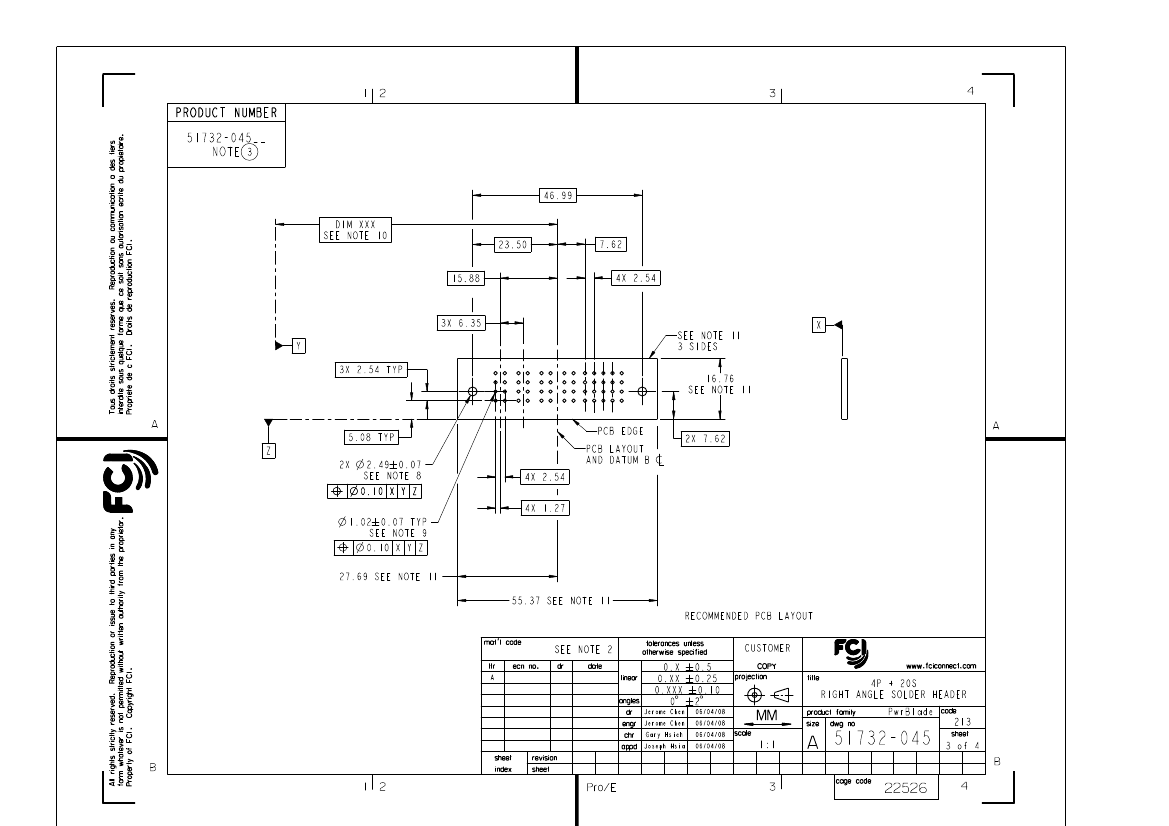

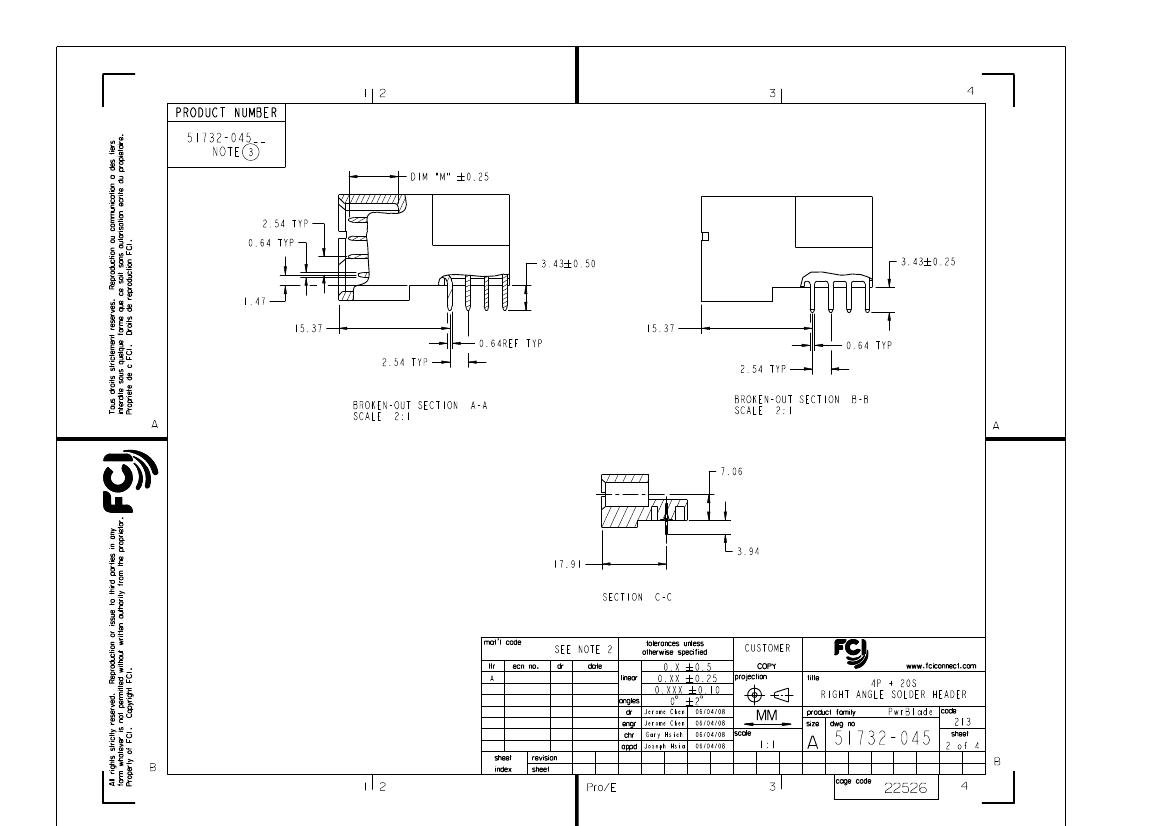

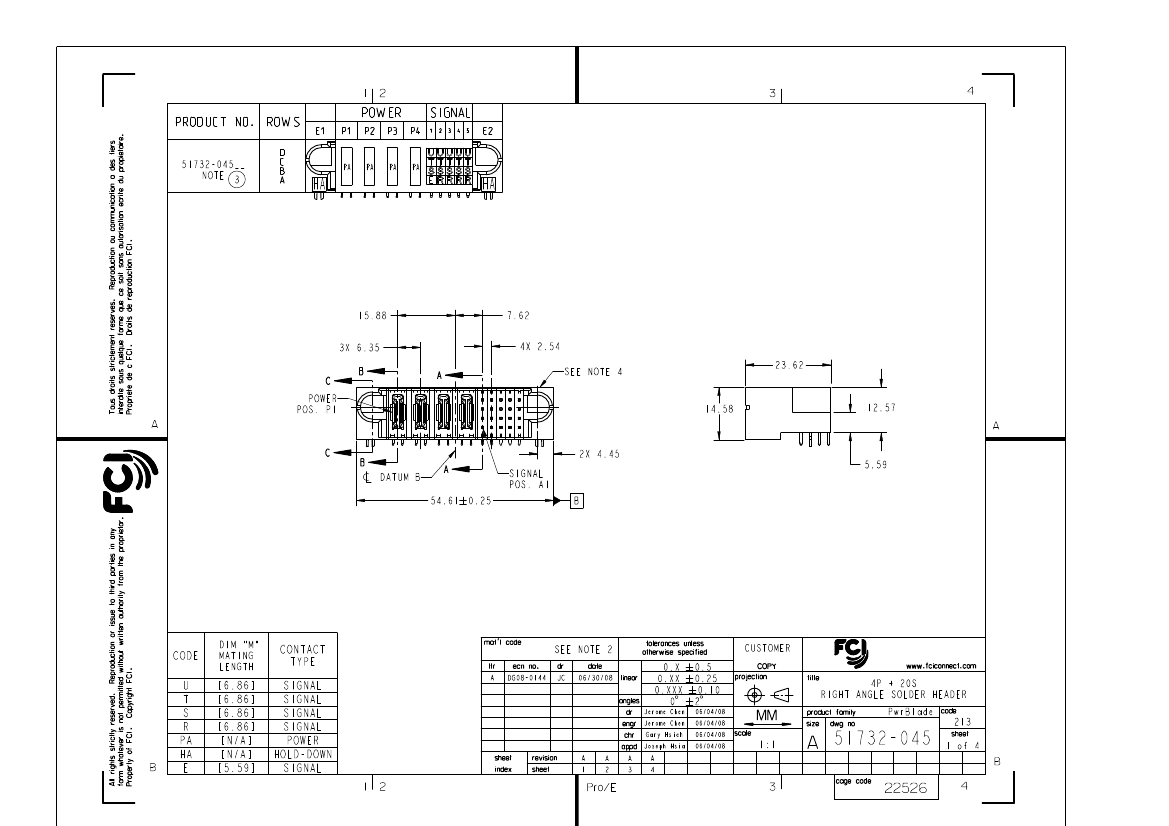

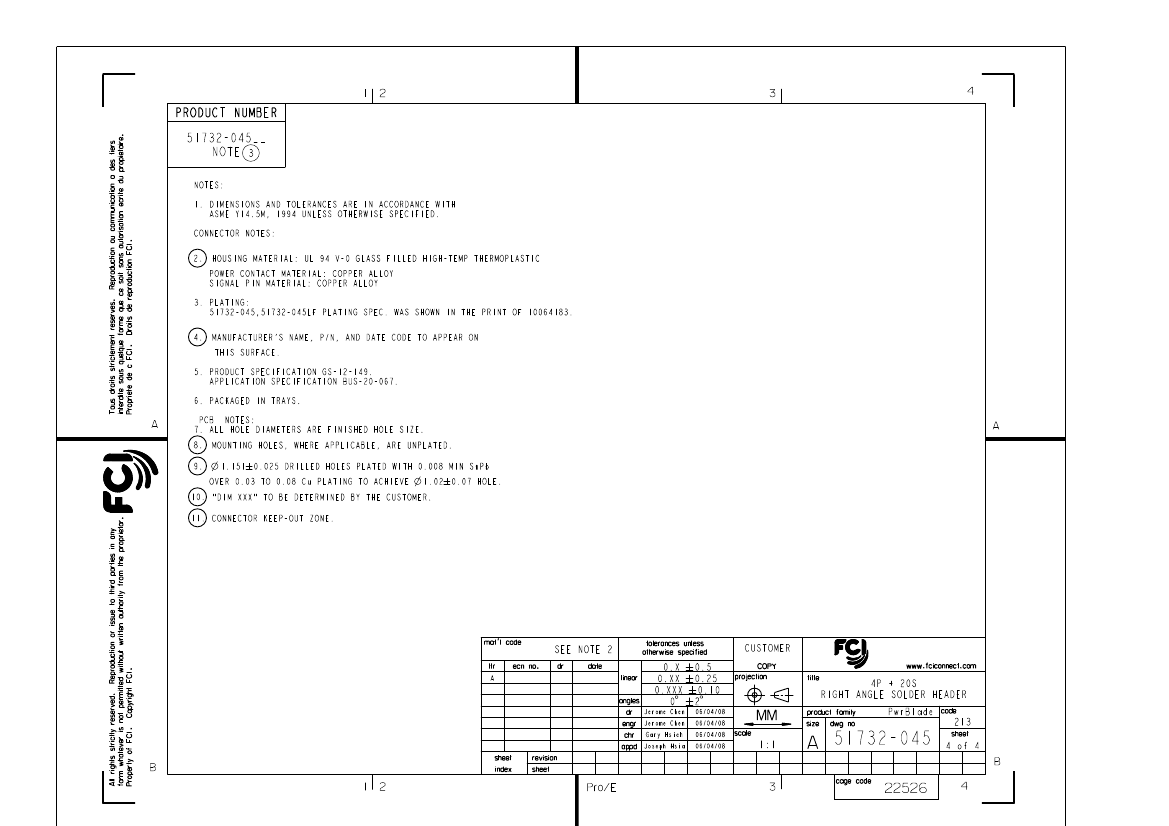

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

51732-045LF Related Products

	51732-045LF	51732-045
Description	Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	incompatible
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35	TERMINAL PITCH FOR POWER CONTACTS: 6.35
Board mount options	HOLE .086-.098	HOLE .086-.098
body width	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch
body length	2.15 inch	2.15 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S20P4	S20P4
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	24	24
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
