52544-311 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52544-311

52544-311: DescriptionBoard Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52544-311 Overview

Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal

52544-311 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL
Contact completed and terminated	TIN LEAD (315) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	52544
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

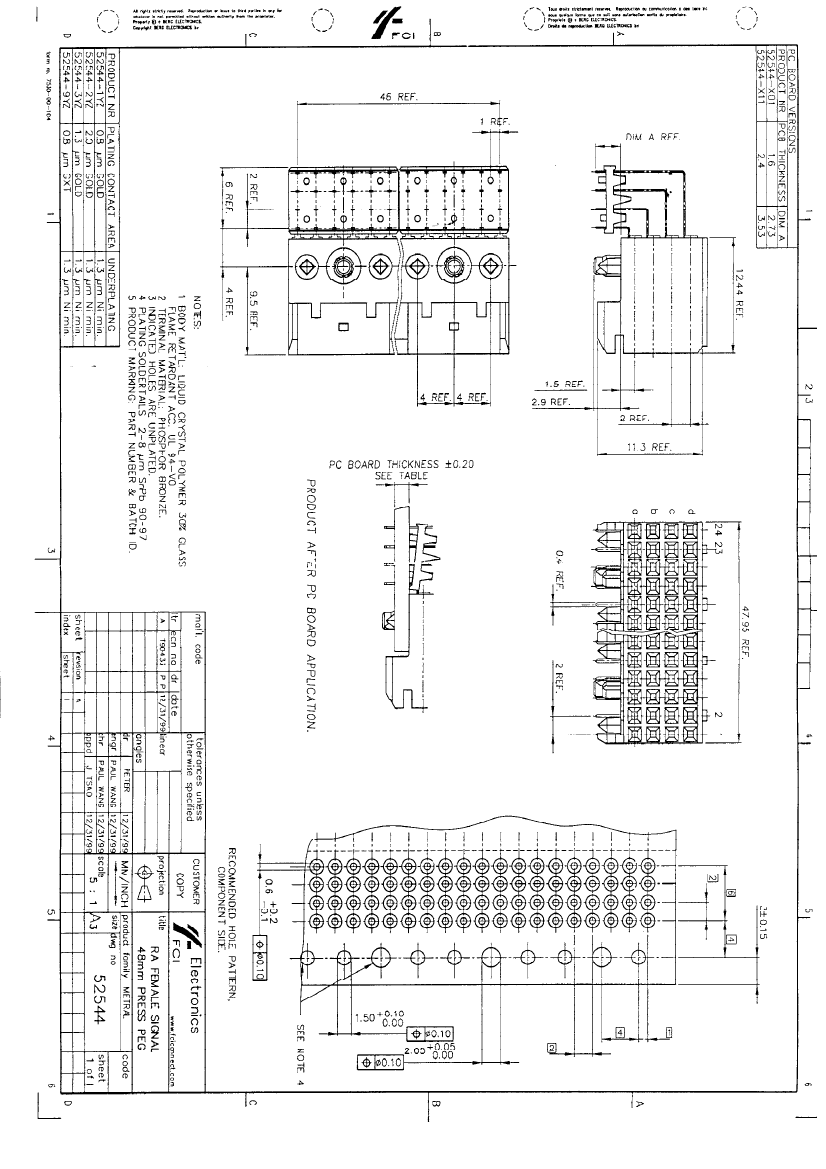

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: May 19, 2011

52544-311 Related Products

	52544-311	52544-911	52544-101	52544-111	52544-201	52544-211	52544-301	52544-901
Description	Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal,	Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL	GOLD FLASH (31) OVER PALLADIUM NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (79) OVER NICKEL	GOLD (79) OVER NICKEL	GOLD (51) OVER NICKEL	GOLD FLASH (31) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (315) OVER NICKEL	TIN LEAD (315) OVER NICKEL	TIN LEAD (315) OVER NICKEL	TIN LEAD (315) OVER NICKEL	TIN LEAD (315) OVER NICKEL	TIN LEAD (315) OVER NICKEL	TIN LEAD (315) OVER NICKEL	TIN LEAD (315) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	96	96	96	96	96	96	96	96
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
JESD-609 code	e0	e0	-	e0	e0	e0	e0	e0
Manufacturer's serial number	52544	52544	-	52544	52544	52544	52544	52544
Base Number Matches	1	-	1	1	1	1	1	1
