DeviceNet Micro-Style Connectors
CM02B Series(Overmolded Cable Assembly)
Conforming
Standard
DeviceNet
◆ OUTLINE

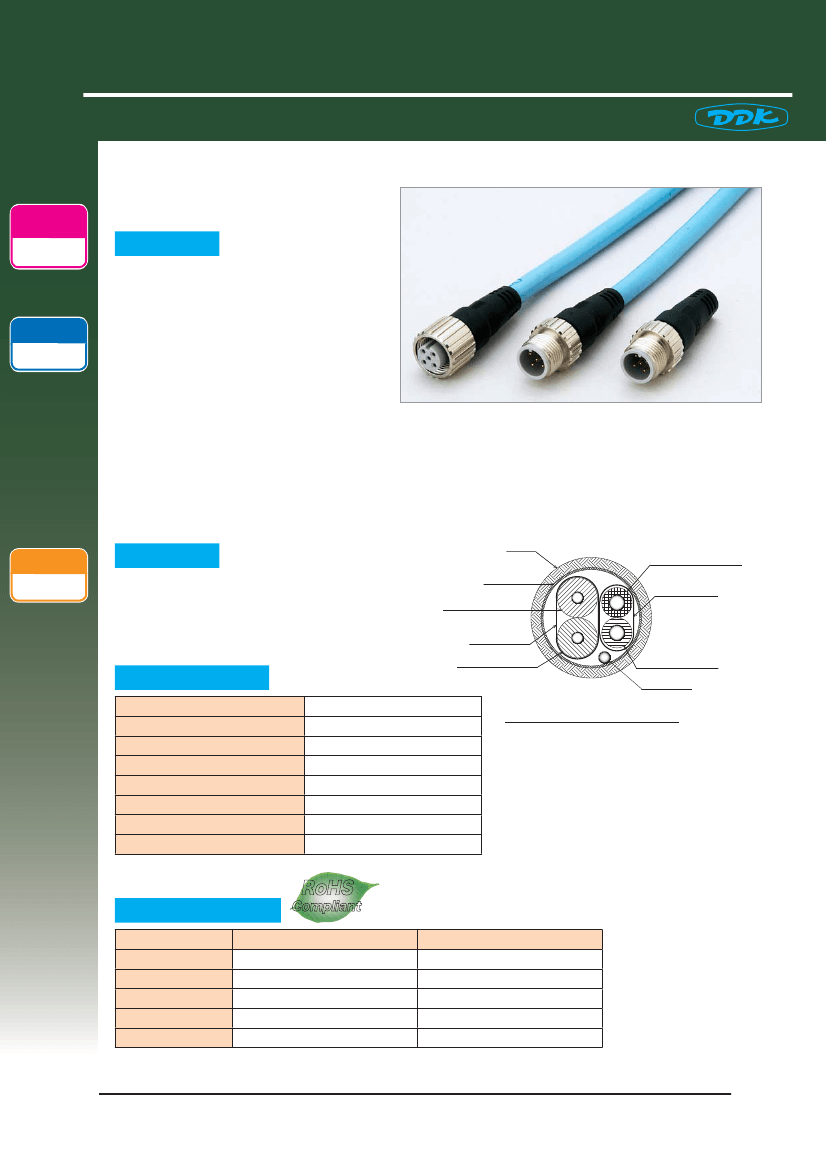

CM02B series is a overmolded cable
assembly which is in accordance with
DeviceNet Micro-style, an official standard
Wa t e r p r o o f
IP 67
o f O D VA ( O p e n D e v i c e N e t Ve n d o r
Association, lnc.).The connectors are
provided with a premating contact which
is a first make-last break contact to
protect the circuit.
When mated, the premating contact is connected first before the other contacts and is detached
last when dismated. CM02B series will be supplied by the style of the cable assemblies in order
for you to eliminate the termination job. The cable assemblies for power are also available from
our product line.
Lock Type
Threaded
Coupling
◆ FEATURES
・Intermateable with CM02B series
・Rated for IP67 for environments
・Solder termination style
Jacket
DC Power lnsulation
Color:Black
(AWG22)
Braid Shield
AL/MY Shield
Data Insulation
Color:White
(AWG24)
AL
/
MY Shield
Data Insulation
Color:Blue
(AWG24)
DC Power lnsulation
Color:Red
(AWG22)
Drain Wire
◆ SPECIFICATIONS
Rated Current
Rated Voltage
Dielectric Withstanding Voltage
Insulation Resistance
Operating Temperature Range
Waterproof
Pin Contact Size
No. of Contacts
3A/Contact
125V DC
DeviceNet Thick Cable
1,500V AC(r.m.s.) for 1 minute
100 ΜΩ Min. at 500V DC
-20℃ to +70℃
IP67 when mated
φ 1.0 mm
5
RoHS
◆ MATERIAL/FINISH
Item
Contact
Insulator
Coupling Ring
O Ring
Overmolding Resin
Compliant
Compliant
Plug
Jack
Copper Alloy / Gold Plating
Synthetic Resin(UL94V-0) / Gray
Zinc Alloy / Nickel Plating
Plastic(UL94V-0) / Black
Copper Alloy / Gold Plating
Synthetic Resin(UL94V-0) / Gray
Zinc Alloy / Nickel Plating
Synthetic Rubber / Black
Plastic(UL94V-0) / Black
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
090209
http://www.ddknet.co.jp
CM02B Series
Unit：mm

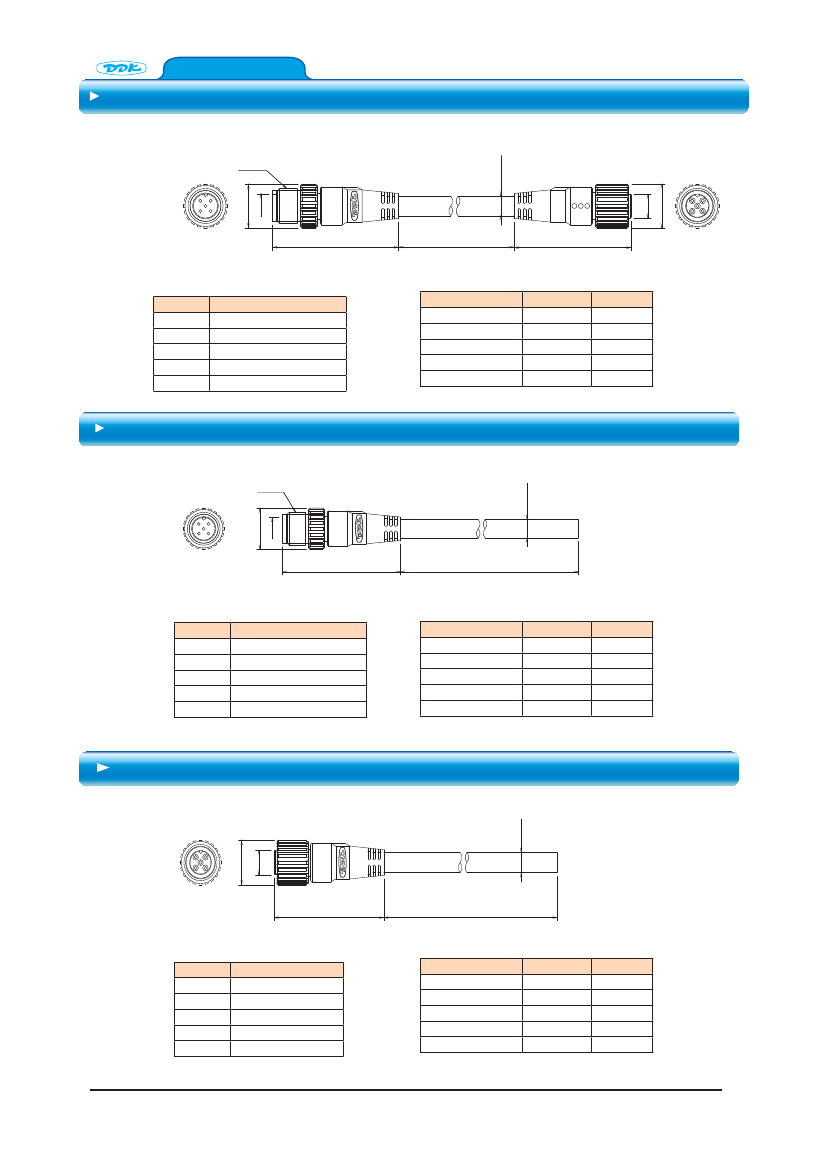

○ Double-Ended Cable Assemblies
・A plug connector with socket contacts and a jack connector with pin contacts
φ6.7
M12 1
φ15
φ8.3
φ8.1
φ15
４
１
5
１
４
43
L
40
Wiring
L
1,000
2,000
3,000
5,000
10,000
P/N
CM02BA-8DP5S-010
CM02BA-8DP5S-020
CM02BA-8DP5S-030
CM02BA-8DP5S-050
CM02BA-8DP5S-100
Number of Contacts
1
2
3
4
5
Cable Color
ー
Red
Black
White
Blue
Signal
DRAIN
V+
V-
CAN ＿ H
CAN ＿ L
○ Jack Single-Ended Cable Assemblies
・Jack connector with pin contacts
φ6.7
M12 1
φ8.3
φ15
43
L
Wiring
L
1,000
2,000
3,000
5,000
10,000
P/N
CM02B-8DJ5P-010
CM02B-8DJ5P-020
CM02B-8DJ5P-030
CM02B-8DJ5P-050
CM02B-8DJ5P-100
Number of Contacts
1
2
3
4
5
Cable Color
ー
Red
Black
White
Blue
Signal
DRAIN
V+
V-
CAN ＿ H
CAN ＿ L
○ Plug Single-Ended Cable Assemblies
・Plug connector with socket contacts
φ6.7
φ15
φ8.1
１
5
４
３
２
40
L
Wiring
L
1,000
2,000
3,000
5,000
10,000
P/N
CM02B-8DP5S-010
CM02B-8DP5S-020
CM02B-8DP5S-030
CM02B-8DP5S-050
CM02B-8DP5S-100
Number of Contacts
1
2
3
4
5
Cable Color
ー
Red
Black
White
Blue
Signal
DRAIN
V+
V-
CAN ＿ H
CAN ＿ L
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
３
２
5
２
３
１ ４
２
5
３
CM02B Series
Unit：mm
○ Terminating Resistor
・Terminated between No. 4 and No. 5 with resistor, 121 ohm,1/4 watt.
Jack with pin contacts
P/N : CM02B-8DER5P
M12 1 Thread
φ15
5
43
1 NC
2 NC
3 NC
4
5
121Ω
Wiring Diagram
Plug with socket contacts
P/N : CM02B-8DER5S
M12 1 Thread
φ15
φ8.1
5
40
1 NC
2 NC
3 NC
4
5
121Ω
Wiring Diagram
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
