CLP42B-101: DescriptionDATACOM TRANSFORMER FOR LAN APPLICATION(S); CategoryPower management transformer; File Size180KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CLP42B-101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CLP42B-101	-	-	View	Buy Now

CLP42B-101 Overview

DATACOM TRANSFORMER FOR LAN APPLICATION(S)

CLP42B-101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COMMON MODE CHOKES AVAILABLE
application	LAN
ET product minimum value	1.1 V-us
high	2.3 mm
length	6.5 mm
Manufacturer's serial number	CLP
Installation features	SURFACE MOUNT
Number of functions	1
physical size	6.5mm X 4.6mm X 2.3mm
Primary inductance	100 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
width	4.6 mm

Preview

Download Datasheet

View All

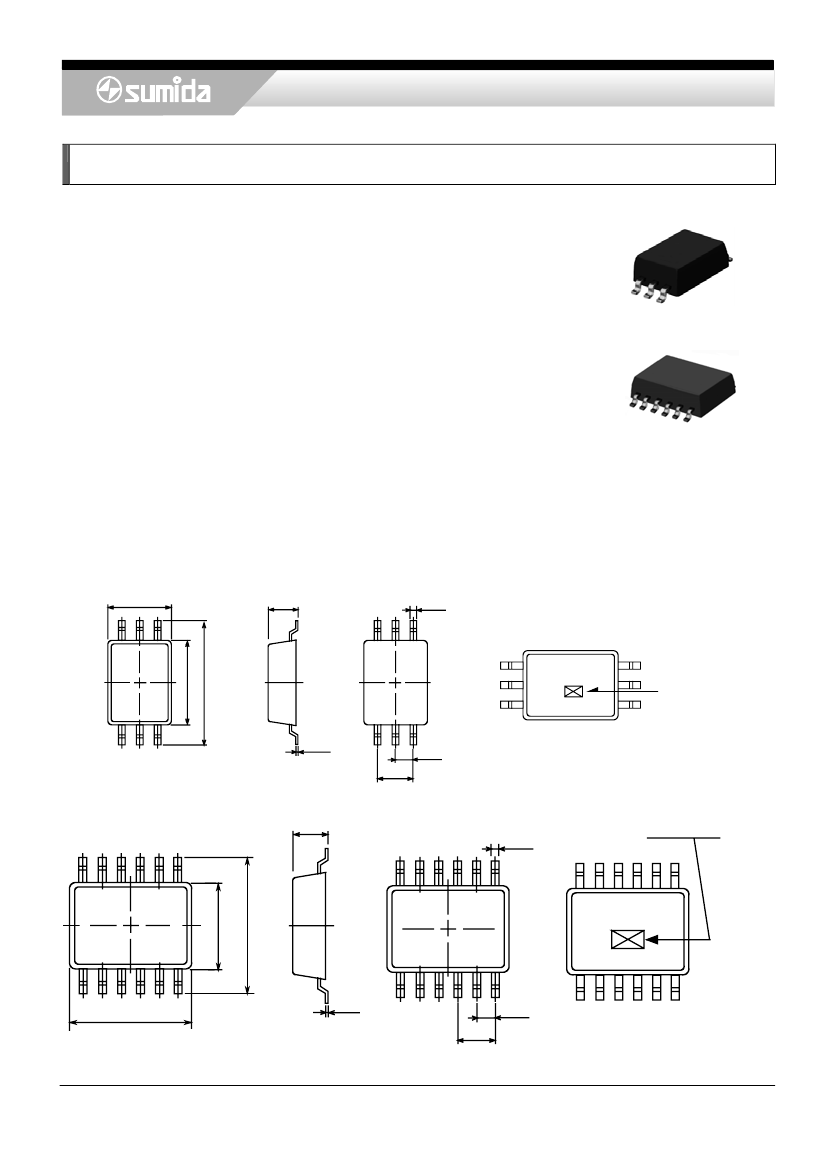

LAN Transformer< SMD Type: CLP Series>

Type: CLP42B, CLP82

◆

Product Description

CLP42B

・6.5×4.6mm

typ.(L×W),2.5mm Max. Height.

・Built

in either one pulse transformer or one common mode choke coil.

CLP82

・9.0mm

Max.×6.5mm typ. (L×W),2.5mm Max. Height.

・Built

in either 2 or 3 pulse transformer or 2 or 3 common mode choke coil.

CLP82

◆

Feature

・Super

low profile LAN Pulse transformer.

・Ideally

used in PCMCIA cards and other related smaller equipments.

・RoHS

Compliance.

◆

Dimensions (mm)

CLP42B

4.6

2.5 MAX.

0.5

6.5

9.4±0.3

1

3

0.2

2.54

500

6

DATE CODE

4

1.27

CLP82

MAX.2.5

0.5

12

STAMP ・DATE

7

CODE

9.4 ±0 .3

6.5

401

MAX.9.0

0.25

1.27

1

6

2.54

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2

CLP42B-101 Related Products

	CLP42B-101	CLP42B-500	CLP42B	CLP82	CLP42B-750	CLP82-401	CLP42B-201	CLP42B-151
Description	DATACOM TRANSFORMER FOR LAN APPLICATION(S)	DATACOM TRANSFORMER FOR LAN APPLICATION(S)	DATACOM TRANSFORMER FOR LAN APPLICATION(S)	DATACOM TRANSFORMER FOR LAN APPLICATION(S)	DATACOM TRANSFORMER FOR LAN APPLICATION(S)	DATACOM TRANSFORMER FOR LAN APPLICATION(S)	DATACOM TRANSFORMER FOR LAN APPLICATION(S)	DATACOM TRANSFORMER FOR LAN APPLICATION(S)
application	LAN	LAN	local area network	local area network	LAN	LAN	LAN	LAN
Installation features	SURFACE MOUNT	SURFACE MOUNT	surface mount	surface mount	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Primary inductance	100 µH	50 µH	200 mH	200 mH	75 µH	400 µH	200 µH	150 µH
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	Data communication transformer	Data communication transformer	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Is it lead-free?	Lead free	Lead free	-	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	-	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknow	-	-	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	EAR99
Other features	COMMON MODE CHOKES AVAILABLE	COMMON MODE CHOKES AVAILABLE	-	-	COMMON MODE CHOKES AVAILABLE	COMMON MODE CHOKES AVAILABLE	COMMON MODE CHOKES AVAILABLE	COMMON MODE CHOKES AVAILABLE
ET product minimum value	1.1 V-us	0.8 V-us	-	-	1 V-us	1.2 V-us	1.5 V-us	1.3 V-us
high	2.3 mm	2.3 mm	-	-	2.3 mm	2.25 mm	2.3 mm	2.3 mm
length	6.5 mm	6.5 mm	-	-	6.5 mm	9 mm	6.5 mm	6.5 mm
Manufacturer's serial number	CLP	CLP	-	-	CLP	CLP	CLP	CLP
physical size	6.5mm X 4.6mm X 2.3mm	6.5mm X 4.6mm X 2.3mm	-	-	6.5mm X 4.6mm X 2.3mm	9.0mm X 6.5mm X 2.25mm	6.5mm X 4.6mm X 2.3mm	6.5mm X 4.6mm X 2.3mm
surface mount	YES	YES	-	-	YES	YES	YES	YES
width	4.6 mm	4.6 mm	-	-	4.6 mm	6.5 mm	4.6 mm	4.6 mm
