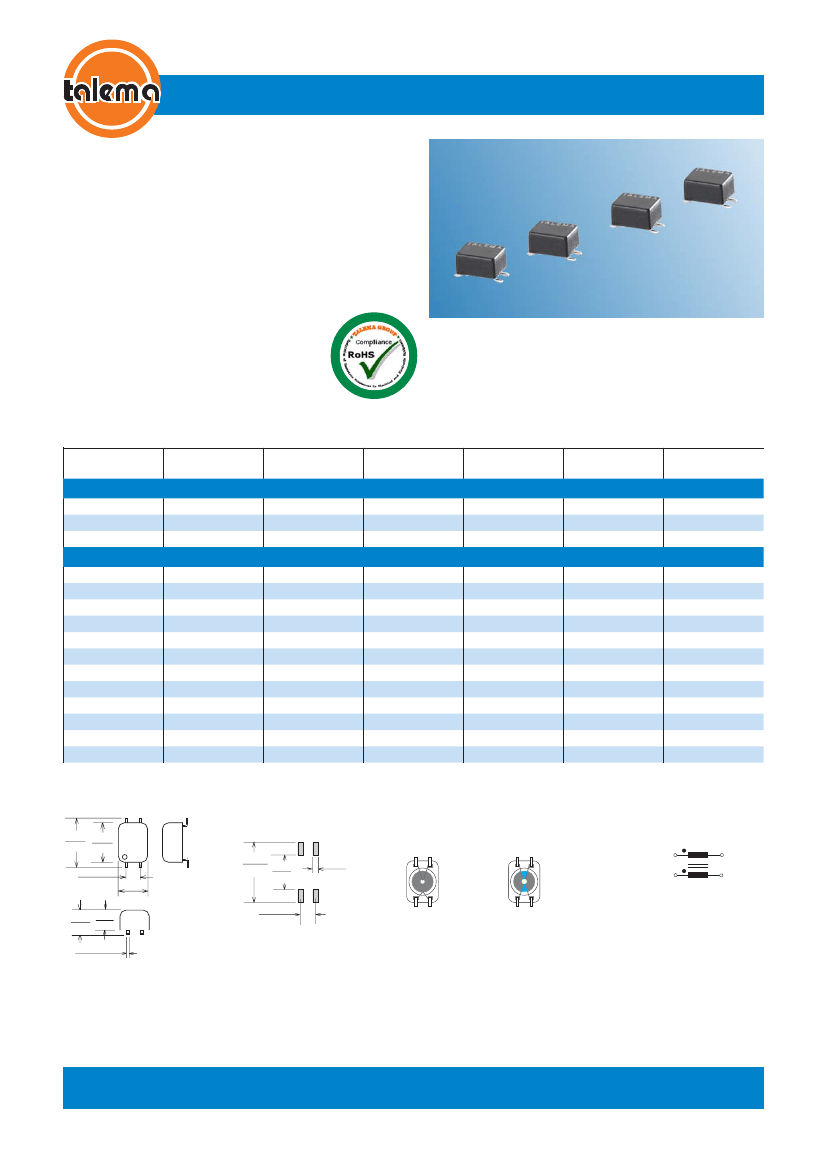

CLJ-2 Series • Miniature SMD Common Mode Double Chokes

Features

•

Miniature, low cost SMD for pick and place compatability while

providing consistent and reliable coplanarity

• Other inductance values, higher current ratings and special types for

operation at 150°C ambient are available upon request

•

High attenuation over a wide frequency range - CAN bus types

to 500MHz

• Available in Bifilar and Sector (Suffix S) winding

• Materials: UL94-VO

• Manufactured in an ISO-9001:2000, TS-16949:2002

and ISO-14001:2004 certified Talema facility

• Fully RoHS compliant and meets lead free reflow

level J-STD-020C

Electrical Specifications @ 25°C

Nominal Voltage: 42Vac (50/60Hz), 80Vdc

Operating Temperature: -25° to +85°C

Storage Temperature: -40° to +125°C

Climatic category: according to IEC68-1 25/85/56

Test voltage between windings: 500 Vrms

Part Number

OCL (

+50/-30%

100

470

1000

2200

4700

10000

20000

47000

(mA)

2500

800

1200

500

400

200

140

100

(

0.40

0.95

2.00

0.05

0.08

0.10

0.11

0.10

0.16

0.12

0.19

0.36

1.00

Test frequency

Nominal Inductance: measured @ 100kHz/20 mVrms

Leakage Inductance: measured @ 100kHz, 100mVrms

Test Equipment: HP4192A

Weight: ~ 0.3 gram

Packaging: Tape & Reel

(mOhms)

110

160

110

148

315

290

275

345

940

1400

1800

3900

(Vrms)

500

Number of

Data Lines

Sector Winding for CAN bus and similiar applications

CLJ-2-060S

CLJ-2-250S

CLJ-2-510S

CLJ-2-050

CLJ-2-110

CLJ-2-250

CLJ-2-510

CLJ-2-101

CLJ-2-471

CLJ-2-102

CLJ-2-222

CLJ-2-472

CLJ-2-103

CLJ-2-203

CLJ-2-473

Bifilar Winding for Data and Signal Lines

Dimensions

CLJ-

2-XXX

Wk/Yr

0.350 0.287

(8.90) (7.30)

0.100

(2.54)

Suggested Pad

Layout

0.394

(10.00) 0.213

(5.40)

0.039

(1.00)

Bifilar

Winding

Sector

(CLJ-2-XXXS)

Winding

Schematic

0.213

(5.40)

0.100

(2.54)

0.185 0.146

(4.70) (3.70)

0.020 x 0.012

(0.50 x 0.30)

Surface Coplanarity will be 0.004(0.10) maximum

Dimensions: Inches (Millimeters)

Tolerance: ±0.010 (0.25) unless specified otherwise

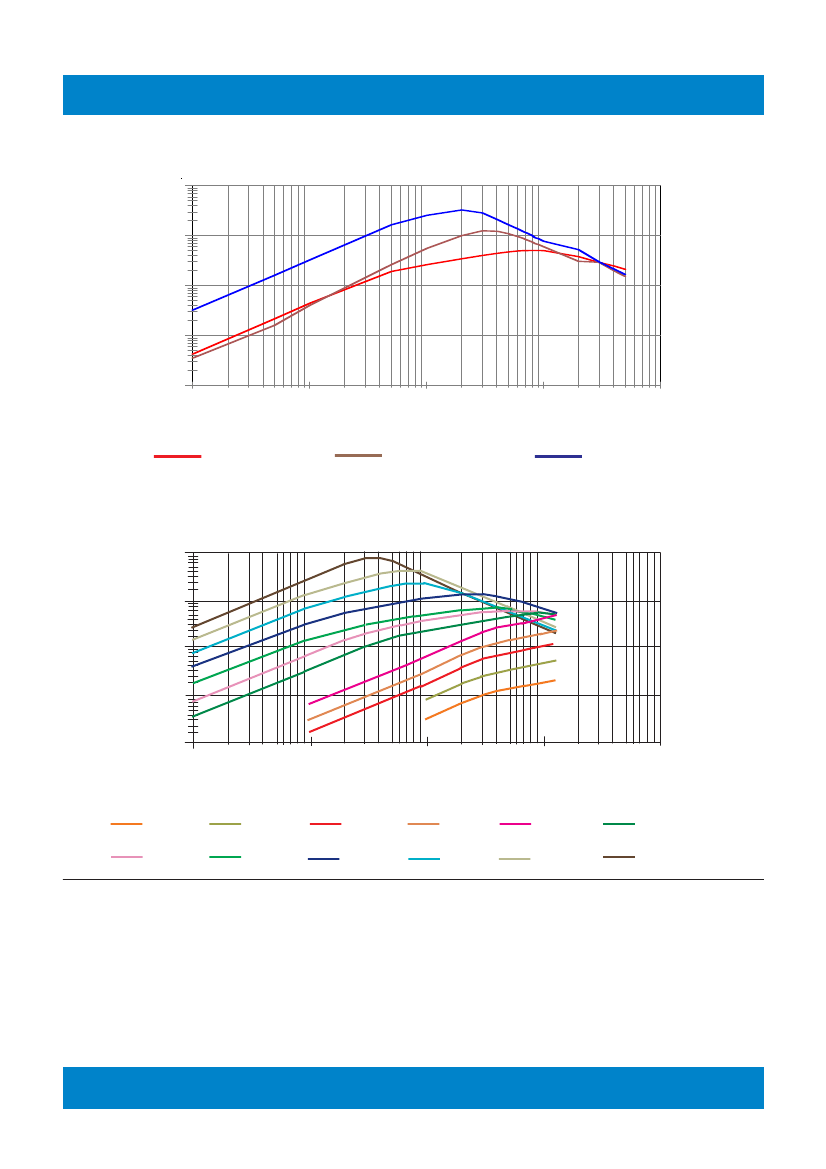

See following page for typical impedance curves

THE TALEMA GROUP • Magnetic Components for ISDN / xDSL / LAN Data Communications
