Part Number

Search

71918-006LF

Description
Quickie Eject Latch Shrouded Header, Through Hole, Vertical, Double Row, 6 Positions, 2.54mm (0.100in) Pitch
CategoryThe connector    The connector
File Size144KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

71918-006LF Online Shopping

Suppliers Part Number Price MOQ In stock
71918-006LF - - View Buy Now

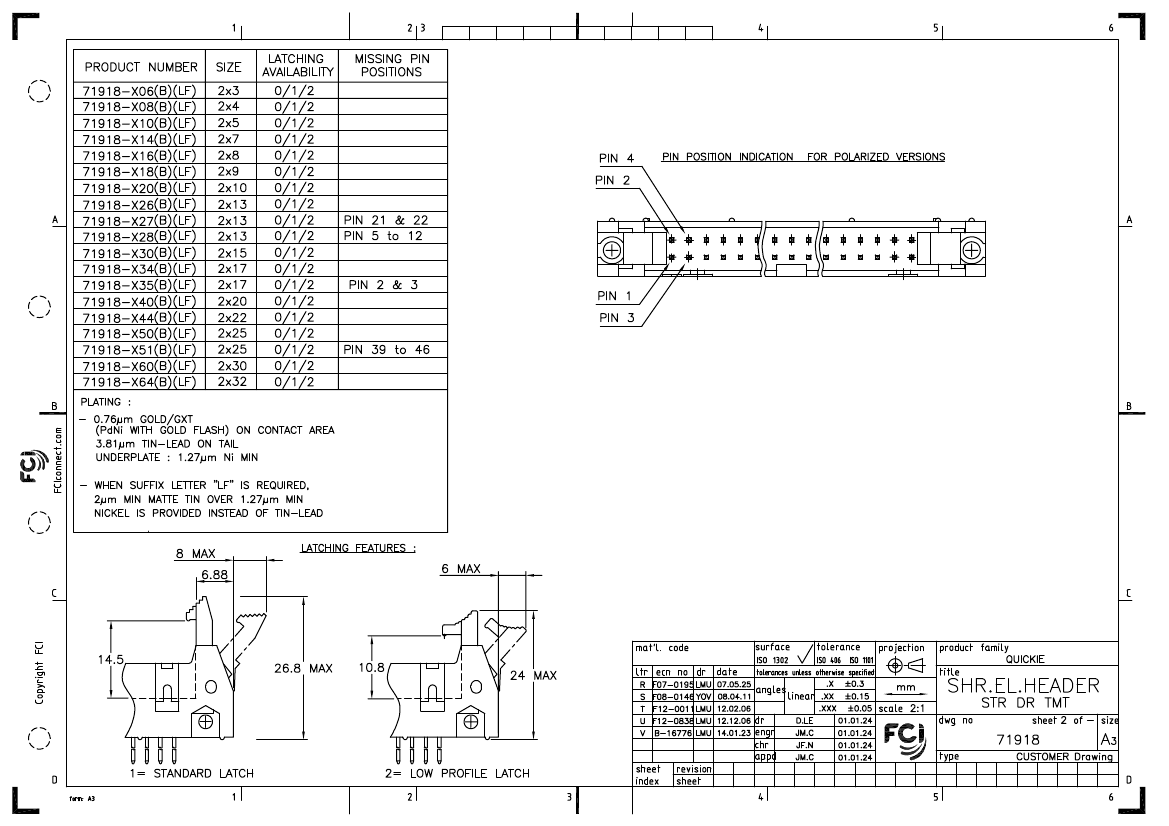

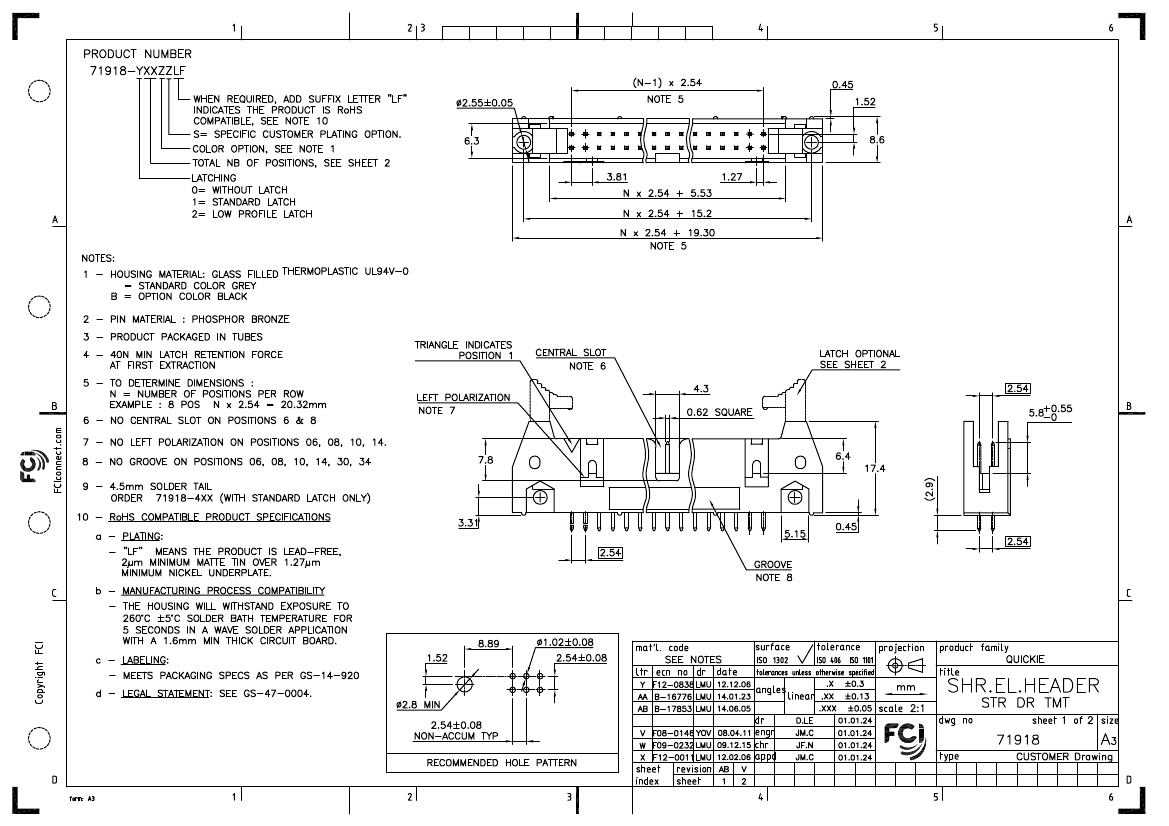

71918-006LF Overview

Quickie Eject Latch Shrouded Header, Through Hole, Vertical, Double Row, 6 Positions, 2.54mm (0.100in) Pitch

71918-006LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1601022364
package instructionROHS COMPLIANT
Contacts6
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL9.1
body width0.339 inch
subject depth0.685 inch
body length1.36 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationMATTE TIN OVER NICKEL
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage707VAC V
Filter functionNO
IEC complianceNO
Insulation resistance105000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYETHYLENE
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.114 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-0
PDS: Rev :AB
STATUS:Released
Printed: Jun 06, 2014

71918-006LF Related Products

71918-006LF 71918-116LF
Description Quickie Eject Latch Shrouded Header, Through Hole, Vertical, Double Row, 6 Positions, 2.54mm (0.100in) Pitch Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Gray Insulator, Receptacle, ROHS COMPLIANT
Is it Rohs certified? conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant
body width 0.339 inch 0.339 inch
subject depth 0.685 inch 0.685 inch
body length 1.36 inch 1.56 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation MATTE TIN OVER NICKEL NOT SPECIFIED
Contact completed and terminated Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender MALE MALE
Contact material PHOSPHOR BRONZE NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
Insulation resistance 105000000 Ω 10000000000 Ω
Insulator color GRAY GRAY
insulator material GLASS FILLED POLYETHYLENE GLASS FILLED THERMOPLASTIC
JESD-609 code e3 e3
MIL compliance NO NO
Plug contact pitch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch
Mixed contacts NO NO
Installation option 1 LOCKING LATCH & EJECT
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -65 °C -65 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm
Plating thickness 30u inch 30u inch
Rated current (signal) 3 A 3 A
Guideline UL UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal length 0.114 inch 0.114 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 6 16
UL Flammability Code 94V-0 94V-0
