67289-049 datasheet, PDF - EEWORLD Datasheet

67289-049: DescriptionBoard Connector, 98 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle; CategoryThe connector The connector; File Size304KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

67289-049 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	67289-049	-	-	View	Buy Now

Board Connector, 98 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks 6 days
Other features	PACKAGING TUBE, PCB STANDOFF
body width	0.515 inch
subject depth	0.55 inch
body length	5.28 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD (30) OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	67289
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	98
UL Flammability Code	94V-0
Base Number Matches	1

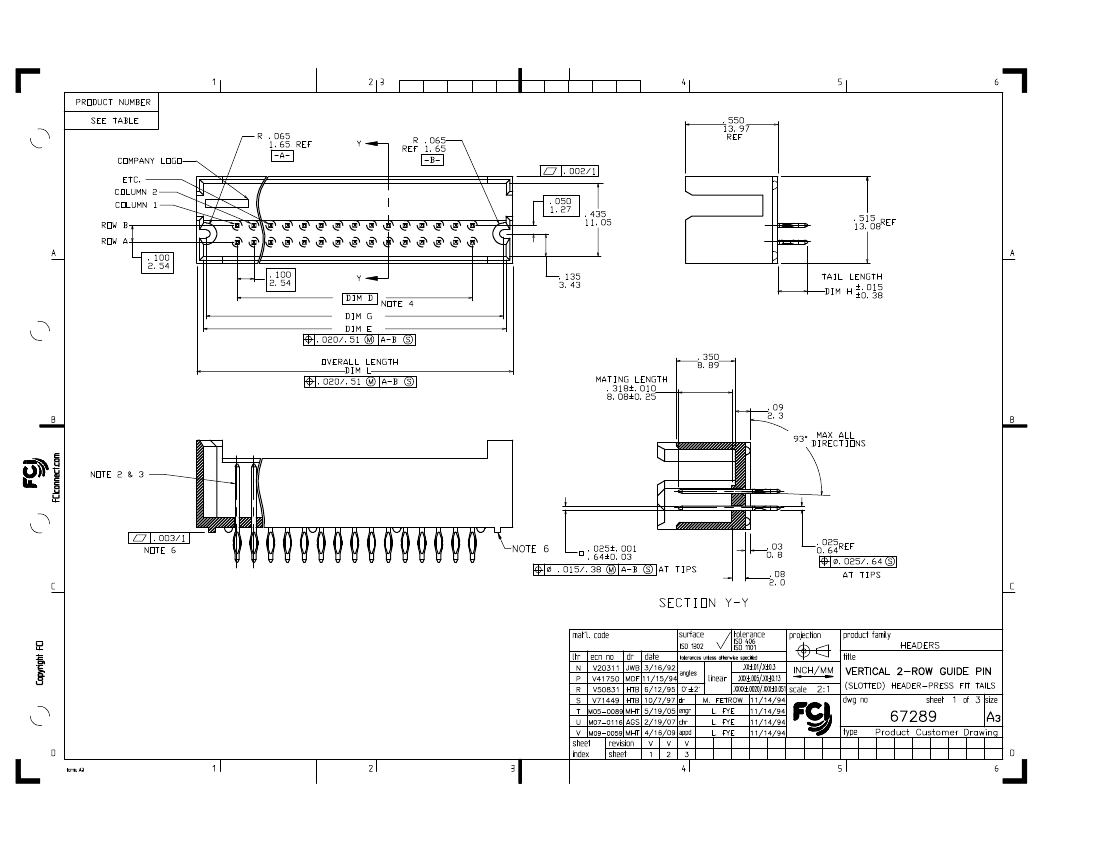

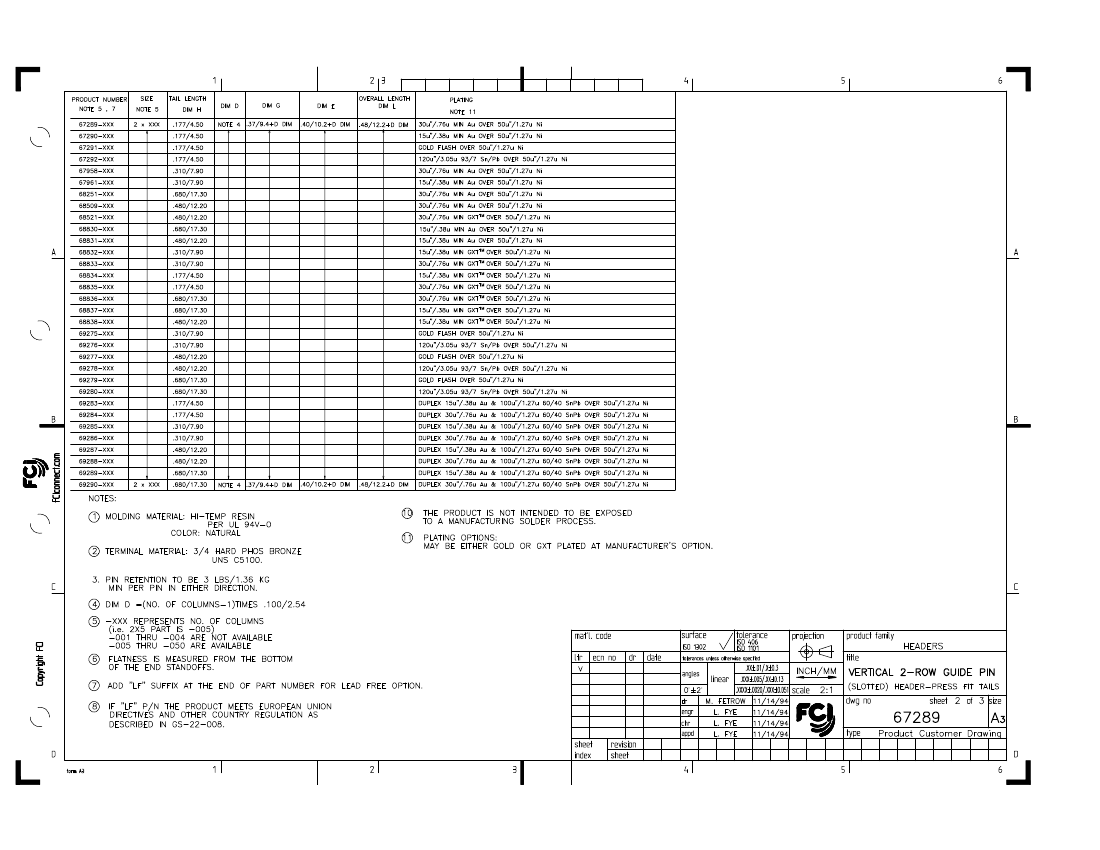

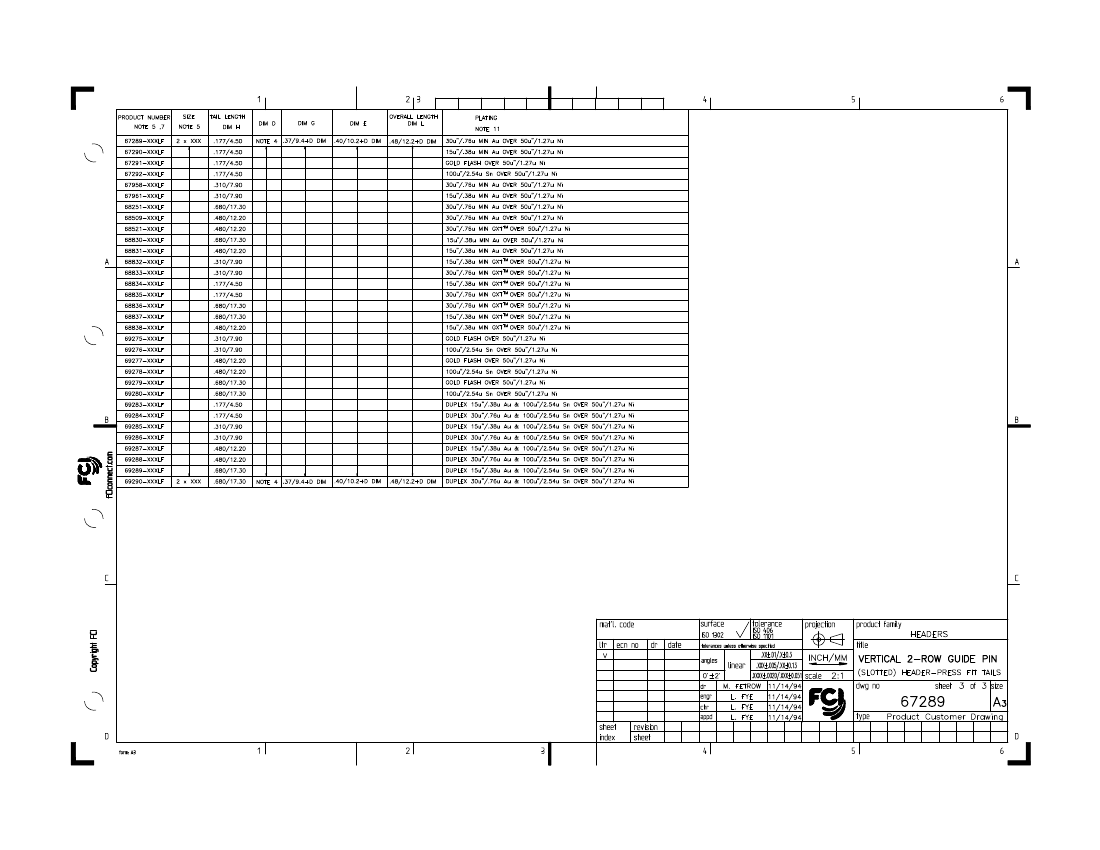

PDM: Rev:V

STATUS:

Released

Printed: Oct 13, 2010
