CKRD4820E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CKRD4820E

CKRD4820E: DescriptionTRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX; CategoryLED optoelectronic/LED photoelectric; File Size1MB，5 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric View All

CKRD4820E Overview

TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX

CKRD4820E Parametric

Parameter Name	Attribute value

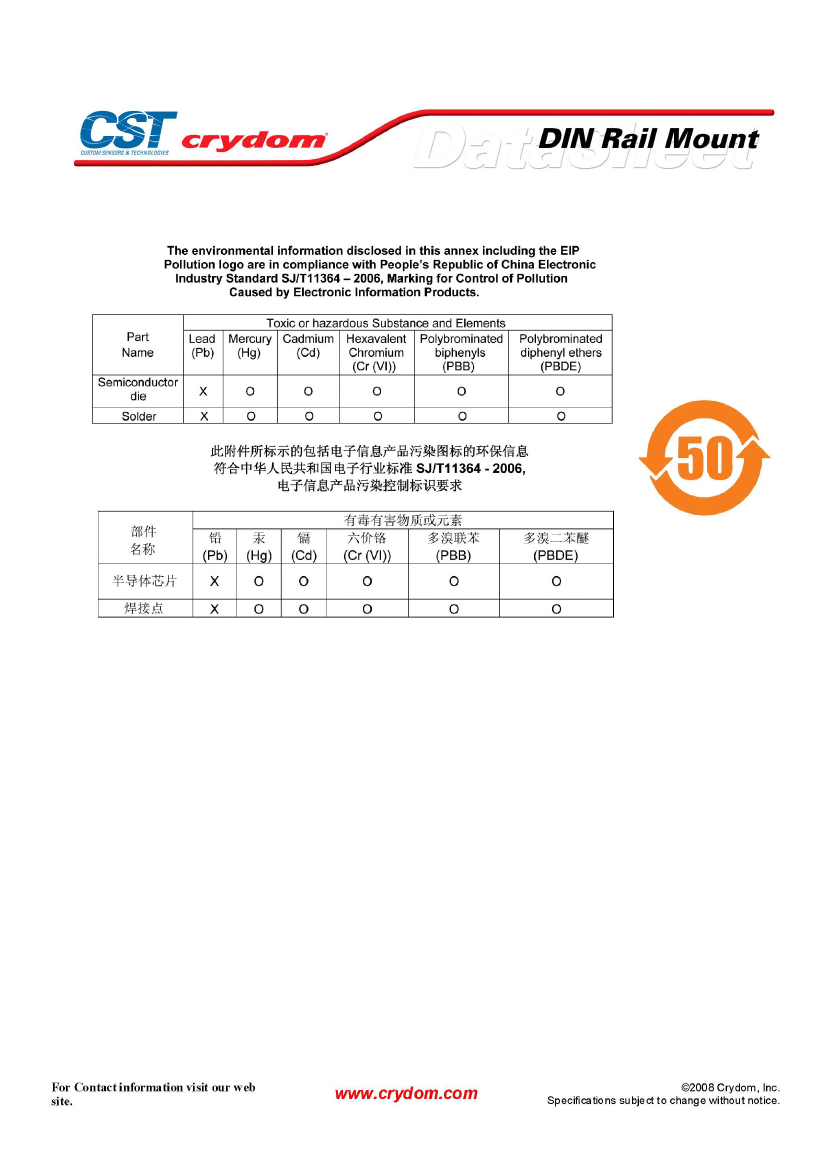

Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	PLASTIC PACKAGE
Reach Compliance Code	compli
Other features	UL APPROVED, VDE APPROVED
Maximum insulation voltage	4000 V
Number of components	1
Maximum on-state current	20 A
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR

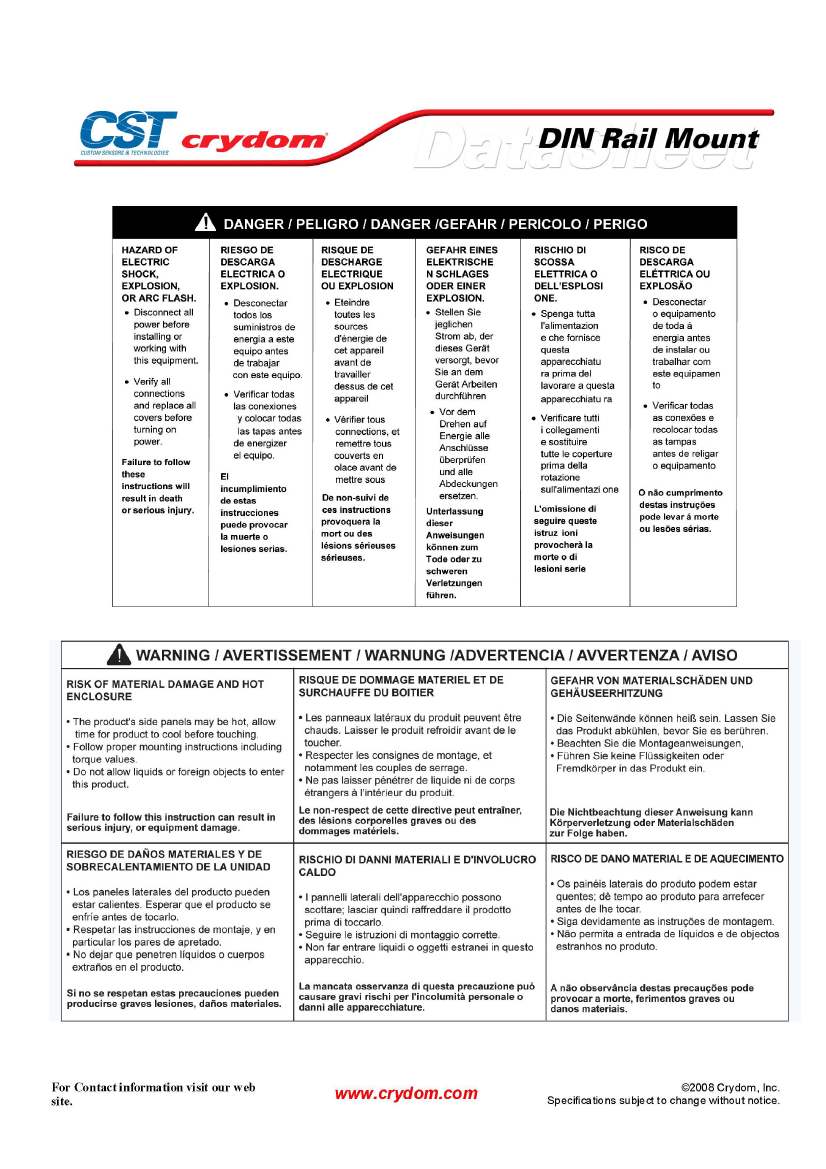

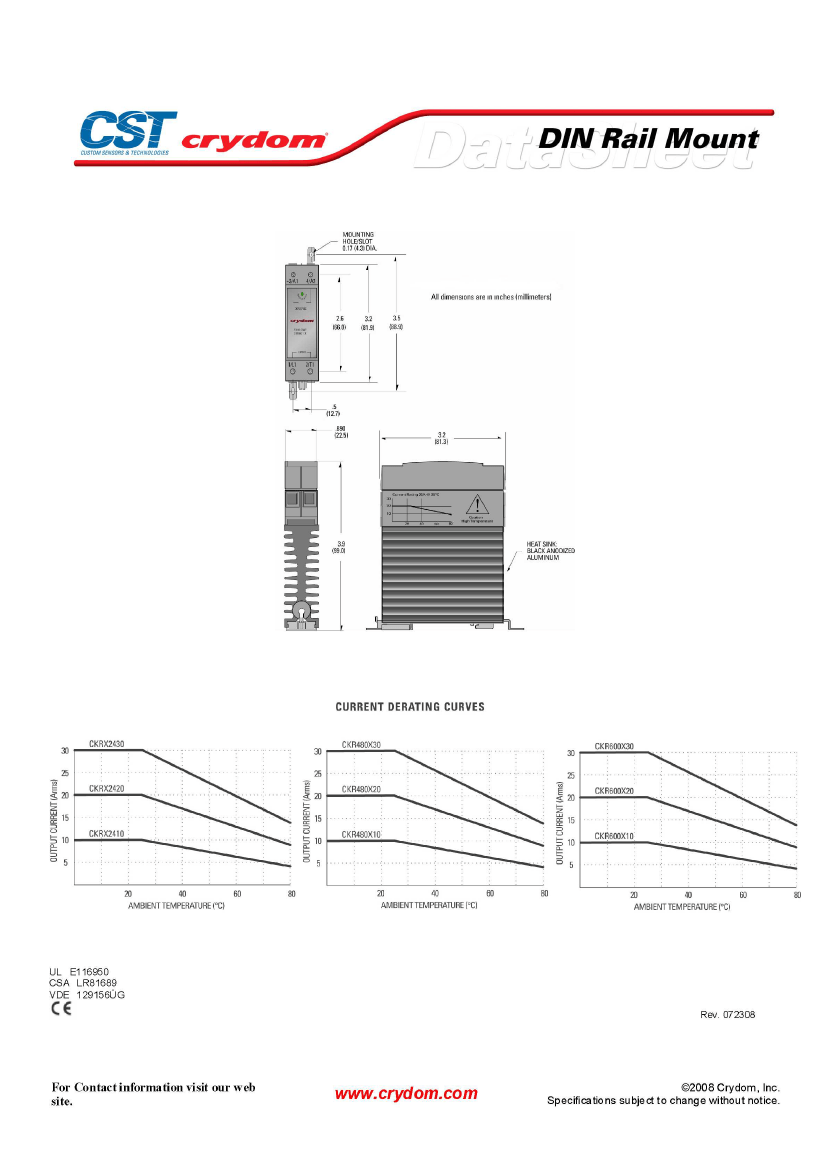

Preview

Download Datasheet

View All

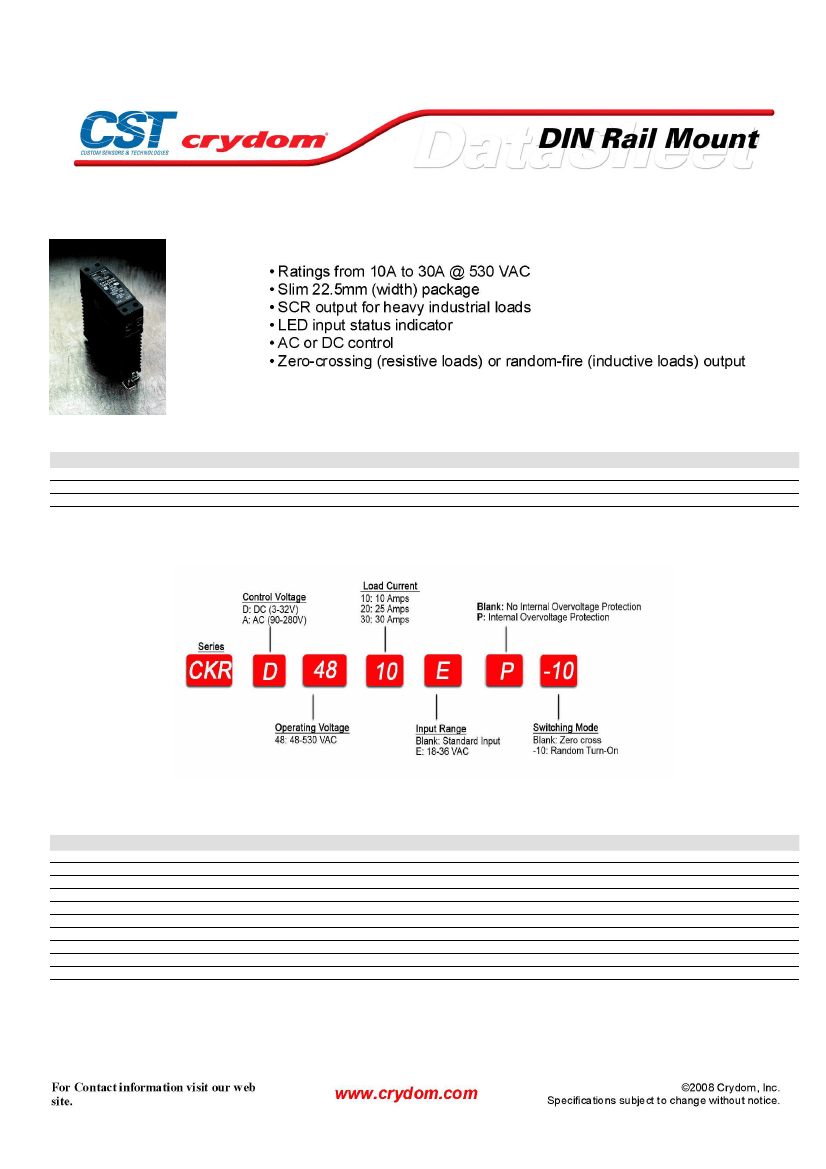

CKR48Series

PRODUCT SELECTION

Description

4.5-32 VDC Control

90-280 VAC Control

18-36 VAC Control

AVAILABLE OPTIONS

CKRD4810

CKRA4810

CKRA4810E

10 A

CKRD4820

CKRA4820

CKRA4820E

20 A

CKRD4830

CKRA4830

CKRA4830E

30 A

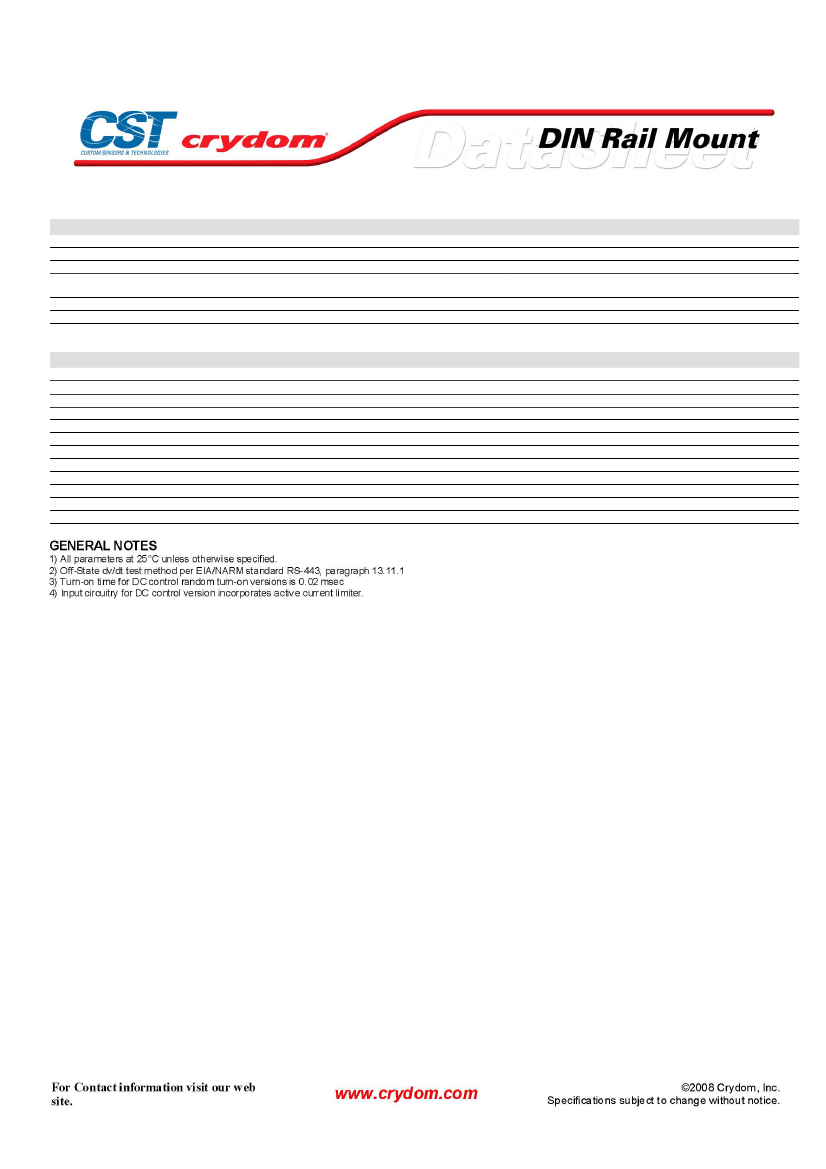

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

Maximum Load Current [Arms]

Minimum Load Current [Arms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Maximum I² t for Fusing (8.3 msec) [A² sec]

Minimum Power Factor (with Maximum Load)

48-530

1200

500

0.15

120

1.6

0.5

48-530

1200

500

0.15

250

1.6

260

0.5

48-530

1200

500

0.15

625

1.6

1620

0.5
