76342-348LF

Description
Board Connector, 96 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT
CategoryThe connector    The connector
File Size116KB，2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

76342-348LF Overview

Board Connector, 96 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT

76342-348LF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAmphenol
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time11 weeks 1 day
body width0.2 inch
subject depth0.276 inch
body length4.797 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1400VAC V
Filter functionNO
IEC complianceNO
maximum insertion force1.5012 N
Insulation resistance100000000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number76342
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.114 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts96
UL Flammability Code94V-0
Evacuation force-minimum value.278 N
Base Number Matches1

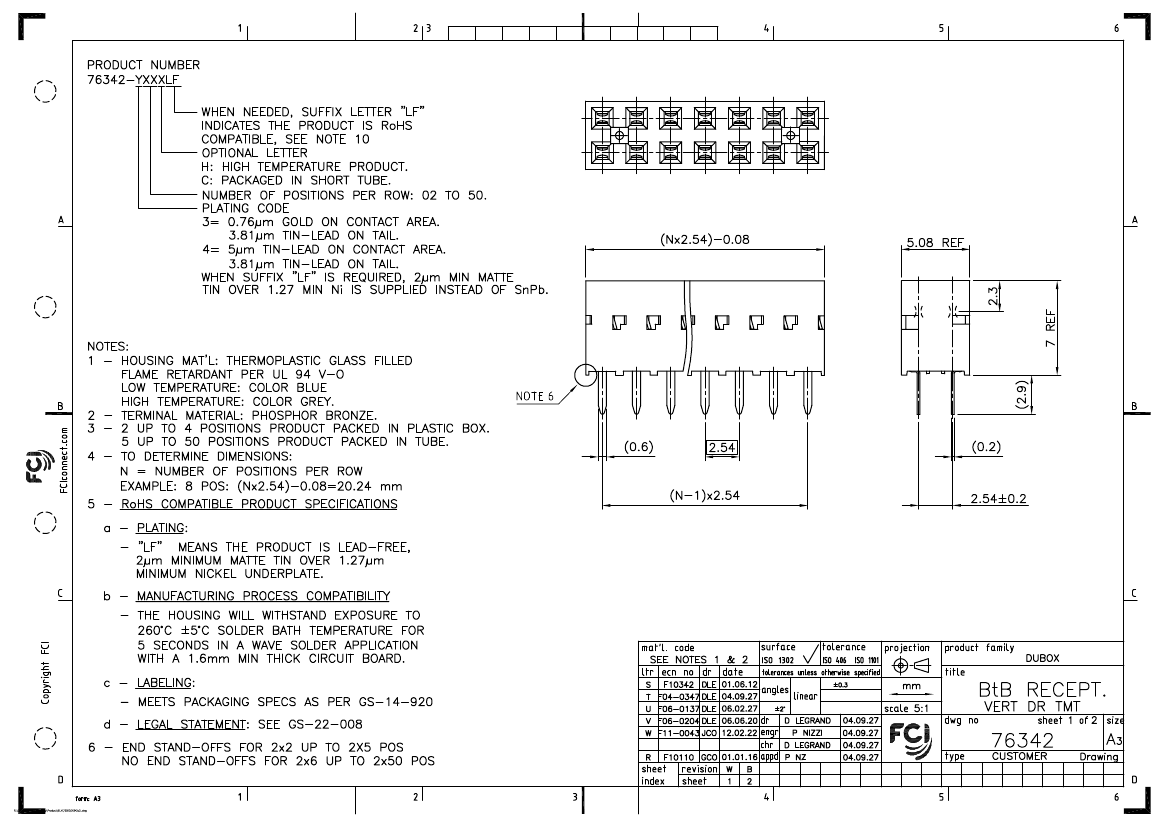

Preview
