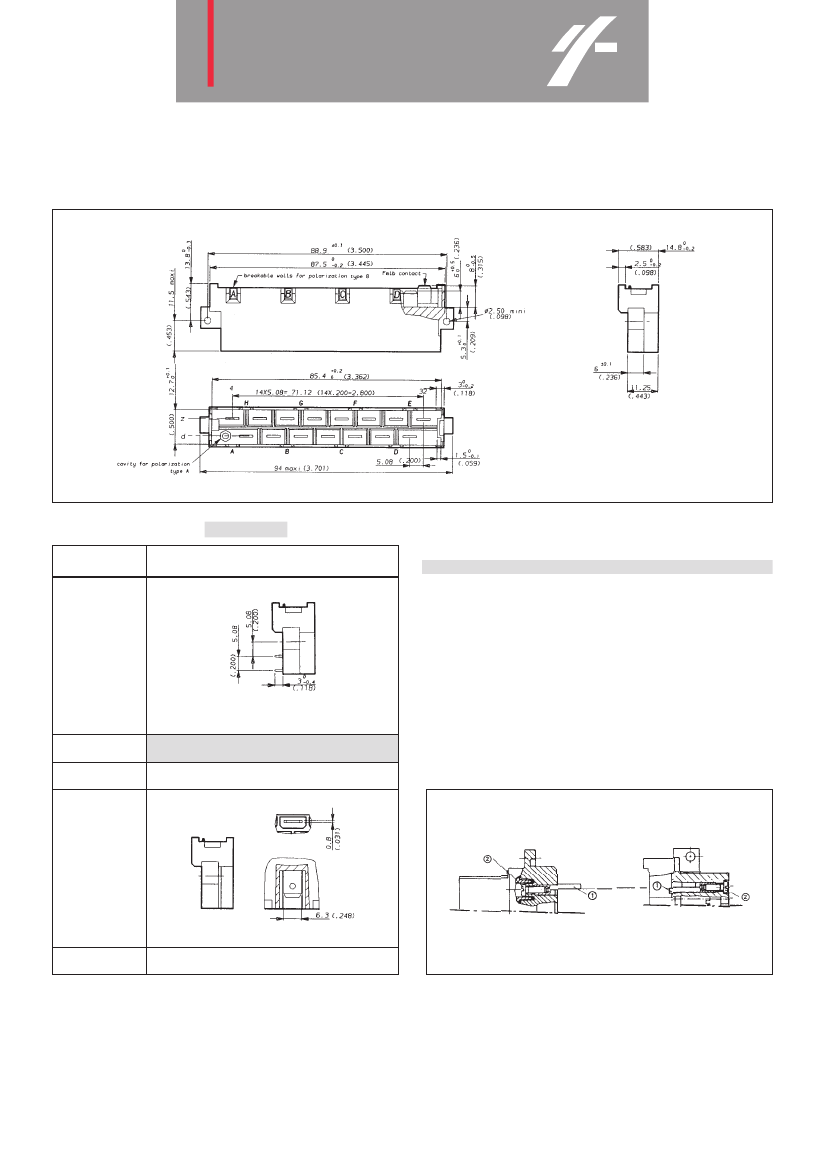

DIN 41612
Plugs, high power, 2 row
5159 series, style H
Catalogue numbers -
standard items
Nbr of
contacts
Contact termination
Performance class / plating :
• DIN 41612 class I
Contact plating : silver over nickel, except 5159.029.15.23.440 tin
lead over nickel.
Options:
Additional first make /last break positions are available upon request:
consult factory.
Polarization:
angled spills
available only with angled spills connectors, 2 types:
- metallic polarizing keys providing 6 different combinations (type A).
- breakable walls and plastic polarizing keys (type B).
15
15
5159.029.15.23.660
5159.029.15.23.440
Polarization
faston
15
5159.029.15.29.620
5159 029 10 02
87

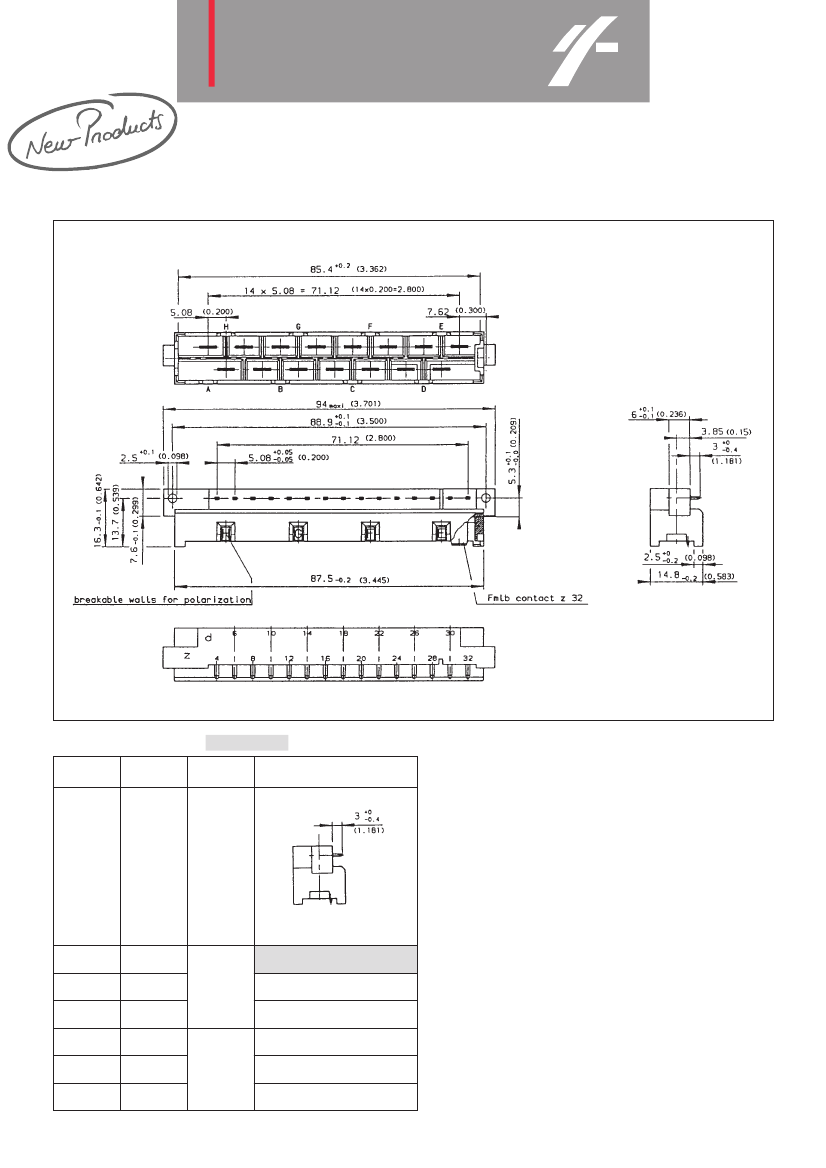

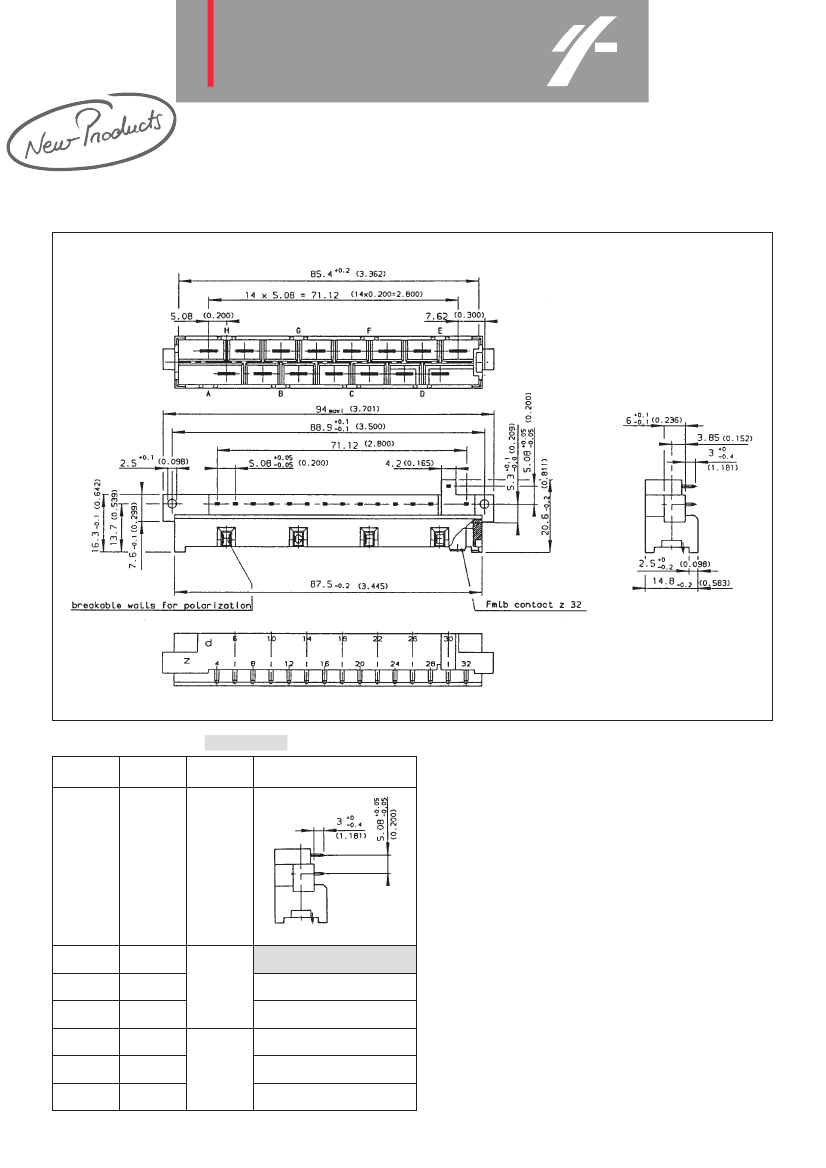

DIN 41612
Plugs, high power, reduced footprint, 2 row
5159 series, style H
These reduced footprint plugs are designed to provide PCB real estate savings. All contact terminations are located on the same row .
Catalogue numbers -
standard items
Nbr of
contacts
Contact
arrang.
Plating
type
Contact termination
Performance class / plating:
• DIN 41612 class I
Contact plating: silver over nickel, or tin lead over nickel.
Options:
Additional first make /last break positions are available upon
request: consult factory.
Polarization:
- breakable walls and plastic polarizing keys (type B).
angled spills
15
14
14
15
14
14
fully loaded
no ct in z24
no ct in d26
fully loaded
no ct in z24
no ct in d26
5159.049.01.03
Ni+Ag
5159.049.01.13
5159.049.01.23
5159.049.01.33
Ni+SnPb
5159.049.01.43
5159.049.01.53
88
DIN 41612
Plugs, high power, reduced footprint, 2 row
5159 series, style H
These reduced footprint plugs are designed to provide PCB real estate savings. The contact terminations are located on the same row, except
contact d30.
Catalogue numbers -
standard items
Nbr of
contacts
Contact
arrang.
Plating
type
Contact termination
Performance class / plating:
• DIN 41612 class I
Contact plating: silver over nickel, or tin lead over nickel.
Options:
Additional first make /last break positions are available upon
request: consult factory.
Polarization:
- breakable walls and plastic polarizing keys (type B).
angled spills
15
14
14
15
14
14
fully loaded
no ct in z24
no ct in d26
fully loaded
no ct in z24
no ct in d26
5159.049.01.22
Ni+Ag
5159.049.01.12
5159.049.01.02
5159.049.01.52
Ni+SnPb
5159.049.01.42
5159.049.01.32
89

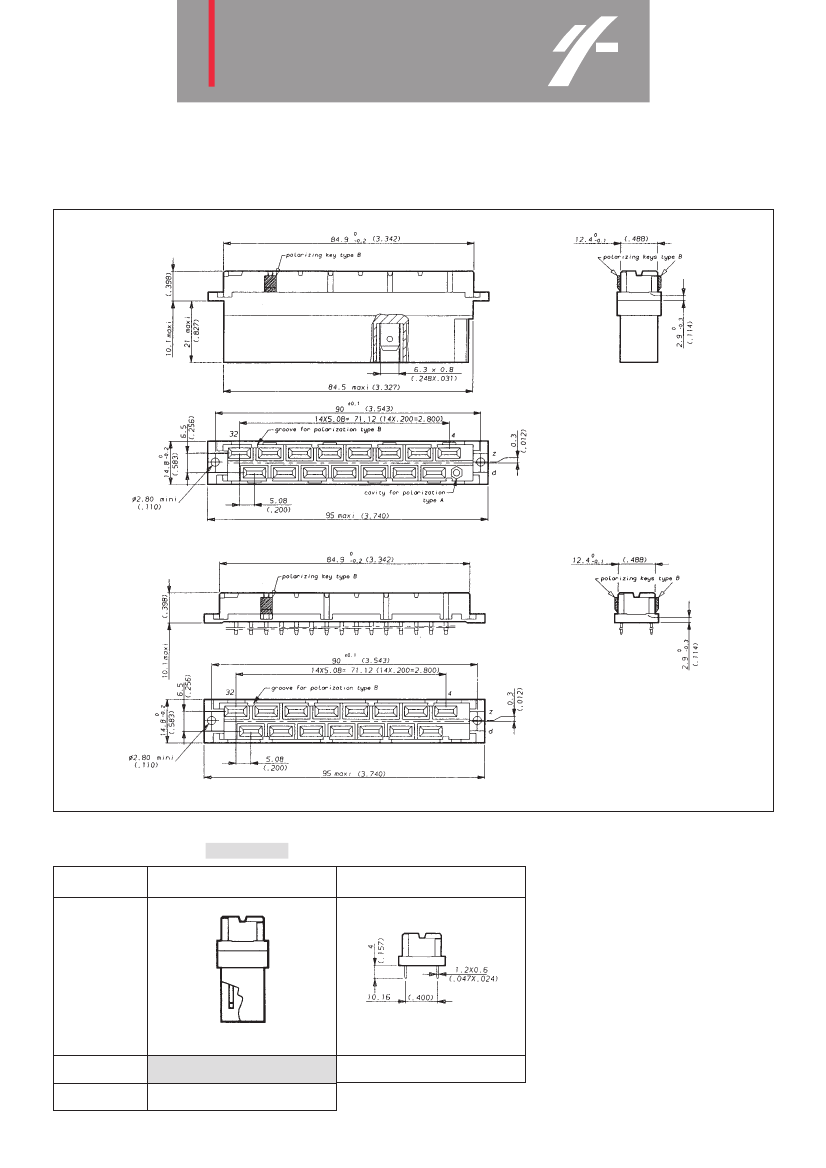

DIN 41612
Receptacle, high power, 2 row
5159 series, style H
Catalogue numbers -
standard items
Nbr of
contacts
Contact termination
Contact termination
Performance class / plating:
• DIN 41612 class I
Contact plating: silver over nickel, except
5159.029.15.19.440 tin lead over nickel.
Polarization:
- faston receptacle: polarization type A or B.
Polarizing set of metallic keys to
accomodate one connector pair to be
ordered separately
5159 029 10 02.
The
key (1) is held by the screw (2). This gives
6 different combinations.
- straight spills receptacle: polarization type
B only, plastic polarizing keys to order
separately
5159 029 23 02.
faston
straight spills
15
15
5159.029.15.19.620
5159.029.15.19.440
5159.029.15.12.660
90
