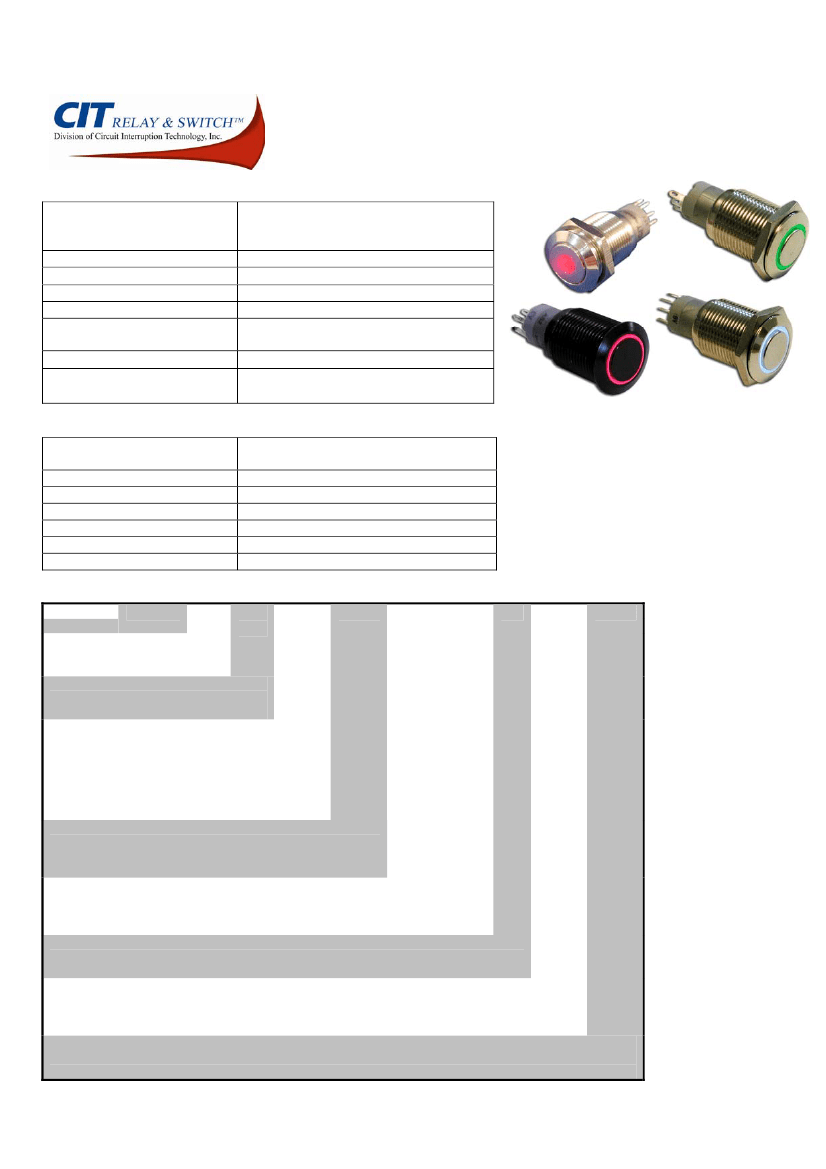

CH
SPECIFICATIONS
Electrical Ratings
Electrical Life
Contact Resistance
Actuation Force
Actuator Travel
Dielectric Strength:
Insulation Resistance
Operating Temperature
Storage Temperature
1A @ 24VDC
1A @ 125VAC
0.5A @ 250VAC
30,000 cycles typical
< 50 mΩ initial
200 +/- 50gF
2.5 +/- .3mm
1000Vrms min (contact to contact)
1500Vrms min (contact to LED)
> 100MΩ min
-25°C to 70°C
-25°C to 70°C
MATERIALS
←
RoHS COMPLIANT
Actuator & Body
LED Lens
Nut
Terminal Support
Inner Switch Body
Contacts
Terminals
Brass, Nickel Plated, Stainless Steel,
Black Anodized Aluminum
PC
Brass, Nickel Plated
PBT
PC
Silver Alloy
Brass, tin plated
Laser etching available, contact factory
ORDERING INFORMATION
1. Series:
CH
2
L
B
N
R
B
CH
2. Number of Poles:
1 = SPDT
2 = DPDT
3. Latching Option:
N = Momentary
L = Latching
4. Actuator Style:
A = Flush actuator, non-illuminated
B = Flush actuator, ring illuminated
C = Flush actuator, dot illuminated
D = Raised actuator, non-illuminated
E = Raised actuator, ring illuminated
F = Raised actuator, dot illuminated
5. Switch Finish:
S = Stainless steel
N = Nickel plated
B = Black
6. First LED Color:
Blank = No First LED
G = Green
O = Orange
R = Red
B = Blue
Y = Yellow
W = White**
7. Second LED Color:
**For Bi-color LED Option, White only available in single color
Blank = No Second LED
G = Green O = Orange
R = Red
Y = Yellow B = Blue
8. LED Voltage:
Blank = No LED
24 = 24V
N = No internal resistor in series with the LED
6 = 6V
110 = 110V
12 = 12V
220 = 220V
9. Sealing Options:
Blank = IP40 (standard)
S = IP65
page
4
12
www.citswitch.com
phone – 763.535.2339 fax – 763.535.2194
CH

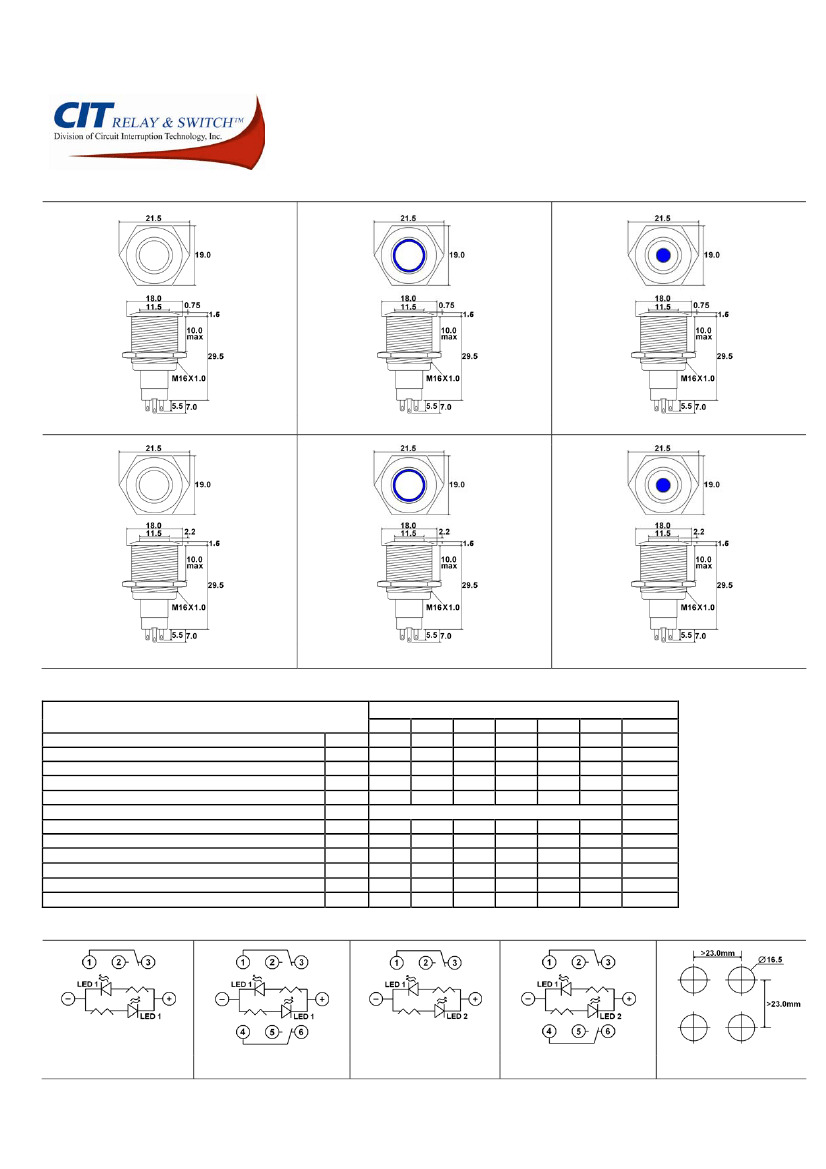

DIMENSIONS
A
B
C
D
E
COLORS
G
B
O
5
5
5
30
30
25
160
160
120
10
10
10
120
120
80
-40~ +85
3.3
3.3
2.0
3.6
3.6
2.3
516
463
606
28
20
12
170
100
120
145
145
145
F
LED CHARACTERISTICS
LED Ratings
Reverse Voltage
Forward Current (avg)
Forward Current (peak)
Reverse Current V
R
= 5V
Power Dissipation
Operating & Storage Temperature
Forward Voltage (typ.), I
F
= 20mA
Forward Voltage (max.), I
F
= 20mA
Wavelength at Peak Emmission, I
F
= 20mA
Spectral Line Half-Width, I
F
= 20mA
Luminous Intensity, I
F
= 20mA
Viewing Angle
V
R
I
F
I
FS
I
R
P
T
T
A
V
F
V
F
λ
P
∆λ
LI
Θ
R
5
25
120
10
80
2.1
2.4
635
14
120
145
Y
5
25
120
10
80
2.1
2.5
592
12
120
145
W
5
30
160
10
120
3.0
3.6
N/A
N/A
700
145
Units
V
mA
mA
µA
mW
°C
V
V
nm
nm
mcd
Deg
SCHEMATICS & PANEL CUT OUT
SPDT
DPDT
SPDT (Dual LED)
page
5
DPDT (Dual LED)
Panel Cut Out
www.citswitch.com
phone – 763.535.2339 fax – 763.535.2194
