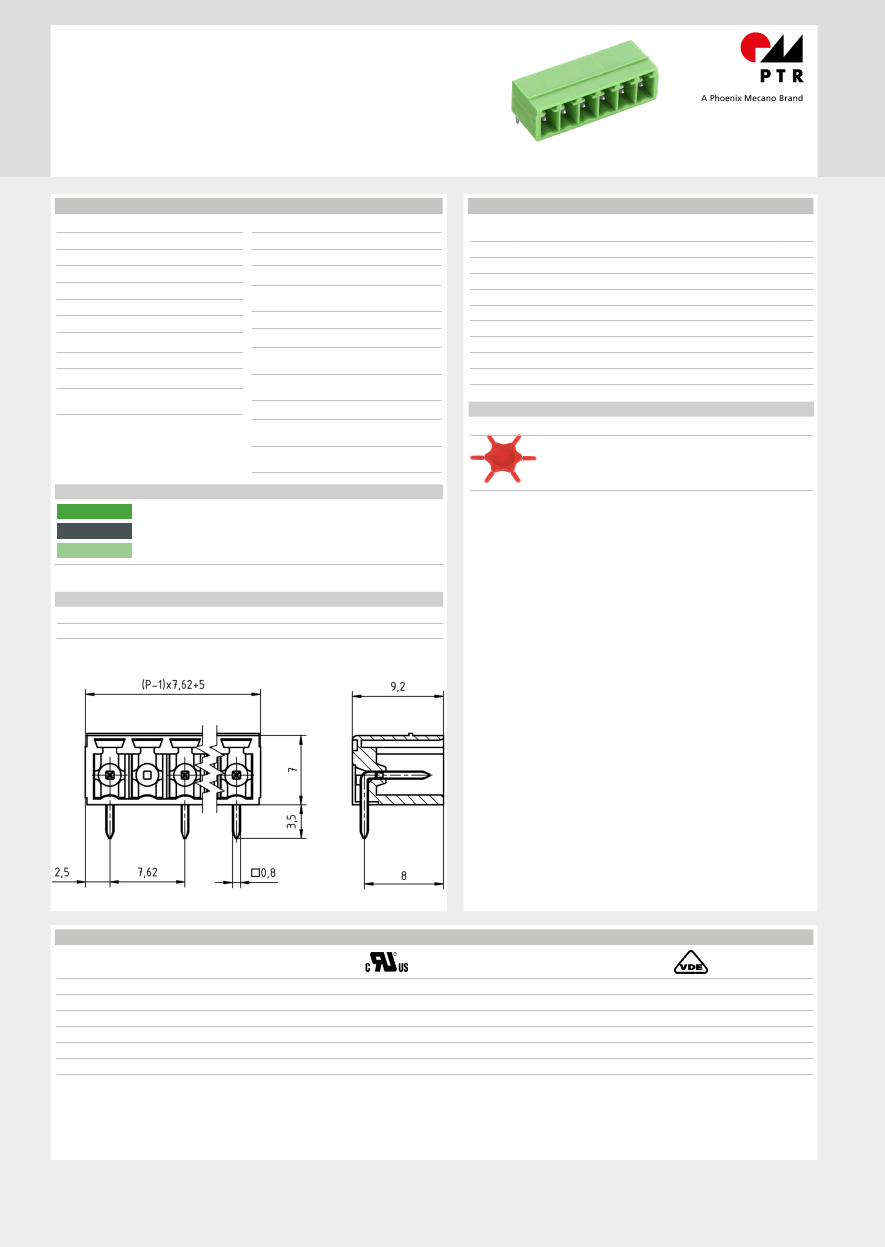

Pin Strip |
Spacing 7.62 mm
STLZ1550/..G-7.62-H-GREEN
Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule min
Stranded with Ferrule max
-
-
-
-
-
-
Order Data (Spacing 7.62 mm)
Insulating Material
Material
Flammability Class
PA 6.6
2
12.82
20.44
28.06
35.68
43.30
50.92
58.54
66.16
73.78
STLZ1550/2G-7.62-H-GREEN
STLZ1550/3G-7.62-H-GREEN
STLZ1550/4G-7.62-H-GREEN
STLZ1550/5G-7.62-H-GREEN
STLZ1550/6G-7.62-H-GREEN
STLZ1550/7G-7.62-H-GREEN
STLZ1550/8G-7.62-H-GREEN
STLZ1550/9G-7.62-H-GREEN
STLZ1550/10G-7.62-H-GREEN
Poles
Width (mm)
Article Designation
Article
Number
51550025065 F
51550035065 F
51550045065 E
51550055065 D
51550065065 D
51550075065 D
51550085065 D
51550095065 D
51550105065 D
PU
200
200
100
50
50
50
50
50
50
UL 94 V-0
3
4
Temperatures
Operating Temperature
(without mech. load)
Store Temperature
-40 °C - 105 °C
-40 °C - 105 °C
5
6
7
Dimensions
PCB Hole Diameter
1.2 mm
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
260 °C
3-4 s
8
9
10
Materials
Contact Pin
Copper
Alloy
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
-
-
Accessoires
Figure
Designation
Coding Star CS1-3.5/3.81-RED
Article Number
Order Data: 50000000023
Colours
GREEN, RAL 6018
BASALT GREY, RAL 7012
LIGHT GREEN, similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions. Special
colours on request.
Counterparts (Spacing 7.62 mm)
Terminal Block
AKZ1550
AKZ1700
AKZ1710
In combination of connectors with different admission data, the lower value is valid.
Ratings
UseGroup
Rated Voltage
Rated Current
Overvoltage Category
Test Voltage
Pollution Degree
B
300 V
8A
C
-
-
D
300 V
-
500 V
9A
III
1.60 kV
-
1.60 kV
6.0 kV
3
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu
