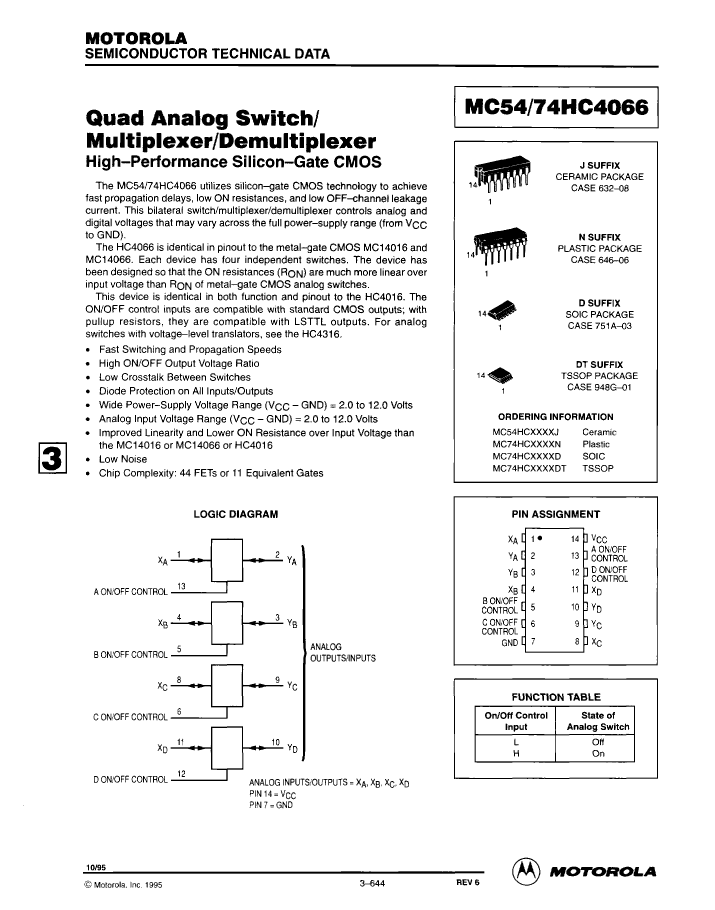

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, PLASTIC, DIP-14

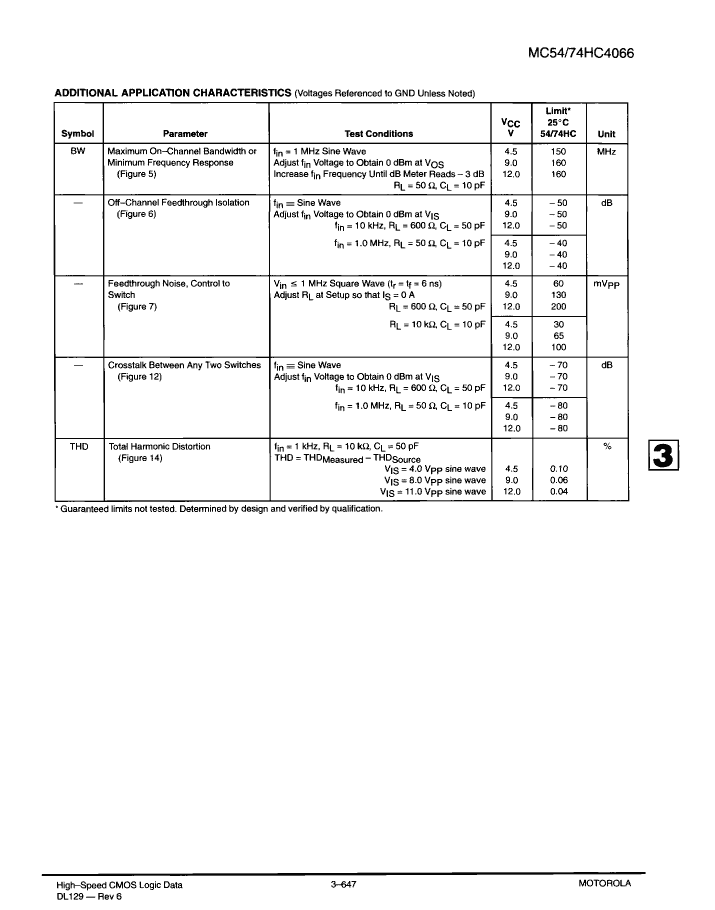

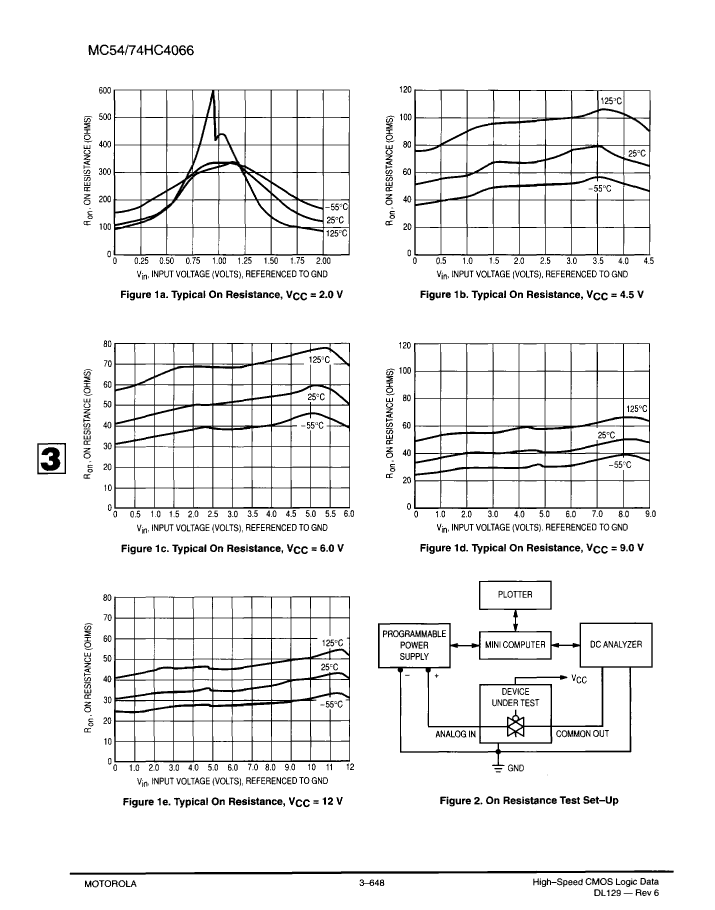

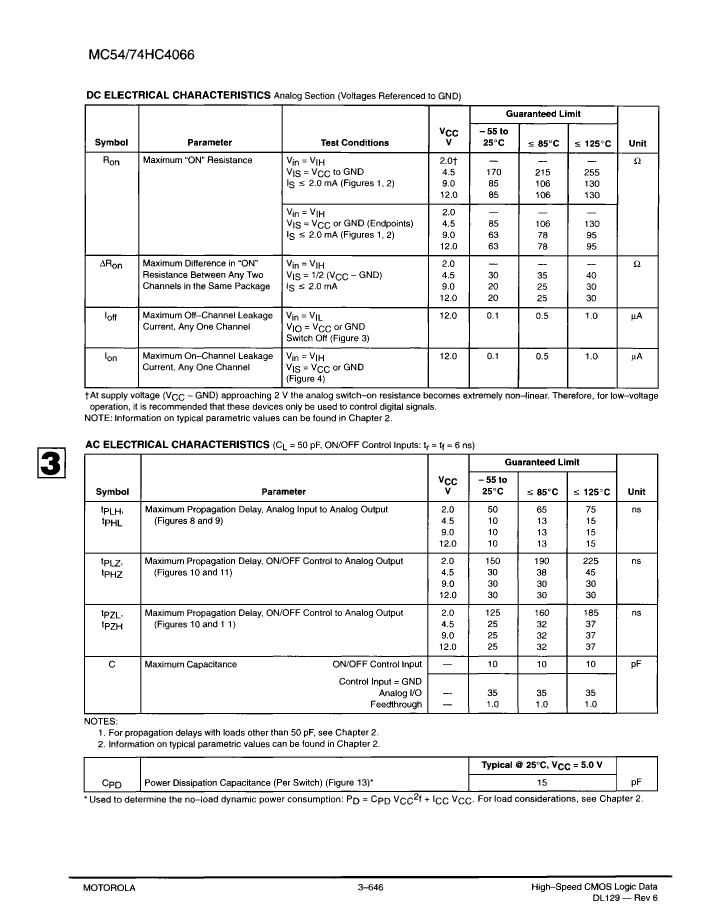

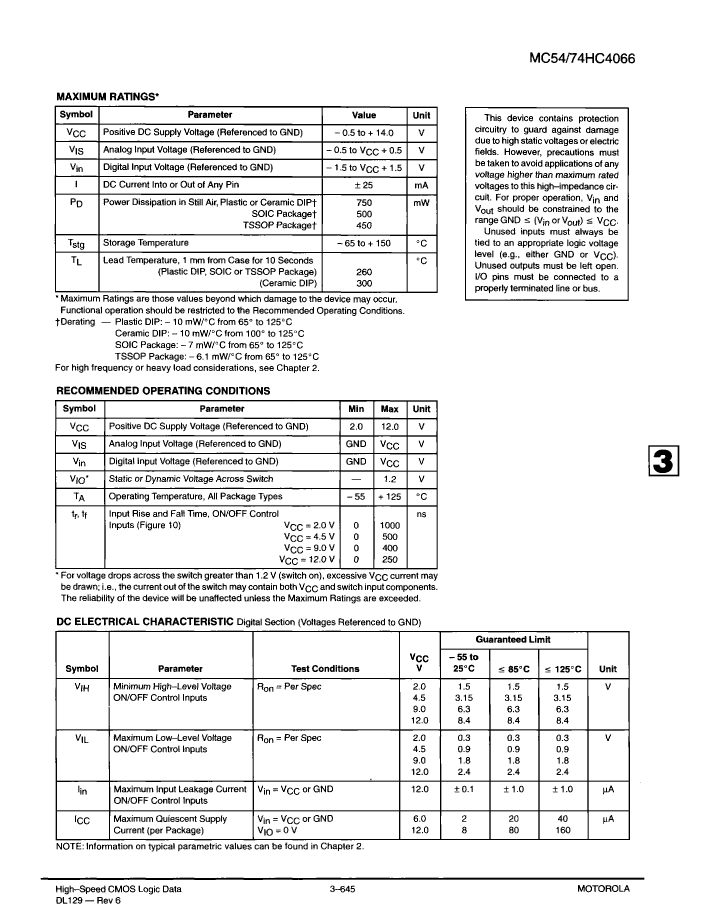

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| package instruction | DIP, DIP14,.3 |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| length | 18.86 mm |
| normal position | NO |
| Number of channels | 1 |
| Number of functions | 4 |
| Number of terminals | 14 |
| Nominal off-state isolation | 40 dB |
| On-state resistance matching specifications | 20 Ω |
| Maximum on-state resistance (Ron) | 130 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| output | SEPARATE OUTPUT |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 2/12 V |
| Certification status | Not Qualified |
| Maximum seat height | 4.69 mm |
| Maximum supply current (Isup) | 0.16 mA |
| Nominal supply voltage (Vsup) | 12 V |
| surface mount | NO |
| Maximum disconnect time | 15 ns |
| Maximum connection time | 15 ns |
| switch | MAKE-BEFORE-BREAK |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| MC74HC4066N | MC74HC4066DT | MC74HC4066DTR2 | MC74HC4066DR2 | |
|---|---|---|---|---|
| Description | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, PLASTIC, DIP-14 | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, PLASTIC, TSSOP-14 | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, PLASTIC, TSSOP-14 | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, 0.150 INCH, PLASTIC, SOIC-14 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | DIP, DIP14,.3 | TSSOP, | TSSOP, | SOP, SOP14,.25 |
| Reach Compliance Code | unknown | unknown | unknown | unknow |
| Analog Integrated Circuits - Other Types | SPST | SPST | SPST | SPST |
| JESD-30 code | R-PDIP-T14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 |
| length | 18.86 mm | 5 mm | 5 mm | 8.65 mm |
| Number of channels | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 | 14 |
| Nominal off-state isolation | 40 dB | 40 dB | 40 dB | 40 dB |
| Maximum on-state resistance (Ron) | 130 Ω | 130 Ω | 130 Ω | 130 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | TSSOP | TSSOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.69 mm | 1.2 mm | 1.2 mm | 1.75 mm |
| Maximum supply current (Isup) | 0.16 mA | 0.16 mA | 0.16 mA | 0.16 mA |
| Nominal supply voltage (Vsup) | 12 V | 12 V | 12 V | 12 V |
| surface mount | NO | YES | YES | YES |
| Maximum disconnect time | 15 ns | 15 ns | 15 ns | 15 ns |
| Maximum connection time | 15 ns | 15 ns | 15 ns | 15 ns |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 0.65 mm | 0.65 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 7.62 mm | 4.4 mm | 4.4 mm | 3.9 mm |
| JESD-609 code | e0 | e0 | - | e0 |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) |
| Base Number Matches | 1 | 1 | 1 | - |
| Parts packaging code | - | TSSOP | TSSOP | SOIC |
| Contacts | - | 14 | 14 | 14 |
| Part Number | Manufacturer | Description |
|---|---|---|
| MM54HC4066J | Rochester Electronics | SPST, 4 Func, 1 Channel, CMOS, CDIP14, CERAMIC, DIP-14 |
| MC54HC4066J | Rochester Electronics | SPST, 1 Func, 4 Channel, CMOS, CDIP14, CERAMIC, DIP-14 |
| CD54HC4066F3A | Texas Instruments(德州仪器) | High Speed CMOS Logic Quad Bilateral Switch 14-CDIP -55 to 125 |
| MC74HC4066N | Rochester Electronics | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, PLASTIC, DIP-14 |
| MM74HC4066N | Rochester Electronics | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, 0.300 INCH, PLASTIC, MS-001, DIP-14 |
| CD74HC4066E | Texas Instruments(德州仪器) | 12-V, 1:1 (SPST), (SPST), 4-channel analog switch 14-PDIP -55 to 125 |
| CD74HC4066EE4 | Texas Instruments(德州仪器) | High Speed CMOS Logic Quad Bilateral Switches 14-PDIP -55 to 125 |
| 5962-8950701CA | Harris | SPST, 4 Func, 1 Channel, CMOS, CDIP14 |
| M74HC4066B1R | ST(意法半导体) | Analog Switch ICs Quad Bilateral Sw |
| 74HC4066N,652 | NXP(恩智浦) | IC SWITCH QUAD 1X2 14DIP |
| HD74HC4066P | Hitachi （Renesas ） | SPST, 4 Func, 1 Channel, CMOS, PDIP14, DP-14 |
| TC74HC4066AP | Toshiba(东芝) | Analog Switch ICs Quad Switch |
| TLC4066IN | Texas Instruments(德州仪器) | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14 |
| MM74HC4066J | National Semiconductor（TI ） | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP14, J14A, Multiplexer or Switch |
| 933669110652 | NXP(恩智浦) | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, 0.300 INCH, PLASTIC, DIP-14 |
| MC74HC4066ANG | ON Semiconductor(安森美) | Multiplexer Switch ICs 2-12V Quad Mux/Demux -55 to 85deg C |
| MC74HC4066AN | Motorola ( NXP ) | Quad Analog Switch/Multiplexer/Demultiplexer |
| TLC4066MJ | Texas Instruments(德州仪器) | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP14 |
| 933372940652 | Nexperia | Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16 |
