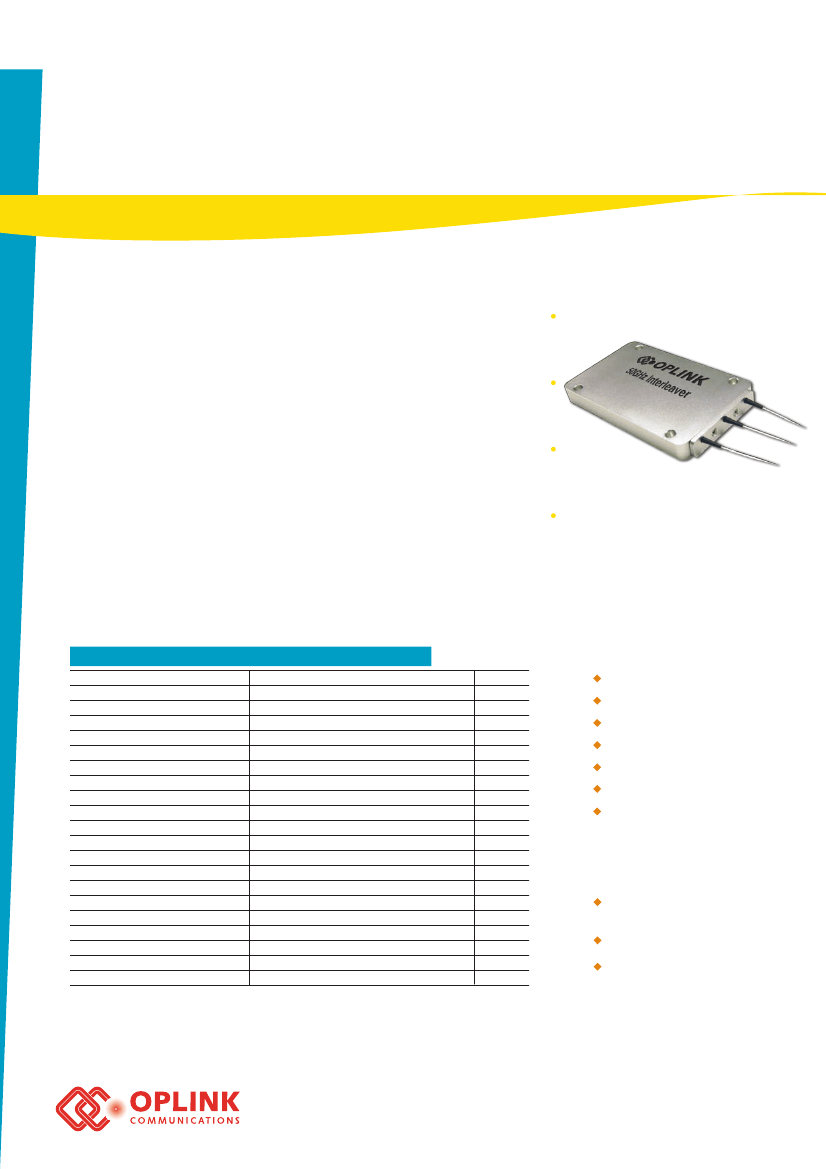

Green
50GHz Compact Fiber
Optical Interleaver
CFOI050GHz
Oplink’s compact, low-dispersion interleavers greatly expand wavelength chan-
nel counts in DWDM systems. It is the best solution to upgrade existing 100GHz
spacing transport system. Oplink’s DWDM interleavers feature excellent wide,
flat passband and high isolation. Both Mux and Demux functions are supported.
These interleavers are athermal and therefore require no temperature control.
Its stable center wavelength accuracy over C or L band 80 channels is suitable
for higher bit rate application. The Green CFOI is compliant with industry green
initiatives such as RoHS and WEEE.
Performance Specifications
Parameter
Min.
Typical
Max.
Unit
Features
Compact Size
Low Dispersion
Completely Passive
Ultra-low Insertion Loss
Highly Stable & Reliable
Epoxy-Free Optical Path
Environmental Green Plan
Compliance
Applications
Metro and Long Haul DWDM
Systems
Network Capacity Expansion
Signal Comb Filtering
1561.42
196000
ITU Grid
50
100
+/-8
1.0
0.2
0.2
nm
GHz
GHz
GHz
GHz
dB
dB
dB
dB
dB
ps
ps/nm
dB
dB
dBm
°C
°C
mm
Central Wavelength Range
Central Frequency Range
Channel Center Wavelength
Input Channel Spacing
Output Channel Spacing
Clear Bandwidth
Insertion Loss
1
Ripple
Insertion Loss Uniformity
Adjacent Channel Isolation
Polarization Dependent Loss (PDL)
Polarization Mode Dispersion (PMD)
Chromatic Dispersion
Return Loss
Directivity
Operating Power Handling
Operating Temperature
Storage Temperature
Fiber Type
Packaging Dimensions
3
1529.55
192000
1.8
0.3
0.4
0.3
0.3
+30
22
0.2
0.2
-30
45
50
0
-40
Corning SMF-28
100.5 (L) x 60 (W) x 10.3 (H)
50
55
24
65
+85
Note:
1. The maximum IL is under all states of polarization and within the full operating temperature and wavelength ranges
specified.
2. All the parameters are excluding connectors.
3. The mechanical tolerance should be +/-0.2mm on all package dimensions unless otherwise custom specified.
Oplink Communications, Inc.
R5.20080410
Green
50 GHz Compact Fiber Optical Interleaver
CFOI050 Series
Mechanical Drawing / Package Dimensions
(dimension in mm)
46335 Landing Parkway Fremont, CA 94538-6407 Tel: (510 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink's OEM design team
or account manager for your requirements and ordering information (510) 933-7200.
CFOI
0
5
0
1
0
0
C
E
Input
50GHz= 050
Output
100GHz= 100
Band
C band= C
Fiber Length
1.0 meter= 1*
1.5 meter= 5
2.0 meter= 2
Fiber Jacket
SMF-28 250µm bare fiber= 1
SMF-28 with 900µm loose tube= 2
Connector
Type
None= 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
* The tolerance of fiber length is +/-0.1m. 1 meter is standard. The lead-time for special fiber length will be longer.
