Part Number

Search

74789-N101

Description
Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking
CategoryThe connector    The connector
File Size540KB,5 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

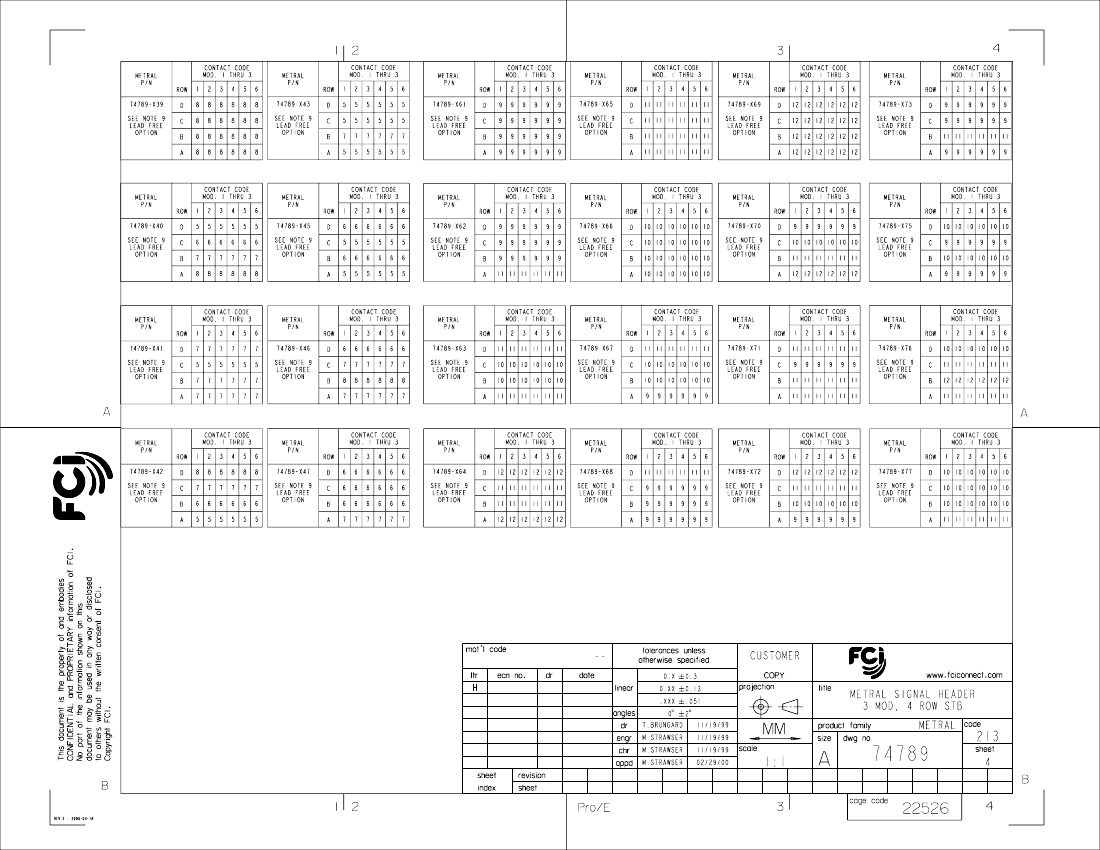

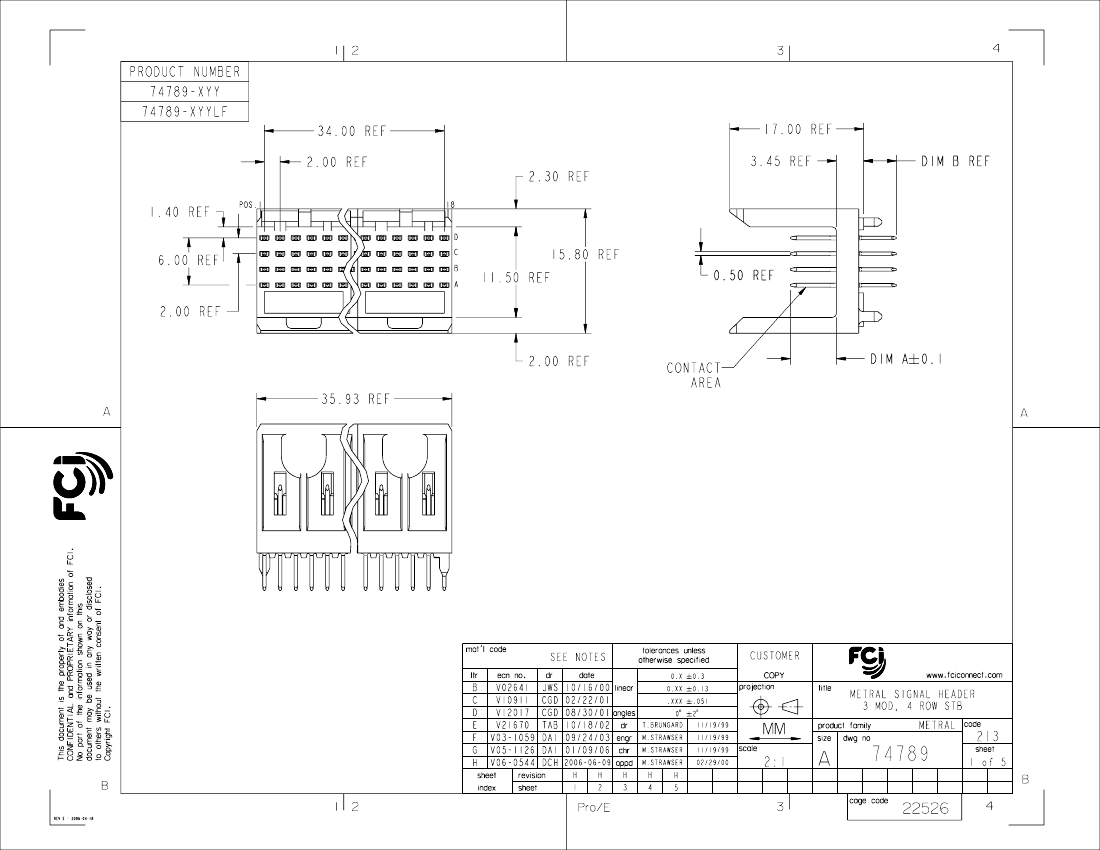

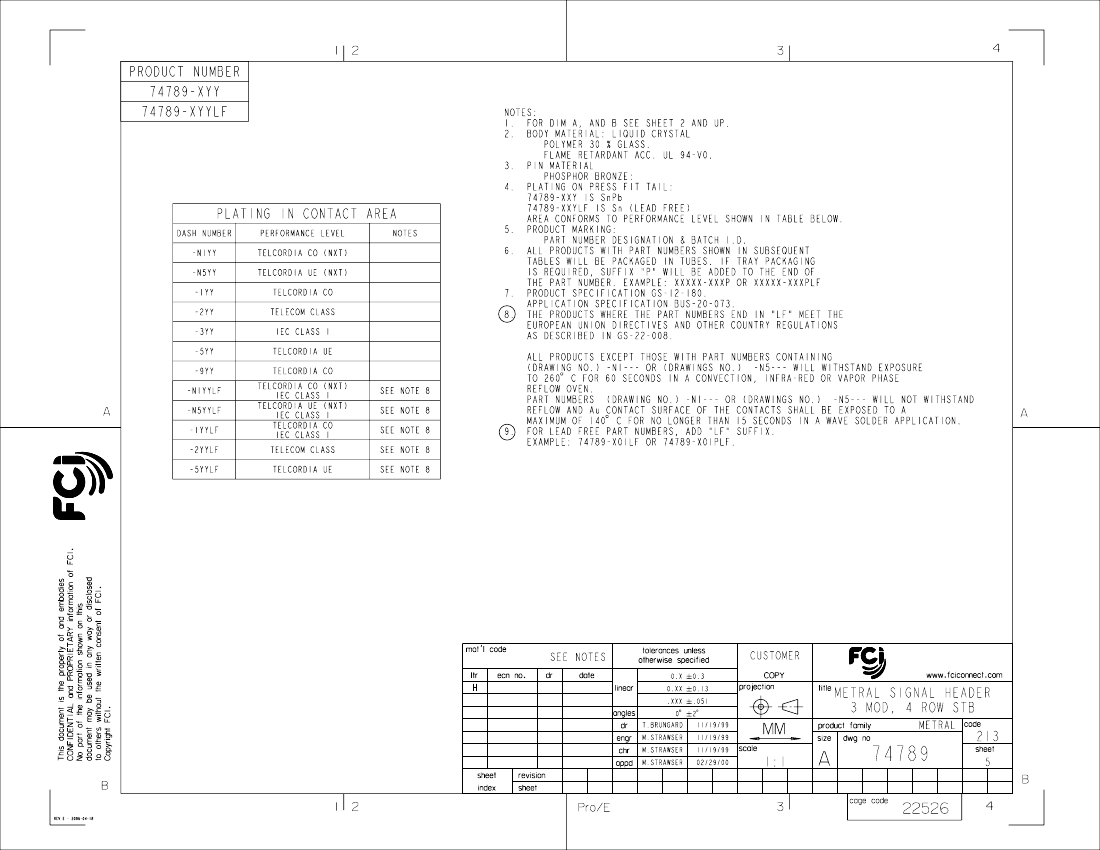

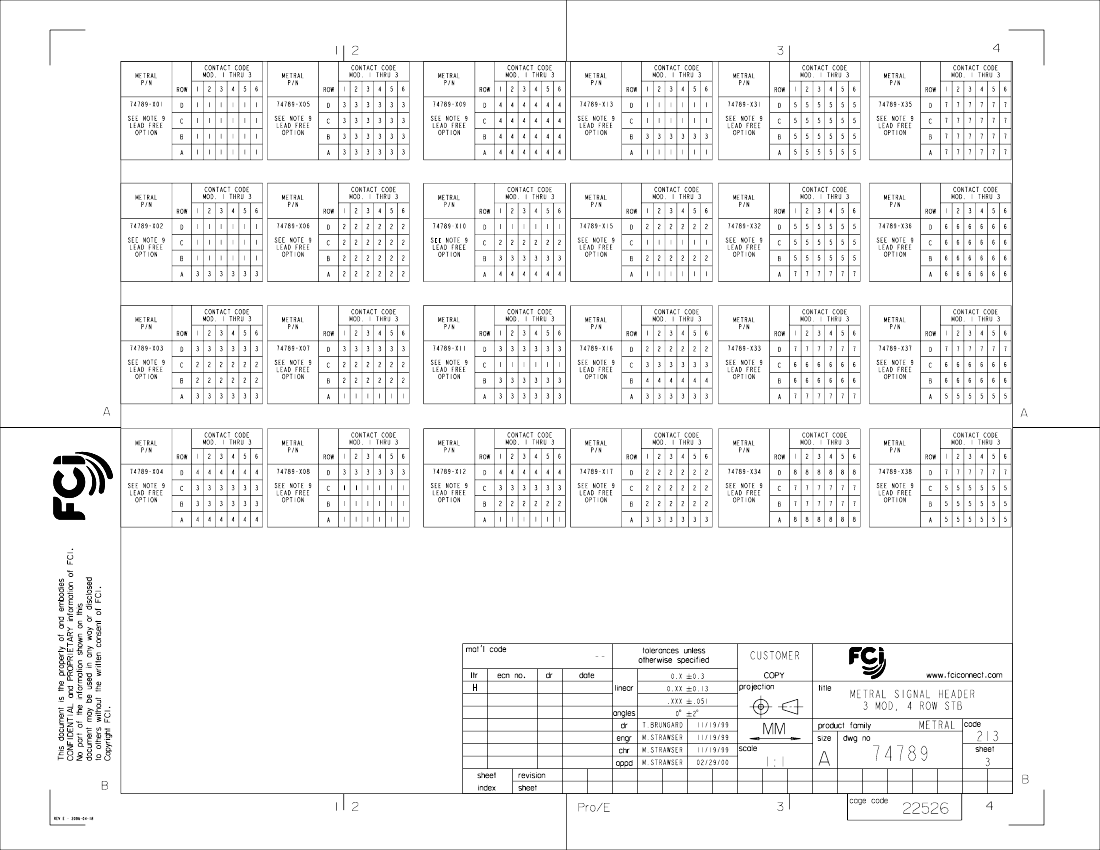

74789-N101 Overview

Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking

74789-N101 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsPEG
body width0.622 inch
subject depth0.669 inch
body length1.415 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleBLADE PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number74789
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
OptionsGENERAL PURPOSE

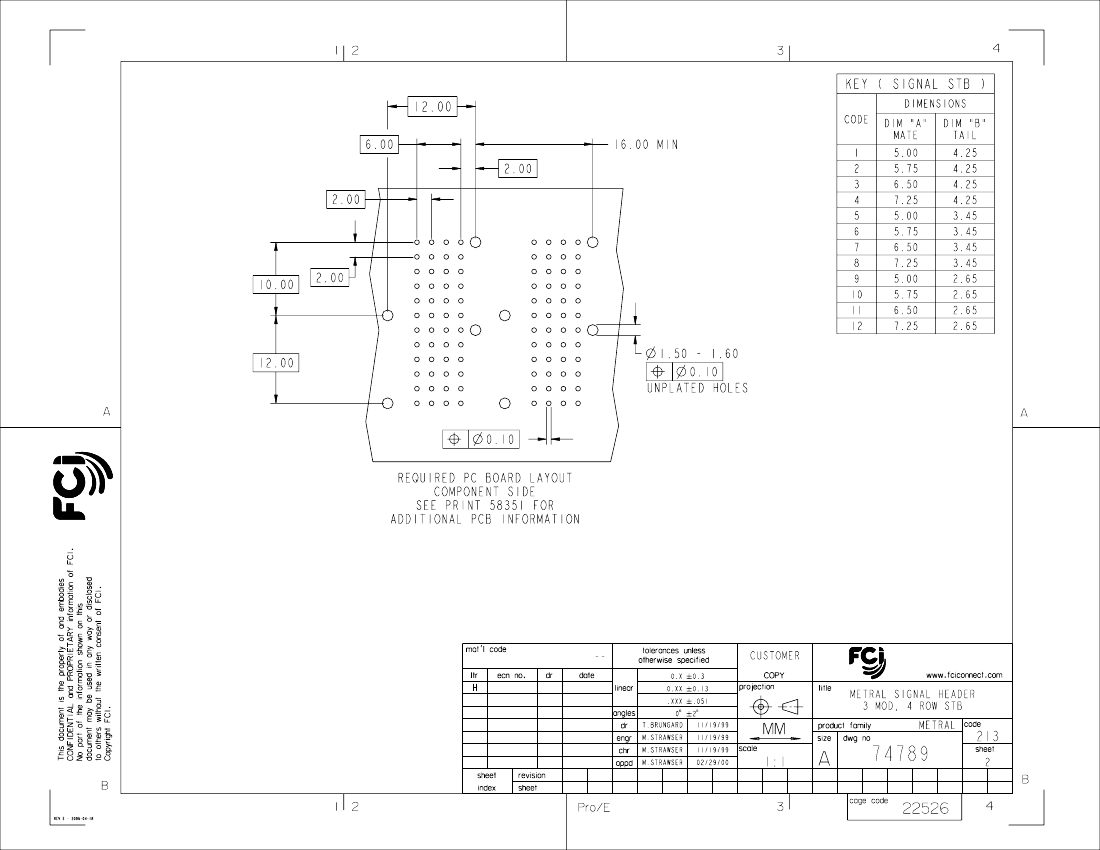

PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts24
UL Flammability Code94V-0
Base Number Matches1
PDM: Rev:H
STATUS:
Released
Printed: Jun 20, 2006
.
