Models 7004 & 7005
Planar Crown
®
Universal Connector System
dc to 40.0 GHz
SMA; Type N; TNC; GPC-7; 3.5mm; 2.92mm; 2.4mm
Features
The use of
P
LANAR
C
ROWN
connectors on instruments,
cables, components/accessories offers the manufacturer
and user the following benefits.
Reduced Downtime
- Damaged connectors can be
replaced in seconds without any tools. Repair cost is mini-
mized to that of a single connector. Recalibration, in most
applications, is virtually eliminated due to closely matched
phase, mechanical dimensions and insertion loss of the
replaceable P
LANAR
C
ROWN
® assemblies.
Versatility
- Ability to select different connector types adds
versatility to instruments, cables, systems and accessories.
It offers the end user multiple connector options. Connector
type and sex can be readily interchanged as dictated by the
system/DUT, eliminating the need for adapters.
Superior Electrical Performance
than would be obtained
by additional adapters.
Simplified Network and Power Measurements
on
non-insertable devices.
Non-rotational Interface
- Since the P
LANAR
I
NTERFACE
has
interlocking teeth, it eliminates unthreading of the connec-
tion when the Crown is subjected to a rotational torque. This
feature is especially useful on coaxial cables where one end
unthreads so easily when the cable is subjected to twisting
or flexing.
Torque Independent Connection
- A torque wrench is not
required when mating the Crown to the bulkhead. A
reasonable hand tightening of the coupling nut results in an
excellent RF connection. This is achieved by having spring
biased inner and outer contacts in the Crown connectors.
Spring biasing ensures an intimate electrical contact at the
P
LANAR
I
NTERFACE
. A pilot diameter on the bulkhead
guarantees excellent concentricity.
®
Axial Isolation of the Center Contact
- Any excessive
axial force on the Crown center contact is absorbed by the
spring biasing at the Planar interface end.
Standardized Mounting Holes
- All instrument panels
can be fabricated with a standard 3/8" Dia. D-hole inde-
pendent of the front panel connector type/sex. This
eliminates changes in sheet metal design when different
connector options are requested.

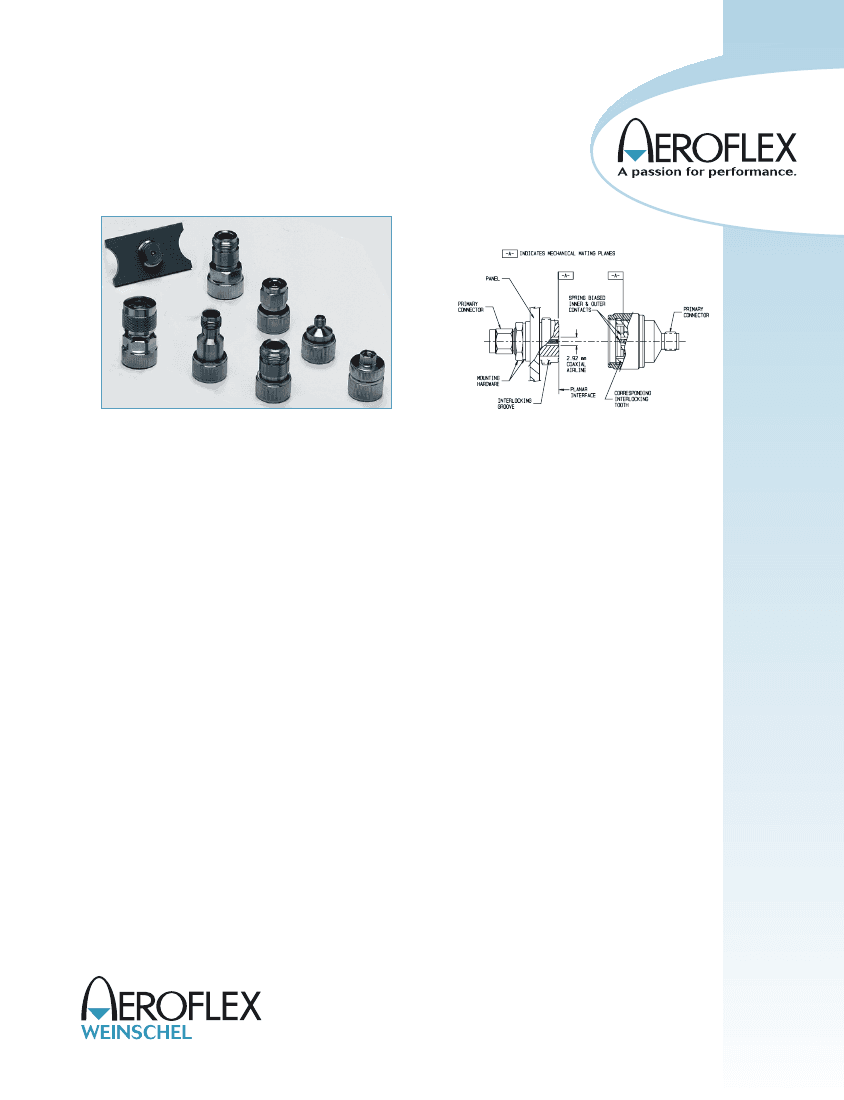

Description
The P
LANAR
C
ROWN
®
Universal Connector System is com-
prised of two connector halves/subassemblies which
have a common mating interface referred to as the
P
LANAR
I
NTERFACE
. The first connector half is called the
P
LANAR
B
ULKHEAD
which readily mounts into instrument
front panels, components and cables. One end of this
bulkhead has a 2.92mm (SMK) male/female primary con-
nector. The other end has a combination of grooves,
external threads and a coaxial P
LANAR
I
NTERFACE
with a
2.92mm (SMK) airline geometry. The bulkhead operates
mode free beyond 40 GHz. The second connector half,
called the P
LANAR
C
ROWN
®
, has a similar 2.92mm P
LANAR
I
NTERFACE
on one end, with spring biased inner and outer
contacts. It has corresponding projections which interlock
with slots on the bulkhead and a coupling nut which
secures the two connector halves, resulting in a non-rota-
tional, torque independent electrical connection. The
spring biased inner and outer contacts eliminate the need
for specifying proof torque and no tools are required to
make or break the connection. The primary end of the
P
LANAR
C
ROWN
®
is offered in a variety of primary coaxial
connector configurations such as SMA, Type N, GPC-7,
TNC, 3.5mm, 2.92mm (SMK) and 2.4mm (under develop-
ment), thus providing an extremely versatile connector
system wherein a connector can be replaced in a matter
of seconds.
EXPRESS
Shipment available via 800-542-4457
or
www.sicklesonline.com.
Check with distributor
for current product stocking quantities.
219
Revision Date: 12/15/04
Connector Systems
Specifications
P
LANAR
C
ROWN
C
ONNECTORS
E
X P R E S S
800-542-4457
www.sicklesonline.com
P
LANAR
B
ULKHEAD
C
ONNECTORS
U.S. Patent No. 4,836,801
(Other U.S. and Foreign Patents pending)
NOTES: 1. All dimensions are given in mm (inches) and are nominal, unless otherwise specified.
2. K® is a registered trademark of the Wiltron 2.92mm connector
220
5305 Spectrum Drive, Frederick, MD 21703-7362 TEL: 301-846-9222, 800-638-2048 Fax: 301-846-9116
web: www.aeroflex-weinschel.com email: sales@aeroflex-weinschel.com
Revision Date: 12/15/04
Connector Systems
P
LANAR
B
ULKHEAD

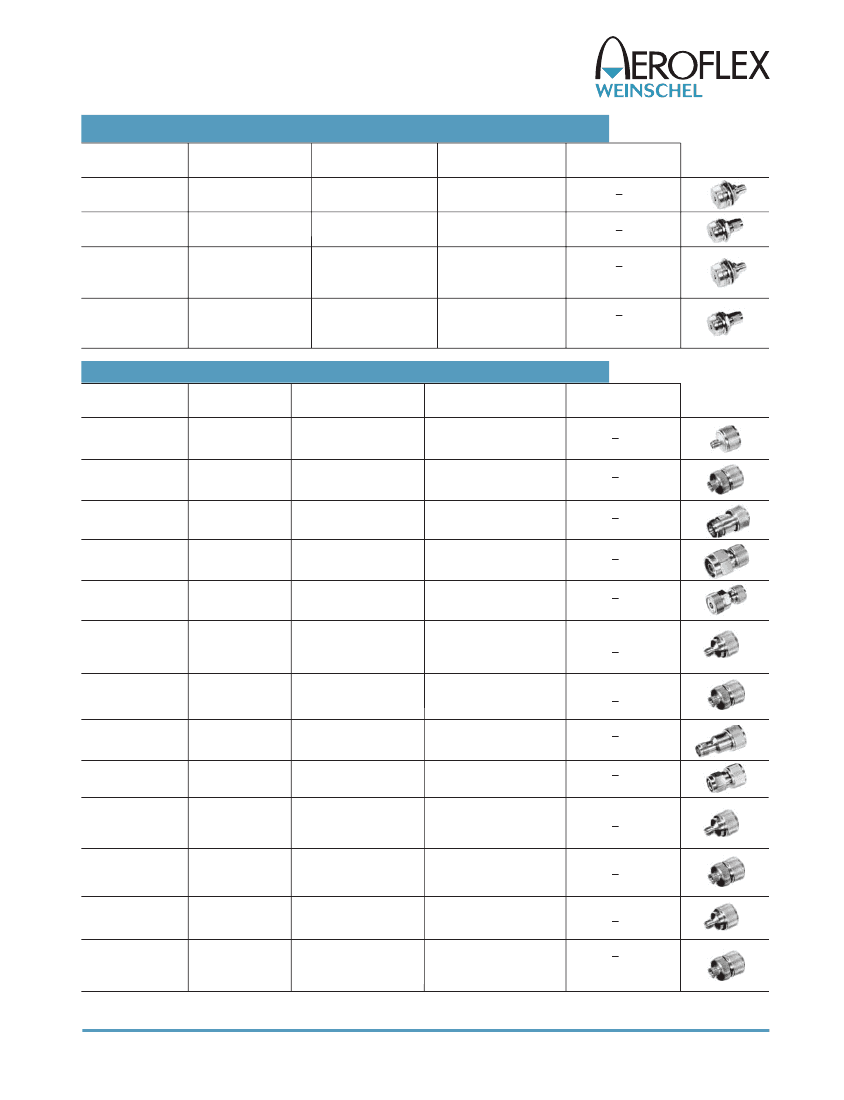

Connectors . . . dc to 40.0 GHz
Model Number/
Primary Conn.
7004A-1
2.92mm Female
7004A-2
2.92mm Male
7010-1
2.92mm Female
with dc Block
7010-2
2.92mm Male
with dc Block
Frequency
Range (GHz)
dc - 40
dc - 40
dc - 26.5
SWR*
(maximum)
----
----
1.20-1.25
Insertion Loss *
(dB maximum)
----
----
0.6-0.9
Electrical
Length
19.9 + 0.25mm
21.6 + 0.25mm
19.9 + 0.25mm
dc - 26.5
1.20-1.25
0.6-0.9
21.6 + 0.25mm
P
LANAR
C
ROWN
Connectors . . . dc to 40.0 GHz
Model Number/
Primary Conn.
7005A-1
SMA Female
7005A-2
SMA Male
7005A-3
Type N Female
7005A-4
Type N Male
7005A-5
GPC-7
7005A-6
3.5mm Female
7005A-7
3.5mm Male
7005A-8
TNC Female
7005A-9
TNC Male
7005A-10
2.92mm Female
7005A-11
2.92mm Male
7005A-12
2.4mm Female
7005A-13
2.4mm Male
Frequency
Range (GHz)
dc - 26.5
1.20
1.25
1.20
1.25
SWR*
(maximum)
(dc -18 GHz)
(18 - 26.5 GHz)
(dc -18 GHz)
(18 - 26.5 GHz)
1.20
Insertion Loss *
(dB maximum)
0.25 (dc -18 GHz)
0.35 (18 - 26.5 GHz)
0.25 (dc -18 GHz)
0.35 (18 - 26.5 GHz)
0.25
Electrical
Length
18.6 + 0.25mm
dc - 26.5
18.6 + 0.25mm
dc - 18
18.6 + 0.25mm
dc - 18
1.20
0.25
28.6 + 0.25mm
dc - 18
1.20
0.25
34.8 + 0.25mm
dc - 34
1.20
1.25
1.30
1.20
1.25
1.30
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5 - 34 GHz)
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5 - 34 GHz)
1.20
0.25 (dc -18 GHz)
0.35 (18 - 34 GHz)
0.25 (dc -18 GHz)
0.35 (18 - 34 GHz)
0.25
18.0 + 0.20mm
dc - 34
18.0 + 0.20mm
26.3 + 0.35mm
dc - 18
dc - 18
1.20
0.25
26.3 + 0.35mm
dc - 40
1.20
1.25
1.35
1.20
1.25
1.35
1.20
1.25
1.35
1.20
1.25
1.35
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5 - 40 GHz)
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5 - 40 GHz)
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5 - 40 GHz)
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5-40 GHz)
0.25 (dc -18 GHz)
0.35 (18 - 26.5 GHz)
0.45 (26.5 - 40 GHz)
0.25
0.35
0.45
0.25
0.35
0.45
0.25
0.35
0.45
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5 - 40 GHz)
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5 - 40 GHz)
(dc -18 GHz)
(18 - 26.5 GHz)
(26.5-40 GHz)
18.0 + 0.15mm
dc - 40
18.0 + 0.15mm
dc - 40
18.0 + 0.15mm
18.0 + 0.15mm
dc - 40
Notes: 1. Specifications based on mated pair of
7004A-X
and
7005A-XX.
Refer to mating PLANAR CROWN for SWR and Insertion loss specifications.
2. Aeroflex / Weinschel 2.92mm connectors are compatible with SMA, 3.5mm, SMK and other 2.92mm connectors.
221
5305 Spectrum Drive, Frederick, MD 21703-7362 TEL: 301-846-9222, 800-638-2048 Fax: 301-846-9116
web: www.aeroflex-weinschel.com email: sales@aeroflex-weinschel.com
Revision Date: 12/15/04
Connector Systems
General Specifications
PLANAR INTERFACE REPEATABILITY1:
Reflection Coefficient (Magnitude):
60 dB (dc - 18 GHz)
50 dB (18 - 26.5 GHz)
45 dB (26.5 - 40 GHz)
Transmission (Magnitude)2:
40 dB (dc - 18 GHz)
35 dB (18 - 26.5 GHz)
30 dB (26.5 - 40 GHz)
Transmission (phase)2:
0.5°
1. The Repeatability specifications apply to ten consecutive
disconnections and reconnections of the P
LANAR
I
NTERFACE
.
2. Transmission repeatability includes the repeatability of
the VNA test cable.
OPERATING TEMPERATURE:
0°C to 85°C
CONSTRUCTION:
Passivated stainless steel bodies and
coupling nuts. Gold plated beryllium copper contacts.

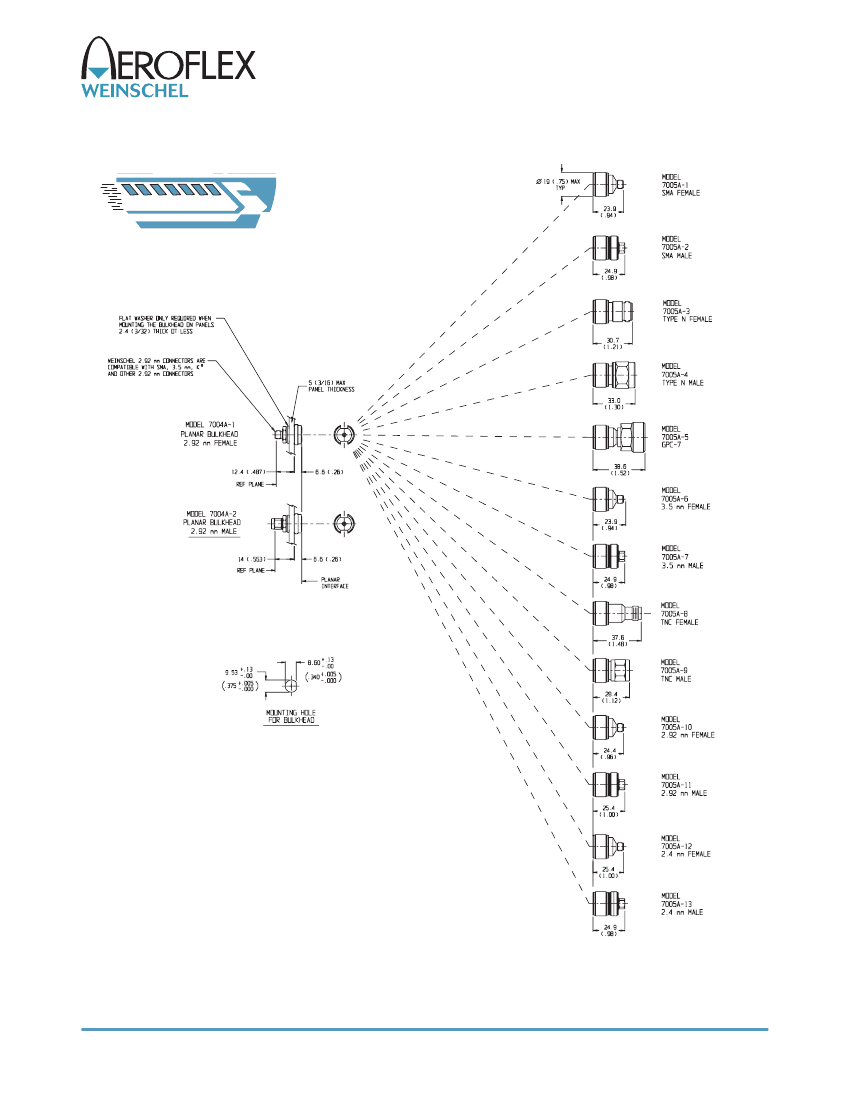

INTERFACE DIMENSIONS & ADDITIONAL FEATURES
OF PRIMARY CONNECTORS:
SMA (Models 7005A-1 and -2):
Contact Pin Recession: 0 to 0.1mm (0 to 0.004 in)
Front Insulator Recession: 0.23 to 0.33mm (0.009 to 0.013
in)
Aeroflex / Weinschel high frequency
SMA
connector oper-
ates mode free beyond 26.5 GHz and is a superior SMA
connector. It incorporates a wider shoulder on the male and
female mating planes (0.020" typical compared to 0.007" on
standard SMA connectors) and has a 3 slot female contact
instead of the conventional four slot design. Both these fea-
tures result in a
more rugged
connector with longer life and
improved repeatability. Unlike many commercial teflon
loaded SMA connectors, these connectors will not cause
premature damage when mated with 3.5mm, 2.92mm and
K® connectors.
Type N (Models 7005A-3 and -4):
Contact Pin Protrusion (N female): 5.18 to 5.26mm (0.204
to 0.207 in)
Contact Pin Recession (N Male): 5.28 to 5.36mm (0.208 to
0.211 in)
The male and female Type N connectors are Precision Test
connectors per MIL-STD-348. They are usable to 22 GHz.
GPC-7 (Model 7005A-5):
Contact Pin Recession: 0 to 0.05mm (0 to 0.002 in)
The GPC-7 connectors are designed per IEEE Std 287.
3.5mm (Models 7005A-6 and -7):
Contact Pin Recession: 0 to 0.08mm (0 to 0.003 in)
TNC (Models 7005A-8 and -9):
Contact Pin and Insulator Protrusion (TNC Female): 5.03 to
5.28mm (0.198 to 0.208 inch)
Contact Pin and Insulator Recession: 5.28mm (0.208 in)
minimum
These TNC male and female connectors are designed per
MIL-STD-348 interface requirements for the NEW TNC con-
nectors and operate mode free beyond 18 GHz.
2.92mm (Models 7005A-10 and -11):
Contact Pin Recession: 0 to 0.08mm (0 to 0.003 in)
In addition to the many advantages of 2.92mm airline con-
nectors the Aeroflex / Weinschel version incorporates a
three slot female contact design resulting in a more ruggedi-
zed contact than the conventional four slot design on most
2.92mm connectors.
2.4mm (Models 7005A-12 and 7005A-13):
Contact Pin Recession: 0 to 0.08mm (0 to 0.003 in)
Applications
Test Instruments
- Synthesizers; network/spectrum
analyzers, power meters and many more.
Accessories
- Detectors, SWR bridges/auto testers; power
sensors, etc.,
Microwave Cables
- Cables constructed with the
P
LANAR
B
ULKHEAD
connector interface at one end offer the user a
wide choice of primary coaxial connectors offered on the
P
LANAR
C
ROWN
models. For an instrument such as a VNA,
this eliminates the need for having different sets of test
cables for different connector configurations. Cables with a
built in PLANAR CROWN on the opposite end mate directly
with
P
LANAR
B
ULKHEADS
on instruments, providing an
excellent non-rotational electrical connection.
Special Configurations
- The
P
LANAR
B
ULKHEAD
design
can be provided with a built in attenuator or dc block. This
is a useful feature when instrument front ends require a
masking attenuator or need to be protected against dc
voltages. Although the basic mechanical design of the
P
LANAR
B
ULKHEAD
was intended for panel mounting, it can
be modified to mount directly into other accessories. The
primary connector of the bulkhead can also be modified to
launch directly on microstrip or suspended stripline
substrates.
222
5305 Spectrum Drive, Frederick, MD 21703-7362 TEL: 301-846-9222, 800-638-2048 Fax: 301-846-9116
web: www.aeroflex-weinschel.com email: sales@aeroflex-weinschel.com
Revision Date: 12/15/04
京公网安备 11010802033920号
EEWORLD
