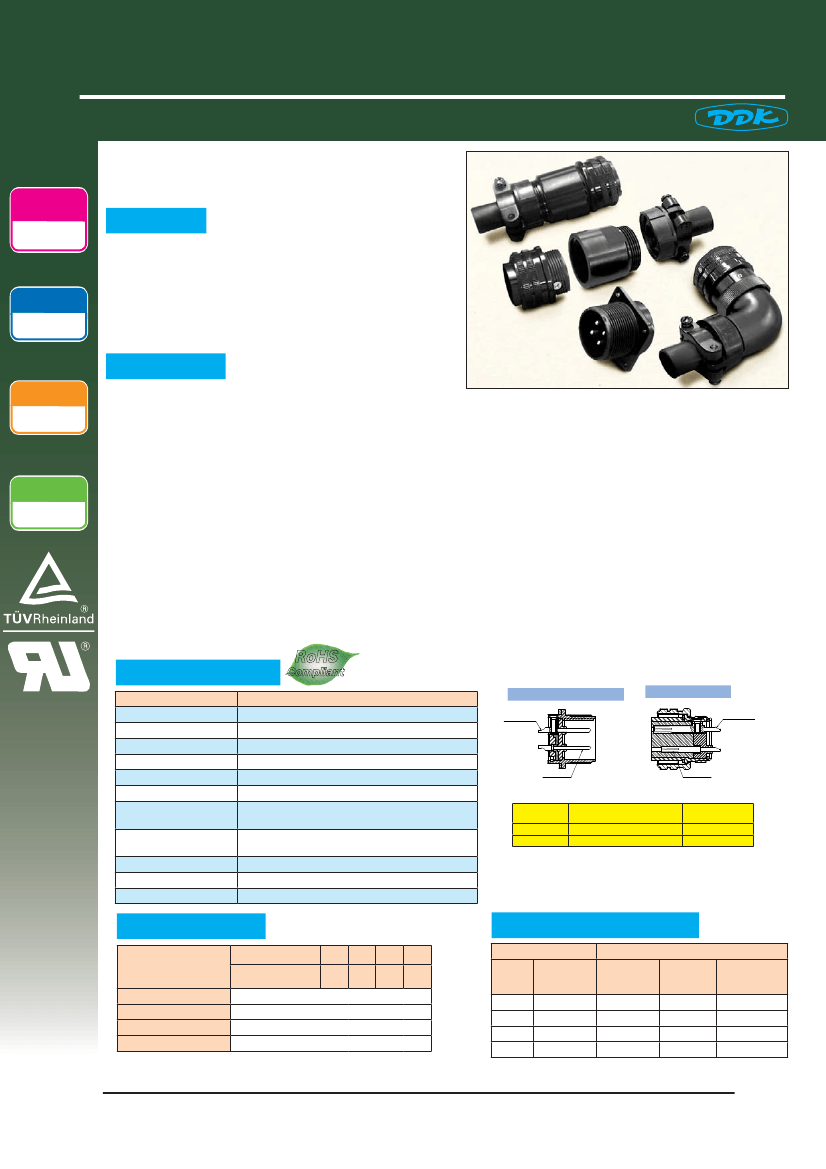

Waterproof Circular Connectors Conforming to
European Safety Standards
CE05 Series
Conforming
Standard
MIL-DTL-5015
◆
OUTLINE
The industrial machinery including the machine tools which
is exported to Europe has to conform with European safety
standards since January, 1995. The CE05 series connectors,
Wa t e r p r o o f
IP 67
which offer full compatibility with MIL-C-5015, D/MS and
CE02 series connectors, were developed to comply with this
demand.
◆
FEATURES
Lock Type
Threaded
Coupling
Safety
Standard
TÜV, UL
● European Safety Standard
CE05 series fully conforms with the connector standard of EN61984 (DIN VDE0627) which is in accordance with
European standard of EN60204-1 for the safety of machinery and electrical equipment for machines. Our products
have been approved by TÜV Rheinland.
● UL
CE05 has been approved by UL (Underwriters Laboratories Inc.) in the USA who is an independent product safety
certification organization
● First Make ‒Last Break Ground Contact to Protect Circuit
Connectors have a premating ground contact having conductivity with the shell to protect a circuit.
The premating contact will mate with the mating half contact first on mating the connectors and will unmate last
on unmating the connectors. The connectors provide a path for any stray voltage to be shunted to a safe ground
avoiding harm to the operator and the voltage sensitive equipment.
● Water/Oil/Dust Structure ‒ Class IP67 Protection
Class IP67 protection in the mated condition. CE05-2A receptacle connectors are IP67 rated in the
unmated condition since these connectors have the pin contacts in the rubber inserts.
RoHS
◆
MATERIAL / FINISH
Item
Contact
2A Style Pin Front Insert
2A Style Pin Rear Insert
2A Style Socket Insert
6A Style Socket Insert
6A Style Pin Insert
Shell
Coupling Ring
Retaining Ring
Earth Rag
Gasket
Compliant
Compliant
Material / Finish
Receptacle Connector
Ground Contact
Plug Connector
Ground Contact
Copper Alloy / Silver Plating
Synthetic Rubber / Black
Synthetic Resin / Black
Synthetic Resin / Black
Synthetic Resin / Black
Synthetic Resin / Black
Aluminum Alloy
/ Zinc Plating, Black Trivalent Chromium Treatment
Aluminum Alloy
/ Zinc Plating, Black Trivalent Chromium Treatment
Copper Alloy / Nickel Plating
Copper Alloy / Silver Plating
Synthetic Resin / Black
⇦
Pin Contact
Socket Contact
Certification
Certificatie
Safety Standard
Organization
Number
TÜV
DIN VDE 0627〈EN61984〉 Refer to page 3
UL
UL 1977
E72124
◆
SPECIFICATIONS
Contact Size
Rated Current
Rated Voltage
Insulation Resistance
Operating Temperature
Waterproof Rating
Maximum Rating
per Contact
＃ 16 ＃ 12 ＃ 8
13A
23A
46A
＃4
80A
◆
APPLICABLE CABLE SIZE
Contact
Size
＃ 16
＃ 12
＃ 8
＃ 4
Minimum
Bore of
Solder Cup
φ 1.76
φ 2.70
φ 4.70
φ 7.50
Applicable Cable Size
AWG Size
＃ 22 ∼＃ 16
＃ 14 ∼＃ 12
＃ 10 ∼＃ 8
＃ 8 ∼＃ 6
Nominal
Sectional
Area
1.25mm
2
3.50mm
2
2
2
Maximum
Conductor Dia.
1.6mm
2.5mm
4.5mm
7.0mm
2000V ∼ 3000V AC(r.m.s.) at 1minute
5000M Ω (Min.) at 500V DC
-55℃ to 125℃
IP67
8.00mm
22.00mm
090703
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
CE05 Series
Unit：mm

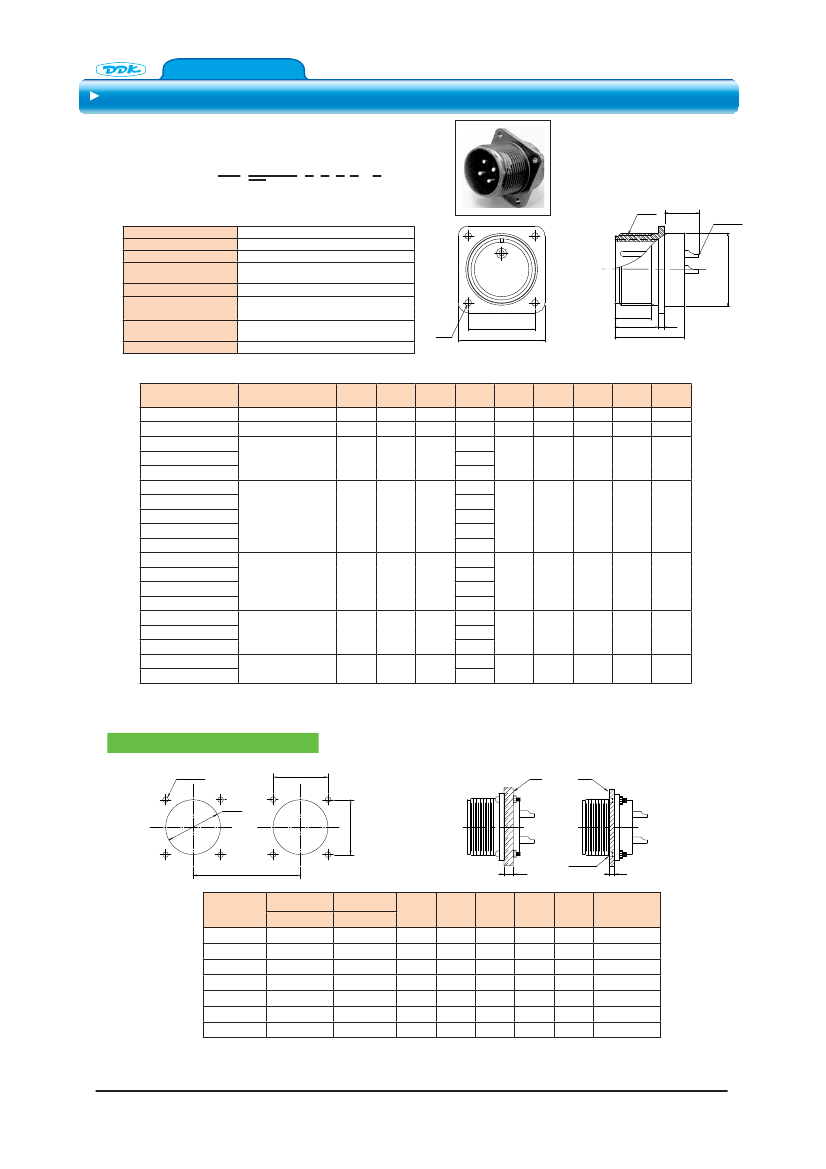

○ CE05 Part Number
Insert
Arrangement
Part Number
Receptacle
Plug
CE05-6A10SL-3SC-D
10SL-3
CE05-2A10SL-3PC-D
CE05-6A10SL-3SC-D-BSS
CE05-8A10SL-3SC-D-BAS
14S-2
CE05-2A14S-2PD-D
CE05-6A14S-2SD-D
CE05-6A14S-2SD-D-BSS
CE05-6A18-10SD-D
CE05-2A18-10PD-D
18-10
CE05-2A18-10SD-D
CE05-6A18-10SD-D-BSS
CE05-8A18-10SD-D-BAS
CE05-6A18-10PD-D
CE05-6A18-10PD-D-BSS
CE05-8A18-10PD-D-BAS
CE05-6A18-12SD-D
18-12
CE05-2A18-12PD-D
CE05-6A18-12SD-D-BSS
CE05-8A18-12SD-D-BAS
CE05-6A20-4SD-D
CE05-2A20-4PD-D
20-4
CE05-2A20-4SD-D
CE05-6A20-4SD-D-BSS
CE05-8A20-4SD-D-BAS
CE05-6A20-4PD-D
CE05-6A20-4PD-D-BSS
CE05-8A20-4PD-D-BAS
CE05-6A20-15SD-D
CE05-2A20-15PD-D
20-15
CE05-2A20-15SD-D
CE05-6A20-15SD-D-BSS
CE05-8A20-15SD-D-BAS
CE05-6A20-15PD-D
CE05-6A20-15PD-D-BSS
CE05-8A20-15PD-D-BAS
CE05-6A20-18SDE-D
20-18
CE05-2A20-18PDE-D
CE05-6A20-18SDE-D-BSS
CE05-8A20-18SDE-D-BAS
CE05-6A22-22SD-D
CE05-2A22-22PD-D
22-22
CE05-2A22-22SD-D
CE05-6A22-22SD-D-BSS
CE05-8A22-22SD-D-BAS
CE05-6A22-22PD-D
CE05-6A22-22PD-D-BSS
CE05-8A22-22PD-D-BAS
CE05-6A22-23SD-D
CE05-2A22-23PD-D
22-23
CE05-2A22-23SD-D
CE05-6A22-23SD-D-BSS
CE05-8A22-23SD-D-BAS
CE05-6A22-23PD-D
CE05-6A22-23PD-D-BSS
CE05-8A22-23PD-D-BAS
CE05-6A24-10SD-D
24-10(D)
CE05-2A24-10PD-D
CE05-6A24-10SD-D-BSS
CE05-8A24-10SD-D-BAS
CE05-6A24-10SG-D
24-10(G)
CE05-2A24-10PG-D
CE05-6A24-10SG-D-BSS
CE05-8A24-10SG-D-BAS
CE05-6A24-11SGH-D
24-11
CE05-2A24-11PGH-D
CE05-6A24-11SGH-D-BSS
CE05-8A24-11SGH-D-BAS
CE05-6A32-17SD-D
CE05-2A32-17PD-D
32-17
CE05-2A32-17SD-D
CE05-6A32-17SD-D-BSS
CE05-8A32-17SD-D-BAS
CE05-6A32-17PD-D
CE05-6A32-17PD-D-BSS
CE05-8A32-17PD-D-BAS
Backshell Style
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Without Backshell
Straight Backshell
Angle Backshell
Waterproof Cable
Clamp or Conduit
Conduit
CE3057-4A-1-D
Conduit
CE3057-6A-1-D
Conduit
CE3057-10A- □ -D
Conduit
CE3057-10A- □ -D
Conduit
CE3057-10A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-12A- □ -D
Conduit
CE3057-16A- □ -D
Conduit
CE3057-16A- □ -D
Conduit
CE3057-16A- □ -D
Conduit
CE3057-20A- □ -D
Conduit
CE3057-20A- □ -D
*If you use the conduit, please ask conduit supplier.
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
CE05 Series
Unit：mm

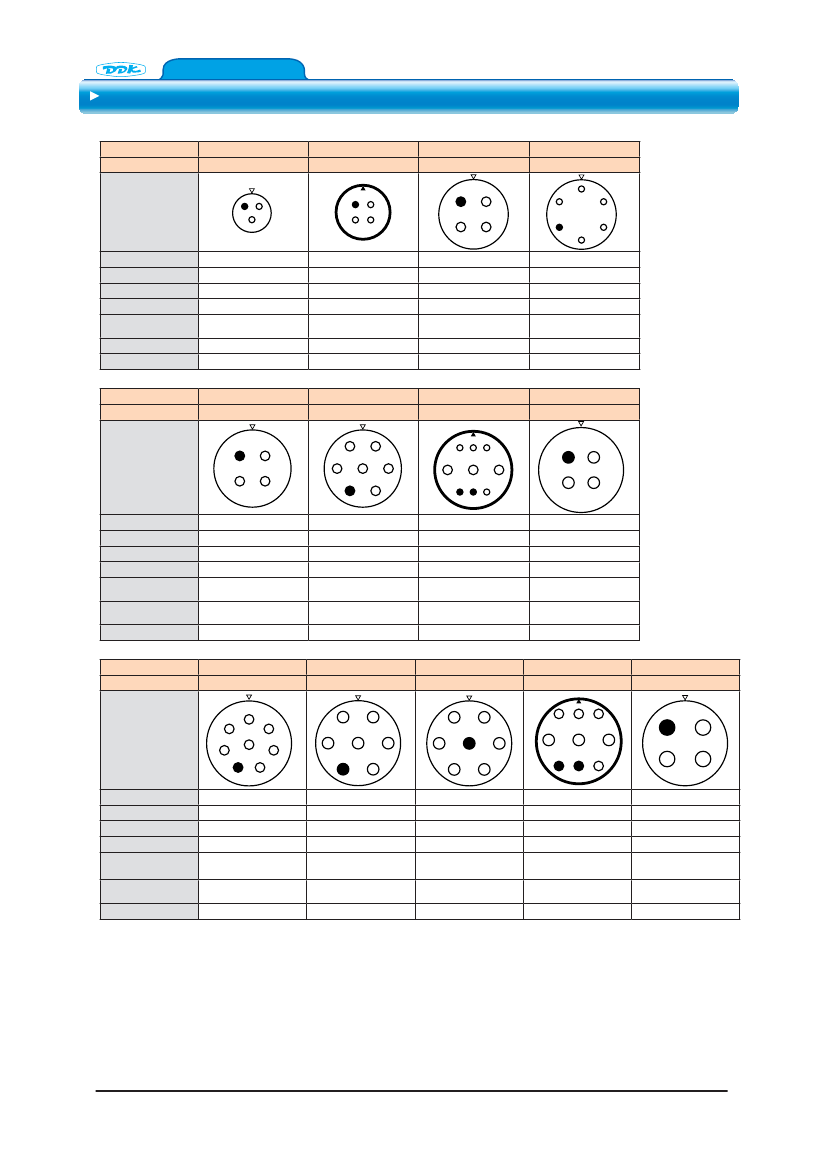

○ Insert Arrangement
Number of Contact
Insert No.
3
10SL-3
4
14S-2
D
4
18-10
A
E
6
18-12
F
Insert
Arrangement
C
B
A
D
C
A
B
A
C
B
D
C
B
Reverse Contact
Contact Size
Ground Contact
Rated Voltage
Dielectric
Withstanding Voltage
Current Capacity
TÜV
Certificate No.
n/a
＃ 16
C
AC200V（r.m.s.）
AC2,000V（r.m.s.）
13A (29.2A)
R50082122
n/a
＃ 16
D
AC200V（r.m.s.）
AC2,000V（r.m.s.）
13A (35.3A)
R50082122
Available
＃ 12
D
AC250V（r.m.s.）
AC3,000V（r.m.s.）
23A (62.5A)
R50082065
n/a
＃ 16
D
AC250V（r.m.s.）
AC2,000V（r.m.s.）
13A (73.6A)
R50082122
Number of Contact
Insert No.
4
20-4
7
20-15
A
G
F
B
D
C
E
G
3 / 6
20-18
H
I
A
B
C
4
22-22
D
A
F
D
A
Insert
Arrangement
C
B
E
B
D
C
Reverse Contact
Contact Size
Ground Contact
Rated Voltage
Dielectric
Withstanding Voltage
Current Capacity
TÜV
Certificate No.
n/a
＃ 12
D
AC250V（r.m.s.）
AC2,800V（r.m.s.）
23A (62.5A)
R50082065
Available
＃ 12
D
AC250V（r.m.s.）
AC2,000V（r.m.s.）
23A (83.7A)
R50082065
n/a
＃ 12 ＃ 16
D,E
AC250V（r.m.s.）
AC2,000V（r.m.s.）
#12 : 23A
#16 : 13A(67.6A)
R50082065
Available
＃8
D
AC250V（r.m.s.）
AC3,000V（r.m.s.）
46A (125.1A)
R50082069
Number of Contact
Insert No.
8
22-23
G
F
A
H
E
D
C
B
D
E
G
F
7
24-10（D）
A
7
24-10（G）
3 / 6
24-11
4
32-17
F
B
E
G
A
B
D
A
B
C
D
A
Insert
Arrangement
E
F
C
B
C
D
C
G
H
I
Reverse Contact
Contact Size
Ground Contact
Rated Voltage
Dielectric
Withstanding Voltage
Current Capacity
TÜV
Certificate No.
Available
＃ 12
D
AC250V（r.m.s.）
AC2,000V（r.m.s.）
23A (90.1A)
R50082065
n/a
＃8
D
AC250V（r.m.s.）
AC2,000V（r.m.s.）
46A (167.4A)
R50082069
n/a
＃8
G
AC250V（r.m.s.）
AC2,000V（r.m.s.）
46A (167.4A)
R50082069
n/a
＃ 8 ＃ 12
G,H
AC250V（r.m.s.）
AC2,000V（r.m.s.）
# 8 : 46A
#12 : 23A(126.4A)
R50082069
Available
＃4
D
AC250V（r.m.s.）
AC2,800V（r.m.s.）
80A (217.6A)
R50082124
＊ Front view of pin contact and standard key position
＊ The sign " ● " stands for the ground contact.
＊ Current capacity shows the maximum permitted current per contact.
Values in parenthesis show the total current capacities in each one of respective connectors.
＊ n/a stands for ''not available''.
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
CE05 Series
Unit：mm

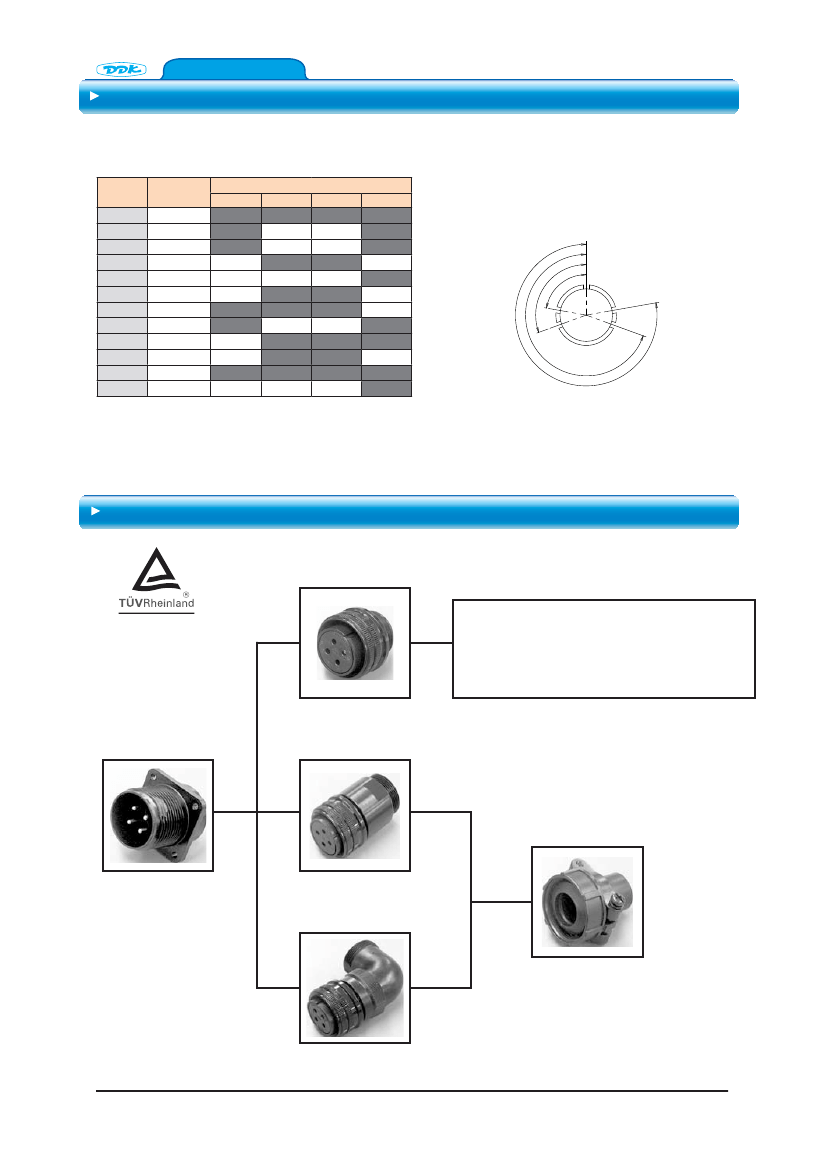

○ Alternate Insert Position
To avoid cross-mating problems in applications requiring
the use of more than one connector of the same size and
Insert No.
10SL-3
14S-2
18-10
18-12
20-4
20-15
20-18
22-22
22-23
24-10
24-11
32-17
Number of
Contact
3
4
4
6
4
7
9
4
8
7
9
4
45
110
250
35
80
280
110
250
80
45
80
110
250
280
Ｗ
Ｘ
Ｚ
Ｙ
Alternate Insert Position
W
X
120
120
Y
240
240
280
Z
insert arrangement, alternate insert positions are available as
indicated or as shown in the diagram below.
C
Ｌ
Front View of Pin Insert
(Rear View of Socket Insert)
☆ The safety standard, VDE, is applied only to the equipment which uses more than 60V DC. It is not applied to the insert
arrangements of 20-29 or 22-14 which are used for signal transmission.
In the case of using 20-29 and 22-14 CE02 series and D/MS series are available.
○ Configuration
●
Plug Type
Waterproof on Mated
●
Conduit
Conduit Manufactures
・Nipolex
・NEOFLEX
・SANKEI
http://www.nipolex.co.jp/
http://www.neoflex.co.jp/
http://www.sankei-ss.co.jp/aisatu.html
・DAIWA DENGYO http://www.daiwadengyo.co.jp/index.html
●
Box Mount Receptacle
CE05-2A Individual
Waterproof
●
Straight Plug Type
CE05-6A-D-BSS
Waterproof on Mated
●
Waterproof Cable Clamp
CE3057- □□ A
●
Angle Type
CE05-8A-D-BAS
Waterproof on Mated
■
Intermateable with D/MS series
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
4
CE05 Series
Unit：mm
○ Box Mount Receptacle Connector
P/N : C E0 5 -2 A1 8 - 10 P D Y S - D
①
② ③
④ ⑤⑥⑦
⑧
A
F
Contact
① Shell Style
② Shell Size
③ lnsert Arrangement
④ Contact Style
⑤
Ground
Contact
⑥ Alternate Insert Position
⑦ Gasket
⑧ Finish
2A：Box Mount Receptacle
10SL, 14S, 18, 20, 22, 24 and 32
Refer to page 3
P : Pin Contact
S : Socket Contact
Refer to page 3
Omit : Standard
W, X, Y, Z : Refer to page 4
Omit : Without Gasket
S : With Gasket
D : Black Trivalent Chromium Treatment
□J
φL
□K
H
B
E
C
Note: Place a gasket on the rear of the flange. (Thickness: 1.6mm)
Part Number
CE05-2A10SL-3PC-D
CE05-2A14S-2PD-D
CE05-2A18-10PD-D
CE05-2A18-10SD-D
CE05-2A18-12PD-D
CE05-2A20-4PD-D
CE05-2A20-4SD-D
CE05-2A20-15PD-D
CE05-2A20-15SD-D
CE05-2A20-18PDE-D
CE05-2A22-22PD-D
CE05-2A22-22SD-D
CE05-2A22-23PD-D
CE05-2A22-23SD-D
CE05-2A24-10PD-D
CE05-2A24-10PG-D
CE05-2A24-11PGH-D
CE05-2A32-17PD-D
CE05-2A32-17SD-D
2-18UNS-2A
22.23
3.35
38.15
1 1/2-18UNEF-2A
20.63
2.75
33.85
1 3/8-18UNEF-2A
19.05
2.75
31.5
1 1/4-18UNEF-2A
19.05
2.75
30.6
1 1/8-18UNEF-2A
19.05
2.75
30.5
A
5/8-24UNEF-2A
7/8-20UNEF-2A
B
-0.50
14.27
14.27
+0.97
C
0.35
2.15
2.15
E
0.5
23.5
23.5
F
1
12.4
12.4
14.2
18.6
13.3
14.2
18.6
14.2
18.6
14.7
17.2
22.0
14.3
18.6
15.6
15.6
15.6
20.2
20.62
G
0.5
16.0
20.75
H
9.53
9.53
J
0.12
18.26
23.01
K
0.5
25.4
30.2
φ L
-0.12
3.05
3.05
+0.25
27.0
15.88
26.97
34.9
3.05
32.0
15.88
29.36
38.1
3.05
33.0
15.88
31.75
41.3
3.05
36.0
15.88
34.92
44.4
3.74
48.0
15.88
44.45
56.9
4.30
Note : CE05-2A □□ - □□ S □ -D has reverse style of the contacts which are the socket contacts.
The mating half connectors should have the pin contacts.
Panel Mounting Dimension
B Dia.
-0.12
+0.25
C
±0.13
Front Mounting
Panel
Rear Mounting
A
1
,A
2
C
±0.13
Screw
D
E
1
E
2
Shell Size
10SL
14S
18
20
22
24
32
Front Mounting Rear Mounting
A1
(Min.)
16.8
21.7
28.0
33.0
34.0
37.0
49.3
A2
(Min.)
16.6
23.0
29.3
32.5
35.7
38.8
51.5
B
3.05
3.05
3.05
3.05
3.05
3.75
4.40
C
18.26
23.01
26.97
29.36
31.75
34.92
44.45
D
47
53
59
62
70
73
86
E1
Max.
10
10
10
10
10
10
10
E2
Max.
3.0
3.0
3.0
3.0
3.0
3.0
3.0
Panel
Mounting
Screw(Ref)
M3
M3
M3
M3
M3
M3.5
M4
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
5
φG
京公网安备 11010802033920号
EEWORLD
