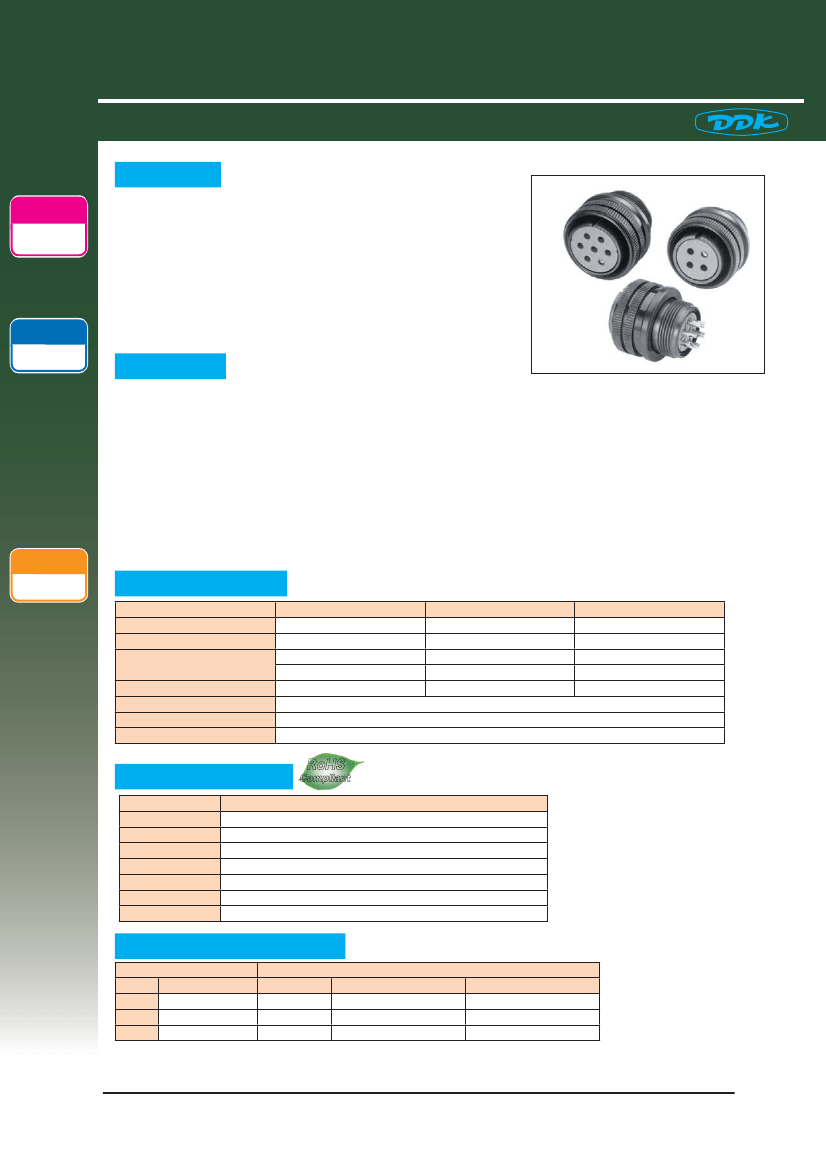

Waterproof Circular Connectors
Conforming to JIS-B-6015 and MIL-DTL-5015
CE02-6A Series
◆
OUTLINE
Conforming
Standard
JIS B 6015
CE02-6A series is a waterproof plug connector conforming to JIS-B-6015,
a Japanese standard for electrical equipment for industrial tool machines,
which has a ground contact to protect a circuit. This plug conforms to MIL-
DTL-5015, a US military standard, as well then it is intemateable with D/MS
series connectors available from our product lines. CE02-6A plug is suitable
for the factory automation equipment, the tool machines and the electrical
equipment in industry using under the rugged circumstances of moisture, oil
MIL-DTL- 5015
Wa t e r p r o o f
IP 67
and dust.
◆
FEATURE
1. First Make-Last Break Contact
CE02-6A plug has a piece of premating ground contact having conductivity with the shell to protect a circuit.
This contact will be connected with the mating half contact first before the other contacts and will unmate last on
unmating the connectors.
2. MIL-DTL-5015
The connectors are intermateable with MIL-DTL-5015 style connectors commonly used on the existing factory
automation and other electrical equipment.
3. Class IP67 Protection
This plug is designed to offer protection against moisture and oil. A gasket located between the coupling ring and
the receptacle shell seals the connection. The waterproof backshells and cable clamps are available to complete the
sealed connection. Mating with CE02-2A, D/MS3102A and CE05-2A receptacles will meet class IP67 protection.
Lock Type
Threaded
Coupling
◆
SPECIFICATIONS
Service Rating
Contact Size
Rated Current
Rated Voltage
Dielectric Withstanding Voltage
Insulation Resistance
Waterproof Rating
Operating Temperature
INST
＃ 16
13A / Contact
200V AC(r.m.s.)
250V DC
1000V AC(r.m.s.) at 1 minute.
A
＃ 12
23A / Contact
500V AC(r.m.s.)
700V DC
2000V AC(r.m.s.) at 1 minute.
5000M Ω min. at 500V DC
IP67
− 40℃ to ＋ 125℃
D
＃8
46A / Contact
900V AC(r.m.s.)
1,250V DC
2800V AC(r.m.s.) at 1 minute.
◆
MATERIAL / FINISH
Item
Contact
Insert
Shell
Coupling Ring
Retaining Ring
Earth Rag
Gasket
RoHS
Compliant
Compliant
Material / Finish
Copper Alloy / Silver Plating
Diallyl Phthalate Resin (Blue)
Aluminum Alloy, Zinc Plating / Trivalent Chromium Treatment (Black)
Aluminum Alloy, Zinc Plating / Trivalent Chromium Treatment (Black)
Copper Alloy / Nickel Plating
Copper Alloy / Silver Plating
Synthetic Rubber
◆
APPLICABLE CABLE SIZE
Contact
Size
＃ 16
＃ 12
＃8
Bore of Solder Cup
1.76mm
2.85mm
5.21mm
Size
＃ 22 ∼＃ 16
＃ 14 ∼＃ 12
＃ 10 ∼＃ 8
Applicable Cable Size
Nominal Sectional Area
1.25mm2
3.50mm2
8.00mm2
Maximum Outer Diameter
1.6mm
2.5mm
4.5mm
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
090708
http://www.ddknet.co.jp
CE02-6A Series
Unit：mm

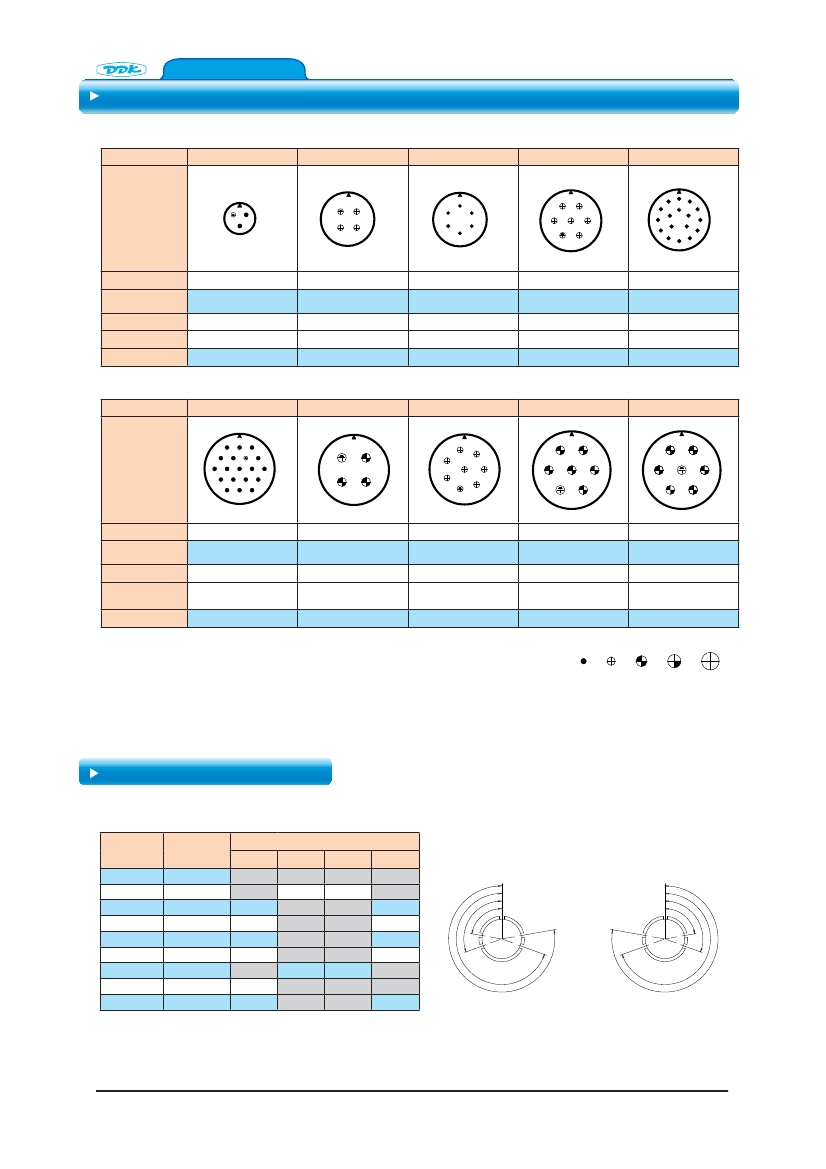

○ Insert Arrangements
Insert No.
10SL
18-10
18-12
20-15
20-29
Ａ
Insert
Arrangement
Ｄ
Ｃ
Ｂ
Ａ
Ａ
Ｆ
Ｅ
Ｄ
Ｃ
Ａ
Ｆ
Ｅ
Ａ
Ｂ
Ｇ
Ｌ
Ｋ
Ｊ
Ｍ
Ｔ
Ｓ
Ｈ
Ｎ
R
Ｂ
Ｐ
Ｃ
Ｄ
Ｅ
Ｃ
Ｂ
Ｂ
Ｄ
Ｃ
Ｇ
Ｆ
Contact Size
Number of
Contact
Ground Contact
Service Rating
Current Capasity
＃ 16
3
C
A
13A (29.2A)
＃ 12
4
D
A
23A (62.5A)
＃ 16
6
D
A
13A (43.6A)
＃ 12
7
D
A
23A (83.7A)
＃ 16
17
N
A
13A (81.7A)
Insert No.
20-14
22-22
22-23
22-10（D）
24-10（G）
Ｌ
Ｍ
Ｕ
Ｔ
Ｎ
Ｐ
Ｓ
Ｇ
Ｒ
Ｆ
Ａ
Ｂ
C
Ｄ
Ｅ
D
A
F
G
H
E
C
A
B
Ｆ
Ａ
Ｆ
Ａ
Insert
Arrangement
Ｊ
Ｋ
Ｅ
D
Ｇ
Ｄ
Ｃ
Ｂ
Ｅ
Ｄ
Ｇ
Ｃ
Ｂ
Ｈ
C
B
Contact Size
Number of
Contact
Ground Contact
Service Rating
Current Capasity
＃ 16
19
N
A
13A (88.9A)
＃8
4
D
A
46A (125.1A)
＃ 12
8
D
D(H)
A(Others)
23A (90.1A)
＃8
7
D
A
46A (167.4A)
＃8
7
G
A
46A (167.4A)
Contact Size Symbol
* Front view of pin contact and key position is standard.
* The sign " ● " stands for the ground contact.
＃１６ ＃１２
* Current capasity shows the maximum permitted current per contact.
Values in parenthesis show the total current capacities in each one of respective connectors.
＃８
＃４
＃０
○ Alternate Insert Positions
To avoid cross-mating problems in applications requiring
the use of more than one connector of the same size and
Insert No.
10SL-3
18-10
18-12
20-15
20-29
22-14
22-22
22-23
24-10
Contact Size/
Number of
Contact
＃ 16 ／ 3
＃ 12 ／ 4
＃ 16 ／ 6
＃ 12 ／ 7
＃ 16 ／ 17
＃ 16 ／ 19
＃ 8／ 4
＃ 12 ／ 8
＃ 8／ 7
35 ゜
80 ゜
280 ゜
Front View of Pin Insert
Front View of Socket Insert
80 ゜
80 ゜
80 ゜
80 ゜
110 ゜
250 ゜
120 ゜
240 ゜
280 ゜
280 ゜
280 ゜
280 ゜
Ｗ
Ｘ
Ｚ
Ｙ
Ｚ
Ｙ
Ｗ
Ｘ
Alternate Insert Key Position
W
X
Y
Z
insert arrangement, alternate insert positions are available
as indicated or as shown in the diagram below.
C
Ｌ
C
Ｌ
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
CE02-6A Series
Unit：mm

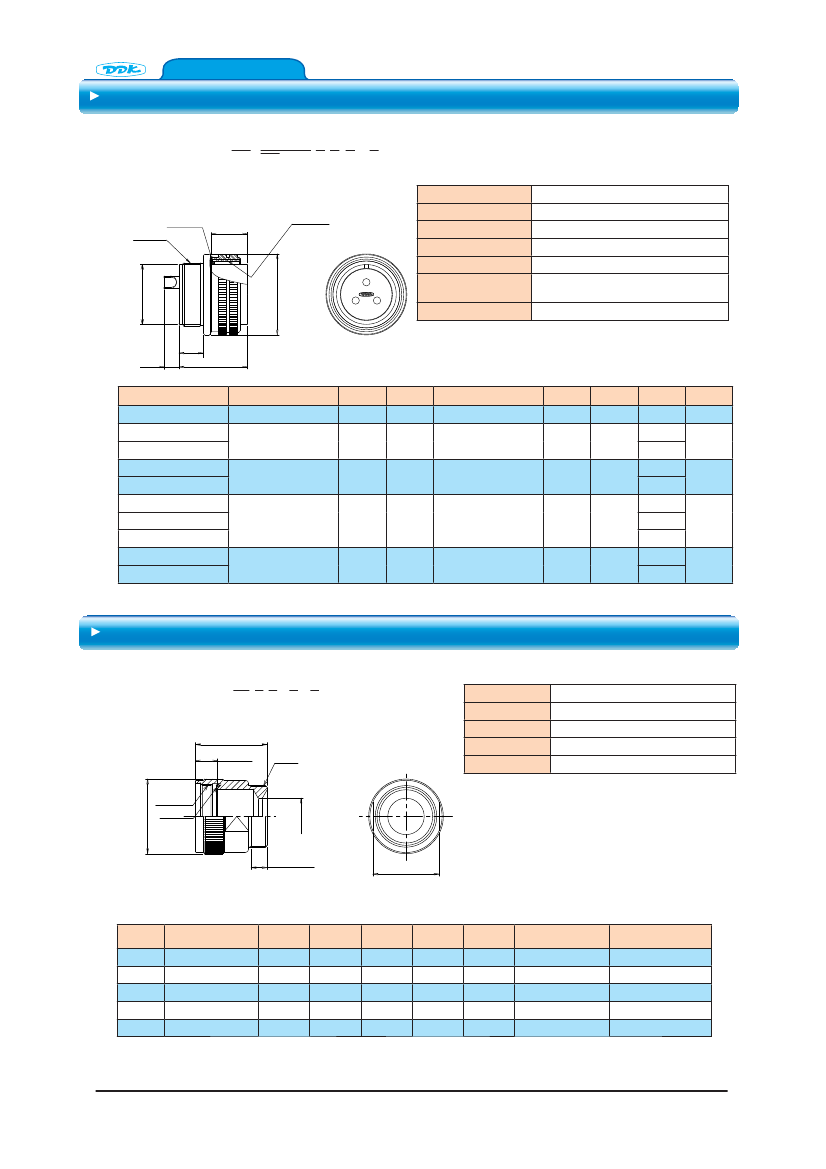

○ Plug Connector
CE 0 2 -6 A1 8- 1 2DSW-D
①
② ③
④⑤ ⑥
⑦
① Shell Style
Gasket
D Thread
F
6A : Straight Plug
10SL, 18, 20, 22 and 24
Refer to page 2.
Refer to page 2.
S : Socket Contact
Omit
: Standard Position
W,X,Y,Z : Altenate Position
D：Trivalent Chromium Treatment(Black)
A Thread
② Shell Size
③ Insert Arrangement
④ Ground Contact
⑤ Contact Style
J
φG
φB
⑥ Alternate Insert Key
Positions
⑦ Finish
E
H max.
C
Part Number
CE02-6A10SL-3CS-D
CE02-6A18-10DS-D
CE02-6A18-12DS-D
CE02-6A20-15DS-D
CE02-6A20-29NS-D
CE02-6A22-14NS-D
CE02-6A22-22DS-D
CE02-6A22-23DS-D
CE02-6A24-10DS-D
CE02-6A24-10GS-D
A
5/8-24UNEF-2B
1 1/8-18UNEF-2B
B
22.2
34.1
C
23.3
33.7
D
9/16-24UNEF-2A
1-20UNEF-2A
E
7.5
11.7
G
12.5
23.5
H max.
7.0
7.5
7.0
7.5
7.0
7.0
J
13.2
19.0
1 1/4-18UNEF-2B
37.3
34.1
1 1/8-18UNEF-2A
12.2
26.8
19.0
1 3/8-18UNEF-2B
40.5
34.1
1 1/4-18UNEF-2A
12.2
29.9
10.0
7.5
19.0
1 1/2-18UNEF-2B
43.6
36.6
1 3/8-18UNEF-2A
13.4
32.8
8.5
8.5
19.4
○ Waterproof Straight Backshell
CE 0 2 -1 8 B S-S-D
① ②③ ④ ⑤
① Shell Size
② Model
③ Style
10SL, 18, 20, 22 and 24
B：Backshell
S : Straight
S : Waterproof
D：Trivalent Chromium Treatment(Black)
L
1
0.5
φB
④ Waterproof
Ｗ Thread
C
L
⑤ Finish
φA
Ｖ Thread
O Ring
0.8
0.5
7.85 min.
（Complete Thread Length）
φC
C
L
φD
0.5
(Gripping Surfaces for Wrench)
Waterproof straight backshell is used to retain the cable when a conduit is not used.
Shell Size
10SL
18
20
22
24
Part Number
CE02-10SLBS-S-D
CE02-18BS-S-D
CE02-20BS-S-D
CE02-22BS-S-D
CE02-24BS-S-D
L
20.0
31.0
35.0
35.0
40.5
A
18.6
30.5
35.0
36.5
40.0
B
6.5
10.5
10.9
10.9
12.2
C
6.6
16.3
17.8
17.8
21.0
D
17.9
26.7
31.6
32.4
36.6
V
9/16-24UNEF-2B
1-20UNEF-2B
1 1/8-18UNEF-2B
1 1/4-18UNEF-2B
1 3/8-18UNEF-2B
W
5/8-24UNEF-2A
1-20UNEF-2A
1 3/16-18UNEF-2A
1 3/16-18UNEF-2A
1 7/16-18UNEF-2A
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
CE02-6A Series
Unit：mm
○ Waterproof Cable Clamp
C E3 0 5 7 -1 0A -1 -D
①
① Clamp Size
② Bushing Size
③ Finish
② ③
Ｖ
Thread
1.5
(D)
Ａ
C
0.7
4A, 10A, 12A, 16A
Rubber Bushing
(Refer to the applicable cable size.)
D：Trivalent Chromium
Treatment
(Black)
φB
(Inner Dimension
of Bushing)
φF
Ｇ
0.7
φＥ
( Outer Dimension
of Bushing )
CE3057- □□ A- □ -D is a waterproof cable clamp for use with a plug. The cable clamp has a waterproof rubber
bushing. Make sure to use a cabtyre cable meeting one of the applicable cable size ranges as shown below.
The cable clamp should be used together with a waterproof backshell.
Part Number
CE3057-4A-1-D
CE3057-10A-1-D
CE3057-10A-2-D
CE3057-10A-3-D
CE3057-12A-1-D
CE3057-12A-2-D
CE3057-12A-3-D
CE3057-12A-7-D
CE3057-16A-1-D
CE3057-16A-2-D
CE3057-16A-4-D
CE3057-16A-6-D
CE3057-16A-7-D
CE3057-16A-8-D
24
28
26.19
42.1
10.31
（41.3）
23.8
20
22
23.83
35.0
10.31
（41.3）
19.0
18
23.83
30.1
10.31
（41.3）
15.8
Applicable
Shell Size
10SL,12S
A
20.62
B
20.6
C
10.31
（D）
（41.3）
E
8.0
F
5.6
14.1
11.0
8.7
16.0
13.0
10.0
17.0
19.1
15.5
21.5
20.0
13.5
12.5
42.9
1 7/16-18UNEF-2B
37.3
1 3/16-18UNEF2B
31.7
1-20UNEF-2B
G
22.2
V
5/8-24UNEF-2B
Bushing P/N
Applicable Cable
CE3420-4-1
CE3420-10-1
CE3420-10-2
CE3420-10-3
CE3420-12-1
CE3420-12-2
CE3420-12-3
CE3420-12-7
CE3420-16-1
CE3420-16-2
CZY005-GB-3
CE3420-16-6
CE3420-16-7
CZY005-GB-5
φ 3.6 ∼φ 5.6
φ 10.5 ∼φ 14.1
φ 8.5 ∼φ 11.0
φ 6.5 ∼φ 8.7
φ 12.5 ∼φ 16.0
φ 9.5 ∼φ 13.0
φ 6.8 ∼φ 10.0
φ 14.5 ∼φ 17.0
φ 15.0 ∼φ 19.1
φ 13.0 ∼φ 15.5
φ 19.1 ∼φ 21.5
φ 18.5 ∼φ 20.0
φ 11.5 ∼φ 13.5
φ 10.5 ∼φ 12.5
○ Waterproof Rubber Bushing
CE 3 4 2 0 -1 0- 1
①
① Cable Clamp Size
② Bushing Size
D
②
4, 10, 12, 16
φC
φA
φB
Refer to table 1.
CE3420- □□ A- □ is the rubber bushing which combines with the
cable clamp(CE3057- □□ A- □ -D) to constrict the cable for waterproof.
Table 1
Part Number
CE3420-4-1
CE3420-10-1
CE3420-10-2
CE3420-10-3
CE3420-12-1
CE3420-12-2
CE3420-12-3
CE3420-12-7
CE3420-16-1
CE3420-16-2
CE3420-16-6
CE3420-16-7
φA
5.6
14.1
11.0
8.7
16.0
13.0
18.6
10.0
17.0
19.1
15.1
23.4
20.0
13.5
33.2
40.0
MS3057-16W
26.9
39.3
MS3057-12W
15.5
22.2
38.5
MS3057-10W
φB
7.5
φC
12.9
D
38.3
Friction Washer
MS3057-4W
The fliction washer is available separately.
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
4
