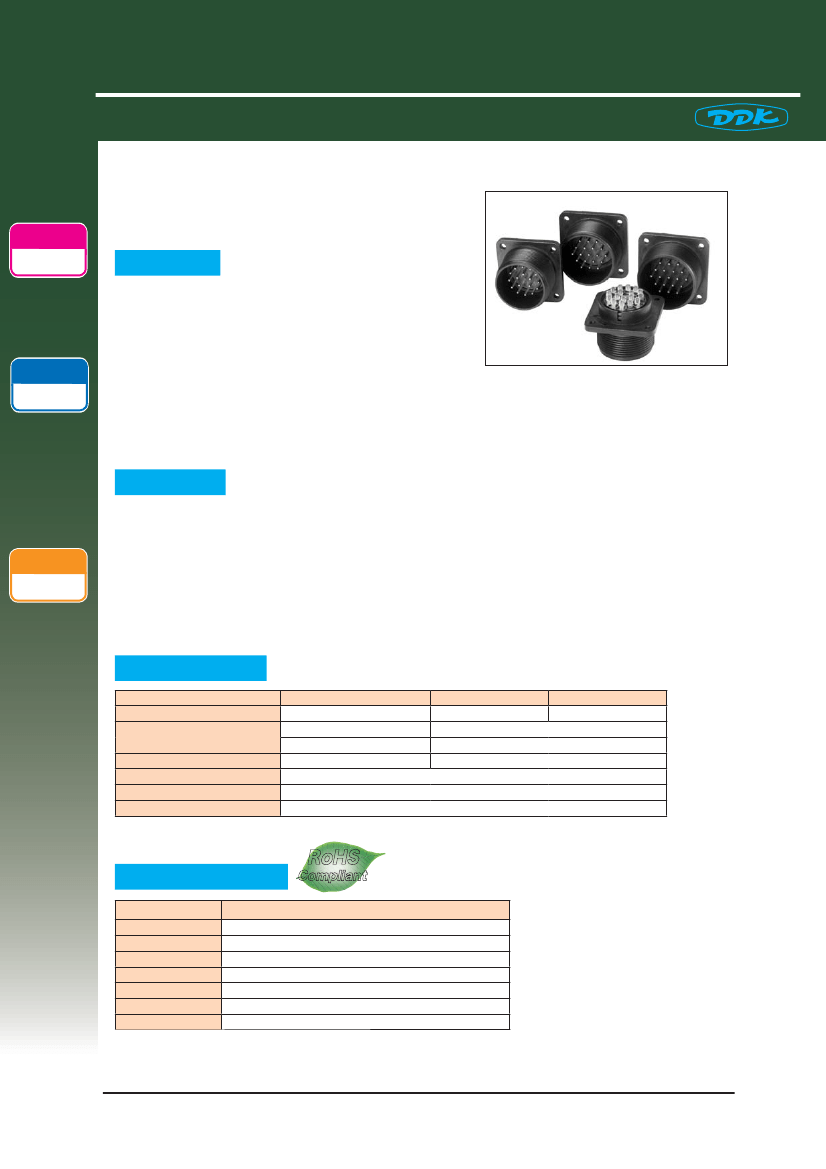

Waterproof Circular Connectors
CE02-2A Series
Conforming
Standard
MIL-DTL- 5015
◆
OUTLINE
CE02-2A Series is intermateable with D/MS series (MIL-
DTL-5015 compatible).
In order to correspond to various
environments whereindustrial equipment is set up, CE02-2A
series connector withstands moisture, oil and vibration by
Wa t e r p r o o f
using synthetic rubber at the front insert.
This connector is ideal for use under the external condition such as industrial equipment which needs to
withstand moisture, oil and dust.
IP67
◆
FEATURES
●
CE02-2A series is interchangeable with D/MS series receptacle because the mounting pattern is same.
●
The insert is a three-piece design. The contact will not be fallen out and subsided when used under the
Lock Type
Threaded
Coupling
normal operating condition.
●
The insert which is made with synthetic rubber can be used at a temperature up to 125℃ .
●
When CE02-2A is mating with plug connector of CE02-6A, D/MS(D190) or CE05 series, it will
conform to IP67
◆
SPECIFICATIONS
Contact Size
Rated Current
Rated Voltage
＃ 16
13A / Contact
250V AC(r.m.s.)
350V DC
＃ 12
23A / Contact
500V DC
1500V AC(r.m.s.) at 1 minute.
IP67
− 40℃ to ＋ 125℃
1,000M Ω min. at 500V DC
350V AC(r.m.s.)
＃8
46A / Contact
Dielectric Withstanding Voltage 1000V AC(r.m.s.) at 1 minute.
Insulation Resistance
Waterproof Rating
Operating Temperature
◆
MATERIAL / FINISH
Item
Shell
Front Insert
Middle Insert
Rear Insert
Contact
Flange Gasket
Gasket
RoHS
Compliant
Compliant
Material / Finish
Aluminum Alloy / Black Trivalent Chromium Treatment
Synthetic Rubber (Silcone)
PPS Resin
PPS Resin
Copper Alloy / Silver Plating
Synthetic Rubber (Silcone)
Synthetic Rubber (Silcone)
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
090706
http://www.ddknet.co.jp
CE02-2A Series
Unit：mm

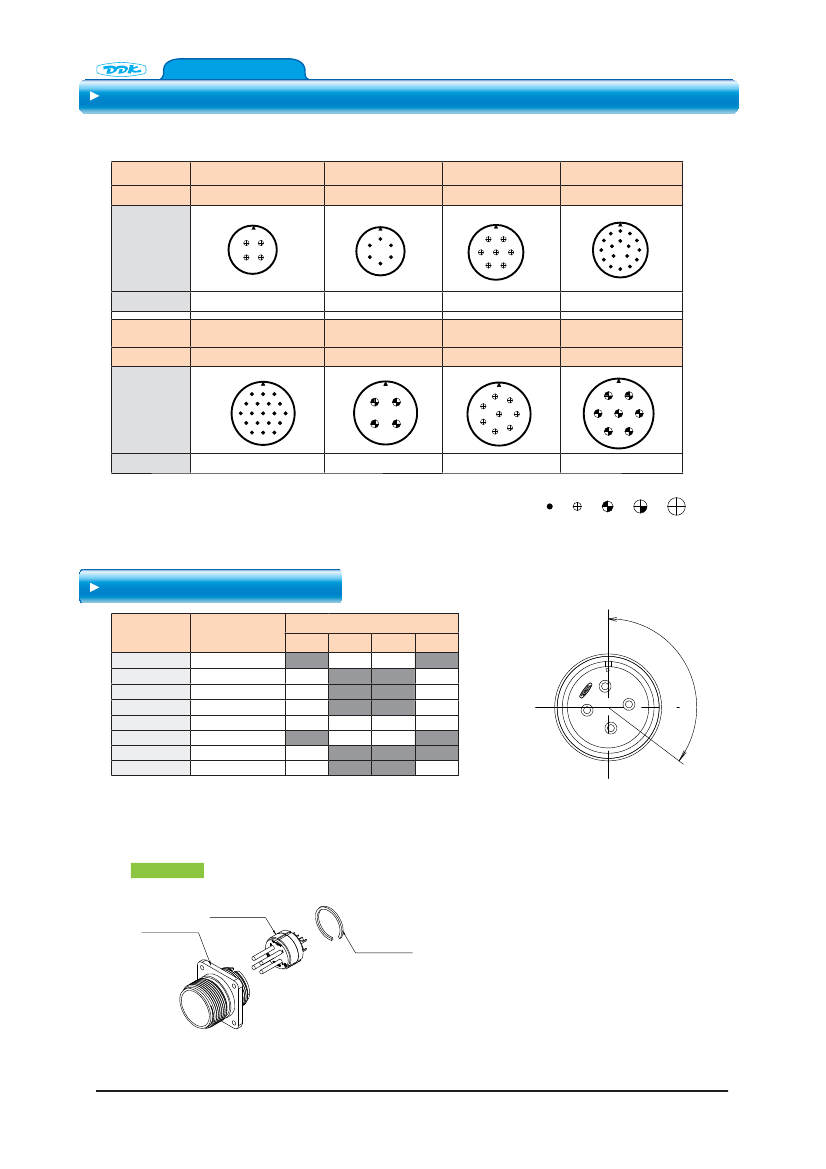

○ Insert Arrangements
MIL-DTL-5015 Compatible, Pin insert Only
Number of
Contact
Insert No.
4
18-10
6
18-12
7
20-15
17
20-29
Ａ
Insert
Arrangement
Ｄ
Ａ
Ｆ
Ｅ
Ｄ
Ｃ
Ａ
Ｆ
Ｅ
Ａ
Ｂ
Ｇ
Ｌ
Ｋ
Ｊ
Ｍ
Ｔ
Ｓ
Ｈ
Ｎ
R
Ｂ
Ｐ
Ｃ
Ｄ
Ｅ
Ｃ
Ｂ
Ｂ
Ｇ
Ｄ
Ｃ
Ｆ
Contact Size
Number of
Contact
Insert No.
＃ 12
＃ 16
＃ 12
＃ 16
19
22-14
4
22-22
8
22-23
7
24-10
Ｌ
Insert
Arrangement
Ｊ
Ｍ
Ｕ
Ｔ
Ｎ
Ｐ
Ｓ
Ｇ
Ｒ
Ｆ
Ａ
Ｂ
C
Ｄ
Ｅ
D
A
F
G
H
E
A
B
Ｆ
Ａ
Ｋ
Ｅ
D
C
Ｇ
Ｄ
Ｃ
Ｂ
Ｈ
C
B
Contact Size
＃ 16
＃8
＃ 12
＃8
Contact Size Symbol
Note : Each of the inserts in the CE02 series is viewed from its coupling side.
All keys are set at their standard positions.
１６ ＃１２
＃８
＃４
＃０
○ Alternate Insert Positions
Insert No.
18-10P
18-12P
20-15P
20-29P
22-14P
22-22P
22-23P
24-10P
Contact Size/
Number of Contact
＃ 12 / 4
＃ 16 / 6
＃ 12 / 7
＃ 16 / 17
＃ 19 / 19
＃ 8/4
＃ 12 / 8
＃ 8/ 7
35
80
280
80
80
80
80
110
110
250
250
Alternate Insert Key Positions
W
X
120
Y
240
X
Z
θ=120
280
280
C
D
280
B
280
A
18
-
10
Alternate insert key positions, W, X, Y and Z prevent cross-plugging problems
in applications requiring the use of more than one connector of the same
size and arrangement.
Front View of Pin Insert
(For Model CE02-2A18-10PX-D)
Diagram
Pin Insert
Receptacle Shell
Retaining Ring
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
CE02-2A Series
Unit：mm
○ Box Receptacle Connector
CE0 2 -2 A 2 0- 29 PWS- D
①
②
③
④ ⑤ ⑥ ⑦
① Shell Style
② Shell Size
③ Insert Number
④ Contact Style
⑤ Alternate Insert Position
2A：Box Receptacle
18, 20, 22 and 24
Refer to page 2.
P : Pin Contact
Omit : Standard Position
W, X, Y, Z : Altenate Insert Position
Omit : Without Gasket
S : With Gasket
D : Black Trivalent Chromium Treatment
⑥ Gasket
⑦ Finish
A Thread
F
H
□J
0.15
□K
4-φL
B
(E)
C D
Part Number
CE02-2A18-10P-D
CE02-2A18-12P-D
CE02-2A20-15P-D
CE02-2A20-29P-D
CE02-2A22-14P-D
CE02-2A22-22P-D
CE02-2A22-23P-D
CE02-2A24-10P-D
A
1 1/8-18UNEF-2A
1 1/8-18UNEF-2A
1 1/4-18UNEF-2A
1 1/4-18UNEF-2A
1 3/8-18UNEF-2A
1 3/8-18UNEF-2A
1 3/8-18UNEF-2A
1 1/2-18UNEF-2A
B
19.2
19.2
19.2
19.2
19.2
19.2
19.2
20.8
C
3.35
3.35
3.35
3.35
3.35
3.35
3.35
3.35
D
7.44
7.44
7.44
7.44
7.44
7.44
7.44
7.44
（E）
30.03
30.03
30.03
30.03
30.03
30.03
30.03
31.59
F max.
13.8
11.5
13.8
11.5
11.5
16.9
13.8
15.3
G 0.5
25.4
25.5
28.6
28.6
31.8
31.8
31.8
34.9
H min.
15.88
15.88
15.88
15.88
15.88
15.88
15.88
15.88
J 0.15
26.97
26.97
29.36
29.36
31.75
31.75
31.75
34.93
K
34.9
34.9
38.1
38.1
41.3
41.3
41.3
44.4
L
+0.25
-0.12
3.05
3.05
3.05
3.05
3.05
3.05
3.05
3.73
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
φG
