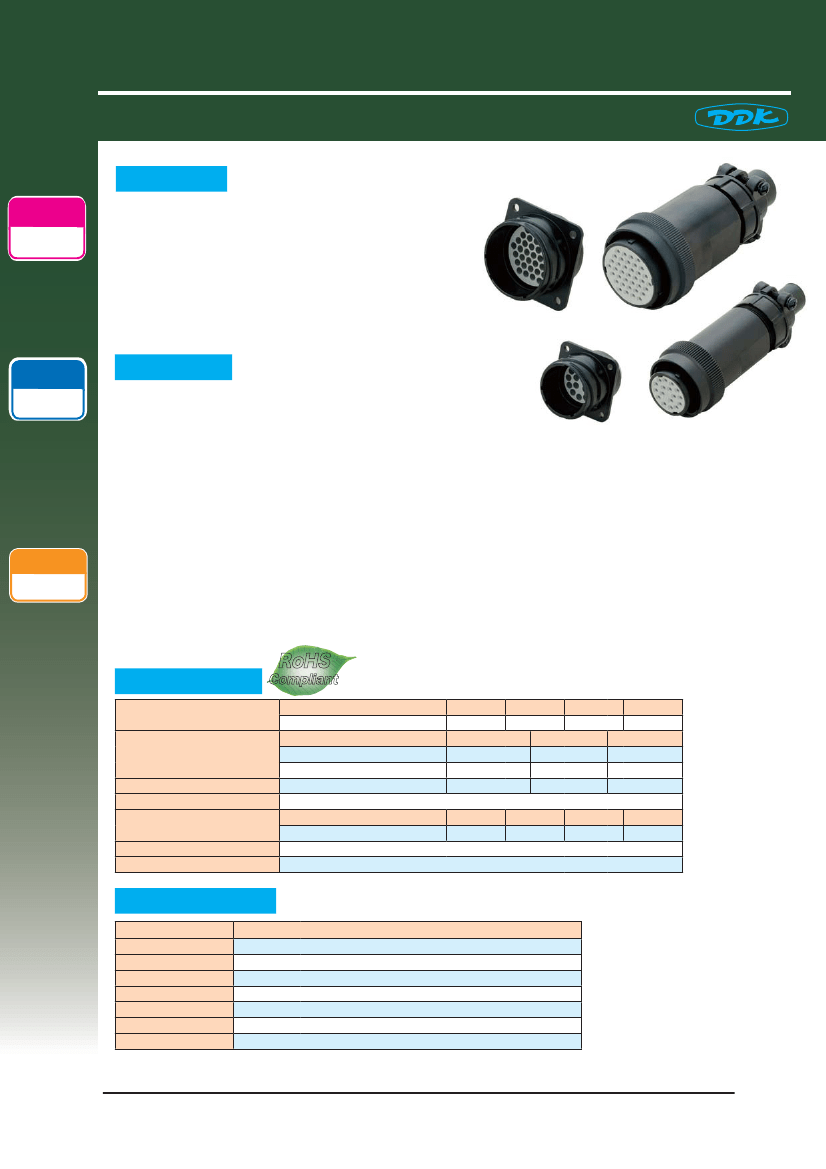

Waterproof Connectors with Crimp Contacts
Comptatible with JIS-B-6015
CE01 Series
◆
OUTLINE
Conforming
Standard
JIS B 6015
CE01 series is compatible with JIS-B 6015,Japanese
Industrial Standards, and is superior in waterproof
and dustproof connector which has a ground contact
to protect a circuit.
This connector is ideal for use under the external
condition such as industrial equipment which needs to
withstand moisture, oil, and dust.
Wa t e r p r o o f
IP67
◆
FEATURES
● Five-key position prevents cross-plugging problems
and one touch lock design is capable to lock surely
with click note. (Bayonet Coupling)
● Receptacle connector has an o-ring which conforms to meet IP67 to prevent moisture, oil and dust
when the connectors are mated. Besides, when the plug connector uses a conduit with an o-ring, both
plug and receptacle can be waterproof.
● Connectors are provided with a premating and ground contact having conductivity with the shell to
protect a circuit. The premating contact is mated first before the other contacts and dismated last when
Lock Type
Bayonet
dismating the connector.
● Contact is crimp type and easy to terminate. Also it is easy to extract the contact from the insert by
the extraction tool.
● UL approved (File No. E72124)
RoHS
◆
SPECIFICATIONS
Rated Current
Compliant
Compliant
Contact Size
Maximum Rating per Contact
Service
Rating
AC(r.m.s.)
DC
AC(r.m.s.)/1minute
Contact Size
m Ω max.
#20
5A
INST
200
250
1,000
5,000M Ω min. at 500VDC
#20
8
-55℃ to +125℃
95% max.
#16
4
#12
2
#8
0.6
#16
13A
A
500
700
2,000
#12
23A
#8
46A
D
900
1,250
2,800
Rated Voltage
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
Humidity
◆
MATERIAL / FINISH
Item
Shell
Coupling Ring
Insert
Contact
O Ring
Ground Clip
Gasket
Material / Finish
Aluminum Alloy / Zinc Plating, Black Trivalent Chromium
Treatment
Aluminum Alloy / Zinc Plating, Black Trivalent Chromium
Treatment
Polyester Resin (UL94V-0) Gray
Copper Alloy / Silver Plating
Nitrile Rubber
Copper Alloy / Silver Plating
Polychloroprene or Ethylenepropylene Rubber
090706
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
CE01 Series
Unit：mm

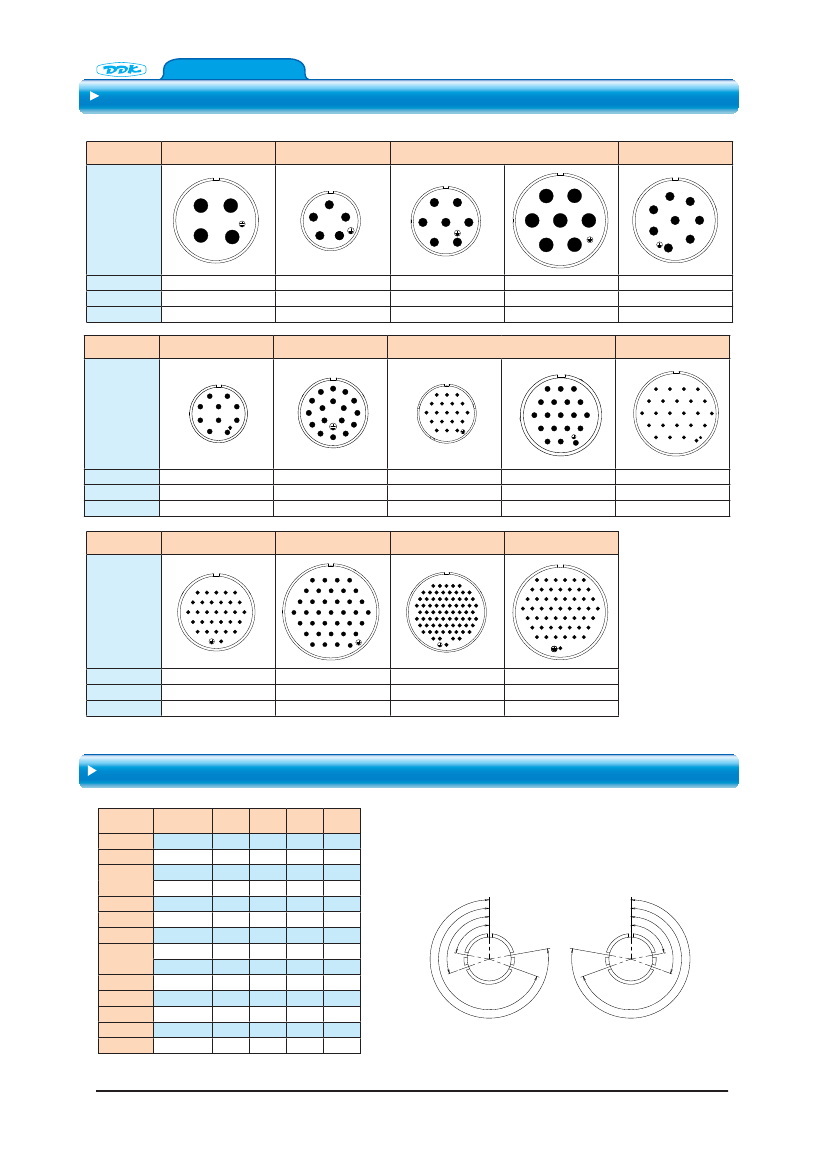

○ Insert Arrangement List
Front View of Pin Insert or Rear View of Socket Insert
Number of
Contact
4
5
7
8
1
Insert
Arrangement
2
2
1
1
3
2
3
1
1
3
4
6
2
5
2
4
5
7
3
6
4
5
6
3
4
Insert Number
Contact Size
Service Rating
Number of
Contact
22-22
#8
A
18-11
#12
A
20-15
#12
A
24-10
#8
A
22-23
#12
D(4), A(Others)
10
17
19
24
2
1
3
5
6
8
10
1
1
4
8
13
14
2
5
6
10
14
15
18
3
7
11
16
12
1
5
10
16
21
11
17
6
2
7
12
18
22
3
8
13
19
23
4
9
14
20
15
1
2
4
2
5
6
10
14
15
3
7
11
16
12
4
8
13
17
9
Insert
6
3
4
5
9
7
9
7
9
8
13
Arrangement
11
12
15
17
16
17
18
Insert Number
Contact Size
18-1
#16
20-29
#16
A
18-19A
#20
INST
22-14
#16
A
24-28
#16
INST
Service Rating A(3,5,6,8,) / INST(Others)
Number of
Contact
30
37
52
73
1
1
6
12
19
25
13
20
26
7
14
21
27
2
8
15
22
28
3
9
16
23
29
4
10
17
24
5
11
18
2
6
7
12
18
19
25
30
31
35
3
8
13
20
26
32
36
4
1
2
8
16
25
34
43
52
61
53
62
69
44
54
63
70
35
45
55
64
26
36
46
56
65
71
17
27
37
47
57
66
72
9
18
28
38
48
58
67
3
10
19
29
39
49
59
68
4
11
20
30
40
50
60
5
12
21
31
41
51
13
22
32
5
10
16
23
29
34
17
24
11
9
14
21
27
33
28
15
23
14
6
15
24
33
42
7
1
7
14
22
31
39
46
23
32
40
15
24
8
2
9
16
25
33
41
47
3
10
17
16
34
42
48
4
11
18
27
35
43
49
5
12
19
28
36
44
50
6
13
20
29
37
45
51
38
21
30
Insert
Arrangement
22
Insert Number
Contact Size
Service Rating
20-30A
#20
INST
28-21
#16
A
24-52A
#20
INST
28-73A
#20
INST
Note: Normal key position illustrated.
○ Alternate Insert Positions
Number of
Contact
4
5
7
8
10
17
19
24
30
37
52
73
Insert No
22-22
18-11
20-15
24-10
22-23
18-1
20-29
18-19A
22-14
24-28
20-30
28-21
24-52A
28-73A
W
̶
̶
80
80
85
70
80
80
75
80
80
80
80
80
X
160
170
̶
̶
̶
145
̶
110
150
110
110
110
110
110
Y
̶
265
̶
̶
̶
260
̶
250
̶
250
250
250
250
250
Z
300
̶
280
280
̶
290
280
280
285
280
280
280
280
280
Ｗ
Ｘ
Ｚ
Ｙ
Ｚ
Ｙ
Ｗ
Ｘ
C
Ｌ
C
Ｌ
To avoid cross-plugging problems in applications requiring
the use of more than one connector of the same size
and arrangement, alternate insert positions are available
as indicated in the chart.
Front View of Pin Insert
Front View of Socket Insert
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
CE01 Series
Unit：mm

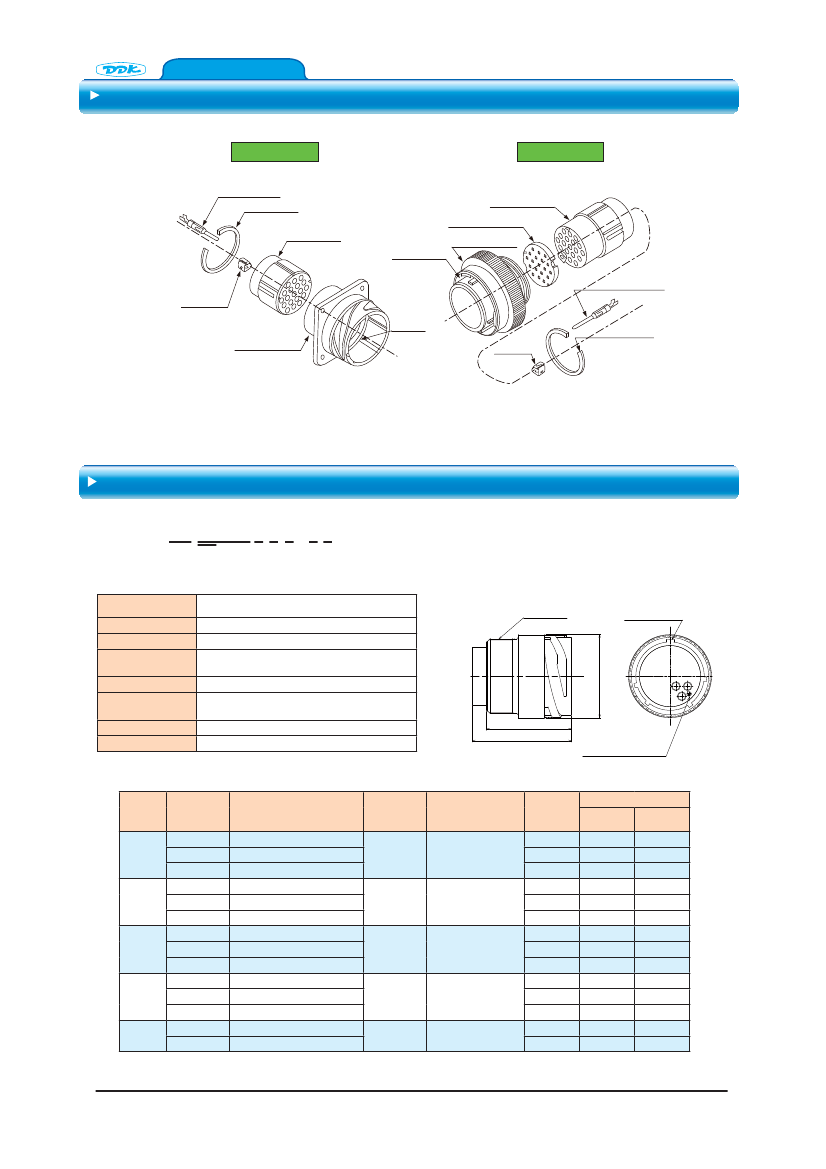

○ Diagram
Receptacle
Pin Contact
Retaining Ring
Socket Insert
Cover Insert
Pin Insert
Plug Shell
Coupling Ring
Plug
Socket Contact
Gronud Clip
O Ring
Retaining Ring
Receptacle Shell
Gronud Clip
Note: Cover insert is available for socket insert with #16 or #20 contacts only.
○ Cable Receptacle
CE0 1 - 1A 2 2 -1 4 PCW -D0
①
② ③
④⑤ ⑥
⑦⑧
① Connector Style
② Shell Size
③ Insert Arrangement
④ Contact Style
⑤ Contact Type
⑥ Alternate Insert
Position
⑦ Plating /Finish
⑧ Contact
1A : Cable Receptacle
18, 20, 22, 24 and 28
Refer to page 2.
Ｖ Thread
Master Keyway
C : Crimp Contact
Omit : Standard Position
W, X, Y, Z : Refer to page 3.
D ：Zinc Plating /
Black
Trivelent Chromium Treatment
0 : Less Contact (Available separately)
36
L
Pre-mating
Contact Position Symbol
φA
P：Pin Contact
S ：Socket Contact
Shell Size
Number of
Contact
5
Part Number
CE01-1A18-11 □ C-D0
CE01-1A18-1 □ C-D0
CE01-1A18-19A □ C-D0
CE01-1A20-15 □ C-D0
CE01-1A20-29 □ C-D0
CE01-1A20-30A □ C-D0
CE01-1A22-22 □ C-D0
CE01-1A22-23 □ C-D0
CE01-1A22-14 □ C-D0
CE01-1A24-10 □ C-D0
CE01-1A24-28 □ C-D0
CE01-1A24-52A □ C-D0
CE01-1A28-21 □ C-D0
CE01-1A28-73A □ C-D0
A
V
Contact
Size
＃ 12
L Min.
Pin
Insert
46
43
40
46
43
40
48
46
43
48
43
40
43
40
Socket
Insert
43.0
38.0
36.5
43.0
38.0
36.5
48.0
43.0
38.0
48.0
38.0
36.5
38.0
36.5
18
10
19
7
28.87
1-20UNEF-2A
＃ 16
＃ 20
＃ 12
20
17
30
4
33.95
1 1/8-18UNEF-2A
＃ 16
＃ 20
＃ 8
22
8
19
7
35.22
1 1/4-18UNEF-2A
＃ 12
＃ 16
＃ 8
24
24
52
38.39
1 3/8-18UNEF-2A
＃ 16
＃ 20
28
37
73
44.74
1 5/8-18UNEF-2A
＃ 16
＃ 20
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
CE01 Series
Unit：mm
○ Box Mount Receptacle
C E 01 - 2 A2 2 -1 4 PCW- D 0 S
①
② ③
④⑤ ⑥
⑦ ⑧⑨
① Connector Style
② Shell Size
③ Insert Arrangement
④ Contact Style
⑤ Contact Type
⑥ Alternate Insert
Position
⑦ Plating /Finish
⑧ Contact
⑨ Gasket
2A : Box Mount Receptacle
18, 20, 22, 24 and 28
Refer to page 2.
P：Pin Contact
S ：Socket Contact
C : Crimp Contact
Ｌ
36
2.7
19.9
□S
±0.5
□R
±0.13
Master Keyway
4-∅B
-0.1
+0.3
D ：Zinc Plating /
Black
Trivelent Chromium Treatment
0 : Less Contact (Available separately)
Omit : Less Gasket
S : With Gasket
∅Ａ
-0.5
Omit : Standard Position
W, X, Y, Z : Refer to page 3.
0
Gasket
1.6
Pre-mating
Contact Position Symbol
Note: Gasket is applicable to box receptacle only.
Place a gasket on the rear of the flange. (thickness 1.6mm)
Shell Size
Number of
Contact
5
Part Number
CE01-2A18-11 □ C-D0
CE01-2A18-1 □ C-D0
CE01-2A18-19A □ C-D0
CE01-2A20-15 □ C-D0
CE01-2A20-29 □ C-D0
CE01-2A20-30A □ C-D0
CE01-2A22-22 □ C-D0
CE01-2A22-23 □ C-D0
CE01-2A22-14 □ C-D0
CE01-2A24-10 □ C-D0
CE01-2A24-28 □ C-D0
CE01-2A24-52A □ C-D0
CE01-2A28-21 □ C-D0
CE01-2A28-73A □ C-D0
A
B
S
R
Contact
Size
＃ 12
L Min.
Pin
Insert
46
43
40
46
43
40
48
46
43
48
43
40
43
40
Socket
Insert
43.0
38.0
36.5
43.0
38.0
36.5
48.0
43.0
38.0
48.0
38.0
36.5
38.0
36.5
18
10
19
7
24.9
3.2
35.0
26.97
＃ 16
＃ 20
＃ 12
20
17
30
4
29.6
3.2
38.1
29.36
＃ 16
＃ 20
＃8
22
8
19
7
31.8
3.2
41.3
31.75
＃ 12
＃ 16
＃8
24
24
52
35.0
4.2
44.3
34.92
＃ 16
＃ 20
28
37
73
41.3
4.2
50.8
39.67
＃ 16
＃ 20
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
4
CE01 Series
Unit：mm

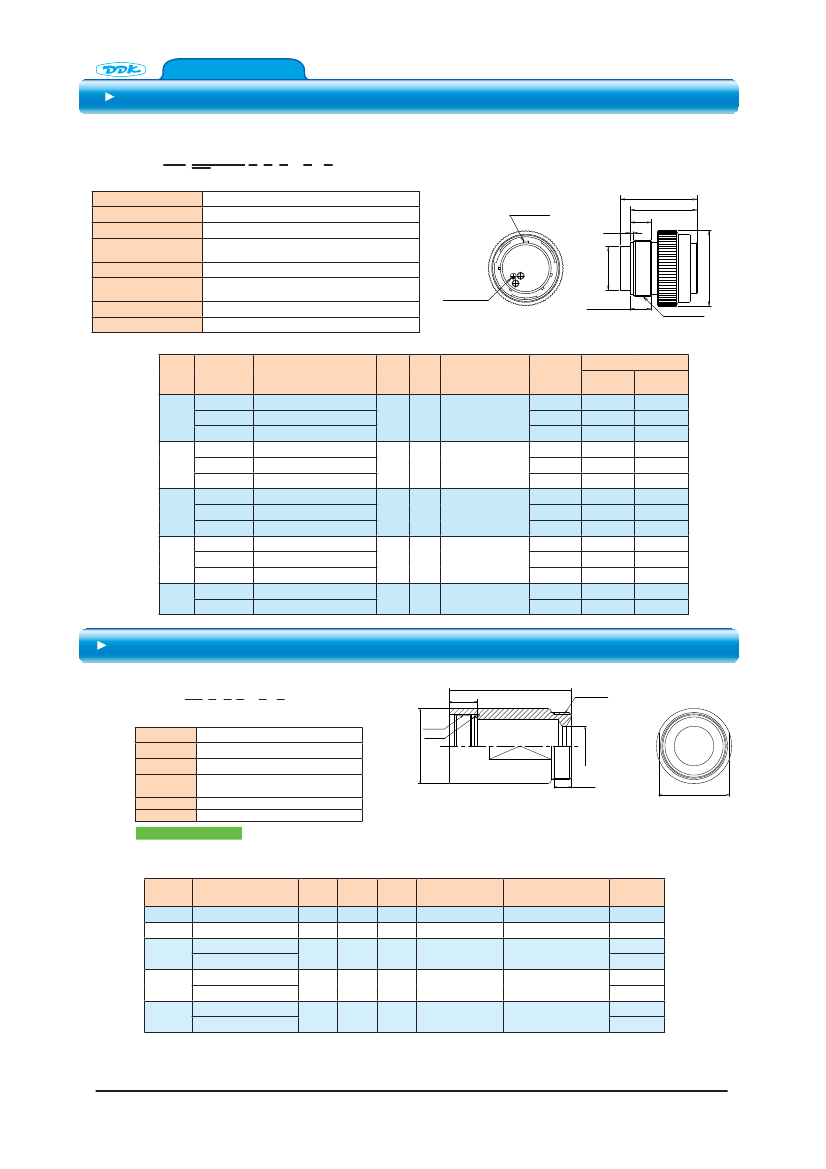

○ Straight Plug
CE 0 1- 6 A2 2 -1 4 PCW -D 0
①
① Connector Style
② Shell Size
③ Insert Arrangement
④ Contact Style
⑤ Contact Type
⑥ Alternate Insert Position
⑦ Plating / Finish
⑧ Contact
② ③
④⑤ ⑥
⑦ ⑧
Ｌ
37.5
12
1.6
∅B
±0.2
∅A
±0.8
Ｖ Thread
6A : Straight Plug
18, 20, 22, 24 and 28
Refer to page 2.
P：Pin Contact
S ：Socket Contact
C : Crimp Contact
Omit : Standard Position
W, X, Y, Z : Refer to page 3.
D ：Zinc Plating /
BlackTrivelent
Chromium Treatment
Pre-mating Contact
Position Symbol
(Conduit Fitting
Dimension)
Master Keyway
11 max.
0
: Less Contact （Available separately）
Shell
Size
Number of
Contact
5
Part Number
CE01-6A18-11 □ C-D0
CE01-6A18-1 □ C-D0
CE01-6A18-19A □ C-D0
CE01-6A20-15 □ C-D0
CE01-6A20-29 □ C-D0
CE01-6A20-30A □ C-D0
CE01-6A22-22 □ C-D0
CE01-6A22-23 □ C-D0
CE01-6A22-14 □ C-D0
CE01-6A24-10 □ C-D0
CE01-6A24-28 □ C-D0
CE01-6A24-52A □ C-D0
CE01-6A28-21 □ C-D0
CE01-6A28-73A □ C-D0
A
B
V
Contact
Size
＃ 12
L Max.
Pin
Insert
46
43
40
46
43
40
48
46
43
48
43
40
43
40
Socket
Insert
43.0
38.0
37.5
43.0
38.0
37.5
48.0
43.0
38.0
48.0
38.0
37.5
38.0
37.5
18
10
19
7
35.9
23.5
1-20UNEF-2A
＃ 16
＃ 20
＃ 12
20
17
30
4
40.6
26.9
1 1/8-18UNEF-2A
＃ 16
＃ 20
＃8
22
8
19
7
42.2
29.6
1 1/4-18UNEF-2A
＃ 12
＃ 16
＃8
24
24
52
45.4
32.8
1 3/8-18UNEF-2A
＃ 16
＃ 20
28
37
73
51.7
39.0
1 5/8-18UNEF-2A
＃ 16
＃ 20
○ Waterproof Straight Backshell
CE01-22 B S L - D S
① ② ③④
① Shell Size
② Part
③ Style
④ Shell Type
⑤ Finish
⑥ Waterproof
Ｌ
12.5
Ｗ Thread
⑤ ⑥
Ｖ Thread
O Ring
φ
Ａ
18, 20, 22, 24 and 28
B : Backshell
S : Straight
Omit : Standard Backshell
L ：Long Backshell
D ：Black Trivalent Chromium Treatment
S : Waterproof
7.85 max.
(Complete Thread Length)
φ
Ｂ
Ｃ
(Gripping Surfaces for Wrench)
MATERIAL / FINISH
Aluminum Alloy/Black Trivalent Chromium Treatment
The straight backshell retains the cable when the conduit is not used.
Two kinds of backshells in different length are availabe for the shell
size of 22, 24 and 28.
Use the waterproof backshell with the waterproof cable clamp.
C
V
1-20UNEF-2B
1 1/8-18UNEF-2B
1 1/4-18UNEF-2B
W
1-20UNEF-2A
1 3/16-18UNEF-2A
1 3/16-18UNEF-2A
L
55
55
55
75
55
75
55
75
Shell Size
18
20
22
Part Number
CE01-18BS-DS
CE01-20BS-DS
CE01-22BS-DS
CE01-22BSL-DS
CE01-24BS-DS
CE01-24BSL-DS
CE01-28BS-DS
CE01-28BSL-DS
A
29.3
33.8
35.3
B
16.3
17.8
17.8
26.73
31.6
32.4
24
38.8
21.0
36.6
1 3/8-18UNEF-2B
1 7/16-18UNEF-2A
28
44.8
21.0
40.0
1 5/8-18UNEF-2B
1 7/16-18UNEF-2A
Note : Use the long backshell in the case of insert arrangements with the contact size #12 and #8.
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
5
MCU
京公网安备 11010802033920号
EEWORLD
