74ALVC16240DL datasheet, PDF - EEWORLD Datasheet

74ALVC16240DL: DescriptionBus Driver, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48,; Categorylogic logic; File Size138KB，4 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

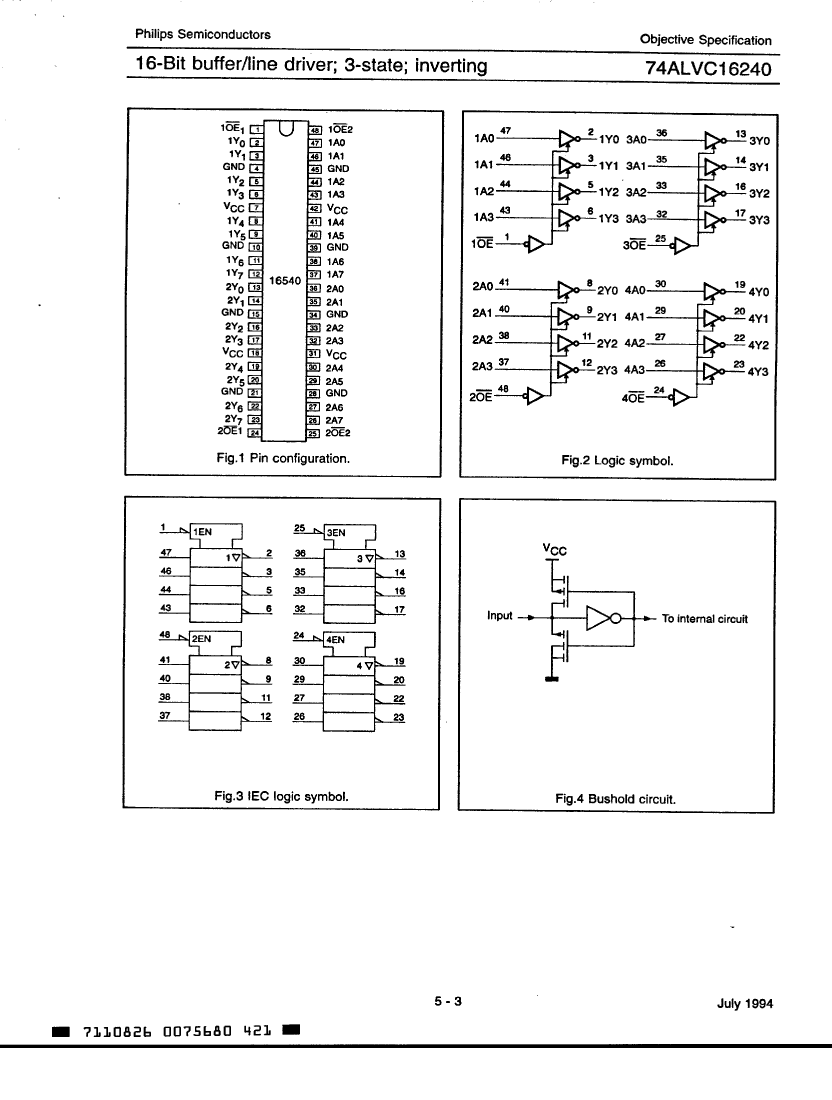

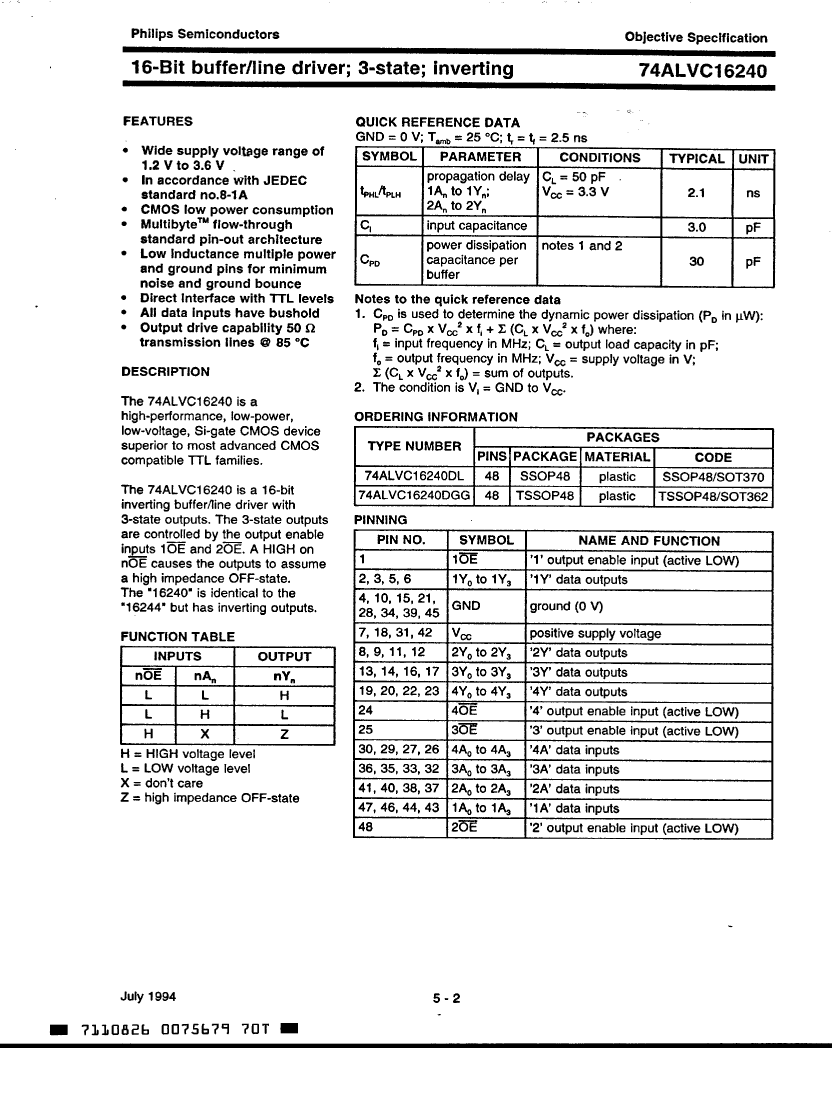

74ALVC16240DL Overview

Bus Driver, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP48,.4
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	4
Number of functions	4
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP48,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	3.3 V

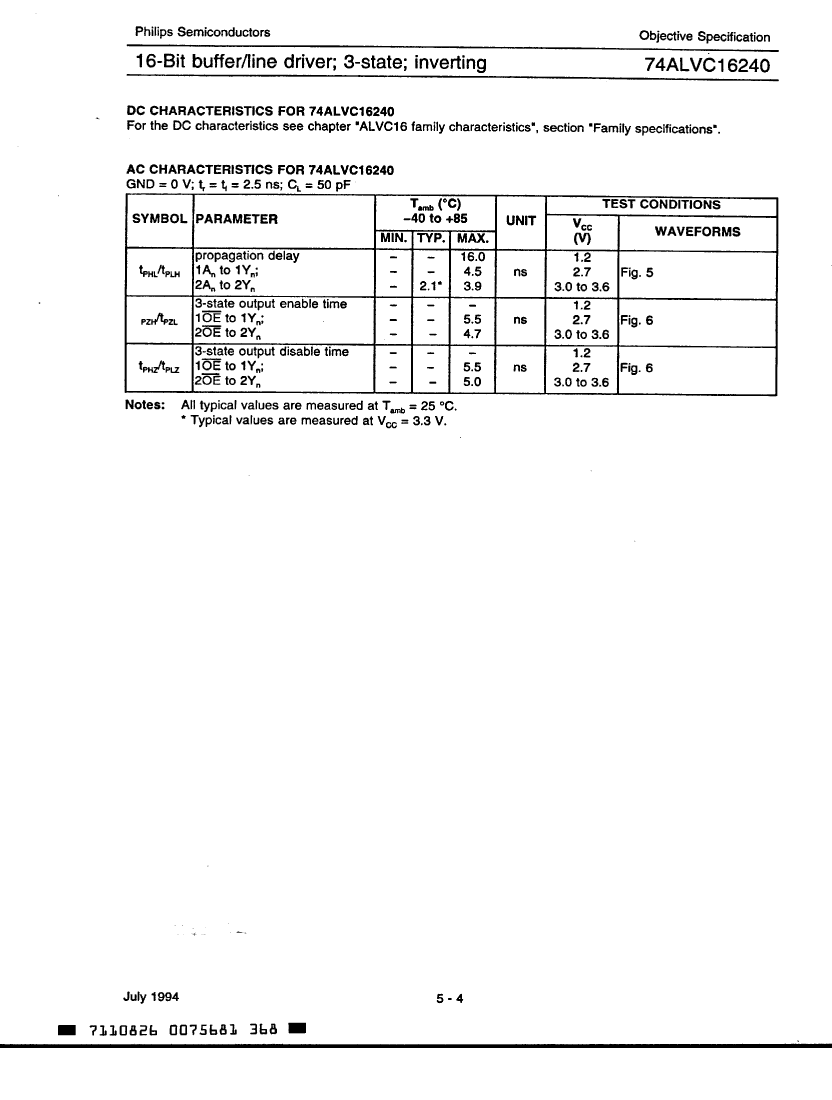

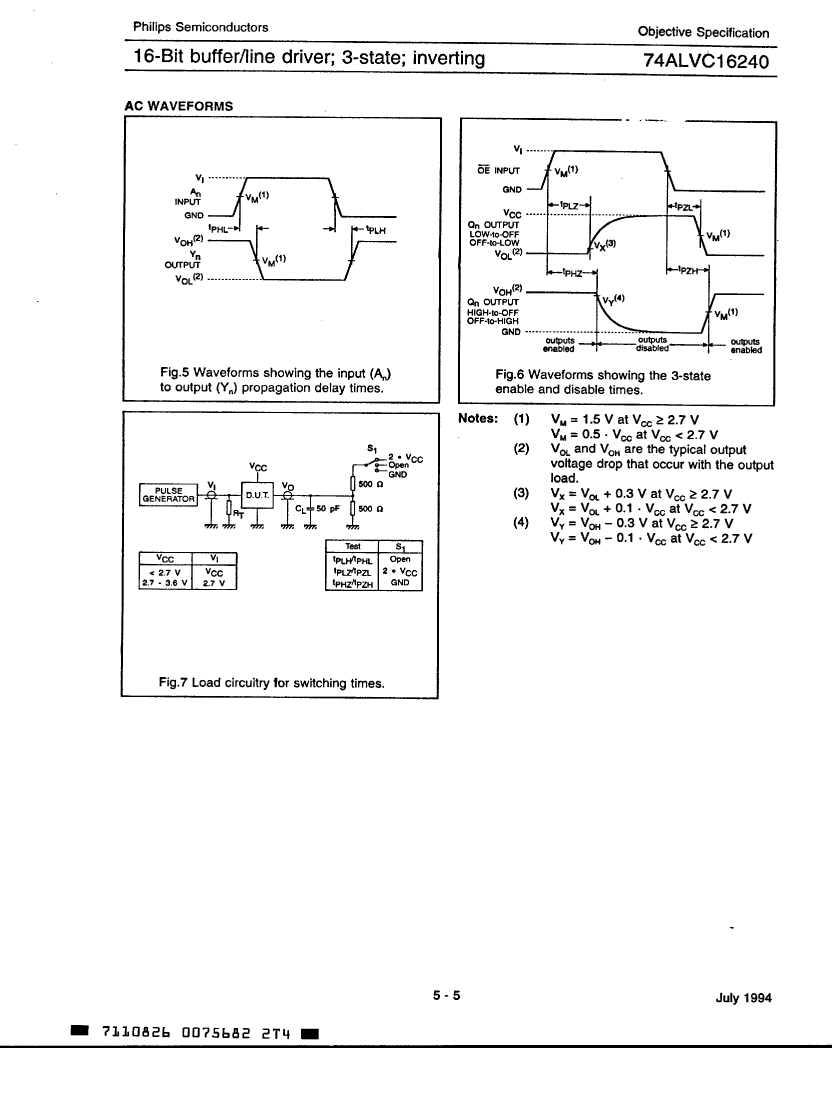

Prop。Delay @ Nom-Sup	3.9 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	74ALVC16240DL	74ALVC16240DGG
Description	Bus Driver, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48,	Bus Driver, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP48,.4	TSSOP, TSSOP48,.3,20
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A
Number of digits	4	4
Number of functions	4	4
Number of terminals	48	48
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP
Encapsulate equivalent code	SSOP48,.4	TSSOP48,.3,20
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	3.9 ns	3.9 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
