74LVT646PW-T datasheet, PDF - EEWORLD Datasheet

74LVT646PW-T: DescriptionRegistered Bus Transceiver, 1-Func, 8-Bit, True Output, BICMOS, PDSO24,; Categorylogic logic; File Size497KB，11 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74LVT646PW-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74LVT646PW-T	-	-	View	Buy Now

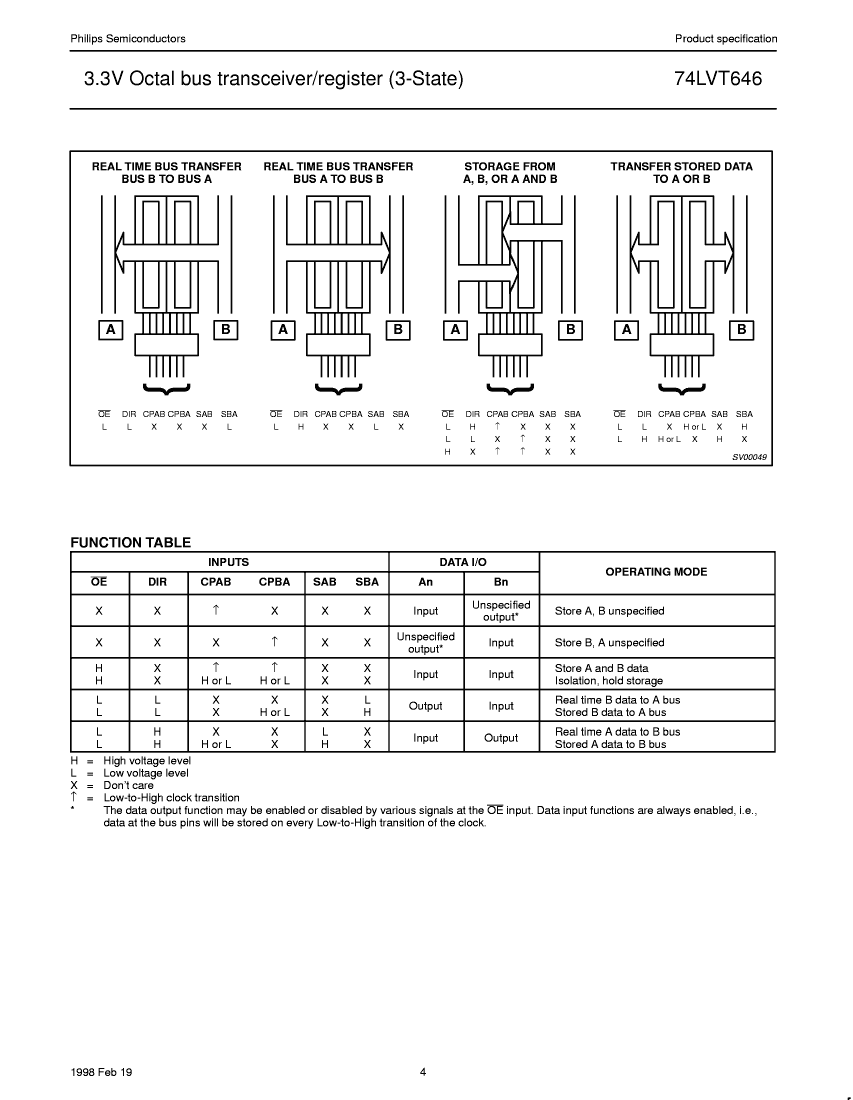

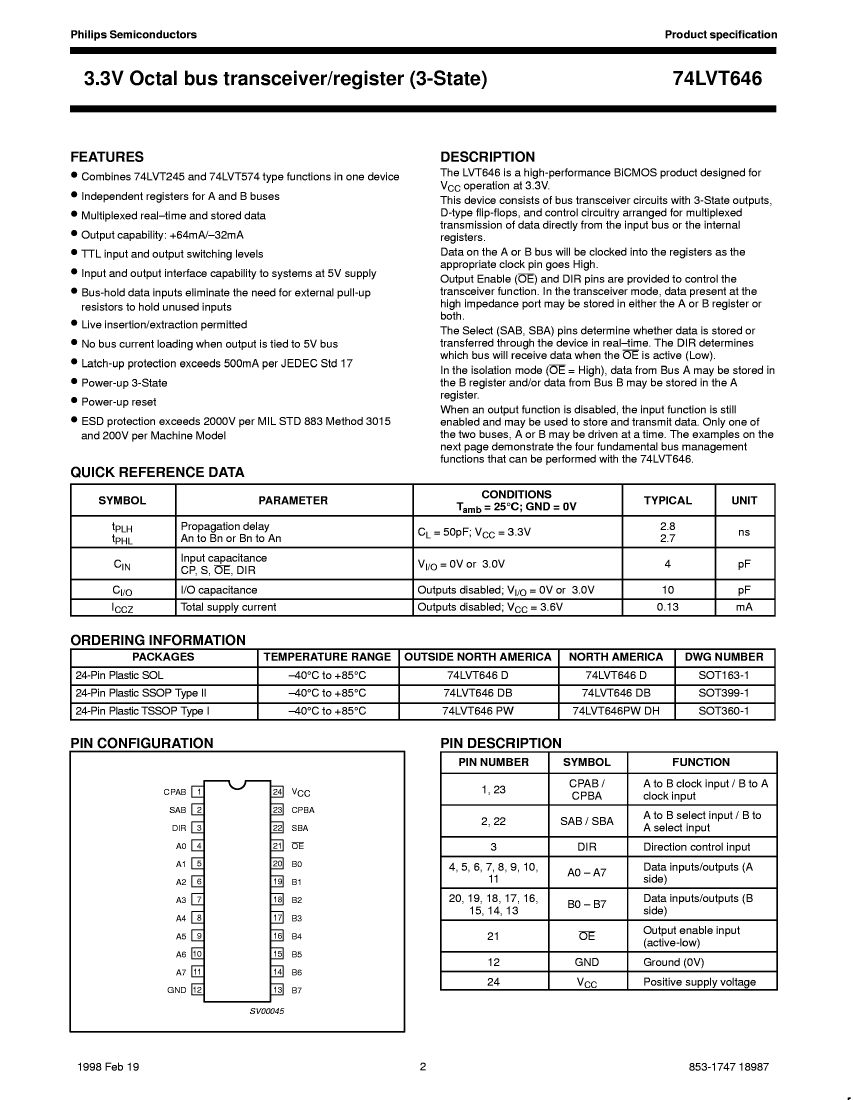

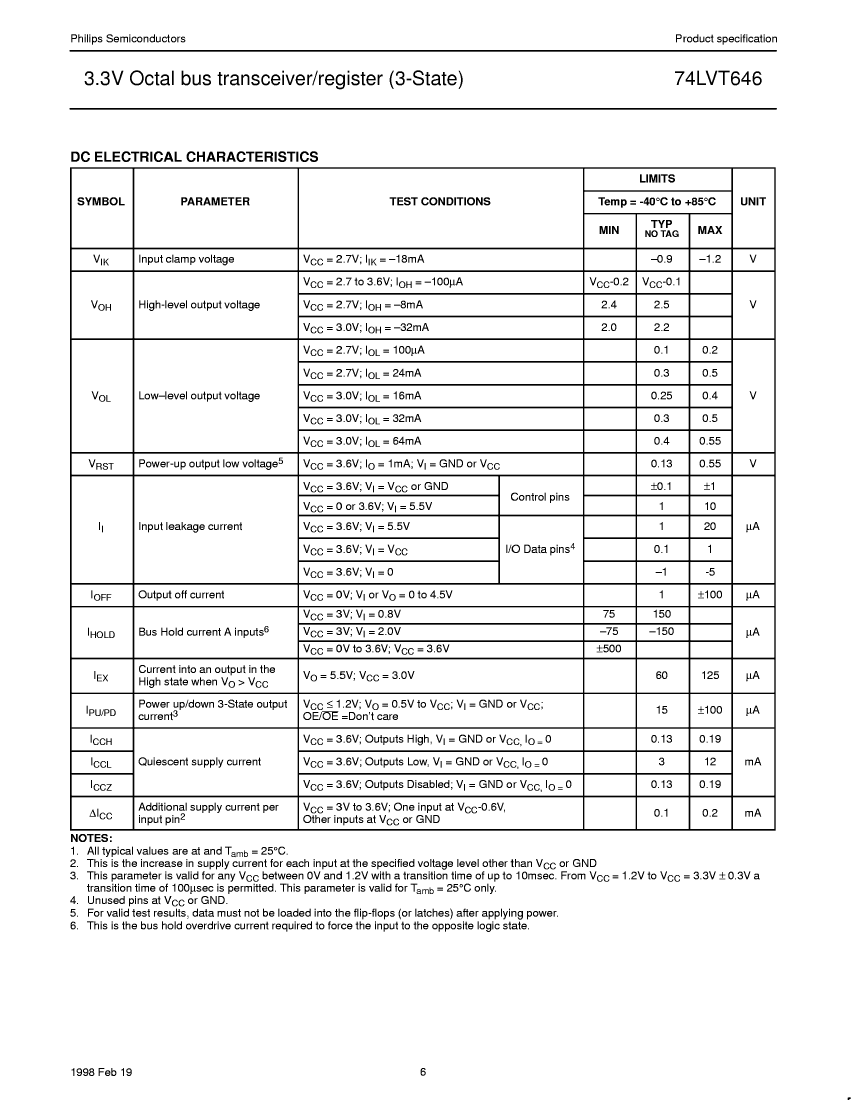

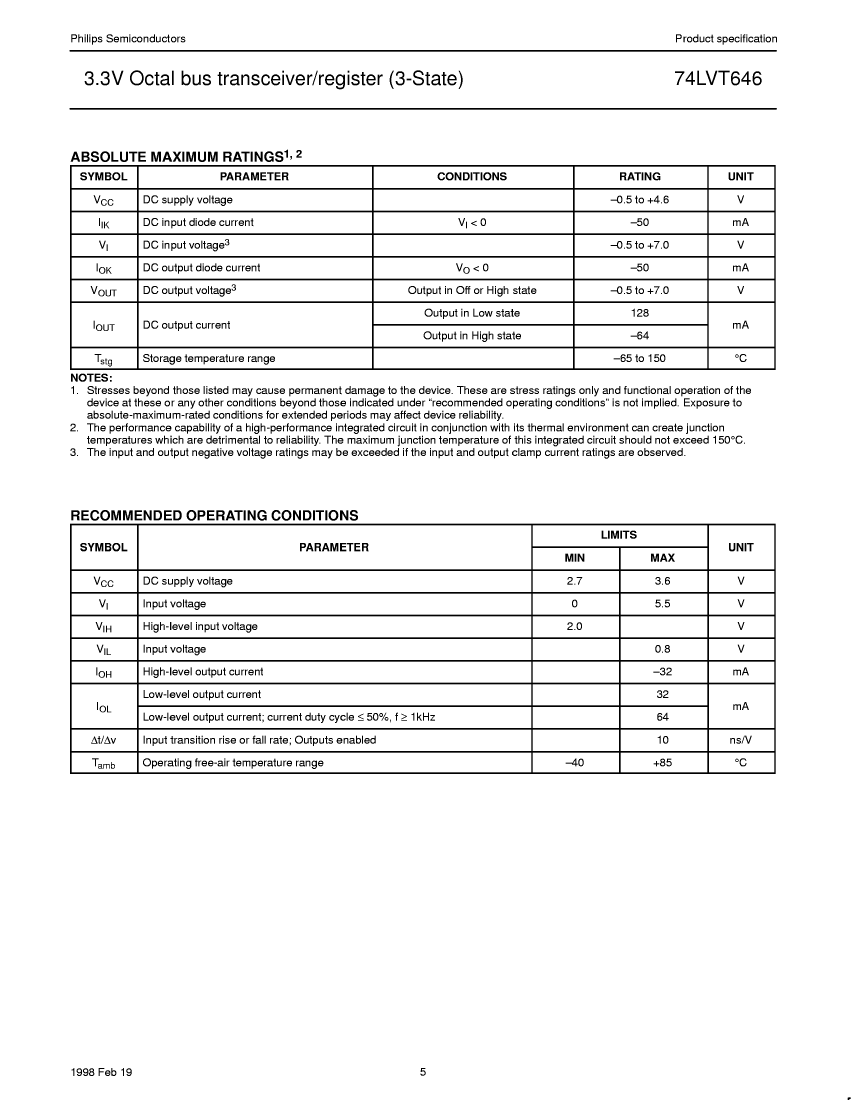

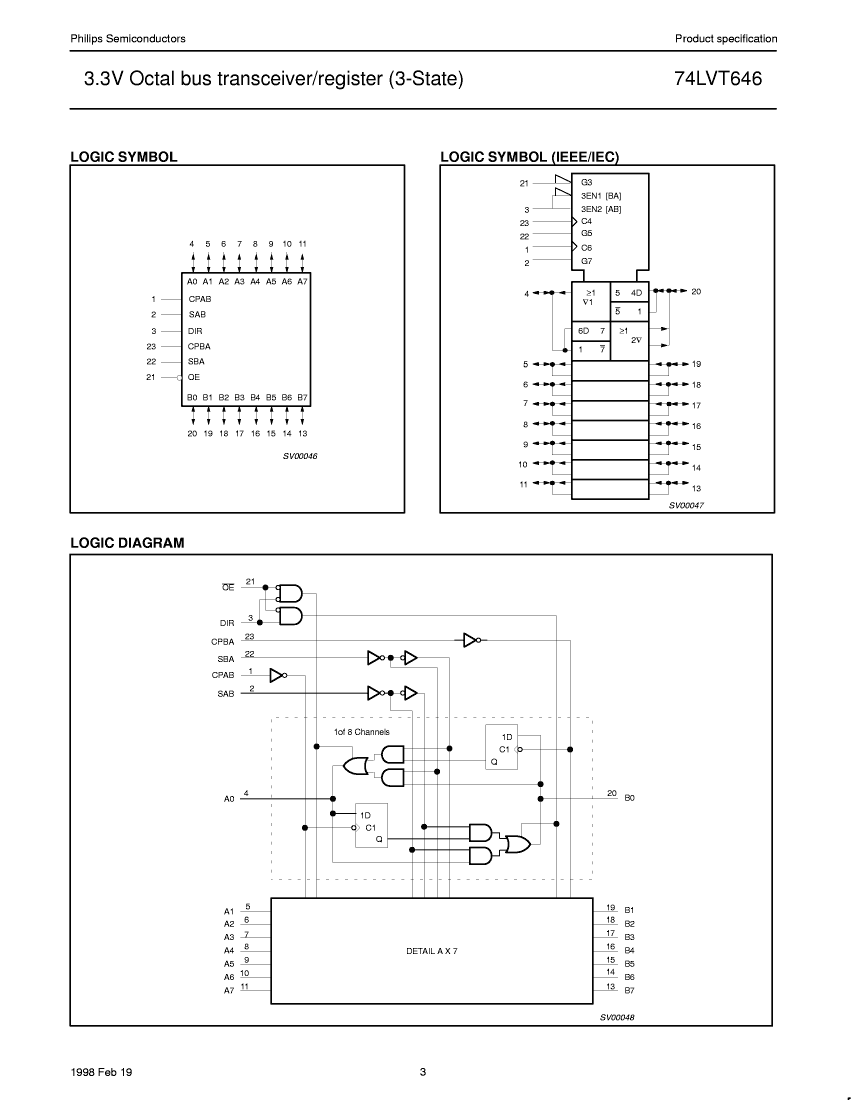

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, BICMOS, PDSO24,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP24,.25
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDSO-G24
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.032 A
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP24,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
power supply	3.3 V
Prop。Delay @ Nom-Sup	4.7 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

	74LVT646PW-T	74LVT646DB-T
Description	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, BICMOS, PDSO24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, BICMOS, PDSO24,
Is it Rohs certified?	conform to	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP24,.25	SSOP, SSOP24,.3
Reach Compliance Code	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDSO-G24	R-PDSO-G24
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.032 A	0.032 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP
Encapsulate equivalent code	TSSOP24,.25	SSOP24,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
method of packing	TAPE AND REEL	TAPE AND REEL
power supply	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	4.7 ns	4.7 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1
