CDRH2D11BNP-180NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH2D11BNP-180NB

CDRH2D11BNP-180NB: Description1 ELEMENT, 18 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size155KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH2D11BNP-180NB Overview

1 ELEMENT, 18 uH, GENERAL PURPOSE INDUCTOR, SMD

CDRH2D11BNP-180NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	1212
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	1212
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.73 Ω
Nominal inductance(L)	18 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH2D11B
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	1.1 mm
Package length	3 mm
Package form	SMT
Package width	3 mm
method of packing	Box
Maximum rated current	0.43 A
series	CDRH2D11B
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	25%

Preview

Download Datasheet

View All

SMD Power Inductor

CDRH2D11B

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L W H:3.2 3.2 1.2 mm Max.

• Product weight: 36mg(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40 ~+105

(including coil’s self temperature rise)

+105

• Storage temperature range: -40

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging

• 7.0”diameter reel

• 1500pcs per reel

RoHS

Halogen

Free

±0

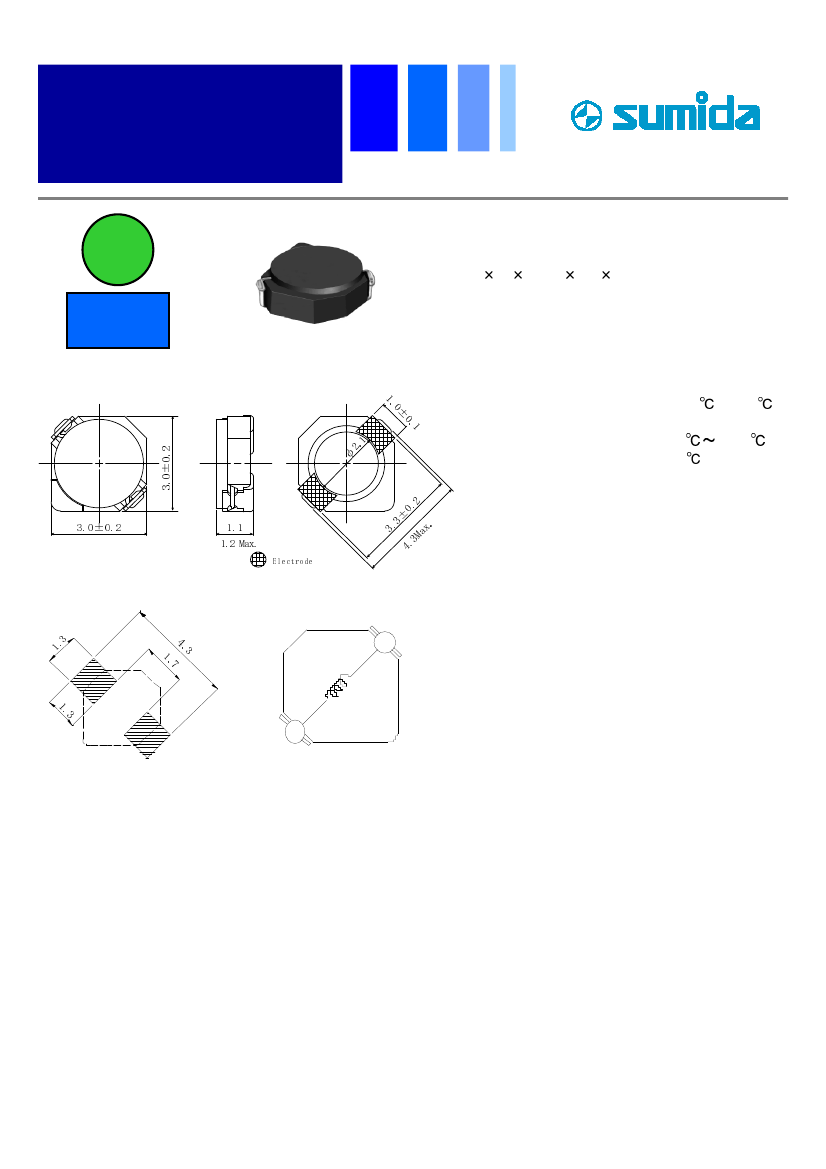

Land pattern and Schematics - [mm]

Applications

• Ideally used in Mobilephone,PDA,MP3,

DSC/DVC, etc. as DC-DC converter inductors.

Page 1 of 4

Revised: 7-Jan-14

℃

½℃

℃

Dimension - [mm]

× ×

±3

1.2

ed o r t c e l E

.xaM 2.1

1.1

2.0±0.3
