POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH10D48MN
◆
Product Description
・10.5×10.5mm
Max.(L×W), 5.0 mm Max. Height.
・Inductance
Range:2.5½470μH
・Rated
current range: 0.49½8.9A
・In
addition to the standard versions of inductors shown here, custom inductors are available
to meet your exact requirements.
◆
Feature
・Magnetically
shielded construction.
・Hybrid
power inductors use Mn-Zn D.core & Ni-Zn R.core, used as general power inductors.
・Higher
saturation current characteristics than that of Ni-Zn inductors.
・Usually
used in LCD driver,DSC/DVC,Notebook PC or the other portable equipment,.
・RoHS
Compliance.
◆

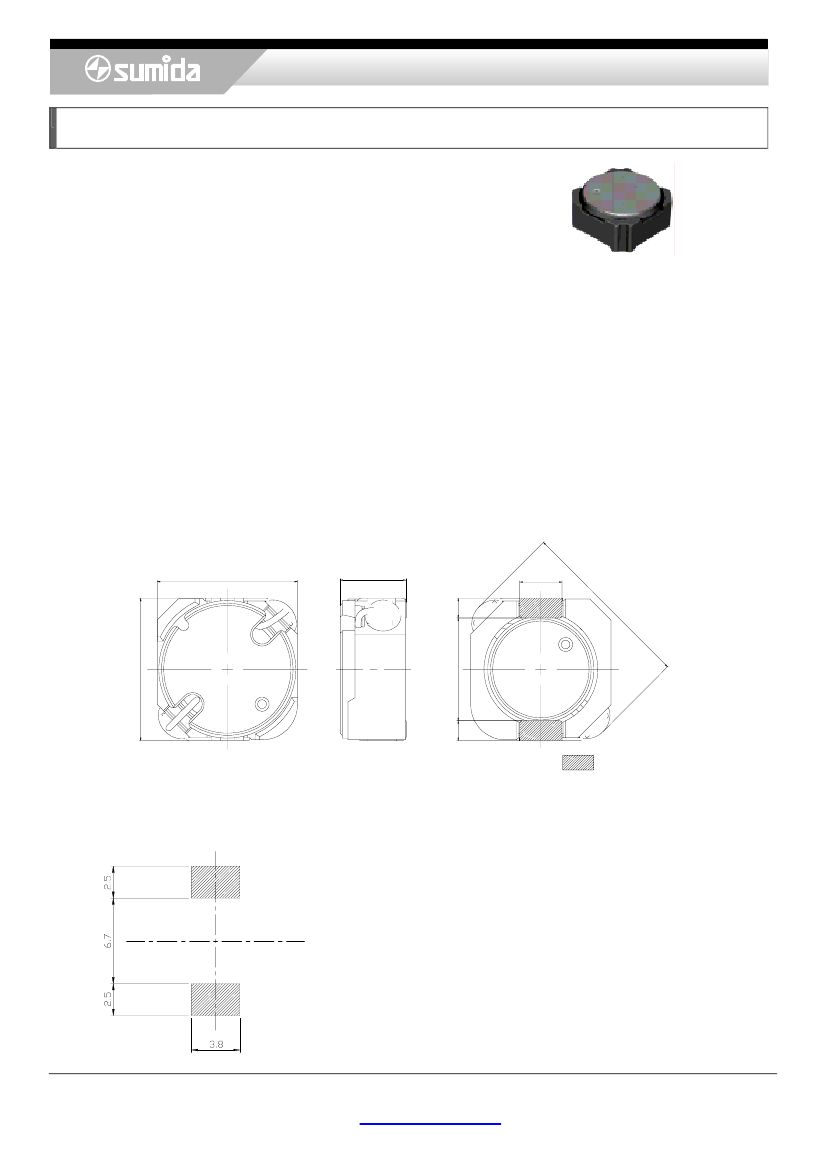

Dimensions (mm)
10.0±0.5
MAX.5.0(Typ.4.8)
1.4±0.2 7.3±0.2 1.4±0.2
3.0±0.2
a
10.0±0.5
½：2.5½10μH：MAX.14.2
12½470μH：MAX.13.5
:ELECTRODE
◆
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH10D48MN
◆
Specification
Part Name
※
CDRH1ØD48MNNP-2R5N□
CDRH1ØD48MNNP-3R7N□
CDRH1ØD48MNNP-5R1N□
CDRH1ØD48MNNP-6R7N□
CDRH1ØD48MNNP-8R6N□
CDRH1ØD48MNNP-1ØØN□
CDRH1ØD48MNNP-12ØN□
CDRH1ØD48MNNP-15ØN□
CDRH1ØD48MNNP-18ØN□
CDRH1ØD48MNNP-22ØN□
CDRH1ØD48MNNP-27ØN□
CDRH1ØD48MNNP-33ØN□
CDRH1ØD48MNNP-39ØN□
CDRH1ØD48MNNP-47ØN□
CDRH1ØD48MNNP-56ØN□
CDRH1ØD48MNNP-68ØN□
CDRH1ØD48MNNP-82ØN□
CDRH1ØD48MNNP-10ØN□
CDRH1ØD48MNNP-121N□
CDRH1ØD48MNNP-151N□
CDRH1ØD48MNNP-181N□
CDRH1ØD48MNNP-221N□
CDRH1ØD48MNNP-271N□
CDRH1ØD48MNNP-331N□
CDRH1ØD48MNNP-391N□
CDRH1ØD48MNNP-471N□
Stamp
2R5
3R7
5R1
6R7
8R6
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
Inductance
［Within½
100kHz/1V
2.5μH±25％
3.7μH±25％
5.1μH±25％
6.7μH±25％
8.6μH±25％
10μH±25％
12μH±25％
15μH±25％
18μH±25％
22μH±25％
27μH±25％
33μH±25％
39μH±25％
47μH±25％
56μH±25％
68μH±25％
82μH±25％
100μH±25％
120μH±25％
150μH±25％
180μH±25％
220μH±25％
270μH±25％
330μH±25％
390μH±25％
470μH±25％
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
8.8(7)
10.0(8)
12.5(10)
17.5(14)
19(15)
24(19)
33(26)
37(29)
45(36)
49(39)
58(46)
68(54)
89(71)
95(76)
117(93)
130(104)
168(134)
203(162)
230(184)
284(227)
367(293)
448(358)
535(428)
655(524)
790(632)
965(772)
Saturation Current
（A）※1
(at20℃)
10.20
8.40
7.40
6.60
5.80
5.10
4.70
4.50
4.10
3.70
3.30
3.10
2.80
2.60
2.40
2.10
1.90
1.70
1.60
1.40
1.30
1.20
1.10
0.96
0.88
0.80
(at105℃)
7.50
6.30
5.60
5.10
4.40
3.90
3.60
3.40
3.10
2.90
2.60
2.40
2.10
2.00
1.80
1.60
1.50
1.30
1.20
1.10
0.99
0.91
0.83
0.77
0.69
0.62
Temperature
rise current
(A)※2
8.90
7.00
6.30
5.50
4.80
4.20
3.50
3.20
2.80
2.60
2.40
2.30
1.90
1.80
1.60
1.50
1.30
1.20
1.10
0.98
0.84
0.75
0.66
0.59
0.53
0.49
※
Description of part name
CDRH1ØD48MNNP-2R5N□
B Box
C Carrier Tape
※1.
Saturation current: The DC current at which the inductance decreases to 65% of it’s nominal
value.
※2
.
Temperature rise current: The DC current at which the temperature rise is
△t＝40℃.
(Ta＝20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
