POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH105R
◆
Product Description
・10.5×10.3mm
Max.(L×W), 5.1mm Max. Height.
・Inductance
Range:0.8μH½1.0mH
・Rated
current range: 0.42½9.5A
・In
addition to the standard versions of inductors shown here, custom inductors are available
to meet your exact requirements.
◆
Feature
・Magnetically
shielded construction.
・Ideally
used in Notebook PC, LCD TV,DVD, Game machine, STB ,Projector etc as
DC-DC Converter inductors.
・RoHS
Compliance
◆

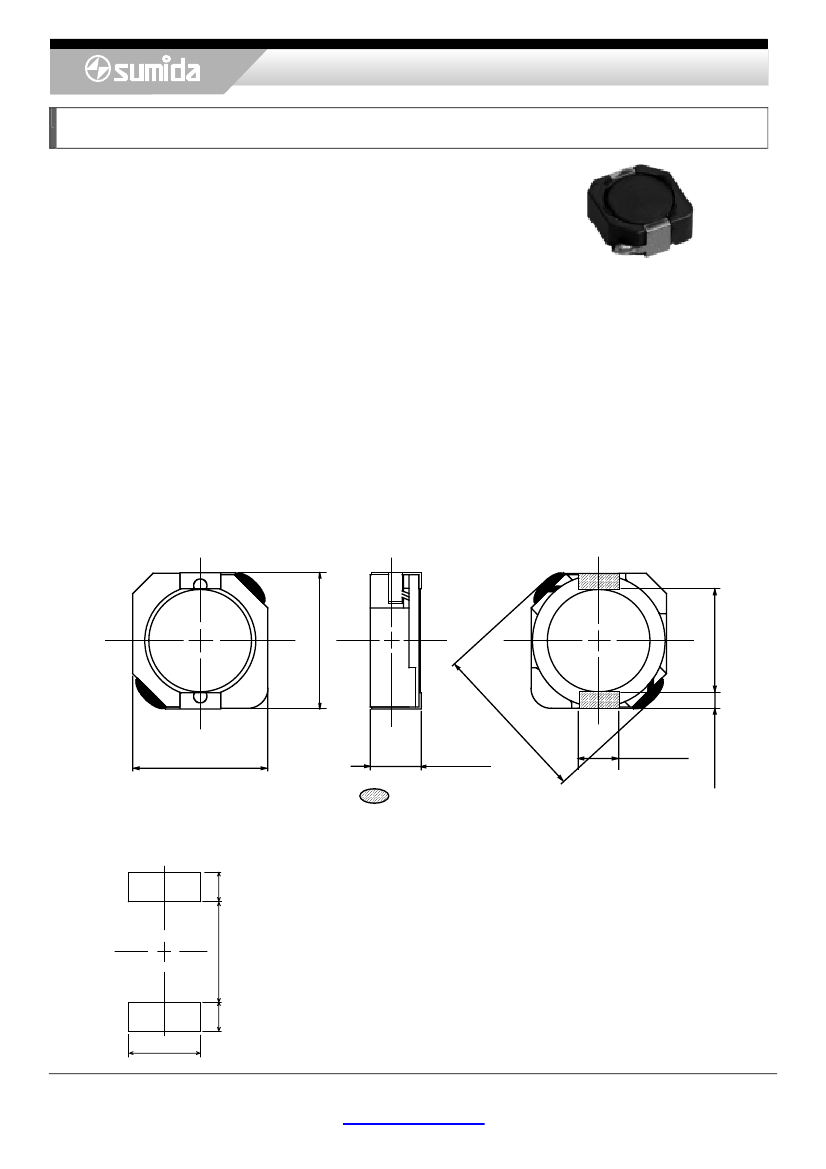

Dimensions (mm)
1
10.2±0.3
10.0±0.3
4.8±0.3
3.0±0.1
Electrode
◆
Land Pattern (mm)
1.6
3.2
Please refer to the sales offices on our website for a representative near you
1.6
7.3
www.sumida.com
1.2±0.15
1/2
2
7.7±0.3
.5
13
x.
Ma
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH105R
◆
Specification
Part Name
※
CDRH1Ø5RNP-ØR8N□
CDRH1Ø5RNP-1R5N□
CDRH1Ø5RNP-2R2N□
CDRH1Ø5RNP-3R3N□
CDRH1Ø5RNP-4R7N□
CDRH1Ø5RNP-6R8N□
CDRH1Ø5RNP-8R2N□
CDRH1Ø5RNP-1ØØN□
CDRH1Ø5RNP-12ØN□
CDRH1Ø5RNP-15ØN□
CDRH1Ø5RNP-18ØN□
CDRH1Ø5RNP-22ØN□
CDRH1Ø5RNP-27ØN□
CDRH1Ø5RNP-33ØN□
CDRH1Ø5RNP-39ØN□
CDRH1Ø5RNP-47ØN□
CDRH1Ø5RNP-56ØN□
CDRH1Ø5RNP-68ØN□
CDRH1Ø5RNP-82ØN□
CDRH1Ø5RNP-1Ø1N□
CDRH1Ø5RNP-121N□
CDRH1Ø5RNP-151N□
CDRH1Ø5RNP-181N□
CDRH1Ø5RNP-221N□
CDRH1Ø5RNP-271N□
CDRH1Ø5RNP-331N□
CDRH1Ø5RNP-391N□
CDRH1Ø5RNP-471N□
CDRH1Ø5RNP-561N□
CDRH1Ø5RNP-681N□
CDRH1Ø5RNP-821N□
CDRH1Ø5RNP-102N□
Stamp
0R8
1R5
2R2
3R3
4R7
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
Inductance
［Within½
100kHz/1V
0.8μH±30%
1.5μH±30%
2.2μH±30%
3.3μH±30%
4.7μH±30%
6.8μH±30%
8.2μH±30%
10μH±30%
12μH±30%
15μH±30%
18μH±30%
22μH±30%
27μH±30%
33μH±30%
39μH±30%
47μH±30%
56μH±30%
68μH±30%
82μH±30%
100μH±30%
120μH±30%
150μH±30%
180μH±30%
220μH±30%
270μH±30%
330μH±30%
390μH±30%
470μH±30%
560μH±30%
680μH±30%
820μH±30%
1.0mH±30%
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
4.3
5.8
7.2
(3.3)
(4.5)
(5.6)
Saturation
Current
（A）※1
13.5
10.5
9.25
7.80
6.40
5.40
4.85
4.45
4.00
3.60
3.20
2.95
2.70
2.40
2.30
2.00
1.90
1.65
1.50
1.35
1.28
1.12
1.04
0.94
0.84
0.75
0.70
0.60
0.54
0.52
0.50
0.48
Temperature
Rise current
(A)
※2
9.50
8.30
7.50
6.50
6.10
5.40
5.00
4.50
3.80
3.40
3.10
2.90
2.60
2.50
2.25
2.00
1.90
1.60
1.45
1.35
1.18
1.10
1.00
0.94
0.80
0.73
0.70
0.54
0.52
0.51
0.48
0.42
10.4 (8.0)
12.3 (9.5)
18
20
26
41
46
61
69
84
106
(14)
(16)
(20)
(32)
(35)
(47)
(53)
(65)
(82)
33 (25)
130 (100)
149 (115)
201 (155)
227 (175)
253 (195)
303 (233)
370 (285)
419 (322)
500 (385)
672 (512)
812 (625)
953 (733)
1289 (992)
1430 (1100)
1599 (1230)
1768 (1360)
1989 (1530)
※
Description of part name
CDRH1Ø5RNP- ØR8N□
B Box
C Carrier Tape
※1.
Saturation current: The DC current at which the inductance decreases to 65% of it’s nominal value.
※2
.
Temperature rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
