10091479-003LF

Description
Rectangular Power Connector, Male, Solder Terminal
CategoryThe connector    The connector
File Size578KB,5 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

10091479-003LF Online Shopping

Suppliers Part Number Price MOQ In stock
10091479-003LF - - View Buy Now

10091479-003LF Overview

Rectangular Power Connector, Male, Solder Terminal

10091479-003LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time6 weeks
body width0.779 inch
subject depth1.344 inch
body length2.553 inch
Connector typeRECTANGULAR POWER CONNECTOR
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance0.5 mΩ
Contact styleHYBRID
Dielectric withstand voltage2500VDC V
Durability200 Cycles
maximum insertion force.5004 N
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial number10091479
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Termination typeSOLDER
Base Number Matches1

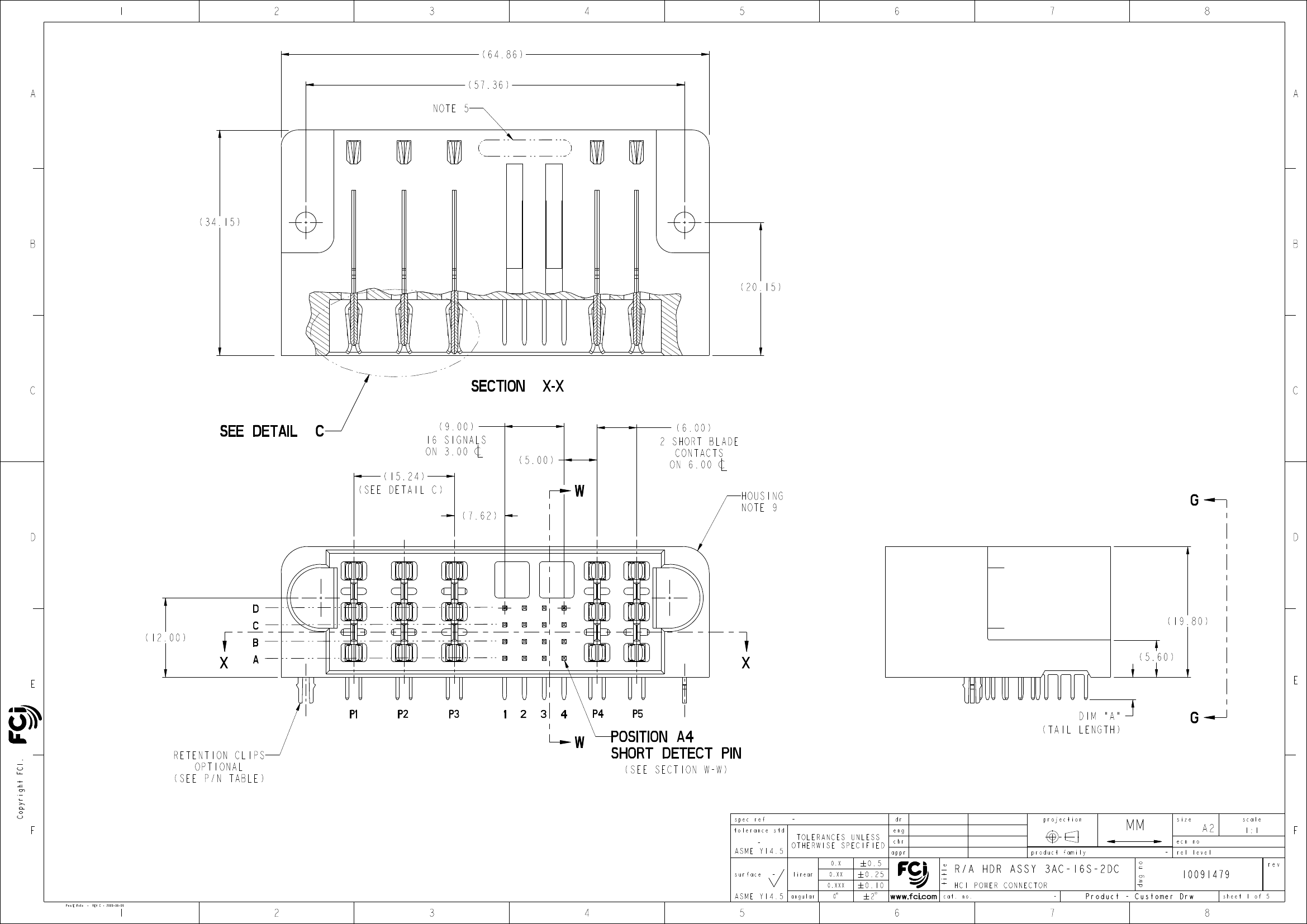

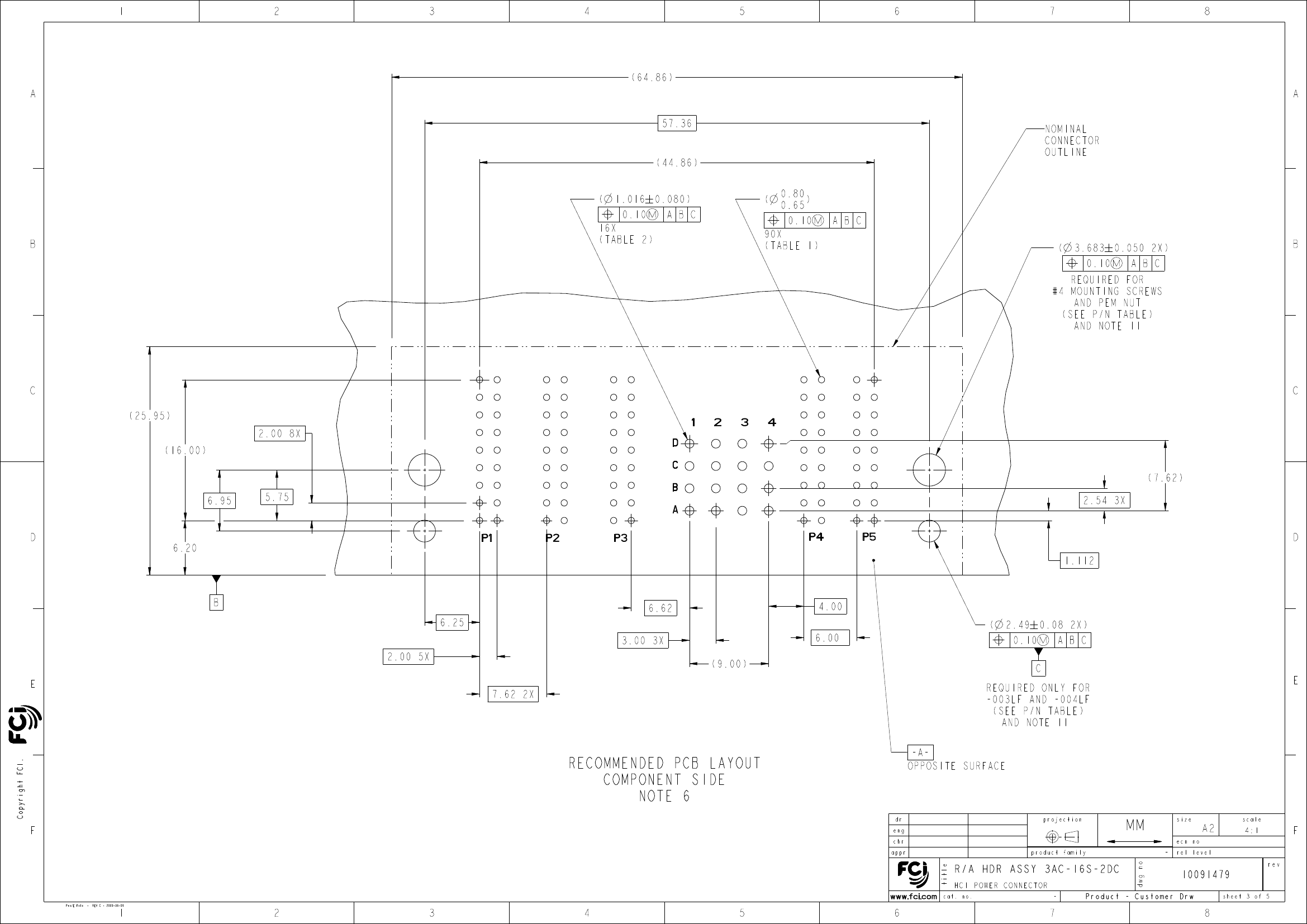

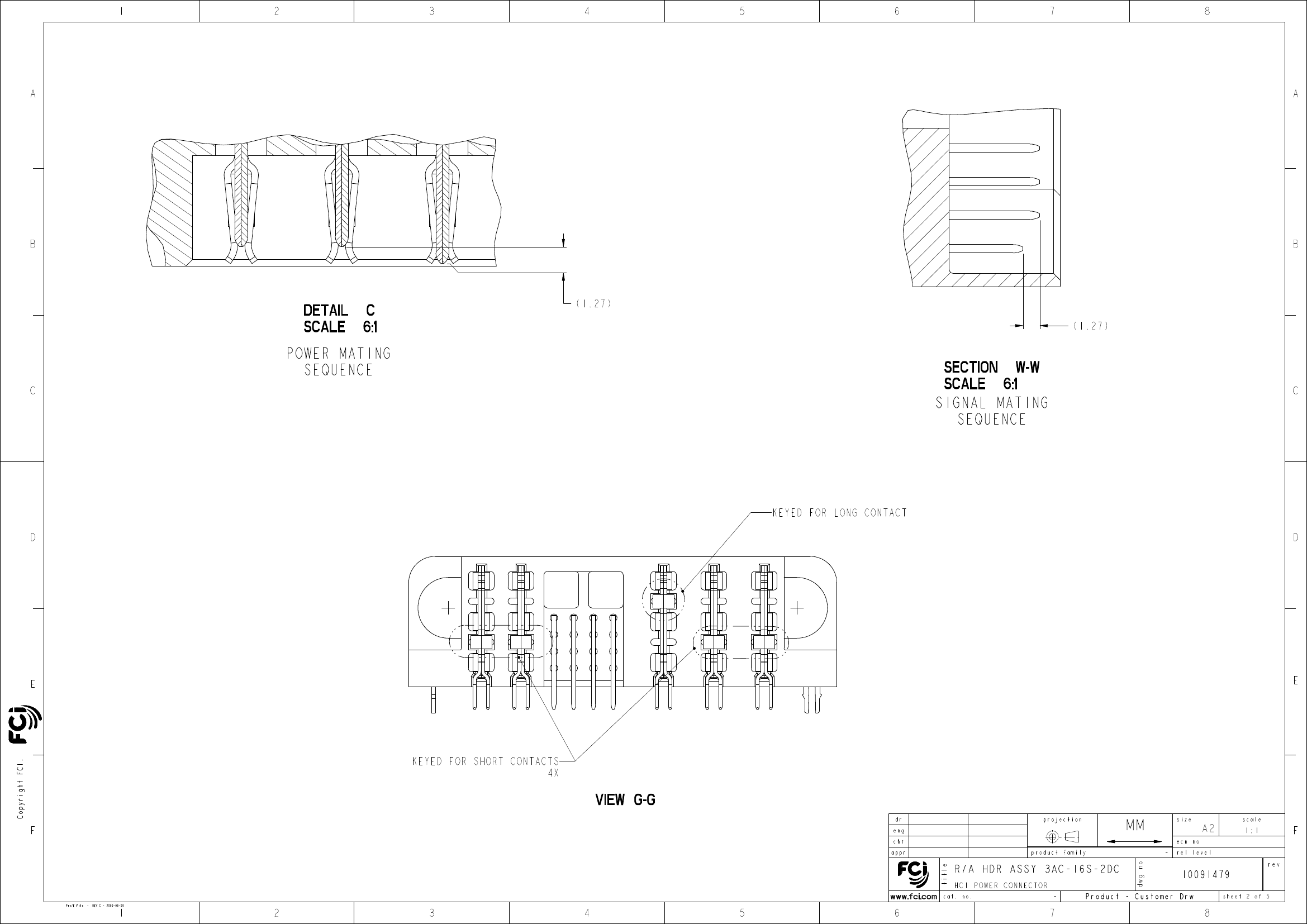

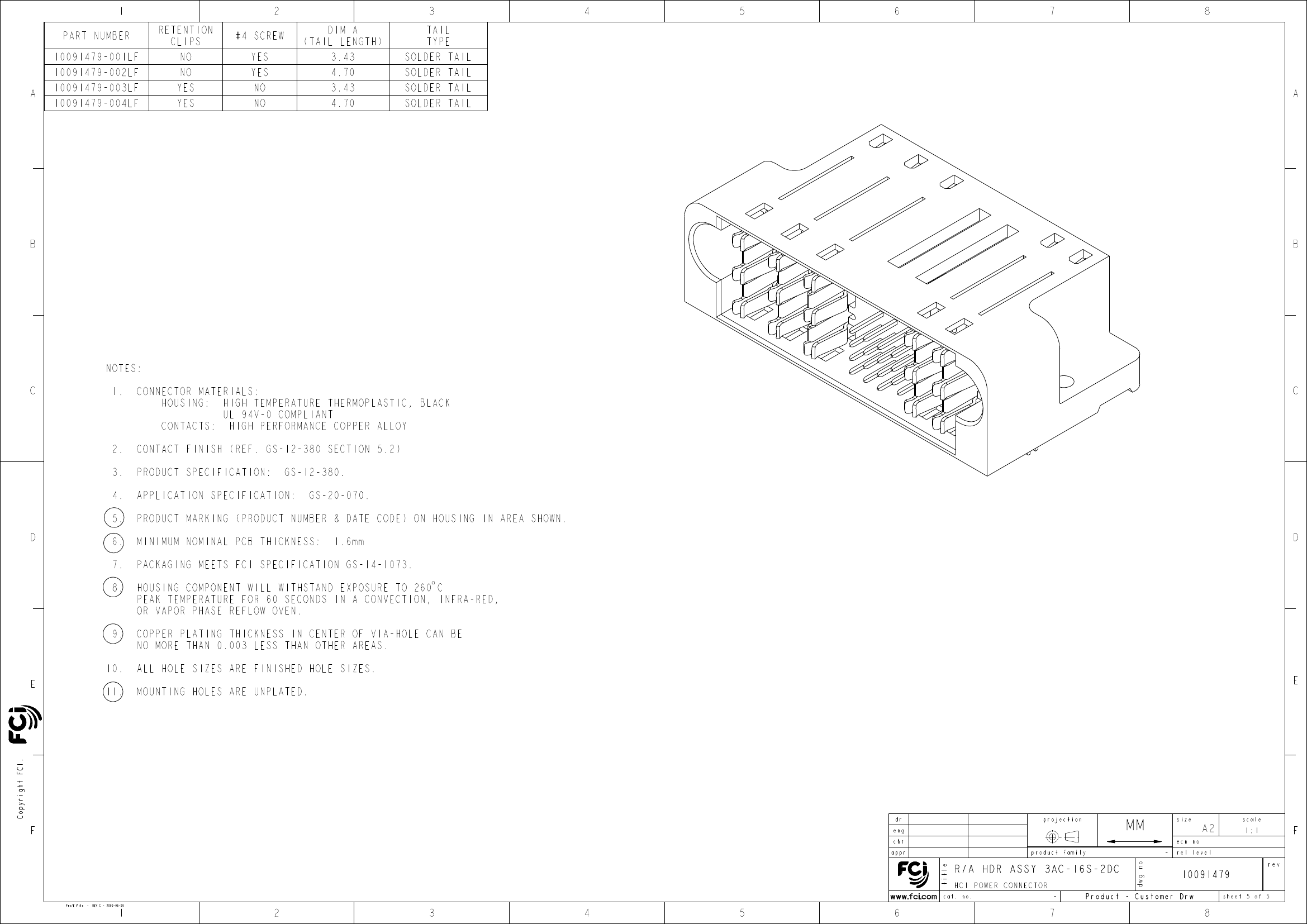

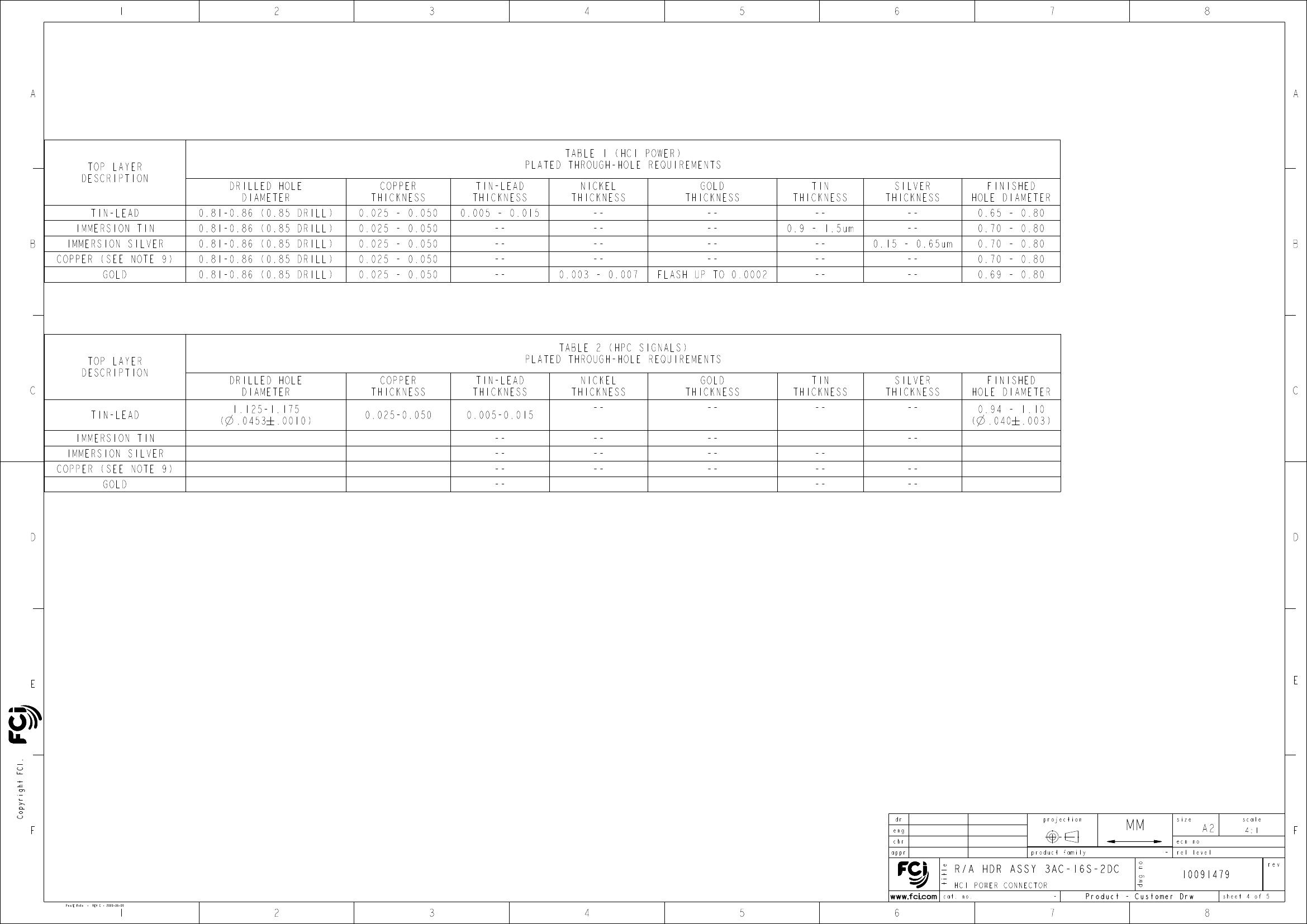

NotFound DuWa
De-Ming Lu
-
Pei-Ming Zheng
2010/04/28
2014/12/28
-
2014/12/29
ELX-DG-19849-1
Released
B
PDS: Rev :B
STATUS:Released
Printed: Dec 29, 2014
