777SD-E-09-P-AJ4 datasheet, PDF

777SD-E-09-P-AJ4: DescriptionD Type Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size326KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

777SD-E-09-P-AJ4 Overview

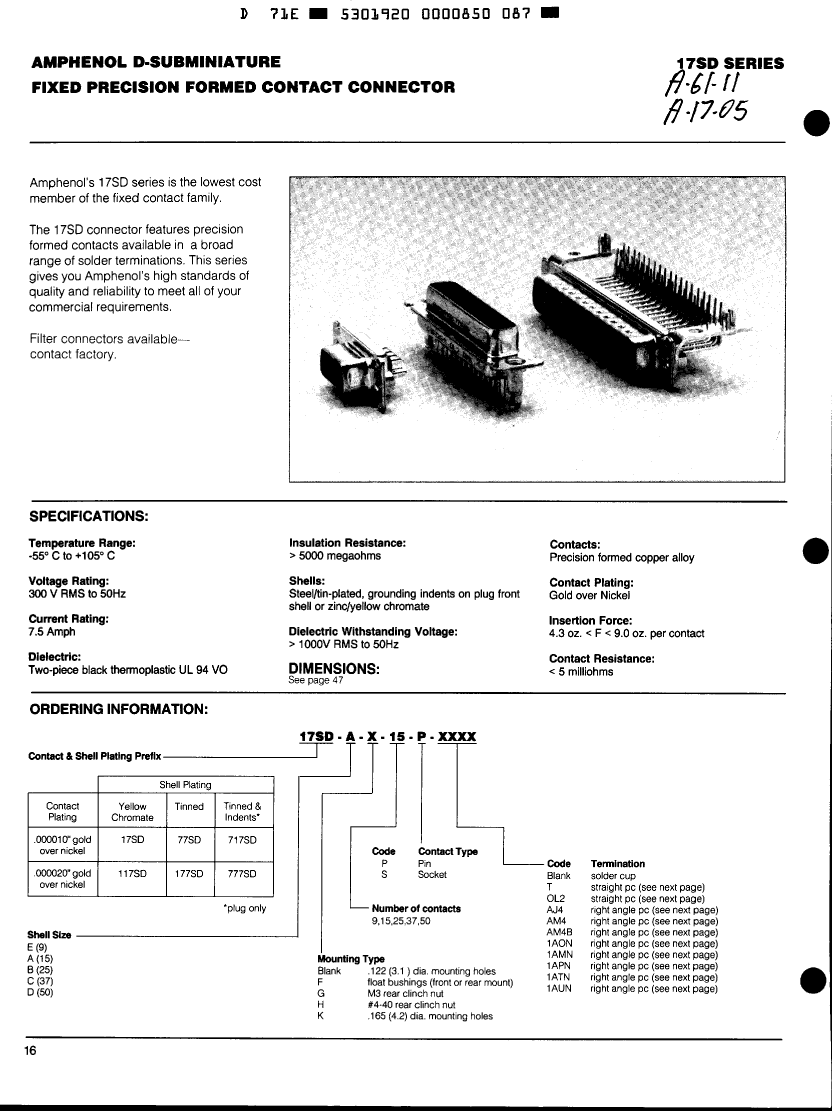

D Type Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle

Parameter Name	Attribute value
Objectid	1152733272
Reach Compliance Code	unknown
ECCN code	EAR99

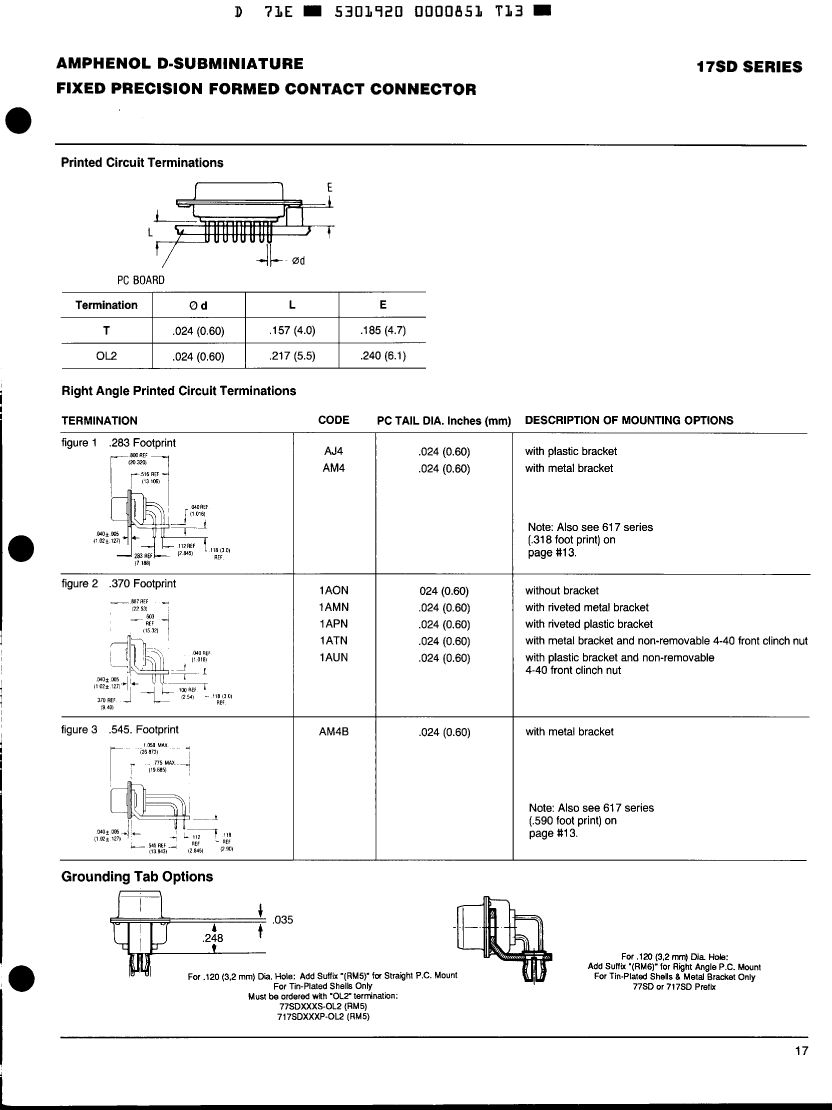

Other features	0.283 FOOTPRINT

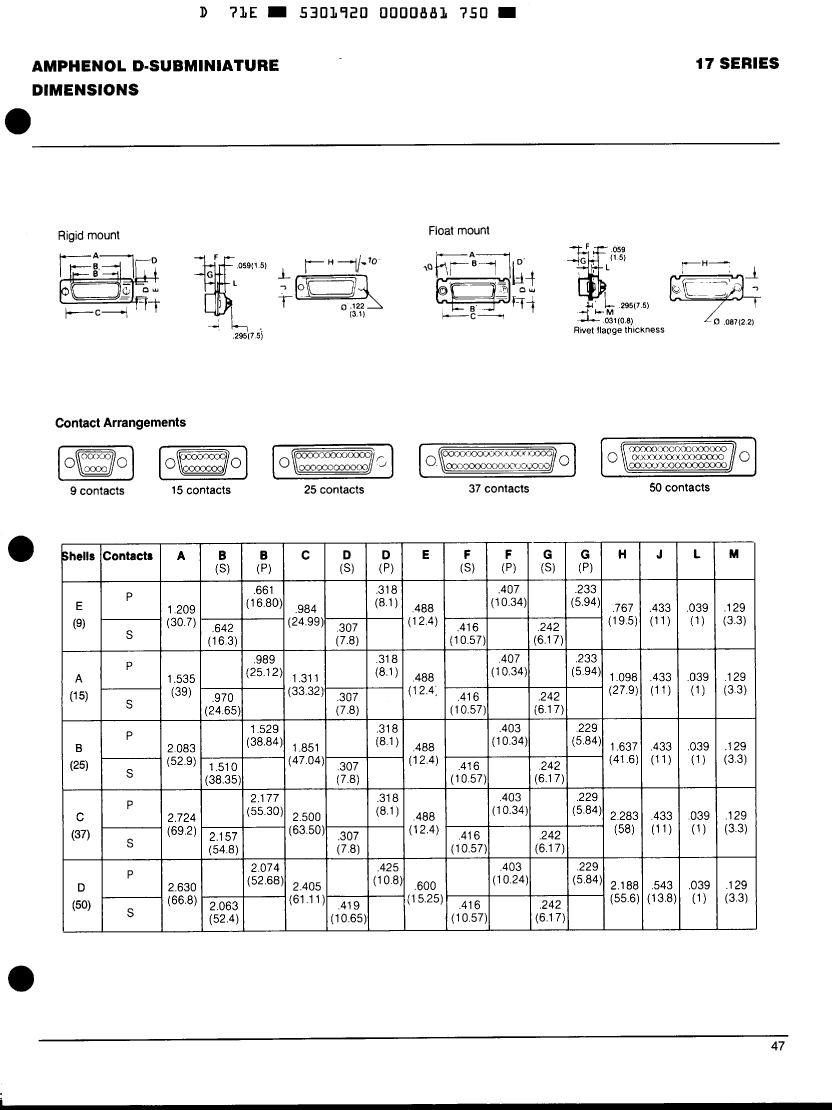

body width	0.488 inch
subject depth	0.516 inch
body length	1.209 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	300VAC V
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	17SD
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	NON-THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C

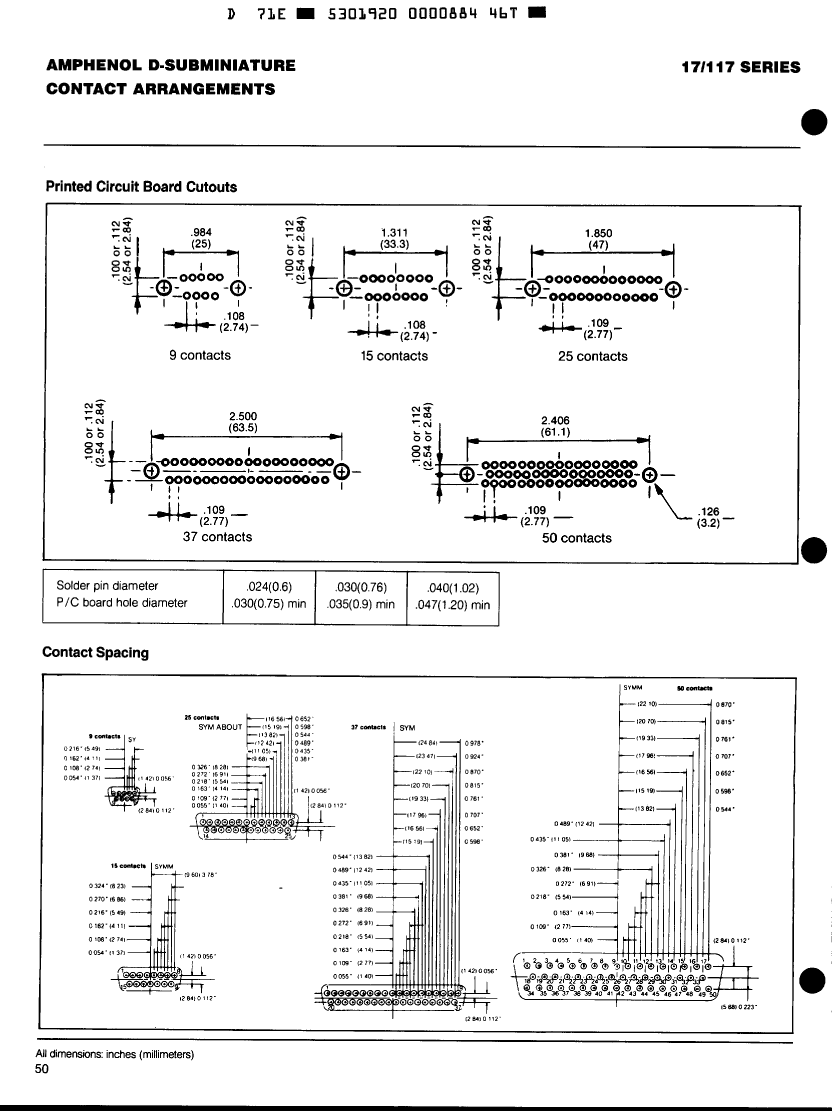

PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	20u inch
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC/YELLOW CHROMATE
Shell material	STEEL
Terminal length	0.118 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
