OPTICAL COMMUNICATIONS
Up to 660 mW Fiber Bragg Grating Stabilized 980 nm Pump Modules
3000 Series
Key Features
• Very high kink-free powers to 660 mW
• Low-profile, epoxy-free, and flux-free 14-pin butterfly
planar package with PM fiber
• Fiber Bragg grating stabilization
• Multiple wavelength availability
• Integrated thermoelectric cooler, thermistor, and monitor diode
• High dynamic range
• Excellent low-power stability
Applications
• Next-generation dense wavelength
division multiplexing (DWDM)
erbium doped fiber amplifiers
(EDFAs) requiring the highest power
with “locked” wavelength emission
• Reduced pump-count EDFA
architectures
• Very long distance cable television
(CATV) trunks and very high node-
count distribution
• Pump splitting (multiple EDFA stages)
• FTTx, Agile metro/ROADM

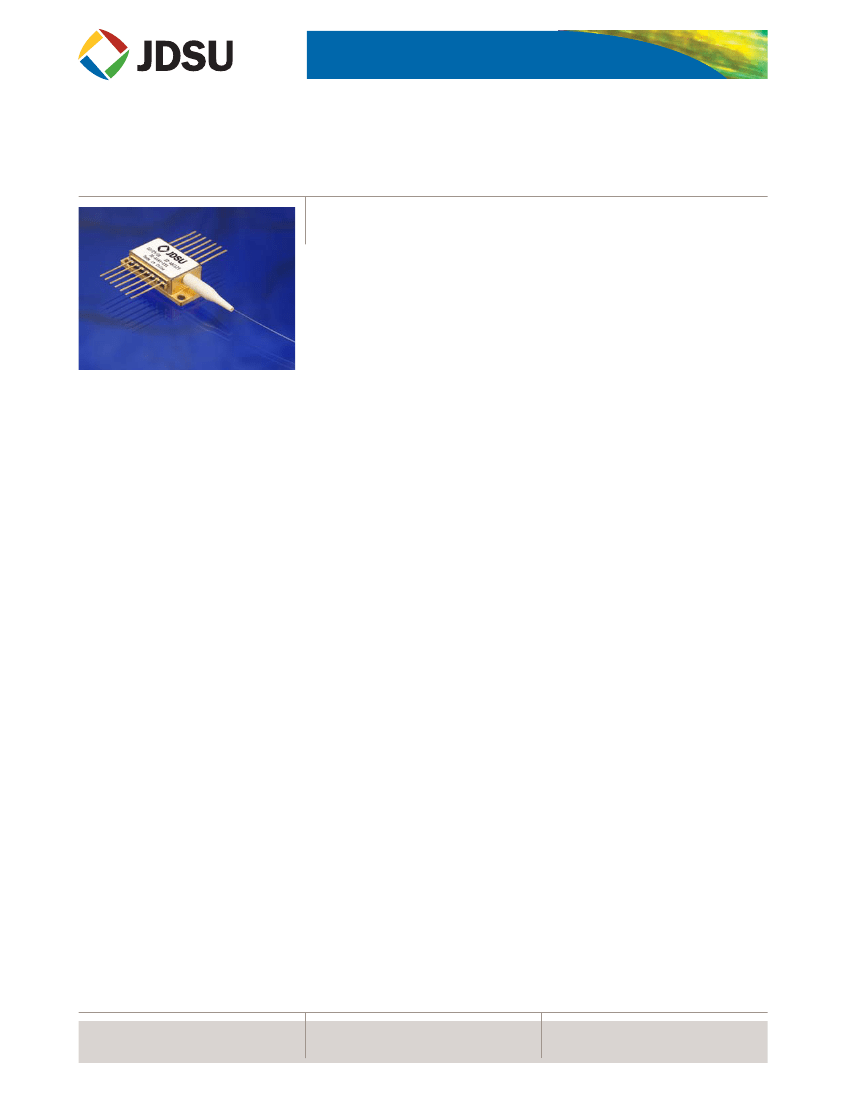

The JDSU 3000 Series 980 nm pump module uses a planar construction with chip
on subcarrier. The high-power laser chip is hermetically sealed in a low-profile,
epoxy- and flux-free 14-pin butterfly package and fitted with a thermistor,
thermoelectric cooler, and monitor diode. This product uses a polarization
maintaining fiber (PMF) pigtail that allows excellent side mode supression ratios
(SMSR) over a very wide dynamic range.
The 3000 Series pump module uses PM fiber Bragg grating stabilization to “lock”
the emission wavelength. It provides a noise-free narrowband spectrum, even
under changes in temperature, drive current, and optical feedback. Wavelength
selection is available for applications that require the highest performance in
spectrum control with the highest available powers.
Compliance
• Telcordia GR-468-CORE
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
3000 SERIES PUMPS
2

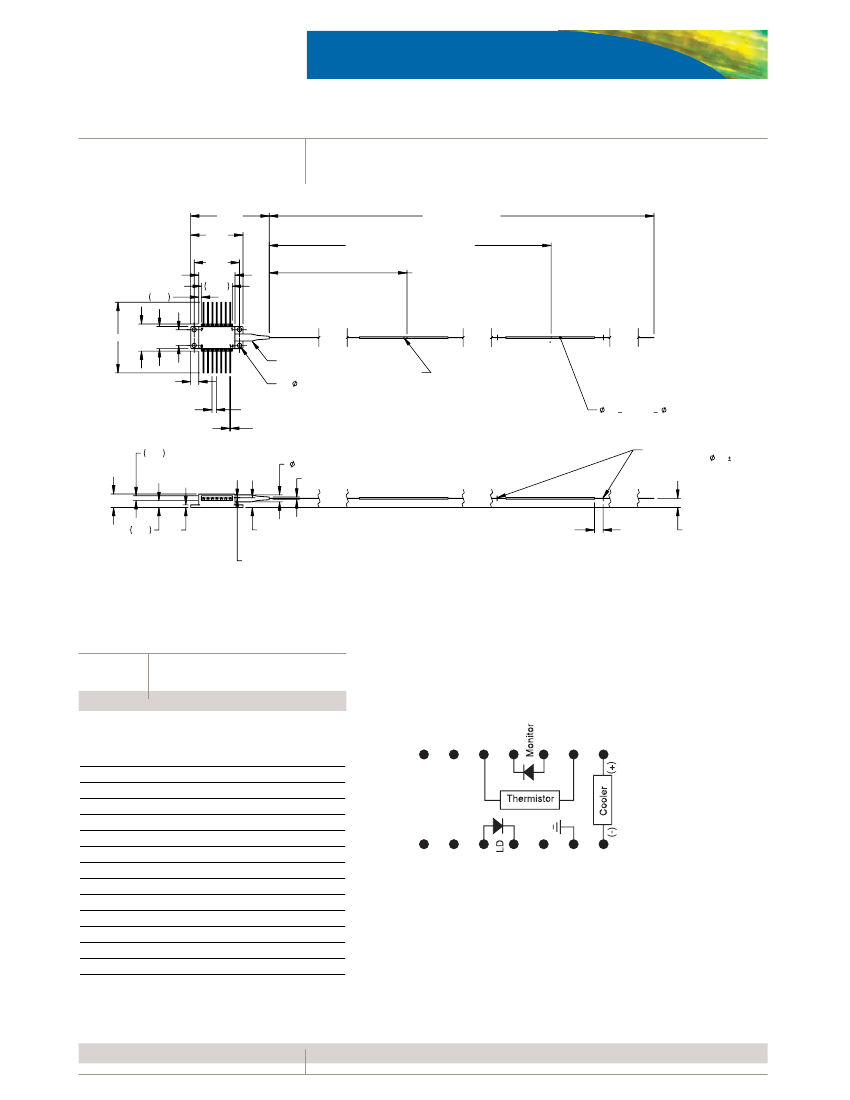

Dimensions Diagram
(Note: Specifications in mm unless otherwise noted; tolerance = .x ± .3, .xx ± .20.)
45.04
30.0
1600 M I N (1900 NOM )
1000 NOM . TO CENTER OF GRATING
26.0
20.8
17.8
1 .5
500 NOM . TO C/L OF SPLICE (OPTIONAL)
4 0 . 5 N O M . 1 5 . 5 1 2 .7
9.0
STRAIN RELIEF
FLEXIBLE <=400
MICRON RECOAT
4.6
4X
2 .5 0 TH RU
1 2X 2 . 5 L E A D S P A C I N G
TOLERANCE IS NON-ACCUMULATIVE
14X 0.51 LEAD WIDTH
260 < RECOAT <
935 (MICRON)
2.8
4.0 0
1.50
7 . 7 ± 0. 2 0
RED NON-XYLENE MARK
FOR RECOAT WITH 295 35 μm
3.9
1.5
5 . 6 TO L EA D C/ L
2X ~ 5
5. 26
0.25 LEAD THICKNESS
Pinout
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Description
Cooler (+)
Thermistor
Monitor PD anode
Monitor PD cathode
Thermistor
N/C
N/C
N/C
N/C
Laser anode
Laser cathode
N/C
Case ground
Cooler (-)
7
6
5
4
3
2
1
8
9
10
11
12
13
14
3000 SERIES PUMPS
3
Absolute Maximum Ratings
Parameter
Operating case temperature
Storage temperature
Laser operating temperature
LD reverse voltage
LD forward current
LD current transient
LD reverse current
PD reverse voltage
PD forward current
Electrostatic discharge (ESD)
Cooler current
Atmospheric pressure
Storage
Operating
Relative humidity
Lead soldering time
Symbol
T
op
T
stg
T
LD
V
r
I
f_max
Test Condition
-
2000 hours
-
-
Unlimited time
1 µs maximum
-
-
-
C = 100 pF, R = 1.5
Ω,
human body model
-
Minimum
-5 °C
-40 °C
0 °C
-
-
-
-
-
-
-
-
-
-
5%
-
Maximum
75 °C
85 °C
50 °C
2.0 V
1400 mA
1500 mA
10 µA
20 V
10 mA
1000 V
4A
11 kPa
58 kPa
95%
10 seconds
V
PD
I
PF
V
ESD
I
C
R
H
Non condensing
260 °C
Note: Each device is rated to a maximum kink-free current (I
max
), provided on the individual datasheet. This is the maximum current under which the device will perform its intended function. Operation
above I
max
, and up to the absolute maximum rating, may result in poor device performance, and degrade device reliability. Long-termoperation above I
max
may lead to early device failure.
Operating Parameters
Product Code
Operating Power
Pop (mW)
450
460
480
500
520
540
560
580
600
Operating Current
Iop (mA)
900
920
960
1000
1050
1100
1150
1200
1250
Kink-Free Power
Pmax (mW)
500
520
540
560
580
600
620
640
660
Kink-Free Current
Imax (mA)
1000
1050
1100
1150
1200
1250
1300
1350
1400
30-xxxx-500
30-xxxx-520
30-xxxx-540
30-xxxx-560
30-xxxx-580
30-xxxx-600
30-xxxx-620
30-xxxx-640
30-xxxx-660
3000 SERIES PUMPS
4
Available Peak Wavelength Selection
Product Code
30-7402-xxx
30-7602-xxx
30-8000-xxx
Peak Wavelength
974.0 nm
976.0 nm
980.0 nm
Peak Wavelength Tolerance
-0.5/+1.0 nm
±1 nm
-6/+5 nm
Electro-Optical Performance
(BOL,T
case
= -5 to 75 °C, P
f
range = 20 mW to P
max
, -50 dB reflection, unless noted otherwise)
Parameter
Threshold current
Laser diode temperature
Forward voltage
Operating power
Kinkfree output power
Wavelength
Pump in pump band
Spectral width
Wavelength tuning vs. temperature
Optical power stability
Symbol
I
th-BOL
T
LD
V
f
P
op
P
max
λ
m
P
pump
Δλ
RMS
Δλ/T
ΔP
f_t
Test Condition
-
-
I
f
= I
op
I
f
= I
op
I
f
= I
max
-
Pump band =
λ
m
±1.5 nm
-
-
Over P
f
range, DC to 50 kHz,
50 kHz sampling, T
case
= 25 °C
20 mW < P
op
< 100 mW
100 mW < P
op
< 600 mW
-
I
f
= I
max
, T
LD
= 25 °C, see table on next page
T
set
= 25 °C
-
Minimum
-
20 °C
-
20 mW
500 mW
973 nm
90%
-
-
Maximum
35 mA
30 °C
2.6 V
P
op
660 mW
985 nm
-
2.0 nm
0.02 nm/°C
Monitor diode responsivity
TEC cooling capacity
Thermistor resistance
Thermistor constant
I
BF
Δ
TEC
R
th
B
-
-
1 µA/mW
50 °C
9.5 kΩ
3600 K
4%
2.5%
10 µA/mW
-
10.5 kΩ
4200 K
3000 SERIES PUMPS
5
TEC and Total Module Power Consumption
(For
ΔT
= 50 °C, BOL, T
case
= 75 °C, T
ld
= 25 °C unless noted otherwise)
Product Code
TEC Current
Imax (A)
1.94
1.97
2.01
2.03
2.06
2.09
2.12
2.15
2.20
TEC Voltage
Vmax (V)
2.69
2.73
2.76
2.78
2.80
2.83
2.86
2.88
2.90
TEC Power Consumption
Pmax (W)
5.22
5.38
5.55
5.64
5.77
5.91
6.06
6.19
6.38
Total Module Power
Consumption Pmax (W)
6.99
7.21
7.48
7.69
7.96
8.26
8.56
8.84
9.19
30-xxxx-500
30-xxxx-520
30-xxxx-540
30-xxxx-560
30-xxxx-580
30-xxxx-600
30-xxxx-620
30-xxxx-640
30-xxxx-660
Panda PM-980 Polarization Maintaining Fiber Nominal Characteristics and Tolerances
Parameter
Cutoff wavelength
Maximum attenuation at 980 nm
Cladding outside diameter
Coating outside diameter
Mode field diameter at 980 nm
Cross talk at 100 m
Maximum beat length
Operating temperature
Fiber tensile proof strength (tested)
Specification
950 nm
3.0 dB/km
125±3 µm
250±3 µm
6.6±1.1 µm
-25 dBm/2 m
3.3 mm
-40 to 85 °C
200 kpsi
