CDR156NP-100LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CDR156NP-100LC

CDR156NP-100LC: Description1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size226KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance; Related ProductsFound1parts with similar functions to CDR156NP-100LC

Download Datasheet Parametric View All

CDR156NP-100LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDR156NP-100LC	-	-	View	Buy Now

CDR156NP-100LC Overview

1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD

CDR156NP-100LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	7359
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	7359
structure	Unshielded
DC Resistance	0.025 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDR156
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	7 mm
Package length	18.5 mm
Package form	SMT
Package width	15 mm
method of packing	Tape
Maximum rated current	5.5 A
series	CDR156
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	15%

Preview

Download Datasheet

View All

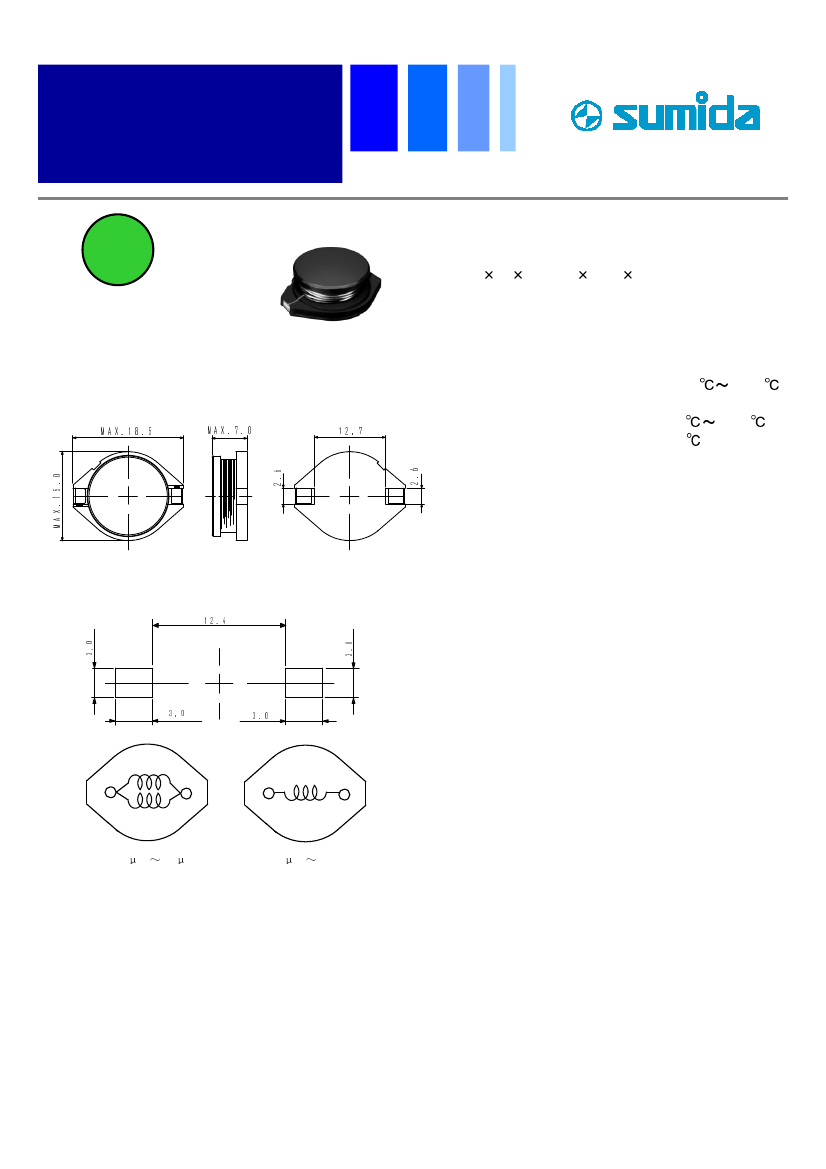

SMD Power Inductor

CDR156

Description

• Ferrite drum core construction.

• Magnetically unshielded.

• L W H: 18.5 15.0 7.0 mm Max.

• Product weight: 3.1g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

Environmental Data

• Operating temperature range: -40

+100

(including coil’s self temperature rise)

• Storage temperature range: -40

+100

• Solder reflow temperature: 260

peak.

RoHS

Dimension - [mm]

7.21

0.7.XAM

5.81.XAM

Packaging

• Carrier tape and reel packaging

• 12.9”diameter reel

• 300pcs per reel

Land pattern and Schematics - [mm]

4.21

Applications

• Ideally used in Notebook PC ,LCD TV ,Game

machine ,HDD ,DSC/DVC , etc as DC-DC

converter inductors.

½μ

μ ½μ

(1.0

H 33

(47

H 1.0mH)

Page 1 of 4
