72305-545 datasheet, PDF - EEWORLD Datasheet

72305-545: DescriptionPCMCIA Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size820KB，11 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

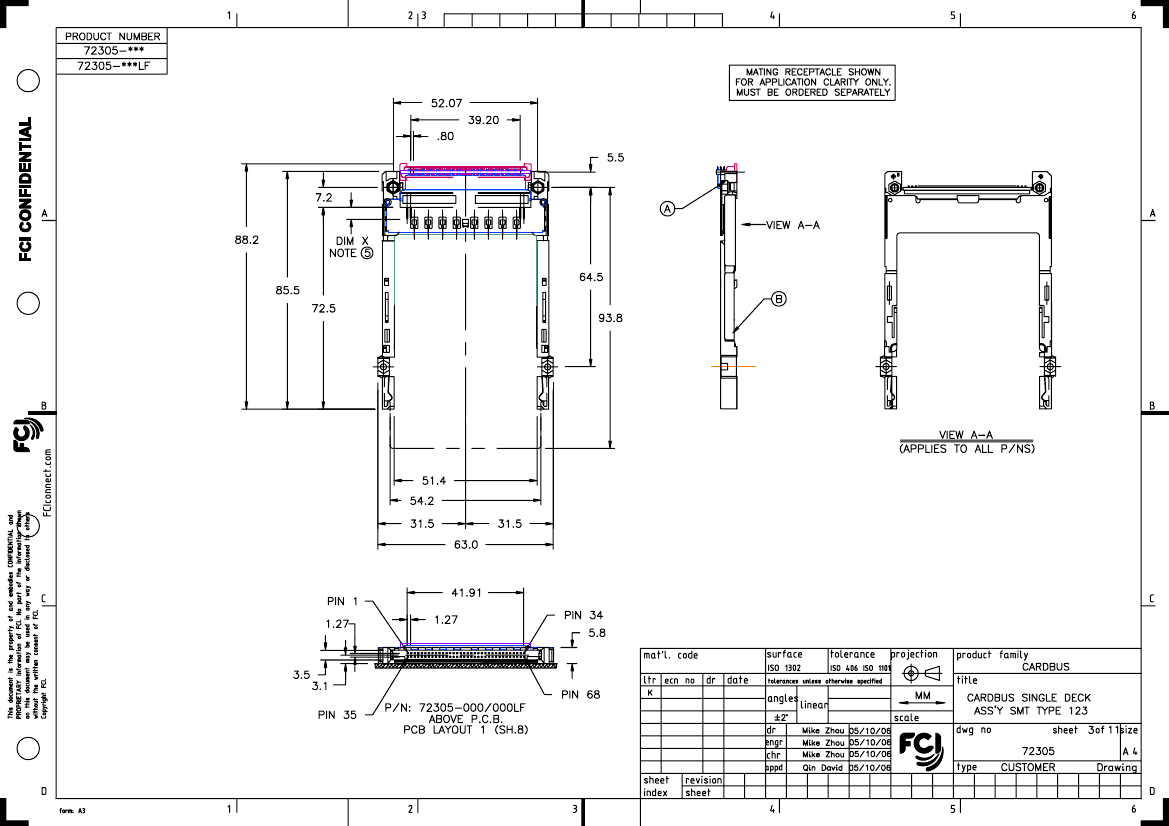

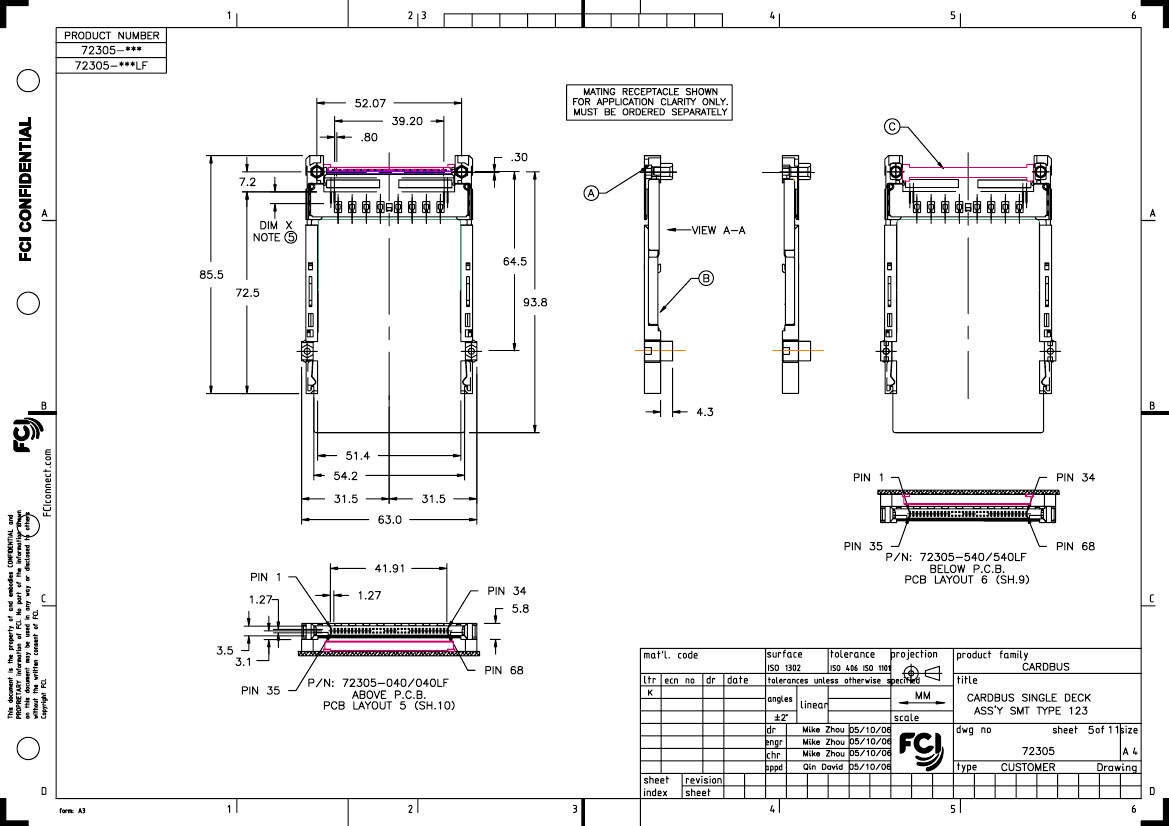

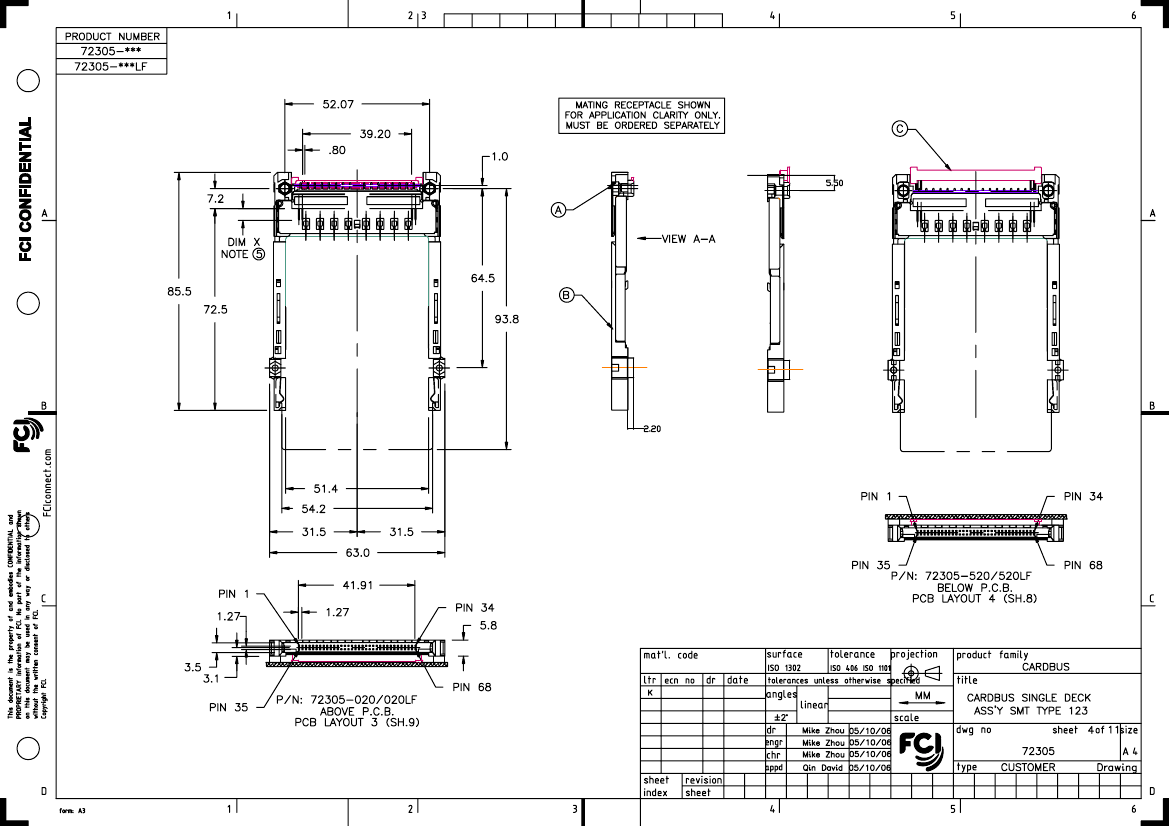

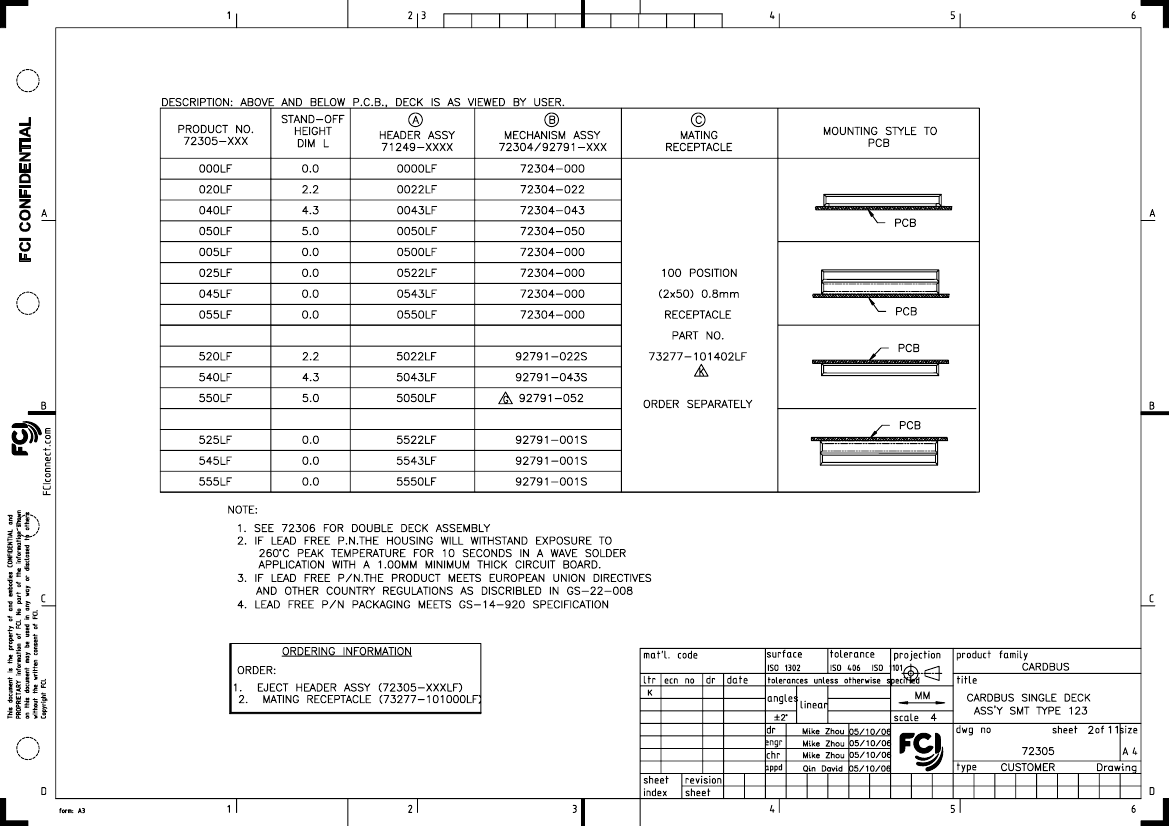

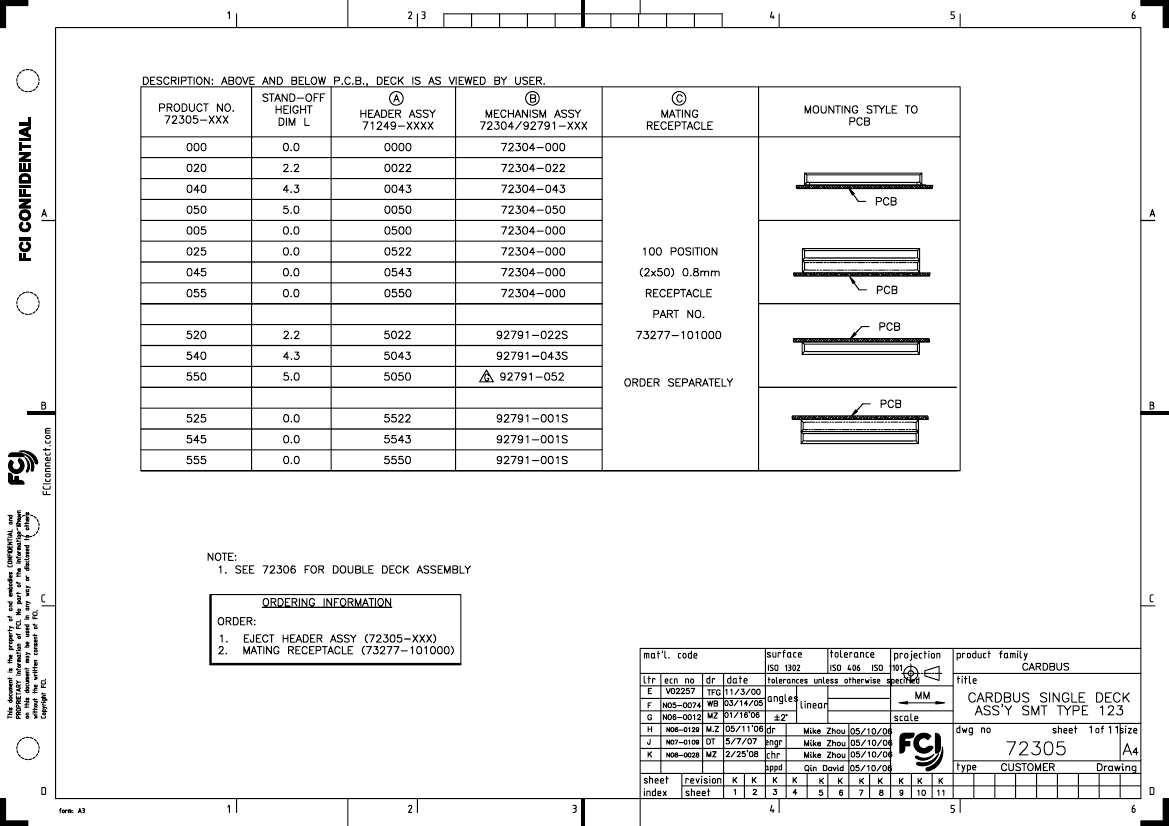

72305-545 Overview

PCMCIA Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	4 GROUND CONTACT ALSO AVAILABLE
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	72305
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

PDM: Rev:K

STATUS:

Released

Printed: Oct 12, 2010

.
