21-033836-061 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 21-033836-061

21-033836-061: DescriptionCircular Connector Adapter, 4 Contact(s); CategoryThe connector The connector; File Size330KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

21-033836-061 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	21-033836-061	-	-	View	Buy Now

21-033836-061 Overview

Circular Connector Adapter, 4 Contact(s)

21-033836-061 Parametric

Parameter Name	Attribute value
Objectid	1838695145
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR ADAPTER
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Options	GENERAL PURPOSE
Total number of contacts	4

Preview

Download Datasheet

View All

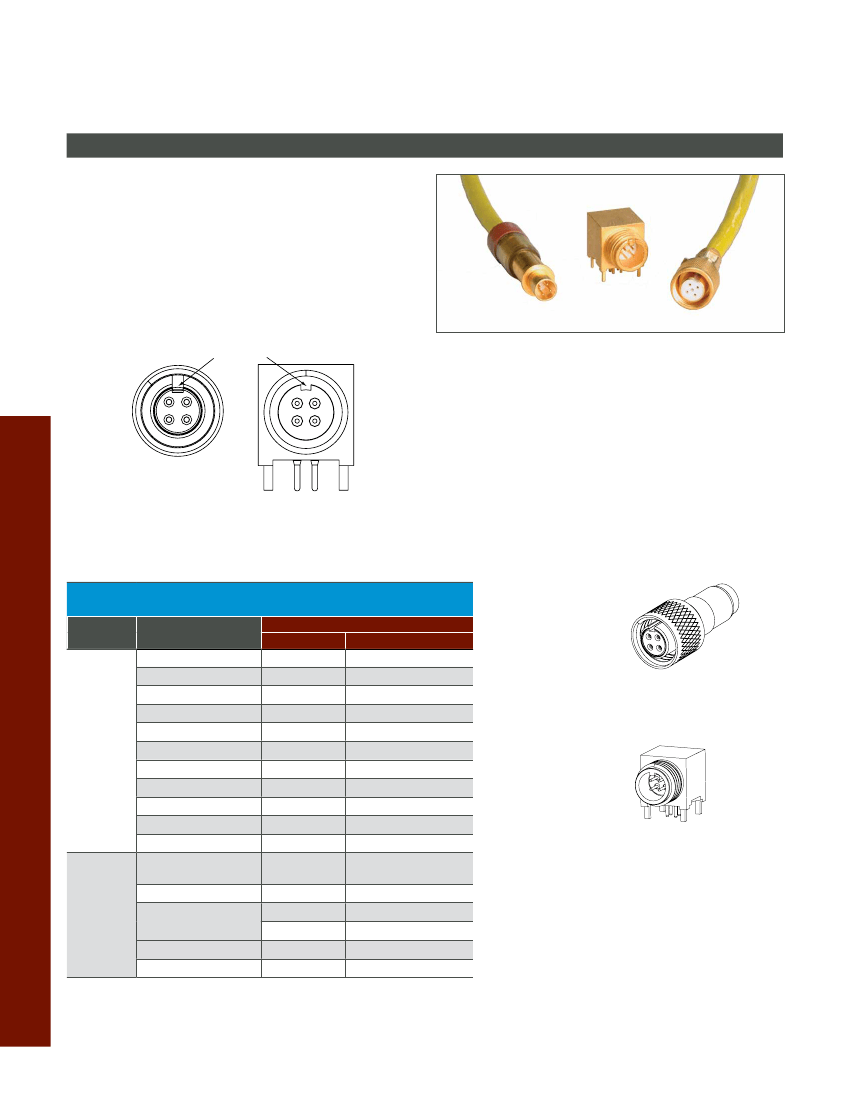

Quadrax Transition Adapters

General Description

AMPHENOL TRANSITION ADAPTERS

Are used to facilitate launching of controlled impedance signals

to printed circuit boards. Amphenol provides transition adapters in

both contact types:

• Quadrax transition adapters, 90° or straight receptacles

threaded or cable to board style

Adapters

SUGGESTED NUMBERING FOR TRANSITION

ADAPTERS WITH QUADRAX CONTACTS

90° Quadrax Receptacle and Plug Transition Adapter

ORIENTATION

KEY

Quadrax, Differential Twinax

TRANSITION ADAPTER

PLUG

MATING FACE

90° RECEPTACLE

TRANSITION ADAPTER

MATING FACE

ELECTRICAL PROTOCOLS FOR

QUADRAX TRANSITION ADAPTERS

Impedance

(Ohms)

Electrical Protocol††

Ethernet, Gigabit Ether

100

Plug

Part Number

Receptacle

QUADRAX

TRANSITION

ADAPTER

PLUG

21-033836-031

21-033836-041

21-033836-051

21-033836-061

21-033837-101

21-033837-081 (90°)

21-033837-091 (straight)

21-033837-041 (90°)

Ethernet, Gigabit Ether

21-033837-051 (straight)

21-033837-061 (90°)

21-033837-141 (90°)

QUADRAX

TRANSITION

ADAPTER

90 DEGREE

RECEPTACLE

1000 Base CX,

Fibre channel

21-033836-021

21-033837-111

150

1000 Base CX,

Fibre channel

21-033837-021 (90°)

21-033837-211 (jam nut)

21-033837-031 (straight)

21-033837-071 (90°)

††Test reports available for indicated protocols; consult Amphenol Aerospace.

Find Contacts Fast

- Online High-Speed Contacts Guide at www.amphenol-aerospace.com • 800-678-0141

21-033836-061 Related Products

	21-033836-061	21-033836-051	21-033837-091	21-033836-041	21-033836-101	21-033837-071	21-033837-141
Description	Circular Connector Adapter, 4 Contact(s)	Circular Connector Adapter, 4 Contact(s)	Circular Connector Adapter, 4 Contact(s)	Circular Connector Adapter, 4 Contact(s)	Quadaxial Connector, Male, Cable Mount, Plug,	Circular Connector Adapter, 4 Contact(s)	Circular Connector Adapter, 4 Contact(s)
Objectid	1838695145	1838695144	1838695152	1838695143	8348469253	1838695150	1838695155
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE	PLUG	PLUG	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	QUADAXIAL CONNECTOR	CIRCULAR CONNECTOR ADAPTER	MIL SERIES CONNECTOR
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
Filter function	NO	NO	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
DIN compliance	NO	NO	NO	NO	NO	NO	-
empty shell	NO	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	-
MIL compliance	NO	NO	NO	NO	YES	NO	-
Mixed contacts	NO	NO	NO	NO	-	NO	NO
Total number of contacts	4	4	4	4	-	4	4
