52040-301 datasheet, PDF - EEWORLD Datasheet

52040-301: DescriptionBoard Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle; CategoryThe connector The connector; File Size645KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52040-301 Overview

Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	52040
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	60
UL Flammability Code	94V-0
Base Number Matches	1

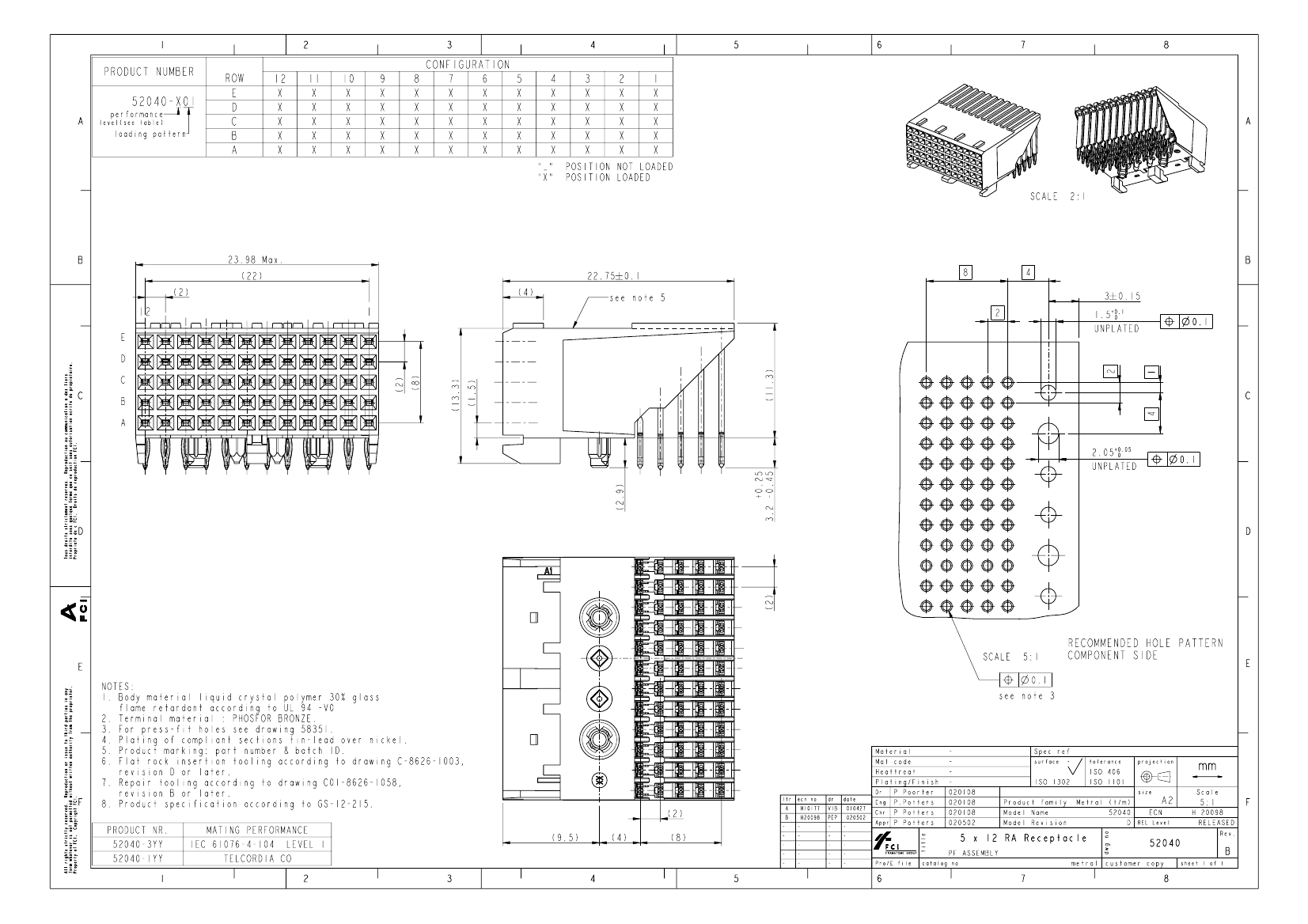

PDM: Rev:B

STATUS:

Released

Printed: Jul 13, 2002

	52040-301	52040-101
Description	Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e0	e0
MIL compliance	NO	NO
Manufacturer's serial number	52040	52040
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	60	60
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
