88-569783-35S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88-569783-35S

88-569783-35S: DescriptionMIL Series Connector, 22 Contact(s), Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

88-569783-35S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	88-569783-35S	-	-	View	Buy Now

88-569783-35S Overview

MIL Series Connector, 22 Contact(s), Female, Solder Terminal, Receptacle

88-569783-35S Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD (500) OVER NICKEL
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	88-5697
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	OLIVE DRAB CADMIUM PLATED
Housing size	13
Termination type	SOLDER
Total number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

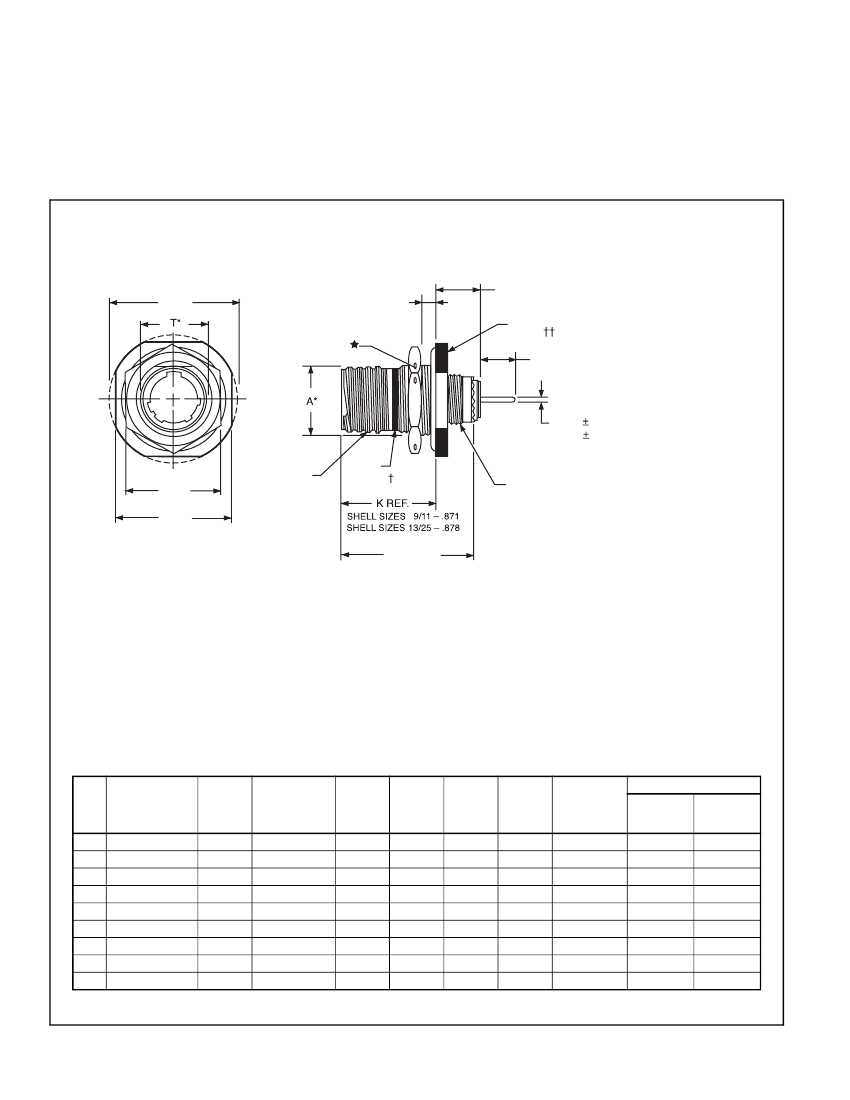

MIL-DTL-38999 Series III Type Connectors

with PCB contacts

TV07R jam nut receptacle

.378 MAX.

PANEL THICKNESS

.062 MIN.

.125 MAX.

BLUE

BAND

Z PCB TAIL STICKOUT

.062 .001 DIA. FOR SIZE 16 CONTACTS

.019 .001 DIA.

FOR SIZES 20 & 22D CONTACTS

B THREAD

2 PLACES

1.280 MAX.

RED

BAND

V THREAD

HOW TO ORDER

• Order by applicable 88/91 part number in table below.

88 prefix designates olive drab cadmium plated connector shell.

91 prefix designates electroless nickel plated connector shell.

• Add insert arrangement to end of number. Refer to insert availability chart on page 4 and

pin-out illustrations on pages 5-24. Last letter of part number designates rotation; P for

pins in normal position, S for sockets in normal position. See page 25 for alternate rota-

tion letter to use.

Example part number: 88-569781-35P designates shell size 9 with a 9-35 insert and pin

contacts in normal position.

• Z dimension is determined by contact type in the insert arrangement.

• Most common options are shown; other options are available.

Composite Series III connectors are available;

consult Amphenol, Sidney, NY.

† Red band indicates fully mated

†† Blue band indicates rear release contact

retention system

★

.059 dia. min. 3 lockwire holes.

Formed lockwire hole design (6 holes) is optional.

“D” shaped mounting hole dimensions

Shell

Size

+.000

–.000

.669

.769

.955

1.084

1.208

1.333

1.459

1.575

1.709

B Thread

Class 2A (Plated)

0.1P-0.3L-TS

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

Max.

1.199

1.386

1.511

1.636

1.761

1.949

2.073

2.199

2.323

H Hex

+.017

–.016

.875

1.000

1.188

1.312

1.438

1.562

1.688

1.812

2.000

±.010

1.062

1.250

1.375

1.500

1.625

1.812

1.938

2.062

2.188

+.010

–.000

.697

.822

1.007

1.134

1.259

1.384

1.507

1.634

1.759

V Thread

Metric

M12X1-6g

M15X1-6g

M18X1-6g

M22X1-6g

M25X1-6g

M28X1-6g

M31X1-6g

M34X1-6g

M37X1-6g

Size

16 & 20

Contacts

.244 – .200

.222 – .177

Size 22D

Contacts

.258 – .206

.236 – .180

Part Number

88/91-569781-XXX

782-XXX

783-XXX

784-XXX

785-XXX

786-XXX

787-XXX

788-XXX

789-XXX

All dimensions for reference only.

88-569783-35S Related Products

	88-569783-35S	91-569789-35S	88-569783-35P	88-569784-18P	88-569785-26P	88-569785-35P	88-569785-35S	88-569788-55P
Description	MIL Series Connector, 22 Contact(s), Female, Solder Terminal, Receptacle	MIL Series Connector, 128 Contact(s), Female, Solder Terminal, Receptacle	MIL Series Connector, 22 Contact(s), Male, Solder Terminal, Receptacle	MIL Series Connector, 18 Contact(s), Male, Solder Terminal, Receptacle	MIL Series Connector, 26 Contact(s), Male, Solder Terminal, Receptacle	MIL Series Connector, 55 Contact(s), Male, Solder Terminal, Receptacle	MIL Series Connector, 55 Contact(s), Female, Solder Terminal, Receptacle	MIL Series Connector, 55 Contact(s), Male, Solder Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	GOLD (500) OVER NICKEL	GOLD (500) OVER NICKEL	GOLD (500) OVER NICKEL	GOLD (500) OVER NICKEL	GOLD (500) OVER NICKEL	GOLD (500) OVER NICKEL	GOLD (500) OVER NICKEL	GOLD (500) OVER NICKEL
Contact point gender	FEMALE	FEMALE	MALE	MALE	MALE	MALE	FEMALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT	CORROSION/ENVIRONMENT/FIRE/TEMPERATURE RESISTANT
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	88-5697	88-5697	88-5697	88-5697	88-5697	88-5697	88-5697	88-5697
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	OLIVE DRAB CADMIUM PLATED	NICKEL PLATED	OLIVE DRAB CADMIUM PLATED	OLIVE DRAB CADMIUM PLATED	OLIVE DRAB CADMIUM PLATED	OLIVE DRAB CADMIUM PLATED	OLIVE DRAB CADMIUM PLATED	OLIVE DRAB CADMIUM PLATED
Housing size	13	25	13	15	17	17	17	23
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	22	128	22	18	26	55	55	55
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Base Number Matches	1	-	1	1	1	1	1	1
Is Samacsys	-	-	-	N	N	N	N	N
