Power Inductors <SMD Type: CDH Series>
Type: CDH3D13/S, CDH3D13/SHP
◆
Product Description
・4.2×4.0mm
Max.(L×W),1.4mm Max. Height.
・Inductance
Range: 1.2½22μH
・Rated
current range:0.45½1.85A(CDH3D13/S), 0.60½2.40A(CDH3D13/SHP)
・In
addition to the standard versions of inductors shown here, custom inductors are available to meet
your exact requirements.
◆
Feature
・Magnetically
unshielded construction.
・Ideally
used in Mobilephone,PDA,MP3,DSC/DVC,Portable DVD,etc as DC-DC Converter inductors.
・RoHS
Compliance.
◆

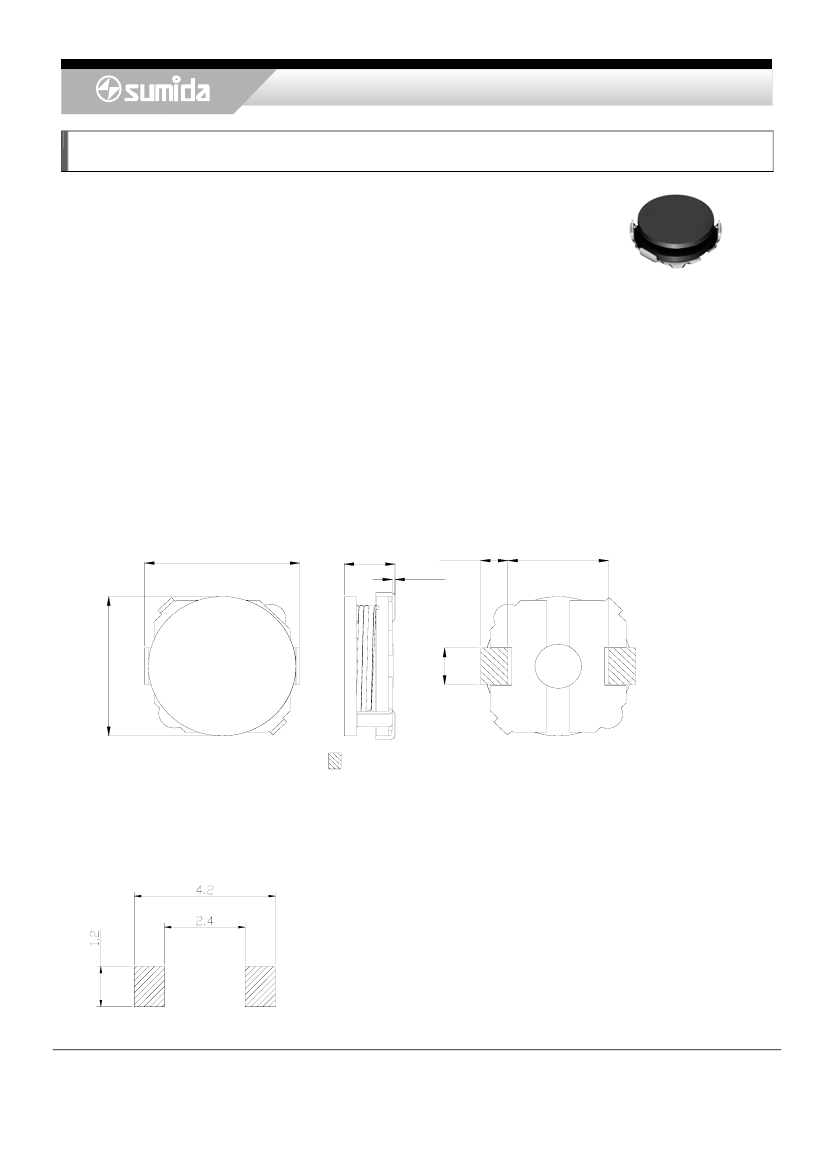

Dimensions (mm)
4.0±0.2
1.3±0.1
0.7
0.1
2.6
3.8±0.2
Electrode
◆
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1.0
1/2
Power Inductors <SMD Type: CDH Series>
Type: CDH3D13/S, CDH3D13/SHP
◆
Specification(CDH3D13/S)
Part Name
※
CDH3D13SNP-1R2M□
CDH3D13SNP-1R5M□
CDH3D13SNP-2R5M□
CDH3D13SNP-3R6M□
CDH3D13SNP-4R7M□
CDH3D13SNP-7R0M□
CDH3D13SNP-100M□
CDH3D13SNP-120M□
CDH3D13SNP-150M□
CDH3D13SNP-220M□
Stamp
1R2
1R5
2R5
3R6
4R7
7R0
100
120
150
220
Inductance
(μH)
100kHz/1V
1.2±20％
1.5±20％
2.5±20％
3.6±20％
4.7±20％
7.0±20％
10.0±20％
12.0±20％
15.0±20％
22.0±20％
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
75(60)
88(70)
122(97)
150(120)
175(140)
250(200)
340(270)
440(350)
550(440)
815(650)
Saturation Current
（A）※1
( 20℃)
1.85
1.60
1.40
1.25
1.15
0.95
0.80
0.60
0.55
0.45
( 100℃)
1.70
1.45
1.15
1.00
0.85
0.75
0.65
0.55
0.50
0.40
Temperature
Rise current
(A)
※2
2.55
2.30
1.85
1.65
1.40
1.30
1.00
0.95
0.90
0.73
◆
Specification(CDH3D13/SHP)
Part Name
※
CDH3D13SHPNP-1R2M□
CDH3D13SHPNP-1R5M□
CDH3D13SHPNP-2R5M□
CDH3D13SHPNP-3R6M□
CDH3D13SHPNP-4R7M□
CDH3D13SHPNP-6R8M□
CDH3D13SHPNP-100M□
CDH3D13SHPNP-120M□
CDH3D13SHPNP-150M□
CDH3D13SHPNP-220M□
Stamp
1R2
1R5
2R5
3R6
4R7
6R8
100
120
150
220
Inductance
(μH)
100kHz/1V
1.2±20％
1.5±20％
2.5±20％
3.6±20％
4.7±20％
6.8±20％
10.0±20％
12.0±20％
15.0±20％
22.0±20％
D.C.R.(mΩ)
Max.(Typ.)
( 20℃)
88(70)
100(80)
125(100)
156(125)
181(145)
275(220)
375(300)
469(375)
569(455)
856(685)
Saturation Current
（A）※1
( 20℃)
2.60
2.30
1.80
1.55
1.30
1.10
0.90
0.85
0.75
0.60
( 100℃)
2.20
1.95
1.55
1.35
1.20
0.95
0.80
0.75
0.67
0.58
Temperature
Rise current
(A)
※2
2.40
2.20
1.80
1.60
1.50
1.30
0.95
0.90
0.85
0.72
※
Description of part name
CDH3D13SHPNP-1R2M□
B Box
C Carrier Tape
※1.Saturation
Current: The DC current at which the inductance decreases to 90% of it's nominal value.
※2.Temperature
rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
