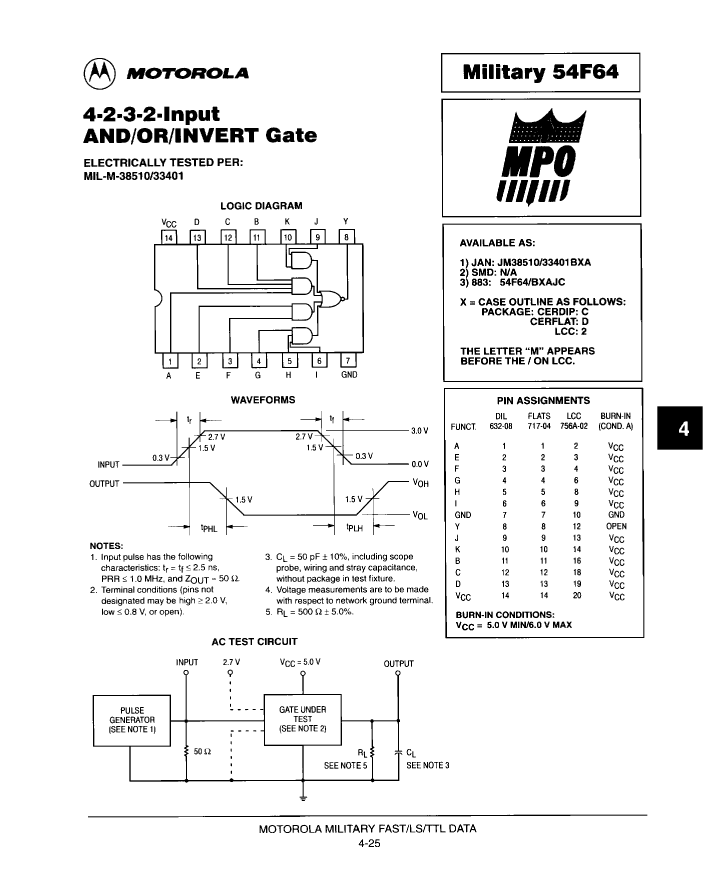

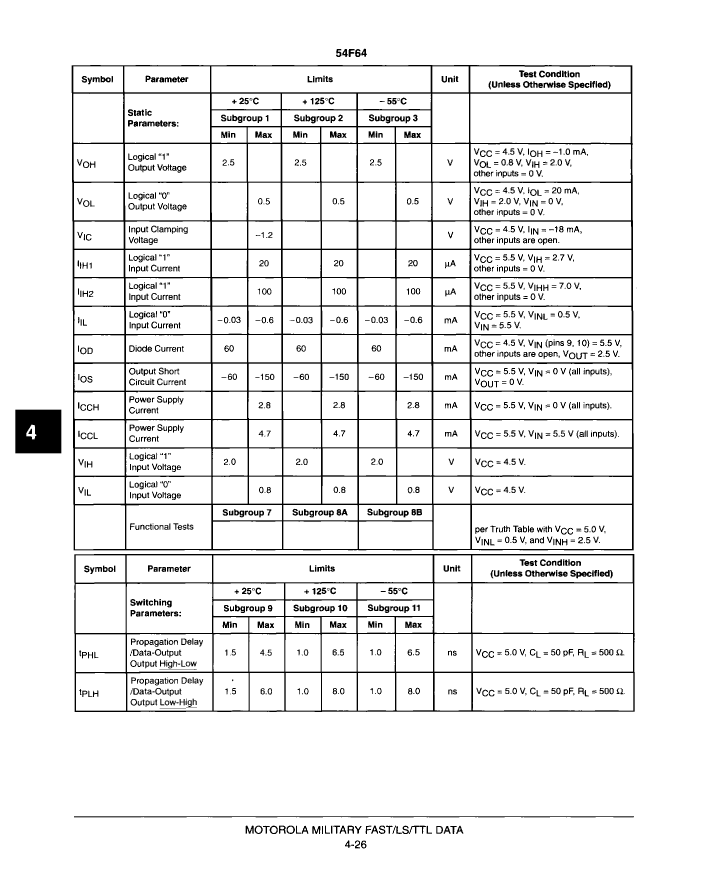

54F64M/B2AJC: DescriptionF/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size52KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F64M/B2AJC Overview

F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CQCC20, CERAMIC, LCC-20

54F64M/B2AJC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
Other features	4-2-3-2 INPUT
series	F/FAST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE
Number of functions	1
Number of entries	11
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	4.7 mA
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.885 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54F64M/B2AJC Related Products

	54F64M/B2AJC	54F64/BCAJC	54F64/BDAJC
Description	F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CQCC20, CERAMIC, LCC-20	F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CDIP14, CERDIP-14	AND-OR-Invert Gate, F/FAST Series, 1-Func, 11-Input, TTL, CDFP14, CERAMIC, FP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	QCCN,	DIP,	DFP, FL14,.3
Reach Compliance Code	unknown	unknown	unknown
Other features	4-2-3-2 INPUT	4-2-3-2 INPUT	4-2-3-2 INPUT
series	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDIP-T14	R-GDFP-F14
JESD-609 code	e0	e0	e0
length	8.885 mm	19.495 mm	9.65 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
Number of functions	1	1	1
Number of entries	11	11	11
Number of terminals	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP	DFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	4.7 mA	4.7 mA	4.7 mA
propagation delay (tpd)	6.5 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	5.08 mm	2.15 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.885 mm	7.62 mm	6.415 mm
Base Number Matches	1	1	1
Parts packaging code	QLCC	DIP	-
