54LS245M/B2AJC: DescriptionBus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size99KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS245M/B2AJC Overview

Bus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20

54LS245M/B2AJC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
Other features	WITH COMMON OUTPUT ENABLE AND DIRECTION CONTROL
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	90 mA
propagation delay (tpd)	17 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

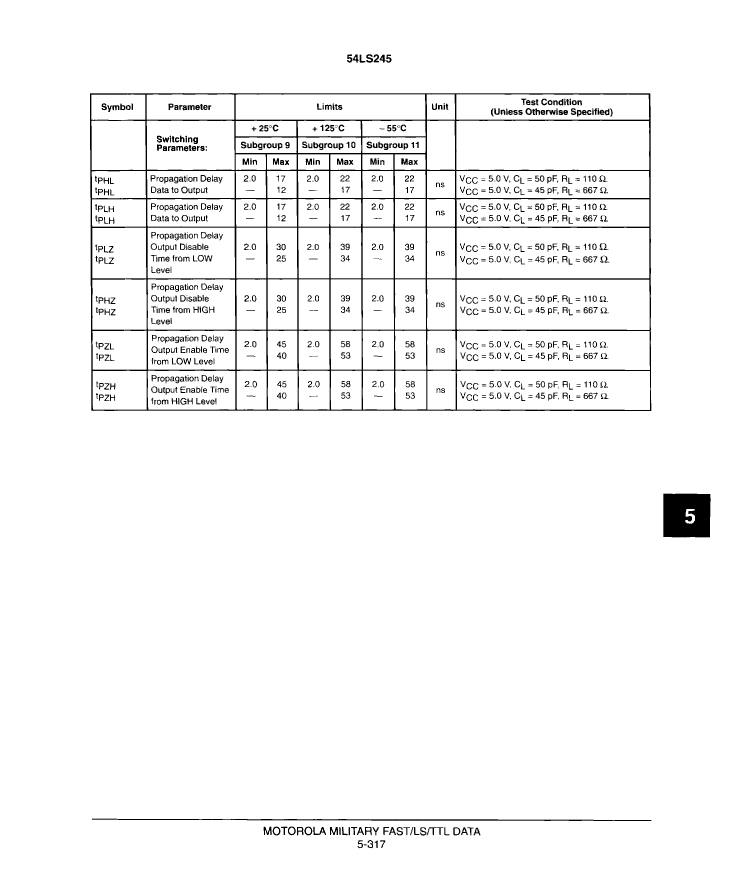

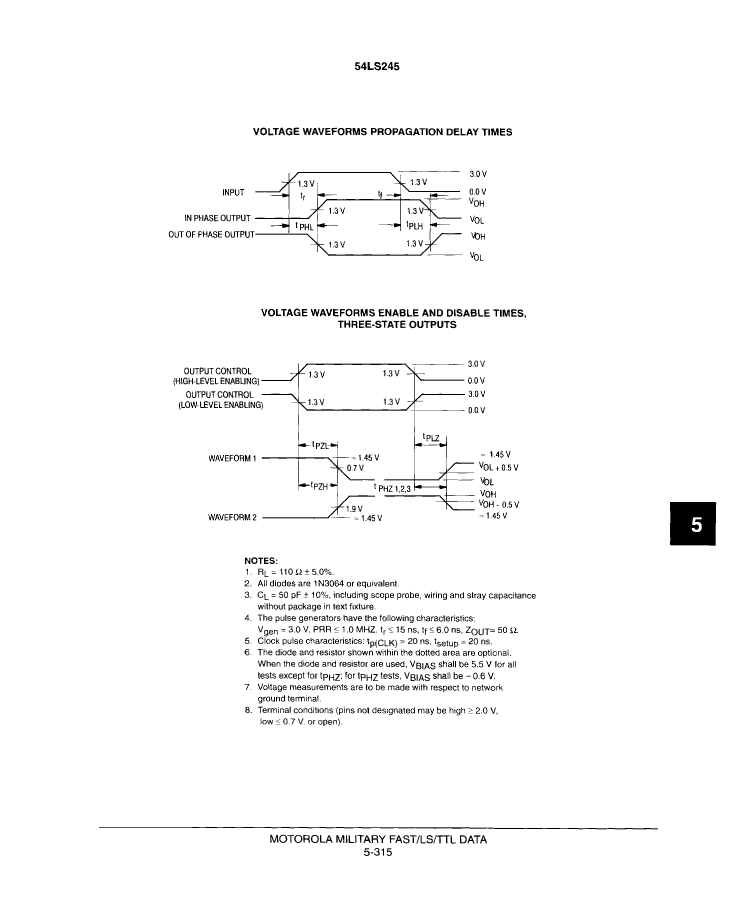

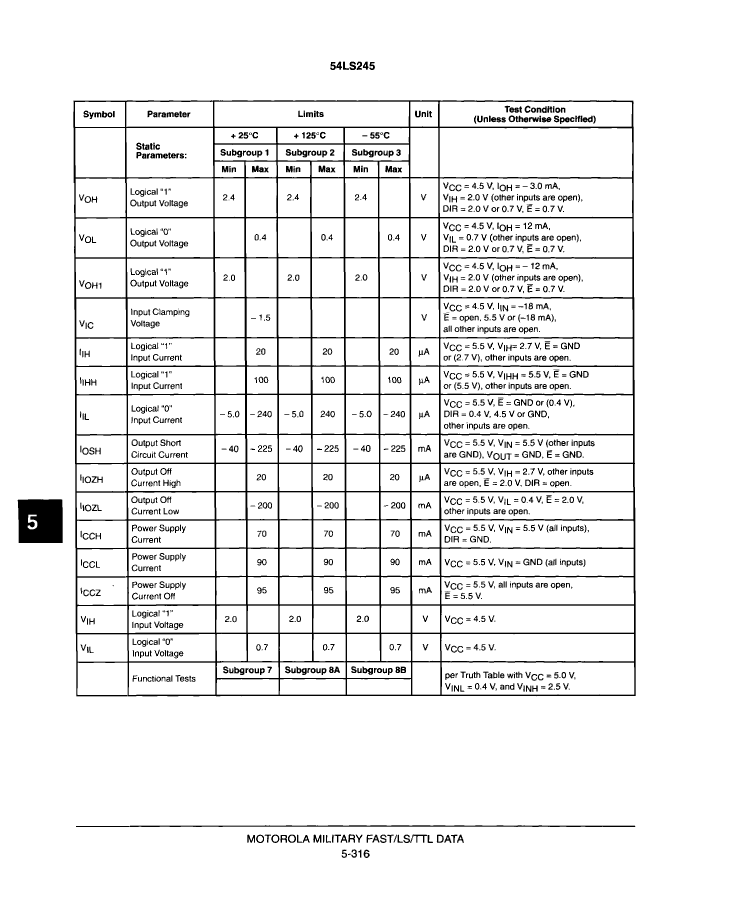

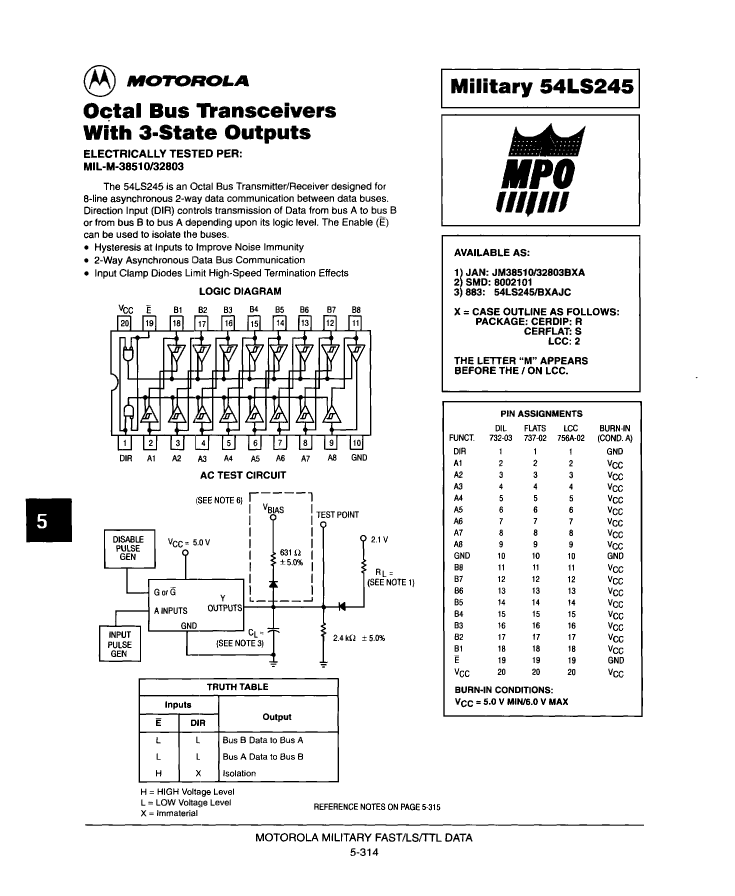

Preview

Download Datasheet

View All

54LS245M/B2AJC Related Products

	54LS245M/B2AJC	54LS245/BSAJC	54LS245/BRAJC
Description	Bus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, CDFP20, CERAMIC, FP-20	LS SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDIP20, CERDIP-20
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	DFP, FL20,.3	DIP,
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH COMMON OUTPUT ENABLE AND DIRECTION CONTROL	WITH COMMON OUTPUT ENABLE AND DIRECTION CONTROL	WITH COMMON OUTPUT ENABLE AND DIRECTION CONTROL
series	LS	LS	LS
JESD-30 code	S-CQCC-N20	R-GDFP-F20	R-CDIP-T20
JESD-609 code	e0	e0	e0
length	8.89 mm	12.7 mm	24.515 mm
Load capacitance (CL)	45 pF	45 pF	45 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DFP	DIP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	90 mA	90 mA	90 mA
propagation delay (tpd)	17 ns	17 ns	17 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	2.16 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.89 mm	6.475 mm	7.62 mm
Base Number Matches	1	1	1
Maker	Motorola ( NXP )	-	Motorola ( NXP )
Parts packaging code	QLCC	-	DIP
Contacts	20	-	20
Control type	COMMON CONTROL	COMMON CONTROL	-
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	-
Encapsulate equivalent code	LCC20,.35SQ	FL20,.3	-
power supply	5 V	5 V	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
