54F112/BFA datasheet, PDF - EEWORLD Datasheet

54F112/BFA: DescriptionJ-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,; Categorylogic logic; File Size144KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54F112/BFA Overview

J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
Base Number Matches	1

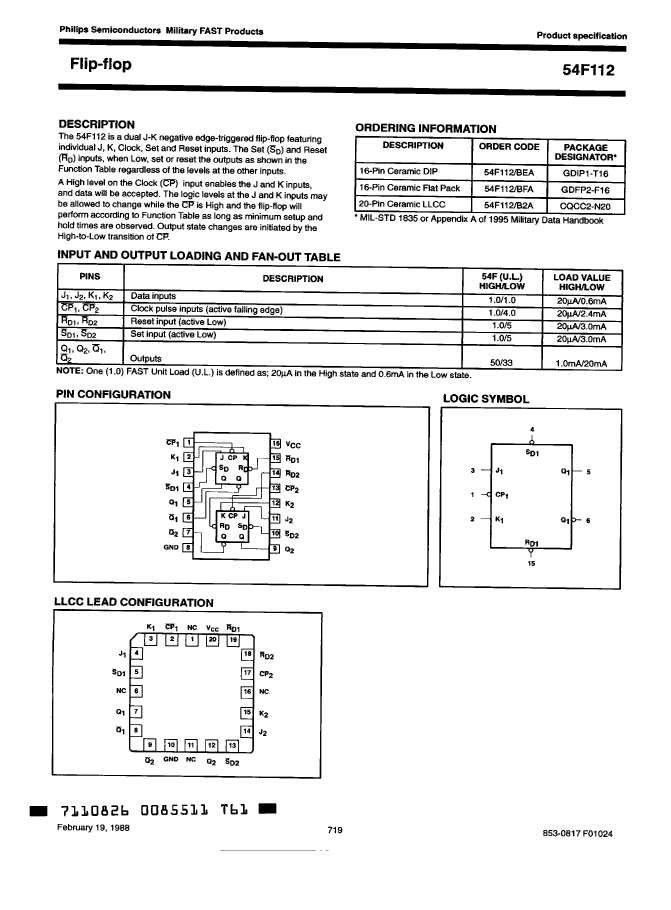

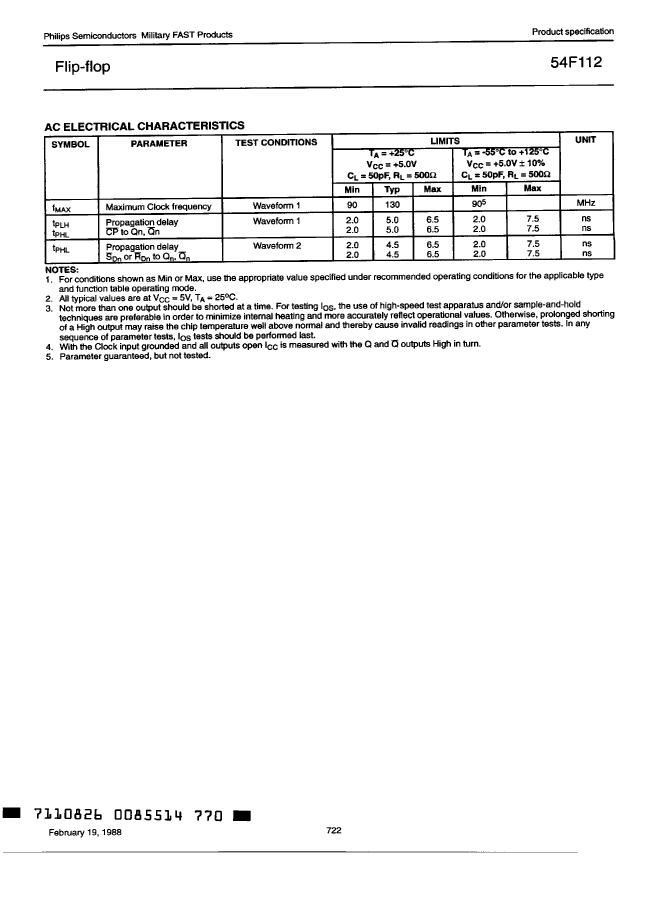

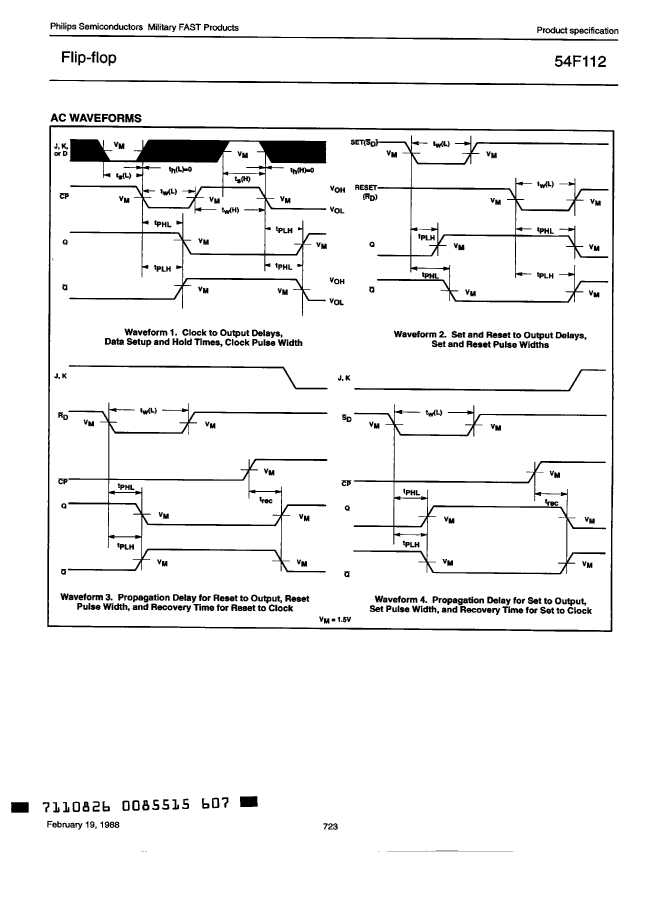

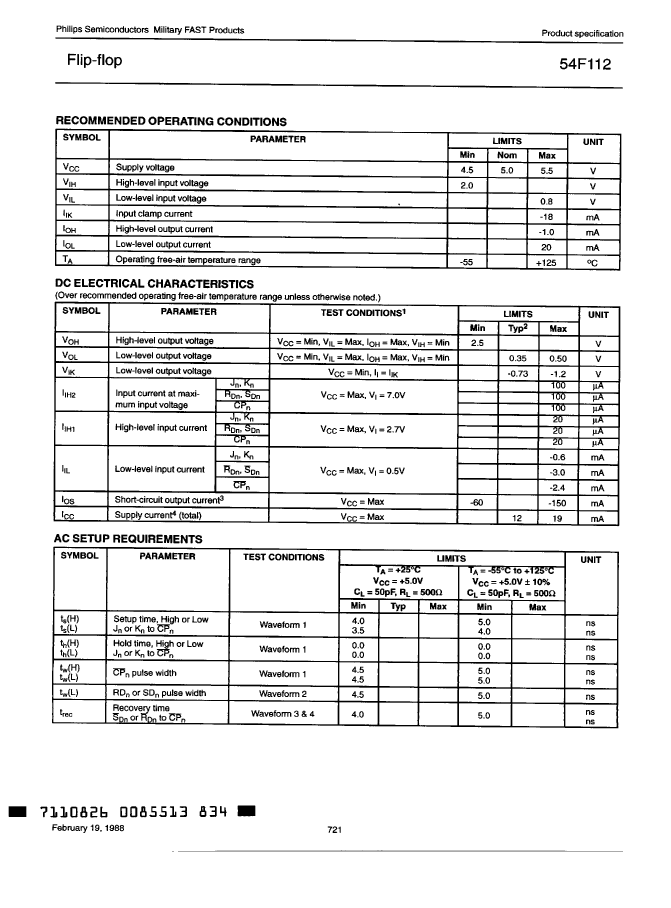

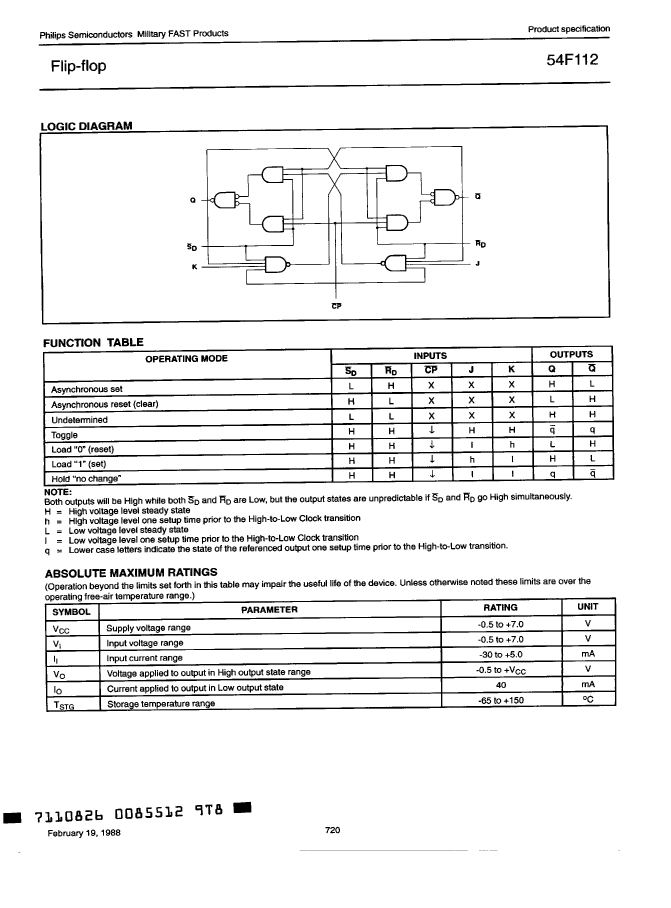

This Material Copyrighted By Its Respective Manufacturer

	54F112/BFA	54F112/BEA	54F112/B2A
Description	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CQCC20,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DFP, FL16,.3	DIP, DIP16,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-XDFP-F16	R-XDIP-T16	S-XQCC-N20
JESD-609 code	e0	e0	e0
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
Number of functions	2	2	2
Number of terminals	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	DIP	QCCN
Encapsulate equivalent code	FL16,.3	DIP16,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
Base Number Matches	1	1	1
