39PR123-2

Description
RF SMA Connector, Male, Panel Mount, Plug
CategoryThe connector    The connector
File Size65KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

39PR123-2 Overview

RF SMA Connector, Male, Panel Mount, Plug

39PR123-2 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
MakerAmphenol
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-C-39012
Body/casing typeRECEPTACLE
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.25 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceYES
Manufacturer's serial numberSMA
Installation methodSTRAIGHT
Maximum operating frequency18 GHz
Panel mountingYES
voltage standing wave ratio1.33
Base Number Matches1

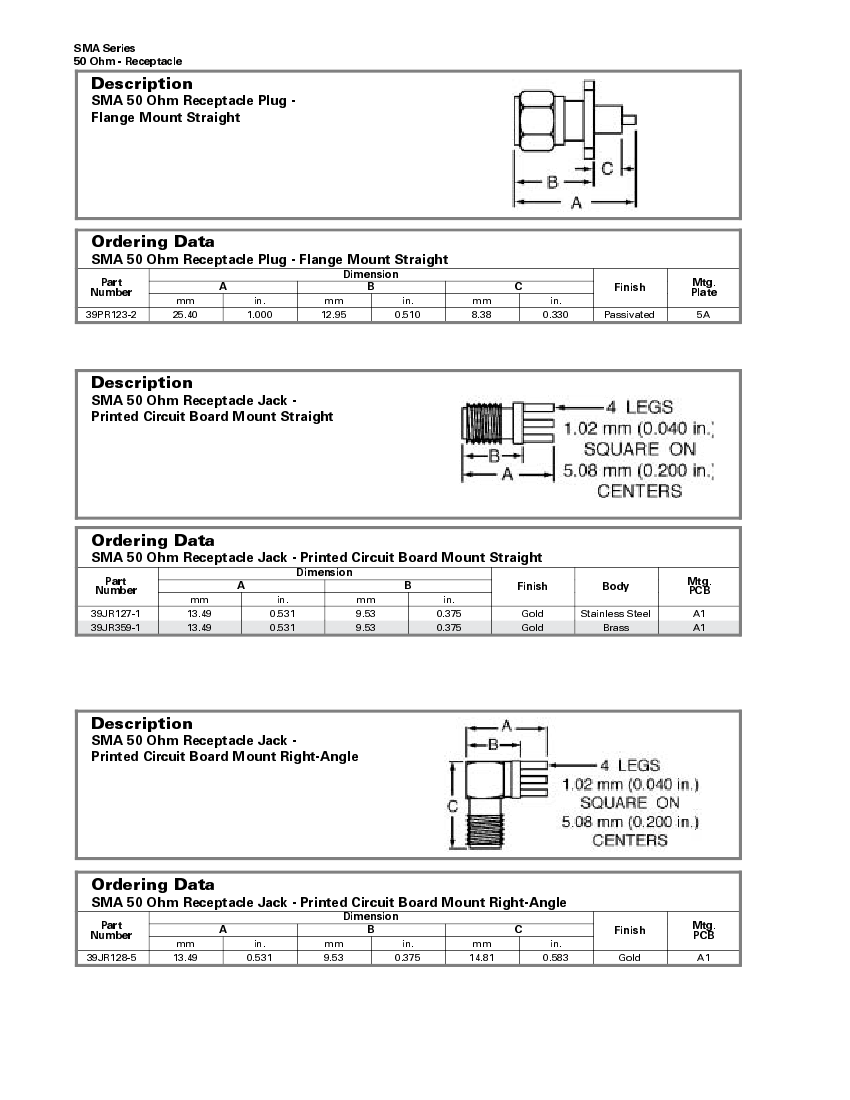

SMA Series
50 Ohm - Receptacle
Description
SMA 50 Ohm Receptacle Plug -
Flange Mount Straight
SMA Series
50 Ohm - Receptacle
RF/Coaxial
Ordering Data
39PR123-2
Part
Number
SMA 50 Ohm Receptacle Plug - Flange Mount Straight
mm
25.40
A
in.
1.000
mm
12.95
Dimension
B
in.
0.510
mm
8.38
C
in.
0.330
Finish
Passivated
Mtg.
Plate
5A
Description
SMA 50 Ohm Receptacle Jack -
Printed Circuit Board Mount Straight
Ordering Data
39JR127-1
39JR359-1
Part
Number
SMA 50 Ohm Receptacle Jack - Printed Circuit Board Mount Straight
mm
13.49
13.49
A
Dimension
in.
0.531
0.531
mm
9.53
9.53
B
in.
0.375
0.375
Finish
Body
Gold
Gold
Stainless Steel
Brass
Mtg.
PCB
A1
A1
Description
SMA 50 Ohm Receptacle Jack -
Printed Circuit Board Mount Right-Angle
Ordering Data
39JR128-5
Part
Number
SMA 50 Ohm Receptacle Jack - Printed Circuit Board Mount Right-Angle
mm
13.49
A
in.
0.531
mm
9.53
Dimension
B
in.
0.375
mm
14.81
C
in.
0.583
Finish
Gold
Mtg.
PCB
A1
30-94
RF/Coaxial

39PR123-2 Related Products

39PR123-2 39JR128-5 39JR127-1 39JR359-1
Description RF SMA Connector, Male, Panel Mount, Plug RF SMA Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle RF SMA Connector, Female, Board Mount, Solder Terminal, Jack
Is it lead-free? Contains lead Contains lead Contains lead Contains lead
Reach Compliance Code unknown unknown unknown unknown
Other features STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012
Body/casing type RECEPTACLE JACK RECEPTACLE JACK
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω
Connector type RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR
Contact point gender MALE FEMALE FEMALE FEMALE
Coupling type THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO
Filter function NO NO NO NO
IEC compliance NO NO NO NO
Insertion loss 0.25 dB 0.25 dB 0.25 dB 0.25 dB
insulator material POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE
MIL compliance YES YES YES YES
Manufacturer's serial number SMA SMA SMA SMA
Installation method STRAIGHT RIGHT ANGLE STRAIGHT STRAIGHT
Maximum operating frequency 18 GHz 18 GHz 18 GHz 18 GHz
Panel mounting YES YES YES YES
voltage standing wave ratio 1.33 1.33 1.33 1.33
Base Number Matches 1 1 1 1
Contact to complete cooperation - GOLD GOLD GOLD
Contact completed and terminated - GOLD GOLD GOLD
JESD-609 code - e4 e4 e4
Installation type - BOARD BOARD BOARD
Termination type - SOLDER SOLDER SOLDER
