54LS163A/BFAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS163A/BFAJC

54LS163A/BFAJC: DescriptionBinary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size174KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS163A/BFAJC Overview

Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16

54LS163A/BFAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	LS
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Load capacitance (CL)	15 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	32 mA
propagation delay (tpd)	34 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	6.415 mm
minfmax	22 MHz
Base Number Matches	1

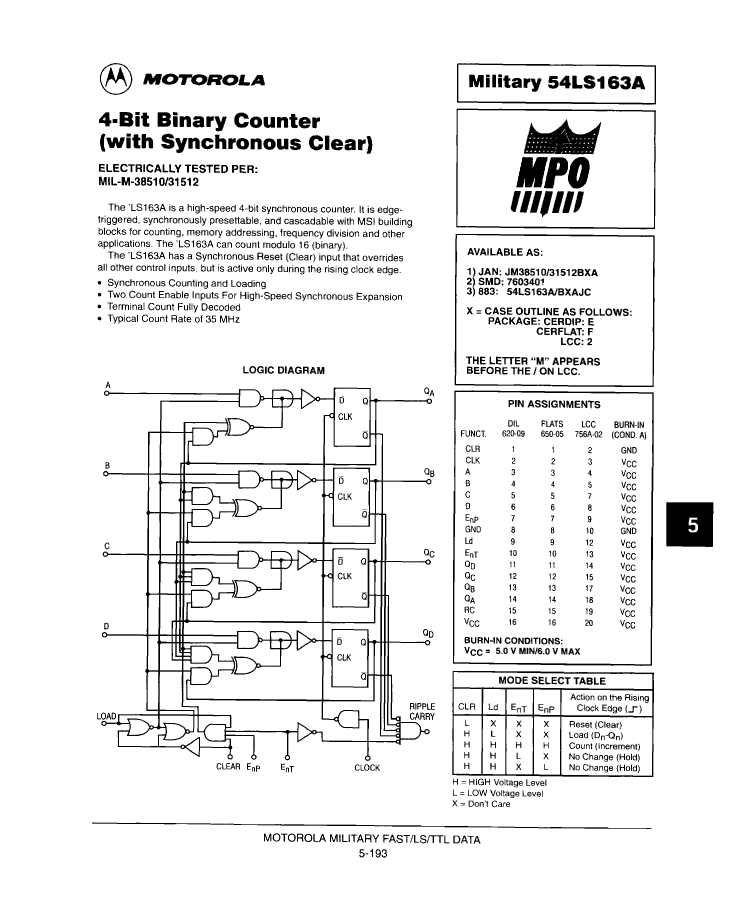

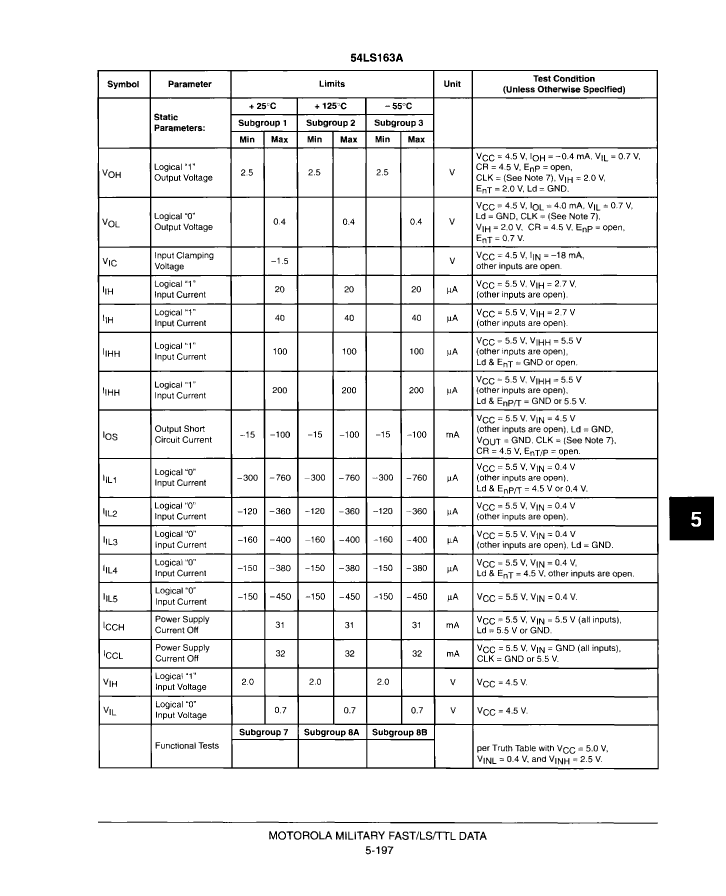

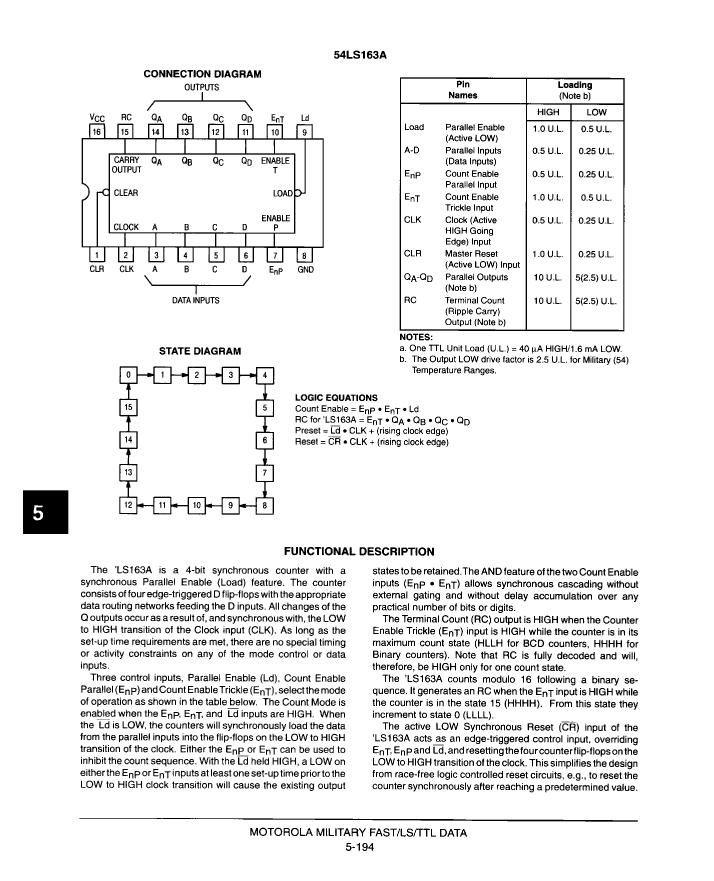

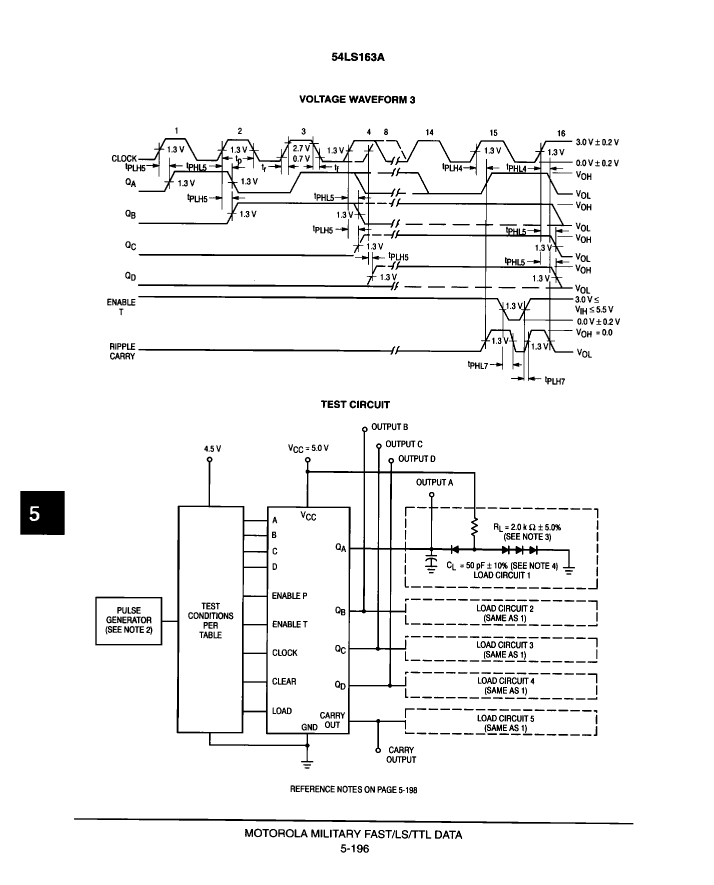

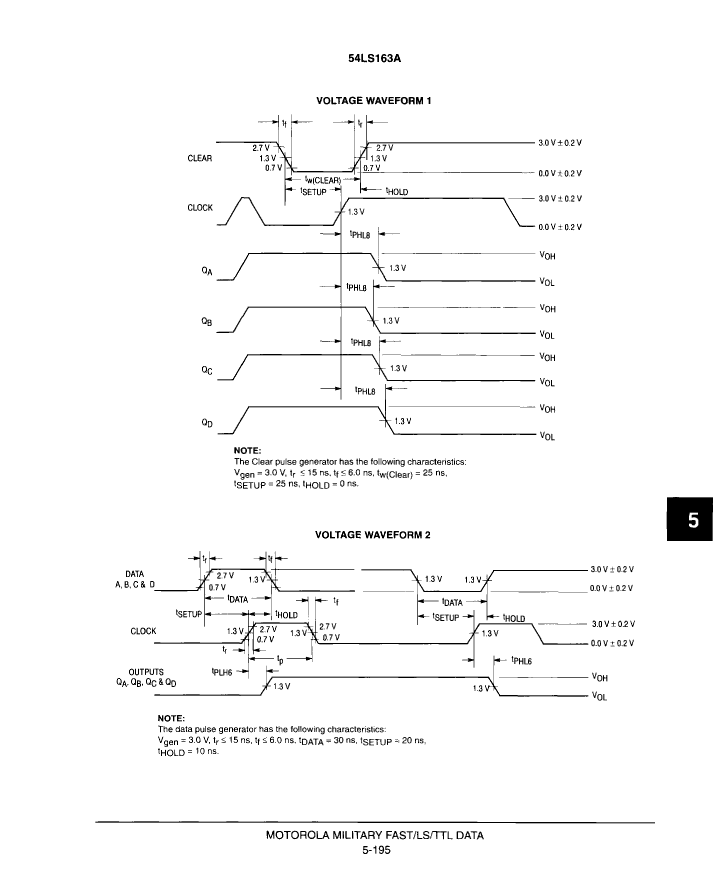

Preview

Download Datasheet

View All

54LS163A/BFAJC Related Products

	54LS163A/BFAJC	54LS163AM/B2AJC	54LS163A/BEAJC	7603401FX	7603401FA	7603401EX	76034012A	76034012X	7603401EA
Description	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LCC-20	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERDIP-16	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16, CERAMIC, FP-16	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LCC-20	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, CC-20	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERDIP-16
package instruction	DFP, FL16,.3	QCCN, LCC20,.35SQ	DIP, DIP16,.3	DFP,	DFP,	DIP,	QCCN,	QCCN,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP	UP	UP	UP	UP	UP
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F16	S-CQCC-N20	R-GDIP-T16	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	S-CQCC-N20	S-CQCC-N20	R-GDIP-T16
Load/preset input	YES	YES	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	16	20	16	16	16	16	20	20	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	QCCN	DIP	DFP	DFP	DIP	QCCN	QCCN	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK	FLATPACK	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE
propagation delay (tpd)	34 ns	34 ns	34 ns	49 ns	34 ns	49 ns	34 ns	49 ns	34 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	22 MHz	22 MHz	22 MHz	25 MHz	22 MHz	25 MHz	22 MHz	25 MHz	22 MHz
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	Motorola ( NXP )	-	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Other features	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	-	TCO OUTPUT	-	TCO OUTPUT	-	TCO OUTPUT
length	9.65 mm	8.89 mm	19.3 mm	-	9.65 mm	-	8.885 mm	-	19.3 mm
Load capacitance (CL)	15 pF	15 pF	15 pF	-	15 pF	-	15 pF	-	15 pF
Maximum supply current (ICC)	32 mA	32 mA	32 mA	-	32 mA	-	32 mA	-	32 mA
Maximum seat height	2.15 mm	1.9 mm	4.19 mm	-	2.15 mm	-	1.9 mm	-	4.19 mm
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	-	1.27 mm	-	1.27 mm	-	2.54 mm
width	6.415 mm	8.89 mm	7.62 mm	-	6.415 mm	-	8.885 mm	-	7.62 mm
Parts packaging code	-	QLCC	-	DFP	DFP	-	QLCC	QFN	DIP
Contacts	-	20	-	16	16	-	20	20	16
