39JR160-1

Description
RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack
CategoryThe connector    The connector
File Size58KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

39JR160-1 Overview

RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack

39JR160-1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
MakerAmphenol
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-C-39012
Body/casing typeRECEPTACLE
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.25 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberSMA
Installation methodSTRAIGHT
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER
voltage standing wave ratio1.33
Base Number Matches1

Preview

Download Datasheet

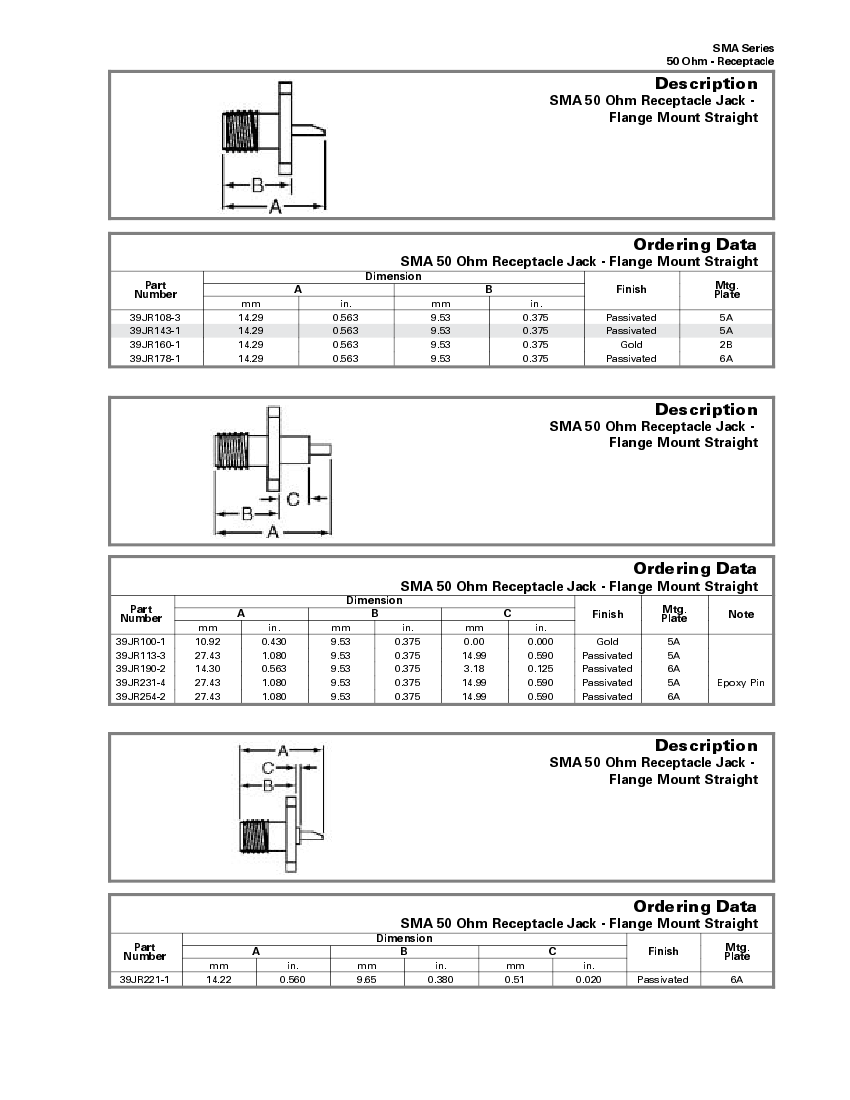

SMA 50 Ohm Receptacle
Receptacle
50 Ohm -
Jack -
Flange Mount Straight
Description
SMA Series
SMA Series
50 Ohm - Receptacle
RF/Coaxial
39JR108-3
39JR143-1
39JR160-1
39JR178-1
Part
Number
mm
14.29
14.29
14.29
14.29
A
Dimension
SMA 50 Ohm Receptacle Jack - Flange Mount Straight
Ordering Data
Mtg.
Plate
in.
0.563
0.563
0.563
0.563
mm
9.53
9.53
9.53
9.53
B
in.
0.375
0.375
0.375
0.375
Finish
Passivated
Passivated
Gold
Passivated
5A
5A
2B
6A
SMA 50 Ohm Receptacle Jack -
Flange Mount Straight
Description
39JR100-1
39JR113-3
39JR190-2
39JR231-4
39JR254-2
Part
Number
mm
10.92
27.43
14.30
27.43
27.43
A
in.
0.430
1.080
0.563
1.080
1.080
mm
9.53
9.53
9.53
9.53
9.53
Dimension
B
SMA 50 Ohm Receptacle Jack - Flange Mount Straight
Ordering Data
Mtg.
Plate
Note
in.
0.375
0.375
0.375
0.375
0.375
mm
0.00
14.99
3.18
14.99
14.99
C
in.
0.000
0.590
0.125
0.590
0.590
Finish
Gold
Passivated
Passivated
Passivated
Passivated
5A
5A
6A
5A
6A
Epoxy Pin
SMA 50 Ohm Receptacle Jack -
Flange Mount Straight
Description
39JR221-1
Part
Number
mm
14.22
A
in.
0.560
mm
9.65
Dimension
B
SMA 50 Ohm Receptacle Jack - Flange Mount Straight
Ordering Data
Finish
in.
0.380
mm
0.51
C
in.
0.020
Passivated
Mtg.
Plate
6A
RF/Coaxial
30-97

39JR160-1 Related Products

39JR160-1 39JR221-1 39JR231-4 39JR254-2 39JR100-1 39JR143-1 39JR108-3 SF10H60F-C 39JR178-1 39JR190-2
Description RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Solder Terminal, Receptacle RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack 10 Amp Low Loss Ultrafast Rectifier RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead - Contains lead Contains lead
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown - unknown unknown
Other features STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 - STANDARD: MIL-C-39012 STANDARD: MIL-C-39012
Body/casing type RECEPTACLE JACK JACK JACK RECEPTACLE RECEPTACLE JACK - RECEPTACLE JACK
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω - 50 Ω 50 Ω
Connector type RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR - RF SMA CONNECTOR RF SMA CONNECTOR
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE - FEMALE FEMALE
Coupling type THREADED THREADED THREADED THREADED THREADED THREADED THREADED - THREADED THREADED
DIN compliance NO NO NO NO NO NO NO - NO NO
Filter function NO NO NO NO NO NO NO - NO NO
IEC compliance NO NO NO NO NO NO NO - NO NO
Insertion loss 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB - 0.25 dB 0.25 dB
insulator material POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE - POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE
MIL compliance YES YES YES YES YES YES YES - YES YES
Manufacturer's serial number SMA SMA SMA SMA SMA SMA SMA - SMA SMA
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT - STRAIGHT STRAIGHT
Maximum operating frequency 18 GHz 18 GHz 18 GHz 18 GHz 18 GHz 18 GHz 18 GHz - 18 GHz 18 GHz
Panel mounting YES YES YES YES YES YES YES - YES YES
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER - SOLDER SOLDER
voltage standing wave ratio 1.33 1.33 1.33 1.33 1.33 1.33 1.33 - 1.33 1.33
Base Number Matches 1 1 1 1 1 1 1 - 1 1
