MC74AC648DWR2

Description
AC SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO24, PLASTIC, SOIC-24
Categorylogic    logic
File Size169KB,8 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

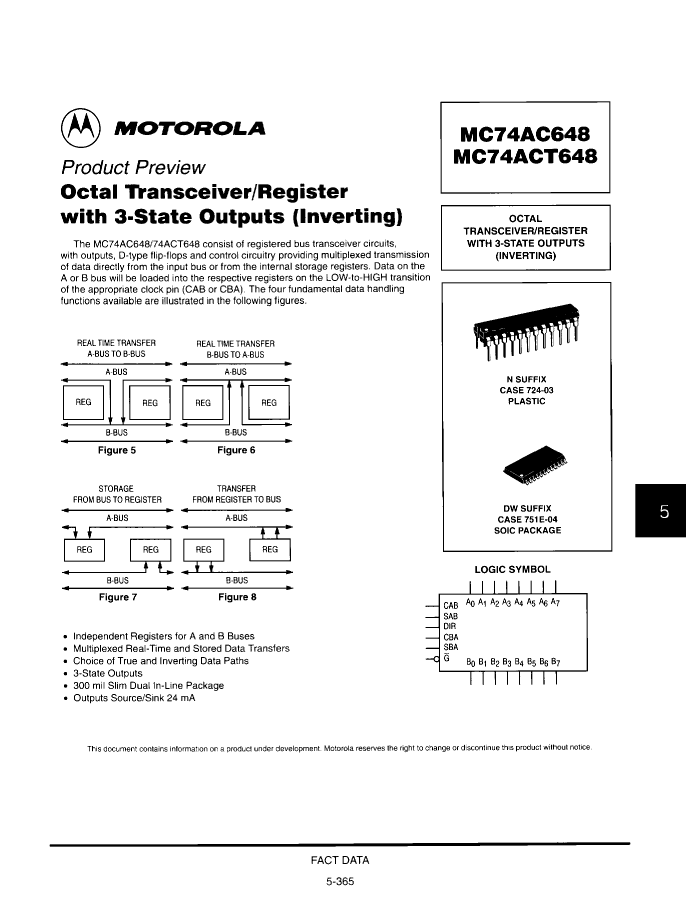

MC74AC648DWR2 Overview

AC SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO24, PLASTIC, SOIC-24

MC74AC648DWR2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionPLASTIC, SOIC-24
Reach Compliance Codeunknown

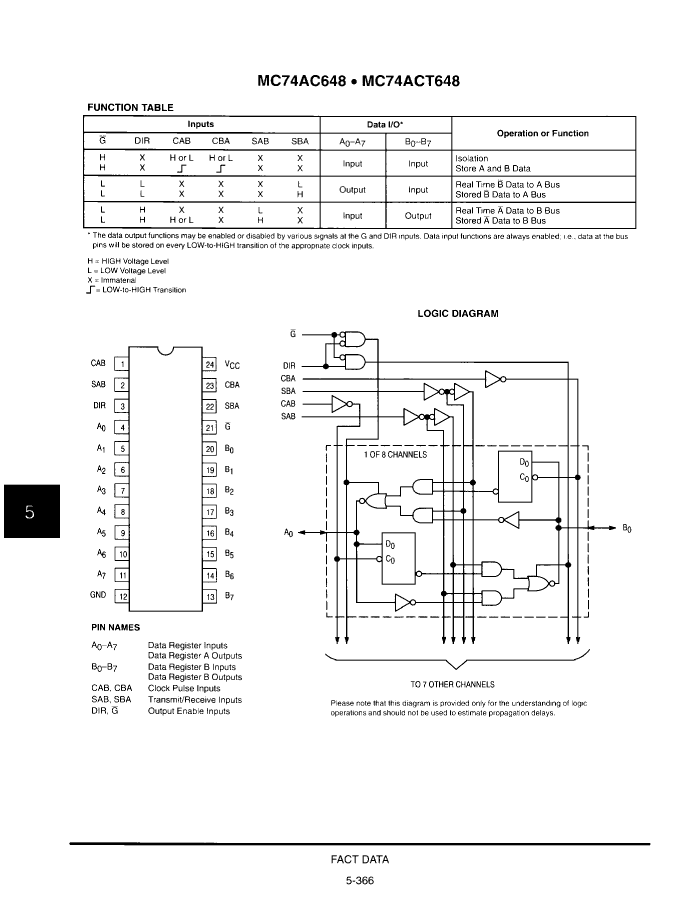

Other featuresSELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
Control typeINDEPENDENT CONTROL
Counting directionBIDIRECTIONAL
seriesAC
JESD-30 codeR-PDSO-G24
JESD-609 codee0
length15.4 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
MaximumI(ol)0.012 A
Number of digits8
Number of functions1
Number of ports2
Number of terminals24

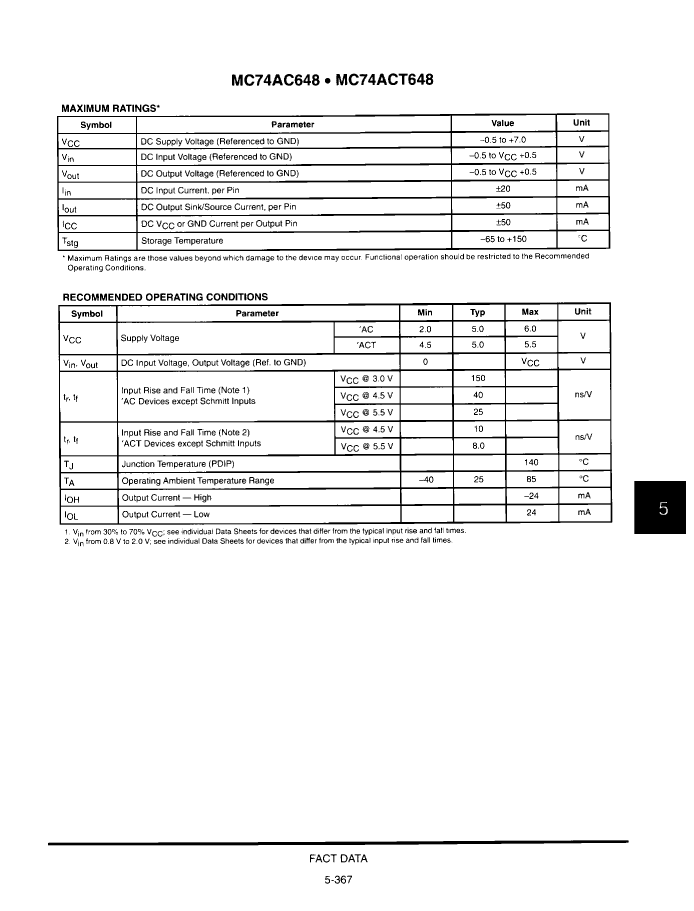

Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP24,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3.3/5 V

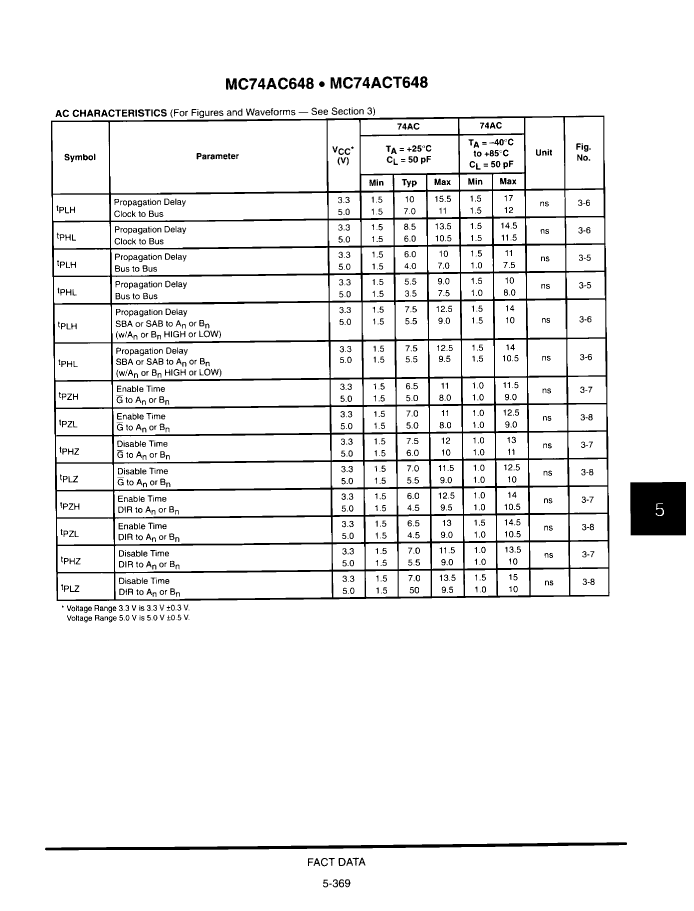

Prop。Delay @ Nom-Sup11 ns
propagation delay (tpd)11.5 ns
Certification statusNot Qualified
Maximum seat height2.65 mm

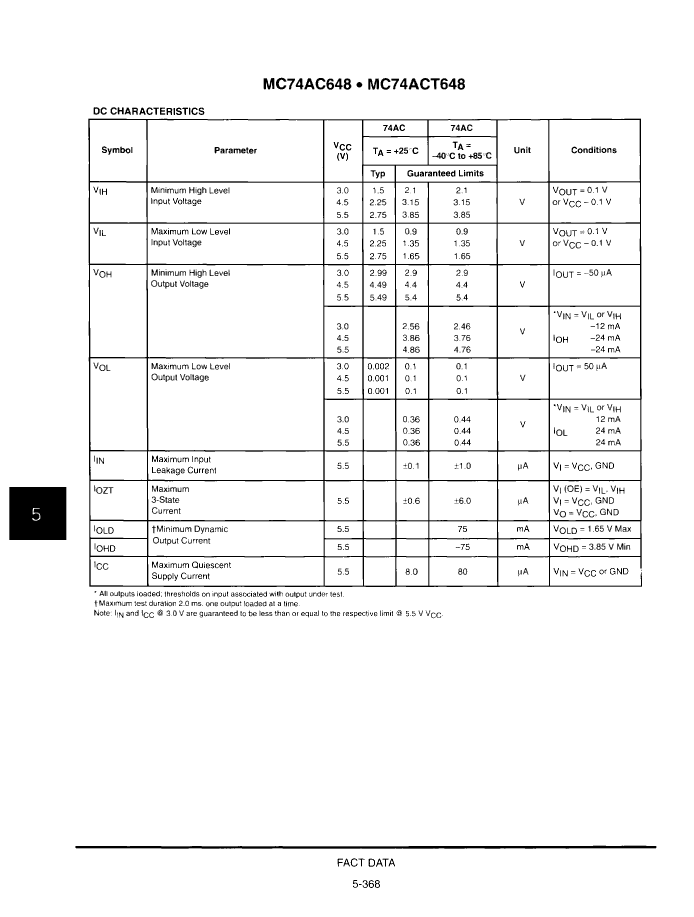

Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width7.5 mm
Base Number Matches1

MC74AC648DWR2 Related Products

MC74AC648DWR2 MC74ACT648DWR2
Description AC SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO24, PLASTIC, SOIC-24 ACT SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO24, PLASTIC, SOIC-24
Is it Rohs certified? incompatible incompatible
Maker Motorola ( NXP ) Motorola ( NXP )
package instruction PLASTIC, SOIC-24 SOP, SOP24,.4
Reach Compliance Code unknown unknown
Other features SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
Control type INDEPENDENT CONTROL INDEPENDENT CONTROL
Counting direction BIDIRECTIONAL BIDIRECTIONAL
series AC ACT
JESD-30 code R-PDSO-G24 R-PDSO-G24
JESD-609 code e0 e0
length 15.4 mm 15.4 mm
Load capacitance (CL) 50 pF 50 pF
Logic integrated circuit type REGISTERED BUS TRANSCEIVER REGISTERED BUS TRANSCEIVER
MaximumI(ol) 0.012 A 0.024 A
Number of digits 8 8
Number of functions 1 1
Number of ports 2 2
Number of terminals 24 24
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Output characteristics 3-STATE 3-STATE
Output polarity INVERTED INVERTED
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP
Encapsulate equivalent code SOP24,.4 SOP24,.4
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
method of packing TAPE AND REEL TAPE AND REEL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 3.3/5 V 5 V
propagation delay (tpd) 11.5 ns 15.5 ns
Certification status Not Qualified Not Qualified
Maximum seat height 2.65 mm 2.65 mm
Maximum supply voltage (Vsup) 6 V 5.5 V
Minimum supply voltage (Vsup) 2 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES YES
technology CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Trigger type POSITIVE EDGE POSITIVE EDGE
width 7.5 mm 7.5 mm
Base Number Matches 1 1
