CDCH12D78/ANP-470K: DescriptionPOWER INDUCTORS; File Size208KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet View All

CDCH12D78/ANP-470K Overview

POWER INDUCTORS

Preview

Download Datasheet

View All

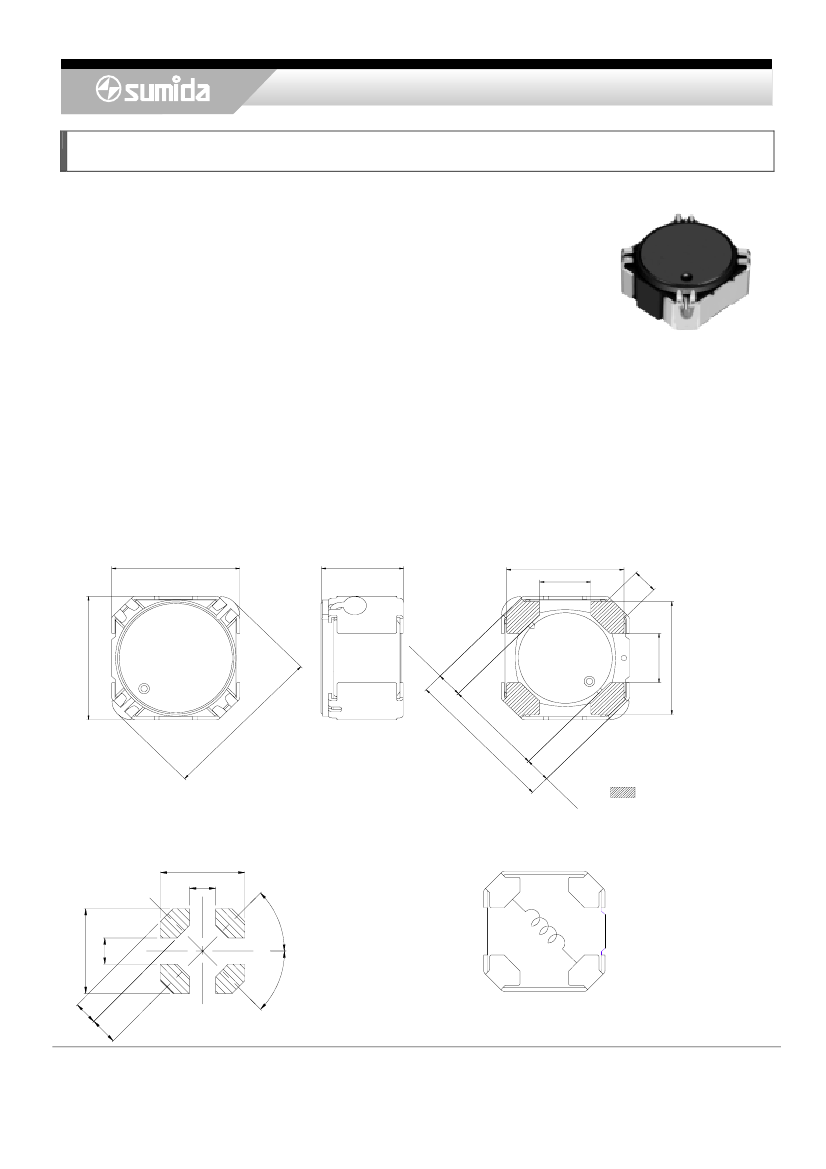

POWER INDUCTORS <SMD Type: CDCH**/A Series>

Type: CDCH12D78/A

◆

Product Description

・12.5×12.5mm

Max.(L×W), 8.0mm Max. Height.

・Inductance

range: 10½390μH

・Rated

current range:0.54½3.2A(125℃)

・In

addition to the standard versions of inductors shown here, custom inductors

are available to meet your exact requirements

◆

Feature

・Magnetically

unshielded construction.

・High

reliable inductors, suitable to use in high temperature environment(125℃).

・Ideally

for automotive applications as converter inductors.

・RoHS

Compliance

◆

Dimensions (mm)

12.0±0.5

MAX.8.0(Typ.7.8)

11.0±0.5

4.8±0.5

：TERMINAL

◆

Land Pattern (mm)

13.0

4.0

◆

Schematics (Bottom)

13.0

4.0

Please refer to the sales offices on our website for a representative near you

www.sumida.com

45°

4.8±0.5

11.0±0.5

1±

4±

5±

12.0±0.5

4±

45°

1/2
