50015-1044JLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 50015-1044JLF

50015-1044JLF: DescriptionBoard Connector, 176 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size337KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

50015-1044JLF Overview

Board Connector, 176 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE

50015-1044JLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	176
UL Flammability Code	94V-0
Base Number Matches	1

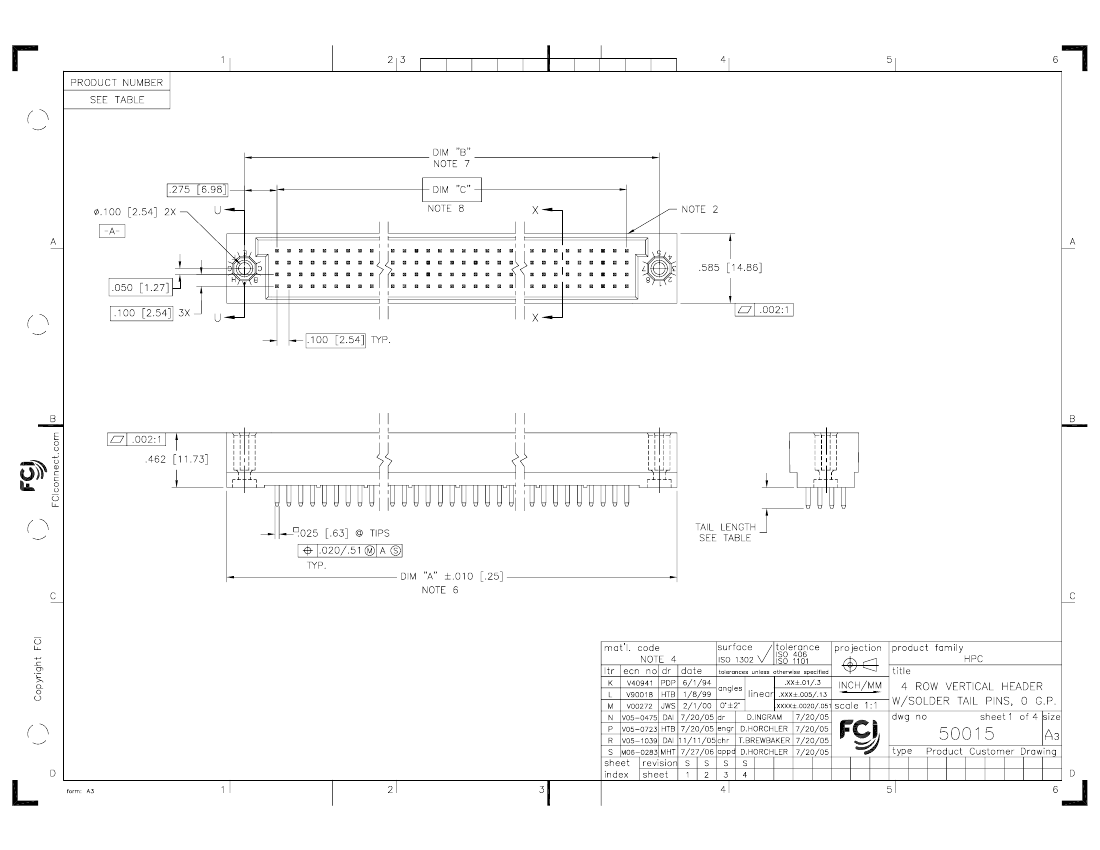

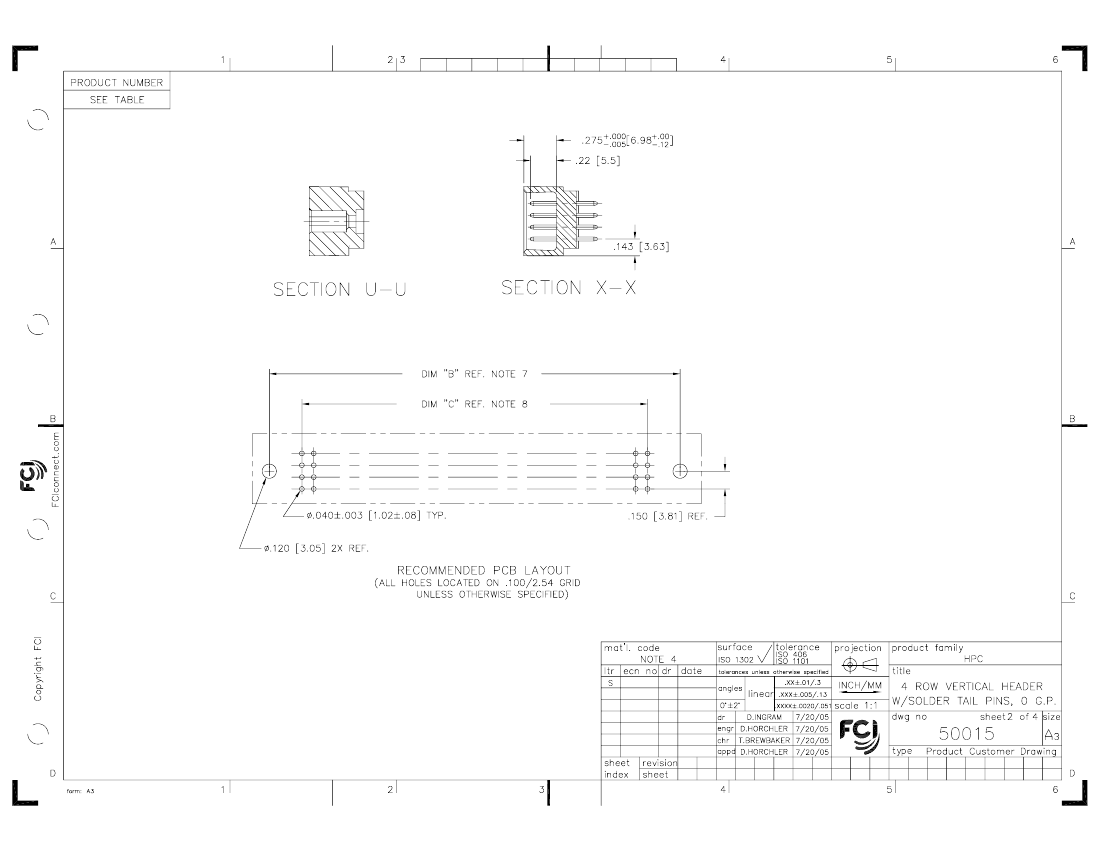

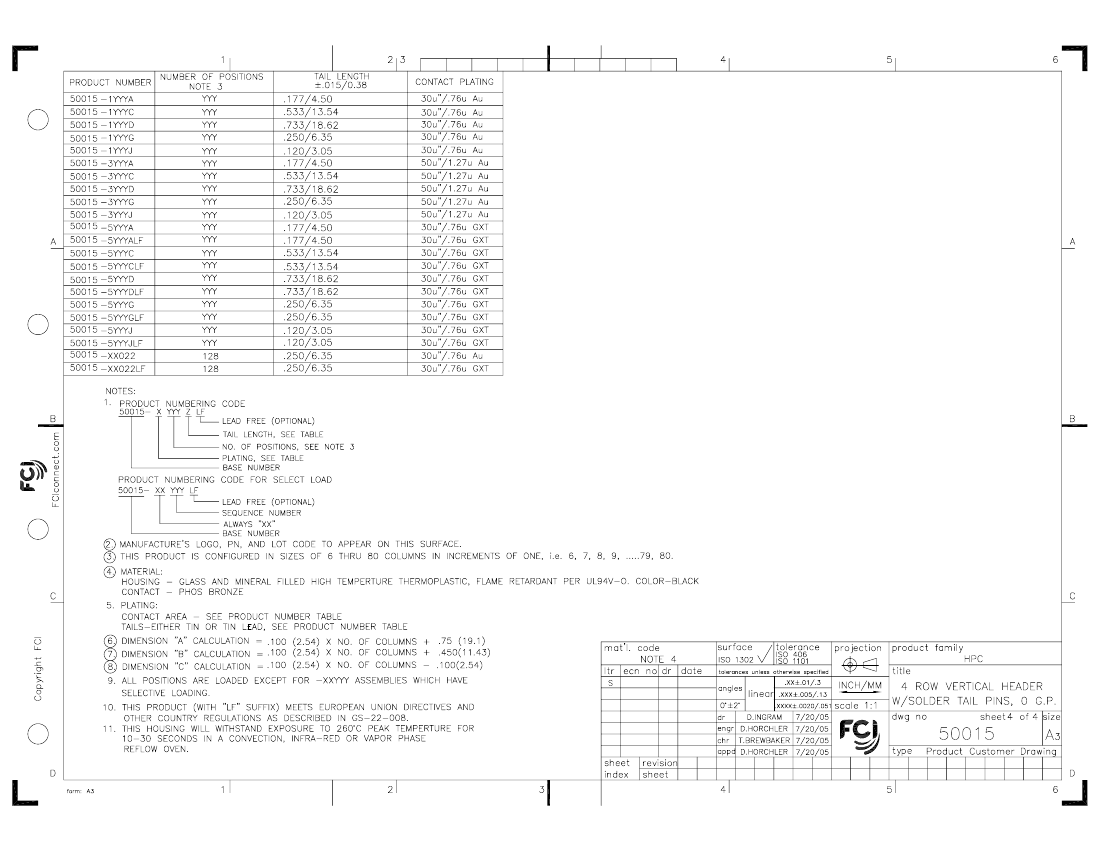

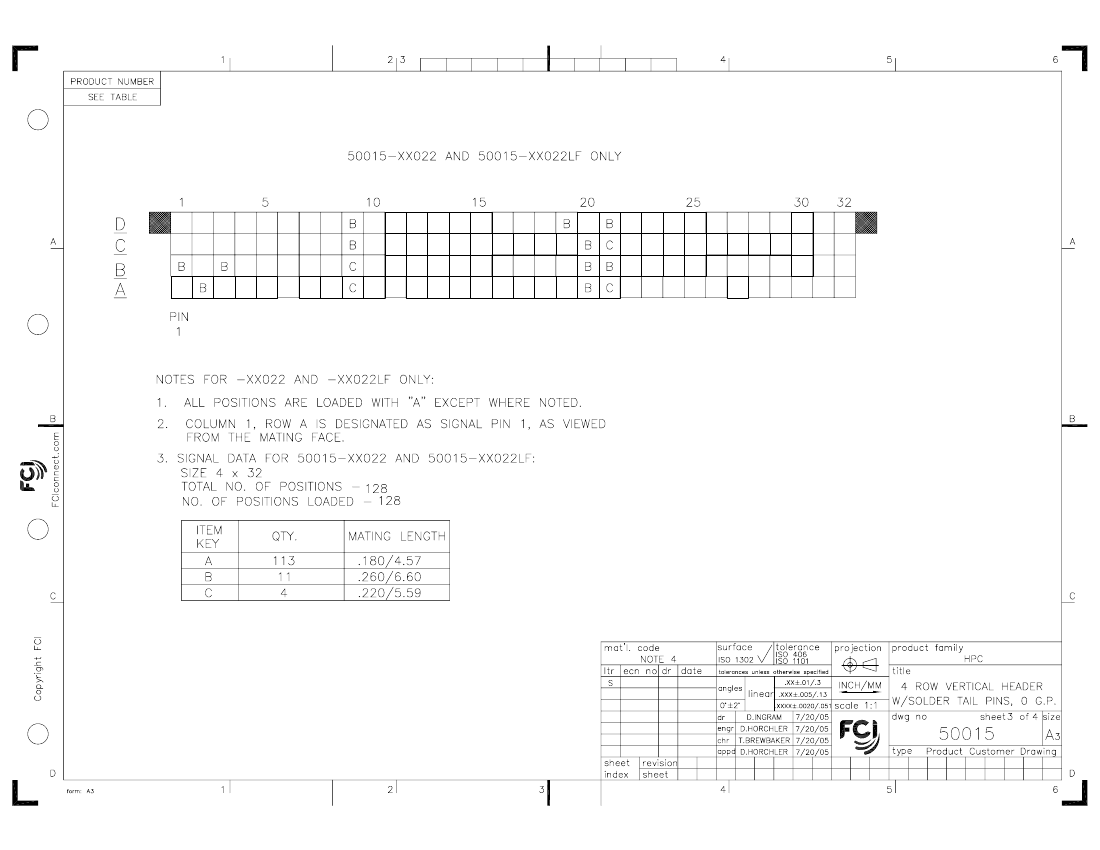

Preview

Download Datasheet

View All

PDM: Rev:S

STATUS:

Released

Printed: Jul 30, 2006

50015-1044JLF Related Products

	50015-1044JLF	50015-1040JLF	50015-1056JLF	50015-1060JLF	50015-1072JLF	16-ACIB-A50-XX
Description	Board Connector, 176 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE	Board Connector, 160 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE	Board Connector, 224 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE	Board Connector, 240 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE	Board Connector, 288 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE	MINIATURE ROTARY SWITCH
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	-
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
DIN compliance	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	-
MIL compliance	NO	NO	NO	NO	NO	-
Mixed contacts	NO	NO	NO	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-
Number of rows loaded	4	4	4	4	4	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-
Total number of contacts	176	160	224	240	288	-
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	-
Base Number Matches	1	1	1	1	1	-
Factory Lead Time	-	11 weeks 1 day	11 weeks 1 day	11 weeks 1 day	11 weeks 1 day	-
Manufacturer's serial number	-	50015	50015	50015	50015	-
