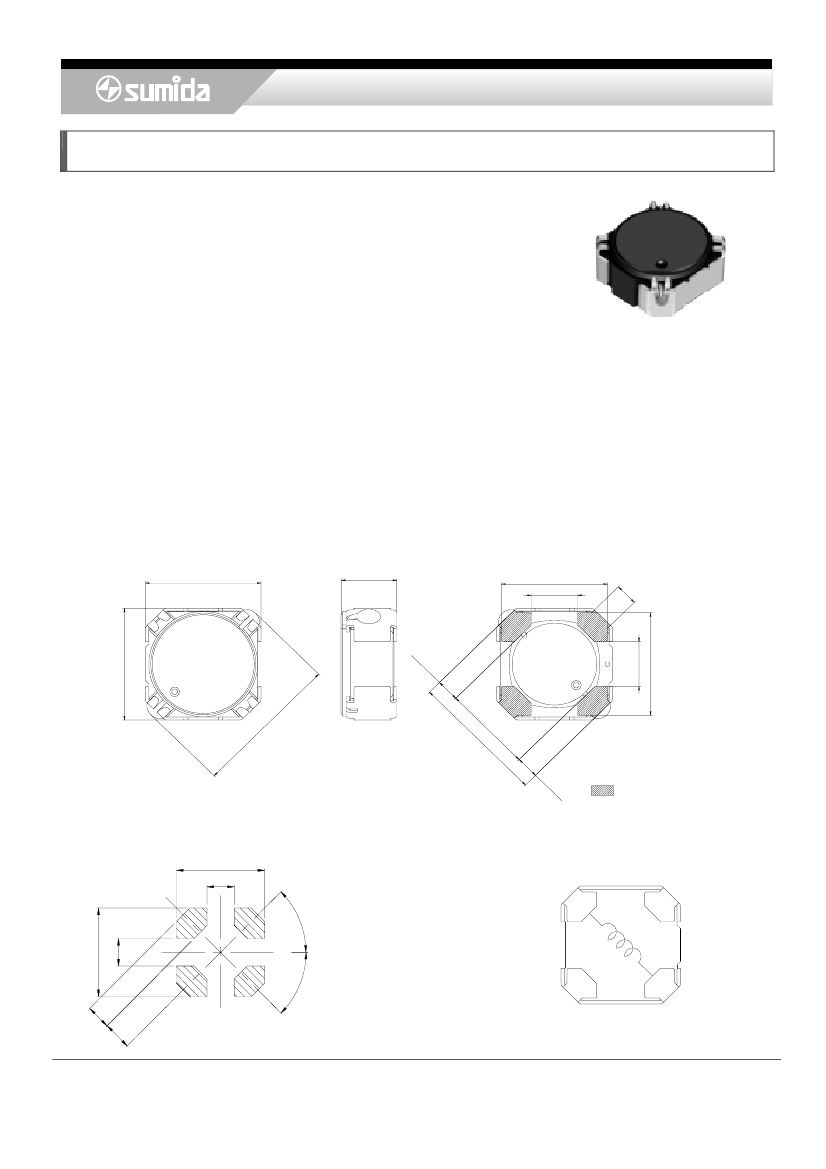

POWER INDUCTORS <SMD Type: CDCH**/A Series>
Type: CDCH12D58/A
◆
Product Description
・12.5×12.5mm
Max.(L×W), 6.0mm Max. Height.
・Inductance
range: 10½390μH
・Rated
current range:0.45½3.3A(125℃)
・In
addition to the standard versions of inductors shown here, custom inductors
are available to meet your exact requirements.
◆
Feature
・Magnetically
unshielded construction.
・High
reliable inductors, suitable to use in high temperature environment(125℃)
・Ideally
for automotive applications as converter inductors.
・RoHS
Compliance
◆
Dimensions (mm)
MAX.6.0 (Typ.5.8)
12.0±0.5
11.0±0.5
4.8±0.5
±
35
2.
3
0.
12.0±0.5
7.
6
MA
X.
1
：TERMINAL
◆
Land Pattern (mm)
13.0
4.0
◆
Schematics(Bottom)
13.0
4.0
Please refer to the sales offices on our website for a representative near you
www.sumida.com
45°
4.8±0.5
11.0±0.5
4±
2.
3
0.
)
.3 5
(9 0.
±
.1
14
4±
2.
3
0.
45°
6
3.
4.
2
1/2
POWER INDUCTORS <SMD Type: CDCH**/A Series>
Type: CDCH12D58/A
◆
Specification
Part Name
※
CDCH12D58/ANP-1ØØK□
CDCH12D58/ANP-12ØK□
CDCH12D58/ANP-15ØK□
CDCH12D58/ANP-18ØK□
CDCH12D58/ANP-22ØK□
CDCH12D58/ANP-27ØK□
CDCH12D58/ANP-33ØK□
CDCH12D58/ANP-39ØK□
CDCH12D58/ANP-47ØK□
CDCH12D58/ANP-56ØK□
CDCH12D58/ANP-68ØK□
CDCH12D58/ANP-82ØK□
CDCH12D58/ANP-1Ø1K□
CDCH12D58/ANP-121K□
CDCH12D58/ANP-151K□
CDCH12D58/ANP-181K□
CDCH12D58/ANP-221K□
CDCH12D58/ANP-271K□
CDCH12D58/ANP-331K□
CDCH12D58/ANP-391K□
Stamp
100K
120K
150K
180K
220K
270K
330K
390K
470K
560K
680K
820K
101K
121K
151K
181K
221K
271K
331K
391K
Inductance
［Within½
100kHz/1V
10μH±10％
12μH±10％
15μH±10％
18μH±10％
22μH±10％
27μH±10％
33μH±10％
39μH±10％
47μH±10％
56μH±10％
68μH±10％
82μH±10％
100μH±10％
120μH±10％
150μH±10％
180μH±10％
220μH±10％
270μH±10％
330μH±10％
390μH±10％
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
28(22)
32(26)
37(29)
50(40)
65(52)
72(58)
84(67)
96(76)
118(95)
141(113)
163(131)
210(168)
242(193)
276(220)
390(312)
480(384)
561(449)
812(650)
903(723)
1111(889)
Rated current
(A)(at 125℃)
※1
3.3
3.0
2.8
2.4
2.0
1.9
1.8
1.6
1.5
1.4
1.3
1.1
1.0
0.95
0.81
0.71
0.66
0.55
0.51
0.45
※
Description of part name
Ｃ
D C H 1 2 D
5
8
/ A N P
－
1 Ø Ø K
□
Ｂ
Ｃ
Box
Carrier Tape
※1.
Rated current: The DC current at which the inductance decreases to 90 % of it’s initial
value or when
△t＝30℃,
whichever is lower
(Ta=125℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
