POWER INDUCTORS <SMD Type: CDC Series>
Type: CDC5D23B
◆
Product Description
・6.0×6.0mm
Max.(L×W), 2.5mm Max. Height.
・Inductance
range: 2.2μH~ 270μH
・Rated
current range:0.19~ 2.16A
・In
addition to the standard versions of inductors shown here, custom inductors are available to meet
your exact requirements.
◆
Feature
・
Magnetically unshielded construction.
・Ideally
used in EL drive as EL lamp inverter inductors.
・RoHS
Compliance.
◆

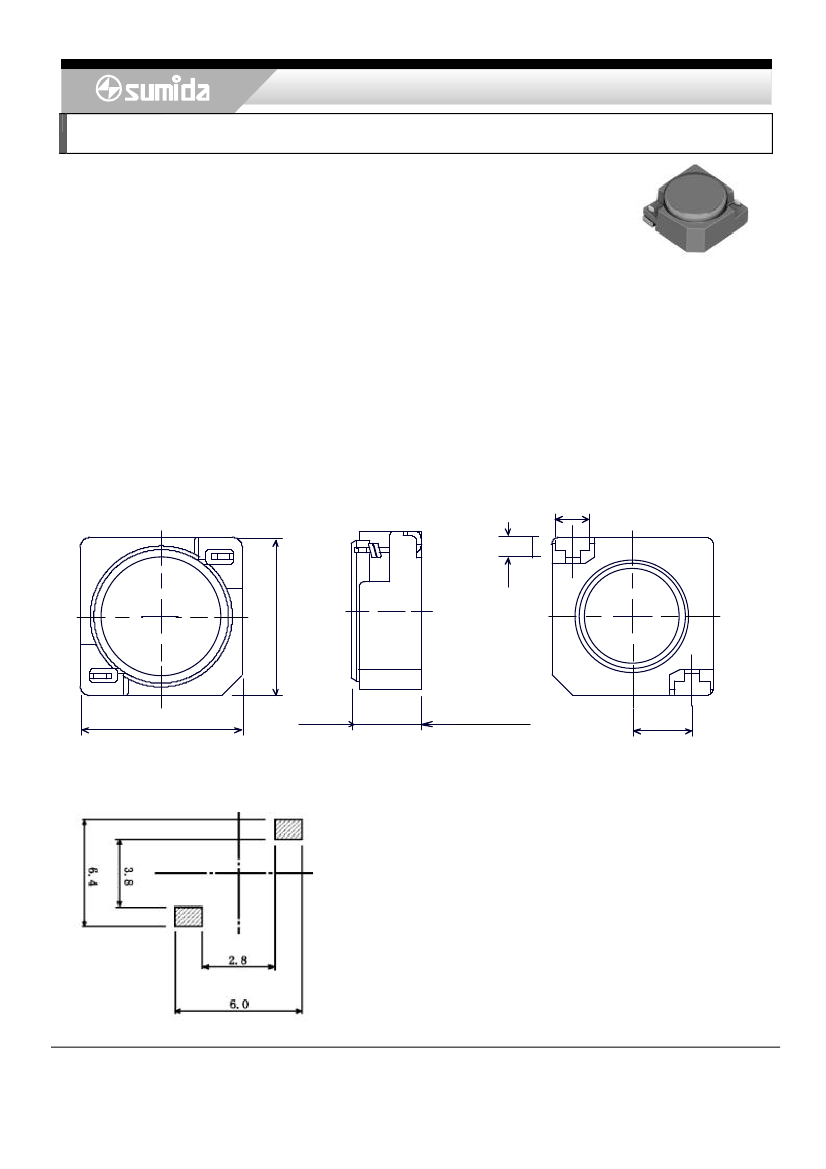

Dimensions (mm)
1 .2
5.8±0. 2
5.8±0.2
2.5 MA X.
0. 8
2 .2
◆
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
POWER INDUCTORS <SMD Type: CDC Series>
Type: CDC5D23B
◆
Specification
Part Name
※
CDC5D23BNP -2R2M□
CDC5D23BNP -2R7M□
CDC5D23BNP -3R3M□
CDC5D23BNP -3R9M□
CDC5D23BNP -4R7M□
CDC5D23BNP -5R6M□
CDC5D23BNP -6R8M□
CDC5D23BNP -8R2M□
CDC5D23BNP -100L□
CDC5D23BNP -120L□
CDC5D23BNP -150K□
CDC5D23BNP -180K□
CDC5D23BNP -220K□
CDC5D23BNP -270K□
CDC5D23BNP -330K□
CDC5D23BNP -390K□
CDC5D23BNP -470K□
CDC5D23BNP -560K□
CDC5D23BNP -680K□
CDC5D23BNP -820K□
CDC5D23BNP -101K□
CDC5D23BNP -121K□
CDC5D23BNP -151K□
CDC5D23BNP -181K□
CDC5D23BNP -221K□
CDC5D23BNP -271K□
Stamp
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
Inductance
(μH)
[Within½
100kHz
2.2μH±20%
2.7μH±20%
3.3μH±20%
3.9μH±20%
4.7μH±20%
5.6μH±20%
6.8μH±20%
8.2μH±20%
10μH±15%
12μH±15%
15μH±10%
18μH±10%
22μH±10%
27μH±10%
33μH±10%
39μH±10%
47μH±10%
56μH±10%
68μH±10%
82μH±10%
100μH±10%
120μH±10%
150μH±10%
180μH±10%
220μH±10%
270μH±10%
D.C.R.
(½Ω) Max.(Typ.)
(at20℃)
39 (30)
44 (34)
49 (38)
56 (43)
62 (48)
78 (60)
91 (70)
103(87)
133(102)
148(114)
166(128)
213(164)
248(191)
328(252)
378(291)
438(337)
546(420)
621(478)
715(550)
1000(772)
1070(820)
1250(960)
1660(1280)
1900(1460)
2440(1880)
2730(2100)
Rated
current
(A)※1
2.16
2.08
1.90
1.84
1.60
1.44
1.36
1.12
1.04
0.96
0.88
0.77
0.73
0.64
0.58
0.54
0.49
0.45
0.41
0.35
0.33
0.32
0.26
0.23
0.21
0.19
※
Description of part name
CDC5D23BNP -2R2M□
C
Carrier Tape
B
Box
※1
Rated current: The DC current at which the inductance decreases to 90 % of it’s initial
value or when
△t=40℃,
whichever is lower(Ta
=20℃).
