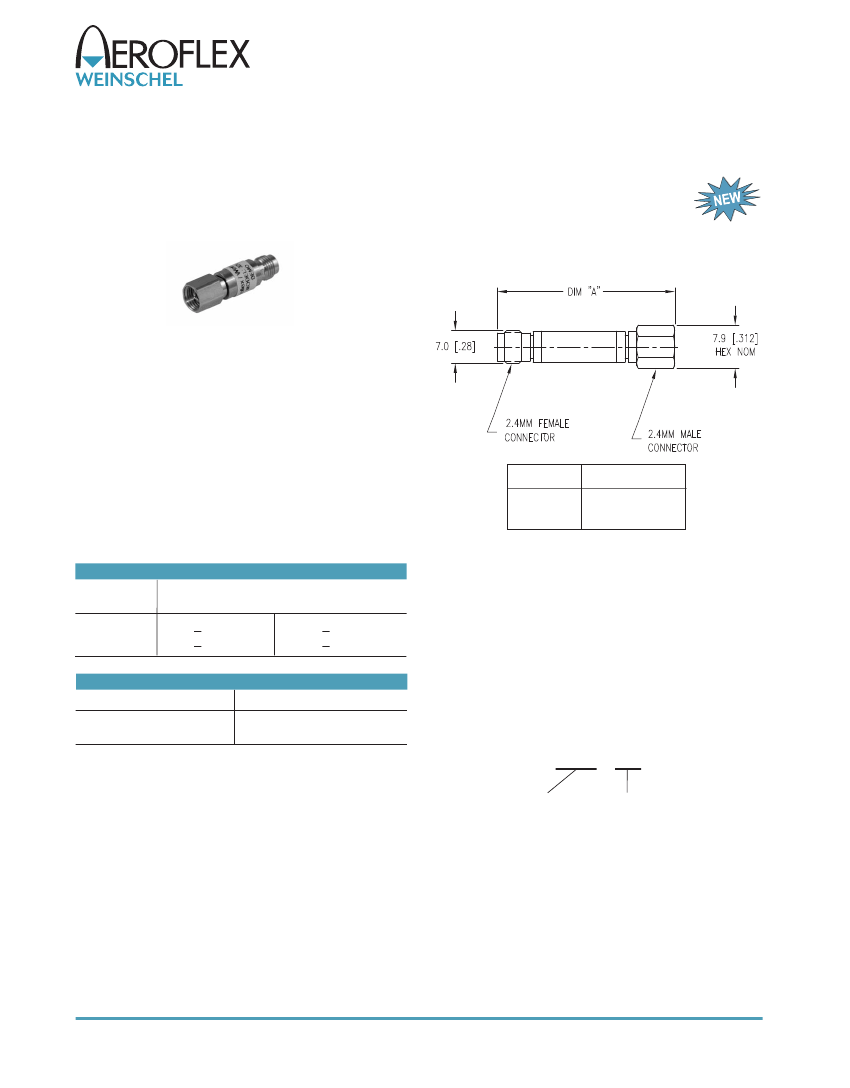

Fixed Coaxial Attenuators
Model 32L
High Reliability Fixed Coaxial Attenuator
2.4mm Connectors
WEIGHT:
7 g (0.25 oz.) maximum
PHYSICAL DIMENSIONS:
dc to 52.0 GHz
2 Watts
Features
o
o
o
o
o
Ideal for Space & Airborne Applications.
Available in 3, 6, 10, 20 & 30 dB. Custom
values available.
Rugged injection molded connectors.
Designed to meet environmental requirements
of MIL-DTL-3933.
100% Subjected to Monitored Thermal
Cycle (MTC) & Peak Power Tests.
Model
32L
F32L
M32L
DIM A
+/-0.5mm (0.02 inch)
28.70 (1.13)
24.64 (0.97)
33.00 (1.30)
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
dc to 52.0 GHz
NOTE: All dimensions are given in mm (inches).
MAXIMUM DEVIATION OVER FREQUENCY:
Screening
Units are screened 100% as follows:
Monitored Thermal Cycle:
Units are subjected to 10
thermal cycles between -55 °C to +100 °C. The PIN-to-PIN
DC resistance is continuously monitored and stored.
Peak Power:
200 Watts, 5
μsec
pulse width; 0.05% duty
cycle for 3 minutes at each end. DC Attenuation is
measured before and after peak power.
Attenuation and SWR are tested as final electrical test.
MODEL NUMBER DESCRIPTION:
Example:
Nominal
ATTN (dB)
3, 6
10, 20, 30
MAXIMUM SWR:
Deviation (dB)
dc-26.5 GHz
26.5-52 GHz
+ 0.50
+ 0.75
+ 1.25
+ 1.25
Frequency (GHz)
dc - 26.5
26.5 - 52
SWR
1.30
1.40
POWER RATING:
2 watts
average
to 25 °C ambient tem-
perature, derated linearly to 0.2 watt at 100 °C. 200 watts
peak
(5
μsec
pulse width; 0.05 % duty cycle).
POWER COEFFICIENT:
< 0.004 dB/dB/watts
TEMPERATURE COEFFICIENT:
< 0.0004 dB/dB/°C
TEMPERATURE RANGE:
-55 °C to +100 °C
TEST DATA:
Attenuation and SWR Testing performed
across frequency range. Test data available at additional
cost.
CONNECTORS:
2.4mm connectors mate nondestructively
with other 2.4mm connectors. Contact Pin Recession (0 to
0.003 inch).
CONSTRUCTION:
Passivated stainless steel body and
connectors; gold plated beryllium copper contacts. Each
unit is sealed using low outgassing sealant.
64
*32L - XX
Basic
Model
Number
Attenuation
Value (dB)
* Add Prefix M for double male and F for double female connectors.
EXPORT CONTROL:
This product is controlled for export under the International Traffic
in Arms Regulations (ITAR). A license from the U.S. Department
of State is required prior to the export of this product from the
United States.
EXPORT WARNING:
Aeroflex’s military and space products are controlled for export
under the International Traffic in Arms Regulations (ITAR) and
may not be sold or proposed or offered for sale to certain
countries. (See ITAR 126.1 for complete information.)
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 3/13/11
