3082-6152-30 Overview

Fixed Attenuator, 0MHz Min, 2500MHz Max

3082-6152-30 Parametric

Parameter Name	Attribute value
Maker	XMA Corp.
Reach Compliance Code	unknown
Other features	N, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	30 dB
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	2500 MHz
Minimum operating frequency
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	NICKEL
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

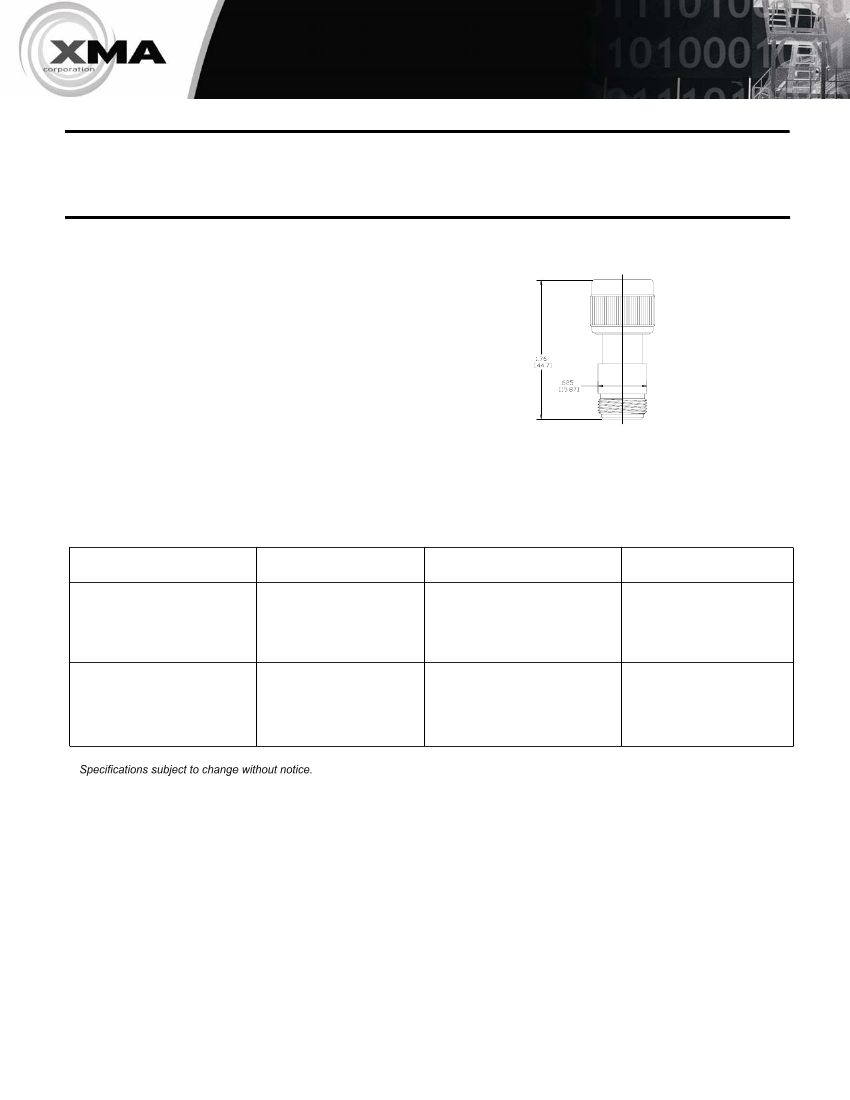

N Fixed Coaxial Attenuators

Low Cost

Description

Type N low cost series attenuators have been designed

for use where a cost effective solution with solid

performance is required. Standard configuration N plug/

N jack. Additional attenuation values and connector

configurations are available. Contact the factory or your

local distributor for details.

3082 Series

Outline

Power:

Finish:

2 Watts Average

Nickel Plated Brass

250

Watts Peak

Weight:

See Derating Curve

on Page 4 2.5 oz. (70.9g)

PART NUMBER

PLUG-JACK

3082-6156-03

3082-6156-06

3082-6156-10

3082-6156-20

3082-6156-30

3082-6152-03

3082-6152-06

3082-6152-10

3082-6152-20

3082-6152-30

FREQUENCY

(GHz)

ATTENUATION

(dB)

3.0 ± 0.30

6.0 ± 0.30

10.0 ± 0.50

20.0 ± 0.75

30.0 ± 1.00

3.0 ± 0.30

6.0 ± 0.30

10.0 ± 0.50

20.0 ± 0.75

30.0 ± 1.00

VSWR

GHz 1.25

6.0

2.5

GHz

1.20

Non-standard versions available.

Contact franchised distributor or factory.

Phone: 603-222-2256

fax: 603-222-2259

www.XMAcorp.com

sales@XMAcorp.com

3082-6152-30 Related Products

	3082-6152-30	3082-6156-06	3082-6156-03	3082-6152-03	3082-6152-06	3082-6152-10	3082-6152-20	3082-6156-10	3082-6156-30	3082-6156-20
Description	Fixed Attenuator, 0MHz Min, 2500MHz Max	Fixed Attenuator, 0MHz Min, 6000MHz Max	Fixed Attenuator, 0MHz Min, 6000MHz Max	Fixed Attenuator, 0MHz Min, 2500MHz Max	Fixed Attenuator, 0MHz Min, 2500MHz Max	Fixed Attenuator, 0MHz Min, 2500MHz Max	Fixed Attenuator, 0MHz Min, 2500MHz Max	Fixed Attenuator, 0MHz Min, 6000MHz Max	Fixed Attenuator, 0MHz Min, 6000MHz Max	Fixed Attenuator, 0MHz Min, 6000MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown	compliant	unknown	unknown	unknown
Other features	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W	N, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	30 dB	6 dB	3 dB	3 dB	6 dB	10 dB	20 dB	10 dB	30 dB	20 dB
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
Maximum operating frequency	2500 MHz	6000 MHz	6000 MHz	2500 MHz	2500 MHz	2500 MHz	2500 MHz	6000 MHz	6000 MHz	6000 MHz
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Terminal surface	NICKEL	NICKEL	NICKEL	NICKEL	Nickel (Ni)	NICKEL	Nickel (Ni)	NICKEL	NICKEL	NICKEL
Maximum voltage standing wave ratio	1.2	1.25	1.25	1.2	1.2	1.2	1.2	1.25	1.25	1.25
Maker	XMA Corp.	-	-	XMA Corp.	-	XMA Corp.	-	XMA Corp.	XMA Corp.	XMA Corp.
Base Number Matches	1	1	1	1	-	1	-	1	1	1
